  #26
Old 02-18-2008
99ranger4X4OFFROAD's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Amarillo, Tx
Posts: 238
well i have the box down fireing right now where the port hole is on that center hump and the vibration from that port right on the cab vibrates the whole cab and i dont use the cup holders when i got something to drink cause it will almost shake it out of the holder
Reply With Quote
  #27
Old 02-18-2008
99ranger4X4OFFROAD's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Amarillo, Tx
Posts: 238
i have had these subs in both style i like the ported box better and it also allows cool air to get in the box to keep your subs cool cause i noticed with the sealed box they would get warm
Reply With Quote
  #28
Old 02-18-2008
Hardwareman's Avatar
Member

Join Date: Feb 2008
Location: Victorville, CA
Posts: 166
No, I'm sorry. I don't have those ones. The plastic package is torn open so I may have taken them out already but I don't remember. I still have the other allen head screws for the amp though. Like the ones used to hold the speaker wires and other cables in. Do you want me to send you those?




Allen
Reply With Quote
  #29
Old 02-18-2008
99ranger4X4OFFROAD's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Amarillo, Tx
Posts: 238
no i just need 1 screw for the end cap is all i am burning the songs on to a cd and will try them out tomorrow
Reply With Quote
  #30
Old 02-18-2008
Hardwareman's Avatar
Member

Join Date: Feb 2008
Location: Victorville, CA
Posts: 166
Sounds good! Sorry about that, I really thought I had them. Thanks for the experience on the ported in the Ranger. Looks like I'll be building a new box pretty soon...lol



Allen
Reply With Quote
  #31
Old 02-18-2008
99ranger4X4OFFROAD's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Amarillo, Tx
Posts: 238
there is one on here i saw and like a lot i will try to find it real quick
Reply With Quote
  #32
Old 02-18-2008
99ranger4X4OFFROAD's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Amarillo, Tx
Posts: 238
its the single sub and it has 2 green port pipes

https://www.ranger-forums.com/forum2...ad.php?t=34226
Reply With Quote
  #33
Old 02-18-2008
Member

Join Date: Sep 2007
Location: LANSING, MI
Posts: 339
hardwareman you say your subs arent loud, type r's pound. your problem is the amp you have. you have it running as a 2 channel so your sending like what under 200watts to each sub. you need to bridge the amp. and i am assuming your subs are D4's so wire each to 2ohm and then wire them together at 1 ohm, but make sure your amp can handle a 1 ohm load. or check into a hifinics BRUTUS BXi1206D it is under $200 on ebay and does 1200rms @1 ohm. by wiring them to 1 ohm you will get the most of your amp if it can do 1 ohm. the type R's rms is 550. i used to have a R and ran 600 to it daily and have run 1500 to it for a few days. they are power beasts and they need the power.
Reply With Quote
  #34
Old 02-18-2008
Hardwareman's Avatar
Member

Join Date: Feb 2008
Location: Victorville, CA
Posts: 166
No, I did'nt say my subs are'nt loud........they're loud as hell and vibrate everything in my Ranger. The change falls out of the cupholders when there's too much in them...lol.

Yeah they are the dual voice coil 4ohm's and I have them wired to a 2ohm load which my amp feeds each one 275 watts a piece. I wish my amp was 1ohm stable but it's not. The max watts this amp will put out is 550 at a 4ohm load. It's true wattage however as RF makes pretty good amps. I don't know what they were thinking when they made these however.

I just wanted to know how a ported box sounded in a Ranger because Im thinking of building one.



Allen
Reply With Quote
  #35
Old 02-18-2008
99ranger4X4OFFROAD's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Amarillo, Tx
Posts: 238
my rockford amp is a 1500w comp. 2ch and its pushing my ***** hard
Reply With Quote
  #36
Old 02-18-2008
Member

Join Date: Oct 2007
Location: Owatonna, MN
Posts: 1
What is the trick to getiing those tracks to download?
Reply With Quote
  #37
Old 02-18-2008
99ranger4X4OFFROAD's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Amarillo, Tx
Posts: 238
well you got to have a certain program and i downloaded it but really they are not my type of music
Reply With Quote
  #38
Old 02-18-2008
Member

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
I will get pics of my 2 crossfire bmf 15s tomorrow.
Reply With Quote
  #39
Old 02-18-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by 99ranger4X4OFFROAD View Post
so did you like the pa amp cause i have not had one but heard they are not so good


i fried the first one, but i didnt know **** about audio, still dont for that matter. but it was because i had the output turned all the way up
Reply With Quote
  #40
Old 02-18-2008
99ranger4X4OFFROAD's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Amarillo, Tx
Posts: 238
was it not big enough for what you needed? And does anyone know how to get so rockford punch amp end cap screws from? i need just one
Reply With Quote
  #41
Old 02-18-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
it set off car alarms, got the cops attention, parents could hear it from blocks away.. it was probably plenty


but like everybody, you always want more lol

i brought the amp up here with me. but left the sub at home.. why? i have NO idea :(
Reply With Quote
  #42
Old 02-18-2008
99ranger4X4OFFROAD's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Amarillo, Tx
Posts: 238
hmm what were you running

and i just had my trans worked on and the pipe was cut and not fixed and it sounds horrible but its LOUD its cut about a ft off behind the headers
Reply With Quote
  #43
Old 02-22-2008
JakeH05's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Elberton, GA
Posts: 695
my system

2 Alpine Type R 12's, 2400 watt power acoustik amp, custom vented box, and also a jenson 7" flip out dvd screen up front

Name:  jhalpinetypeRs.jpg
Views: 0
Size:  88.5 KB
Reply With Quote
  #44
Old 02-22-2008
Hardwareman's Avatar
Member

Join Date: Feb 2008
Location: Victorville, CA
Posts: 166
Hey JakeH05,

Those subs are exactly like mine except yours are 12's and mine are 10's!

Since you have the same subs I do (only larger.....lol) can you tell me how the Type-R's sound ported and what size box that is? I know I already asked how ported sounds but you actually have the same subs I do. Thanks.



Allen
Reply With Quote
  #45
Old 02-22-2008
Member

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503

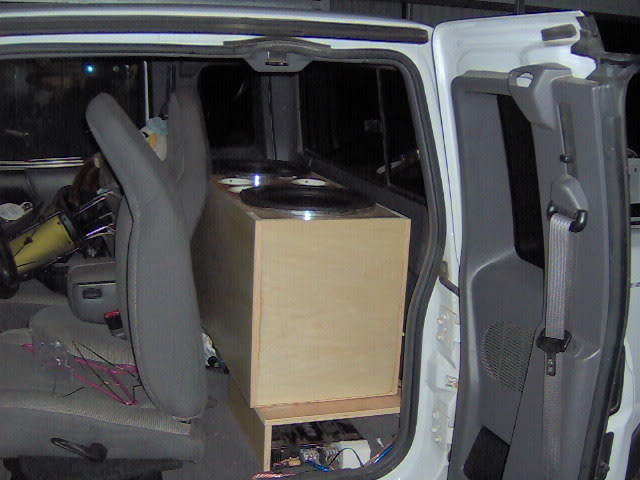

Here are my 2 cross fire 15s with a hifonics 1200d amp.



Reply With Quote
  #46
Old 02-22-2008
Member

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
Reply With Quote
  #47
Old 02-23-2008
mmats69's Avatar
Member

Join Date: Jan 2008
Location: Montgomery, AL
Posts: 52
so you don't have to click on the links. this is for the above poster

Ill try again

Name:  bmf15s003.jpg
Views: 0
Size:  32.0 KB

Name:  bmf15s001.jpg
Views: 0
Size:  50.1 KB
Reply With Quote
  #48
Old 02-23-2008
mmats69's Avatar
Member

Join Date: Jan 2008
Location: Montgomery, AL
Posts: 52

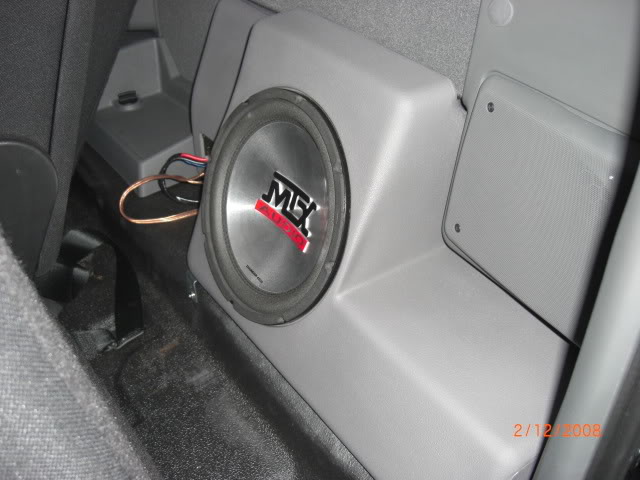

here is my lil ole 10 in the Ranger single cab thunderform

Name:  CIMG0172.jpg
Views: 0
Size:  72.6 KB
Reply With Quote
  #49
Old 02-23-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Here's mine(wires have since been cleaned up):
DSC_0014.jpg?t=1198873031
Reply With Quote
  #50
Old 02-27-2008
ranger024x4's Avatar
RF Veteran
iTrader: (6)

Join Date: Aug 2004
Location: nova
Posts: 5,061
Quote:
Originally Posted by Hardwareman View Post
Hey JakeH05,

Those subs are exactly like mine except yours are 12's and mine are 10's!

Since you have the same subs I do (only larger.....lol) can you tell me how the Type-R's sound ported and what size box that is? I know I already asked how ported sounds but you actually have the same subs I do. Thanks.



Allen

I had 2 12inch type r's in a ported box (i think it was 4 cubic feet for the pair) and it was amazing. I had 1600 watts rms going to the pair and they hit hard!

i belive ricky said they hit a 147.7
Reply With Quote
