Replaced 5x7's with 6x9's

I've been asked about this before, so here's a thread for anybody interested.

I got tired of my sub box taking up too much space, so I took it out. I got used to listening to my music without the sub, but it was still lacking a bit, so I decided to go the route of 6x9's. While I was working with the speakers, I came to realize that you get better bass out of the front doors than the rears. The only problem with this is that the doors tend to rattle more when you upgrade to a bigger/better speaker.

I used Pioneer (TS-a6961 R) 3 way 6x9 speakers for both the doors and the rear speakers. The box comes with a template on the cover so you can cut the proper size hole for the speakers. I cut out the template, then put it over the existing holes for the speakers and put it into a position where the new speaker would not obstruct the window. I then made the cuts with a Dremel tool, ground down the edges, drilled new holes for the screws, and painted over the exposed metal.

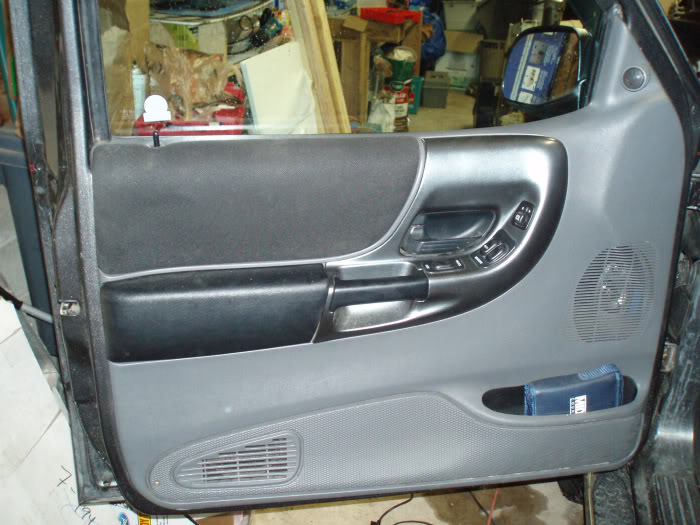

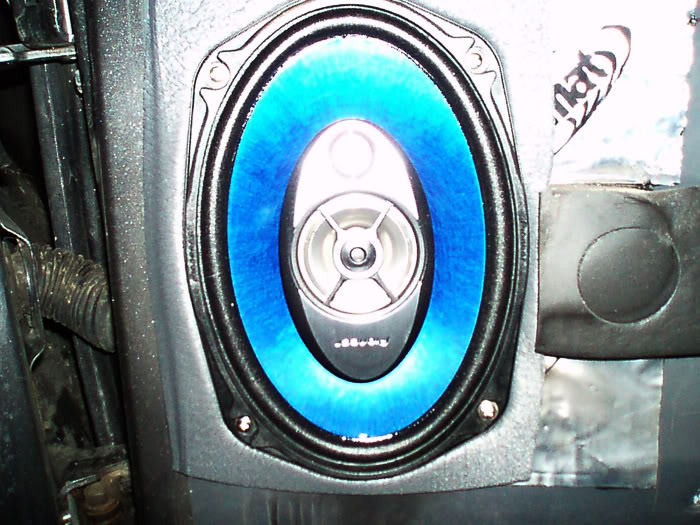

Here are some photos of the install. The front dors are the ones with the speakers mounted vertically, the rear doors are the ones with the speakers mounted horizontally.

Name:  P2120131.jpg
Views: 74
Size:  98.2 KB

Name:  P2120122.jpg
Views: 17
Size:  101.7 KB

Name:  P2120112.jpg
Views: 29
Size:  78.4 KB
Reply With Quote
  #2
Old 02-15-2006
Member

Join Date: Jul 2005
Location: Anchorage,Alaska
Posts: 125
I think my friend put some 6x9's in his exploder without power doors and it rubbed on the handle and he had to shave it down, his speakers didn't have the door cover over it though, he probably did it in a stupid ghetto way and that's why.
Reply With Quote
  #3
Old 02-15-2006
gatorblue92's Avatar
RF Veteran

Join Date: Jun 2004
Location: Delaware
Posts: 8,238
looks good john... what kind of tweeters are those on the door?
Reply With Quote
  #4
Old 02-15-2006
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
looks good my friend...
Reply With Quote
  #5
Old 02-15-2006
blkb3's Avatar
Member

Join Date: Oct 2005
Location: Tolleson, Az
Posts: 443
what kind of amp are you using for those? or is it straight from the H.U.? im interested in doing this too(dont want to take up all the space with a sub box). is the vibrating in the front doors bad or does the dynamat kill it for the most part?
Reply With Quote
  #6
Old 02-15-2006
TrailRateThisFx4's Avatar
Member

Join Date: Nov 2005
Location: Royal Oak, Michigan
Posts: 1,022
looks good nice job im thinking of putting 6x9's in my front doors
Reply With Quote
  #7
Old 02-15-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
looks good... i didnt have the stones to keep cutting my doors up, but im content now with my 6x8s...
Reply With Quote
  #8
Old 02-15-2006
AuthPineApple's Avatar
Member

Join Date: Jan 2006
Location: Santa Monica, CA
Posts: 420
awesome, I will probably swap some 6x9s in my ranger. Looks good.
Reply With Quote
  #9
Old 02-15-2006
winks's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
I believe the tweeters are by a company called Rampage, but I can't find any info on the net about them, so I am probably wrong. If I can find out the info, I'll let you know Billy.
Stephan the head unit works pretty well, but to run my equalizer, I had to install an amplifer. I managed to get a 4 channel Legacy to fit underneath my seat. Its labeled as 400 watts max power, but I've calculated it to be putting about 30 watts RMS per channel. That works out pretty well because the speakers are rated at 40 watts RMS.
The doors vibrating aren't too much of a problem for most music, but hip hop, pop and rap with the lower bass make it sound a bit shakey. If you were to put dynamat on the inside of the doors, it should work out pretty well. The setup I have right now doesn't seem to do much.
