Rinconmanof90's 2010 build - Page 2 - Ranger-Forums - The Ultimate Ford Ranger Resource


Audio & Video Tech General discussion of audio and video for the Ford Ranger.

Reply

LinkBack Thread Tools Search this Thread
  #26
Old 01-22-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503

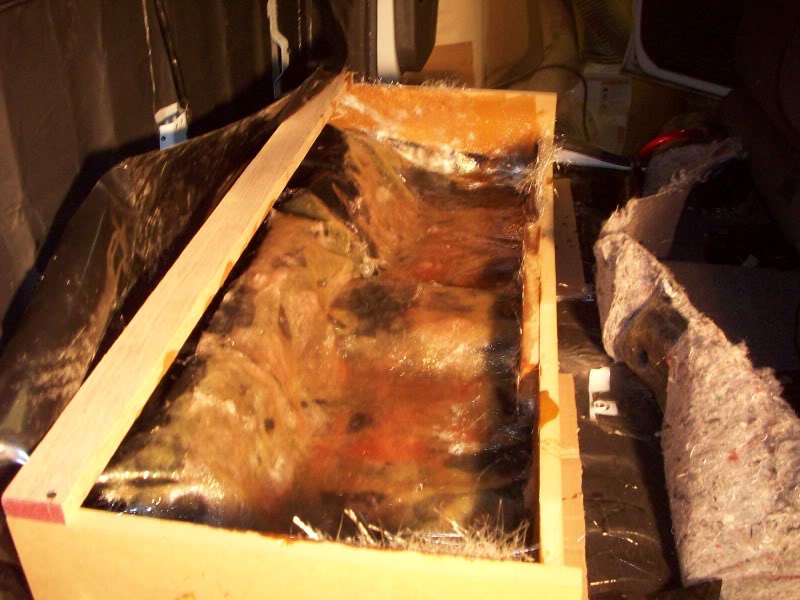

WEll i got the second layer put on.
Name:  006-4.jpg
Views: 10
Size:  90.9 KB
Reply With Quote
  #27
Old 01-22-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503

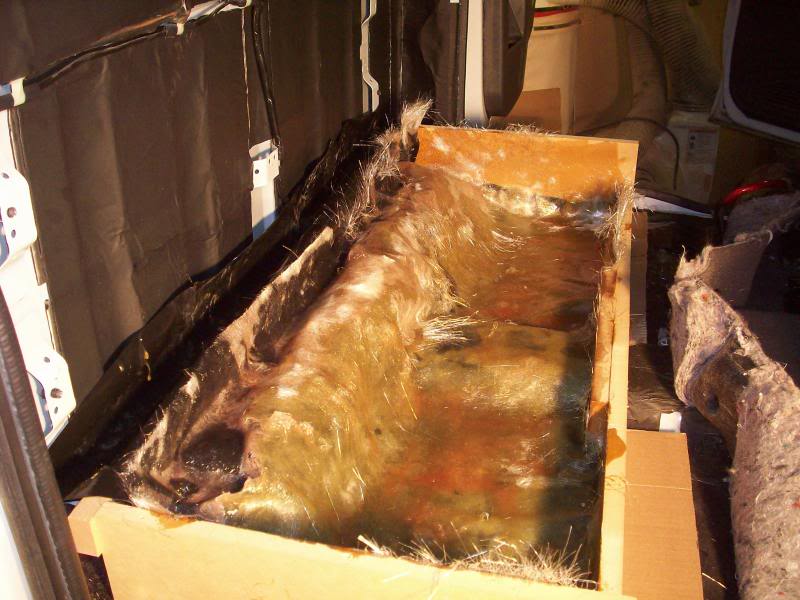

I added a back piece to the floor, then put the plastic over it and put a layer of glass over it. I think its coming along great so far. Let me know what yall think.
Name:  007-3.jpg
Views: 6
Size:  83.4 KB
Reply With Quote
  #28
Old 01-22-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503

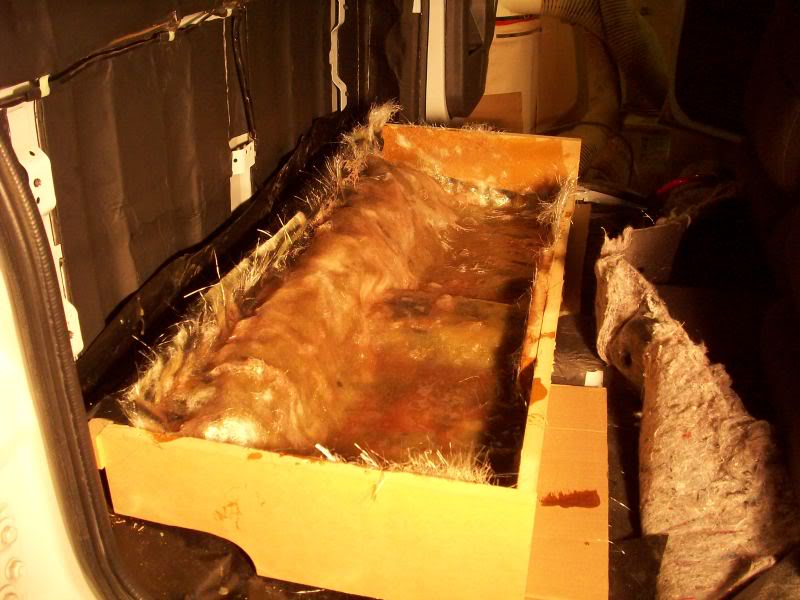

THis is the second layer on the back hump.
Name:  008-3.jpg
Views: 5
Size:  82.5 KB
Reply With Quote
  #29
Old 01-23-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503

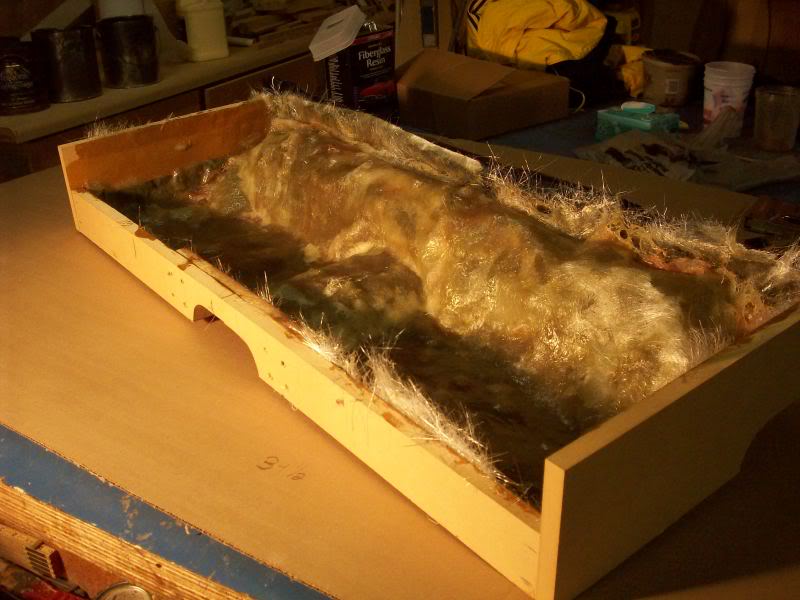

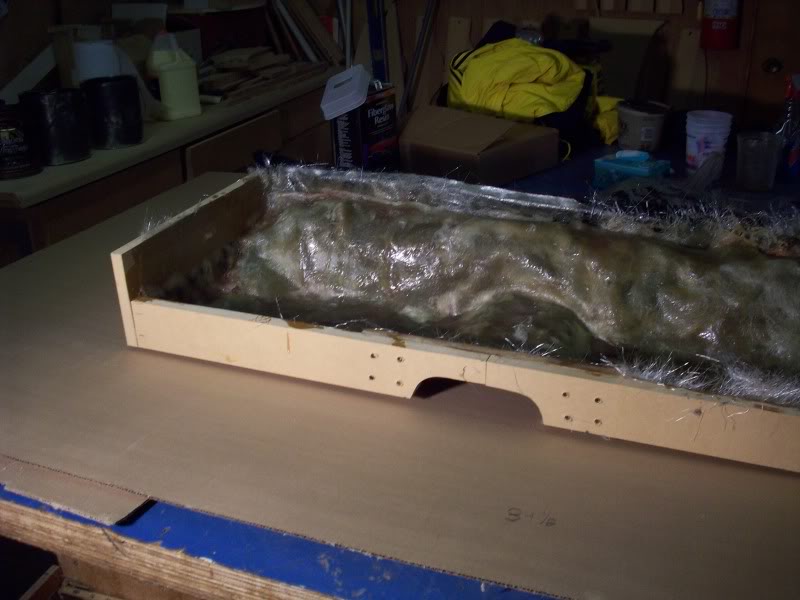

Well here is the mold of the floor out of the truck. I still gota add a few more layer but its coming along good. Im gona start on the top part of the box sunday. :)
Name:  002-6.jpg
Views: 5
Size:  69.9 KB
Name:  003-8.jpg
Views: 2
Size:  76.7 KB
Reply With Quote
  #30
Old 01-23-2010
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
looks like a pain in the *** haha
Reply With Quote
  #31
Old 01-23-2010
Toms994x4's Avatar
Member
iTrader: (4)

Join Date: Jul 2009
Location: Sanford, NC
Posts: 1,300
I want to hear it when you're done.
Reply With Quote
  #32
Old 01-23-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
Quote:
Originally Posted by Toms994x4 View Post
I want to hear it when you're done.
ALright, ill let you know when i get it done.
Reply With Quote
  #33
Old 01-23-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
Well, hopefully ill be able to start on the top of the box tomorrow. I had planned on getting it done tomorrow, but i gota work at 2 tomorrow. Im gona get up early and get as much as i can done. Be expecting plenty of pics.
Reply With Quote
  #34
Old 01-24-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
Well i got some more progress done today. :)

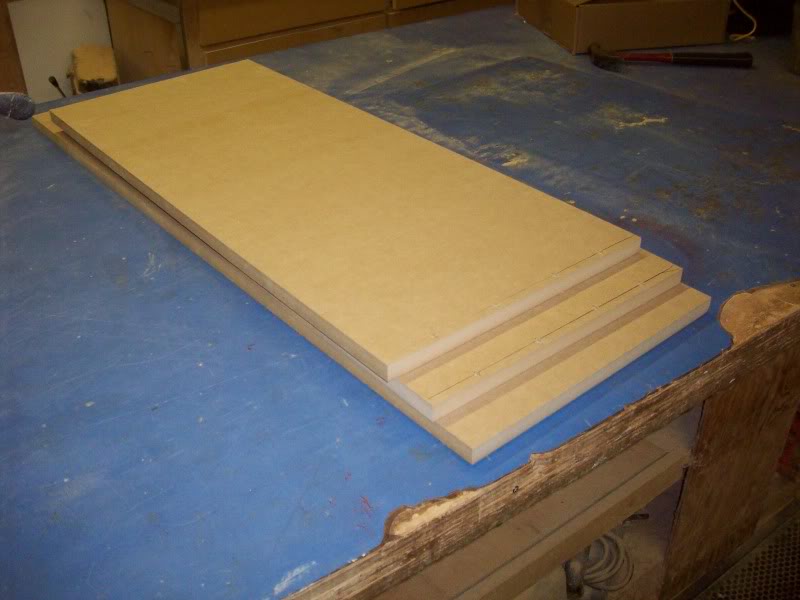

The top and 2 sides cut out
Name:  001-8.jpg
Views: 2
Size:  61.7 KB

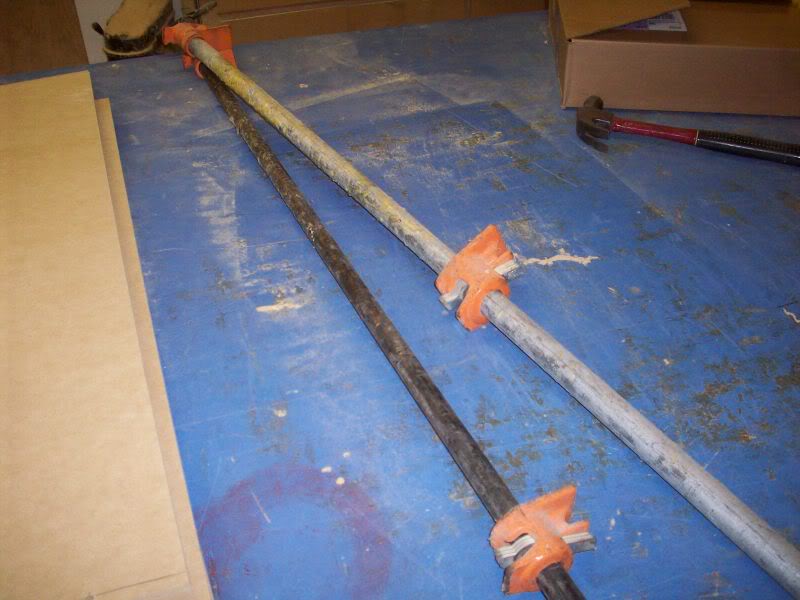

My homemade pipe clamps. 2 of many we have in the shop.
Name:  002-7.jpg
Views: 8
Size:  72.1 KB

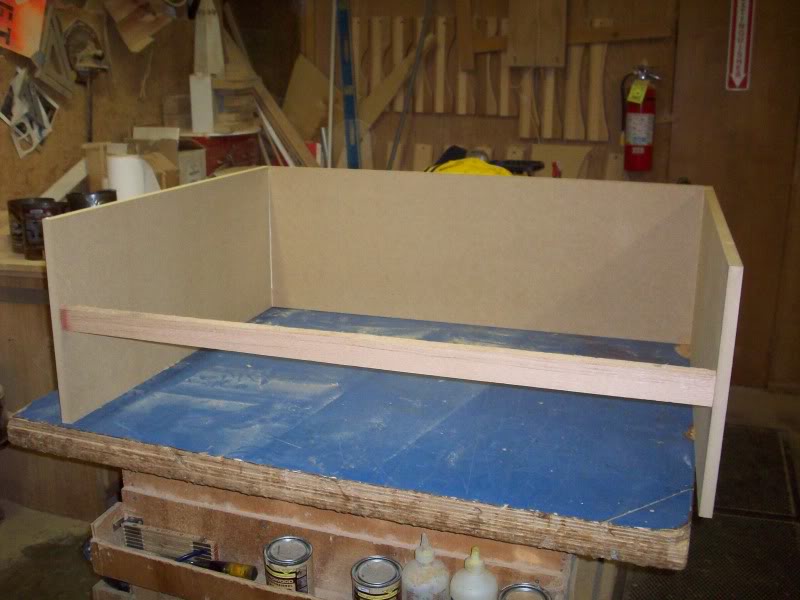

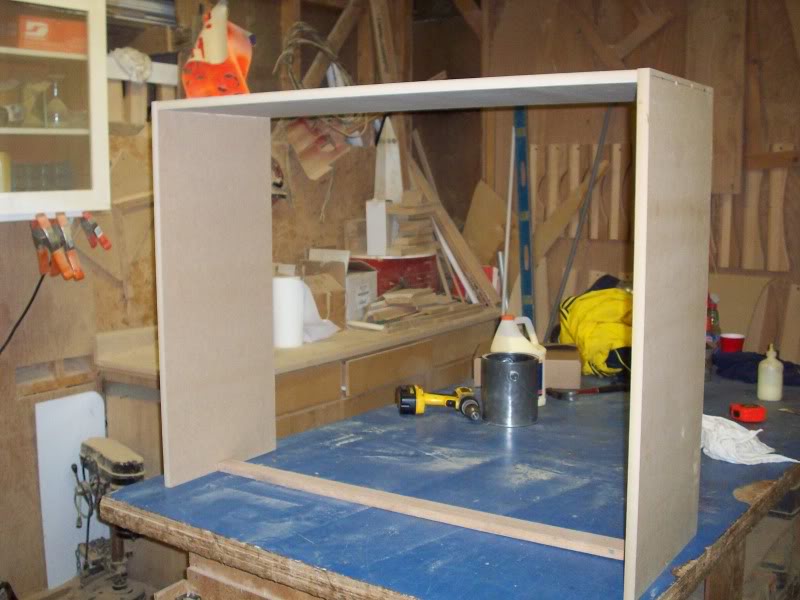

The top and sides glued and screwed. I had to use a little brace at the bottom to hold it square since there wont be a wood bottom.
Name:  003-9.jpg
Views: 3
Size:  72.3 KB
Name:  004-7.jpg
Views: 4
Size:  78.0 KB

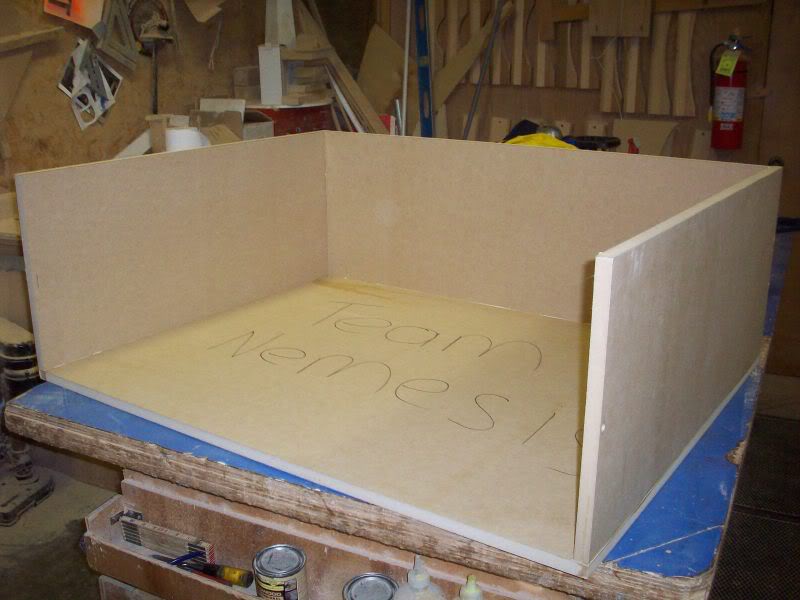

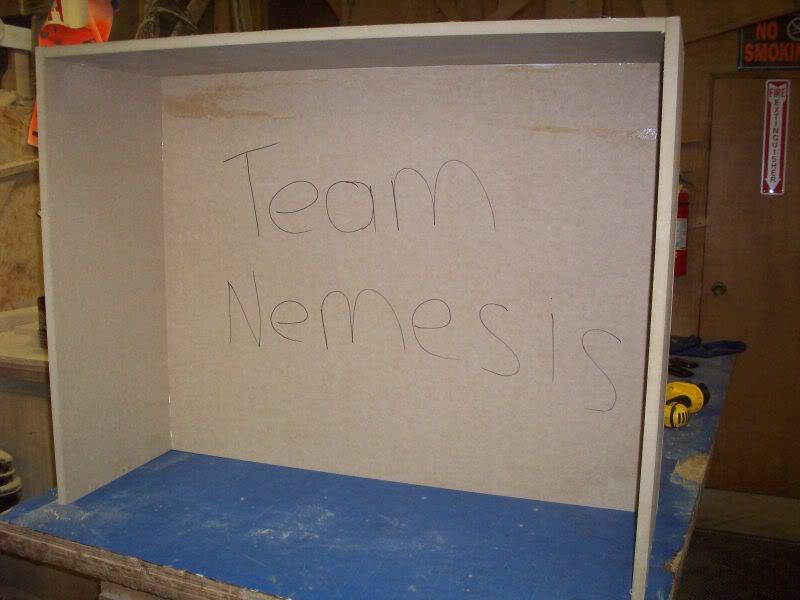

The back piece glued and screwed on.
Name:  006-5.jpg
Views: 3
Size:  68.1 KB
Name:  005-7.jpg
Views: 2
Size:  57.5 KB

All i gota do now is cut out the 2 front baffles, fiberglass the inside, and cut out holes for subs, ports and all thread. :)
Reply With Quote
  #35
Old 01-24-2010
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Nice, I was just looking at this on the SMD forum
Reply With Quote
  #36
Old 01-24-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503

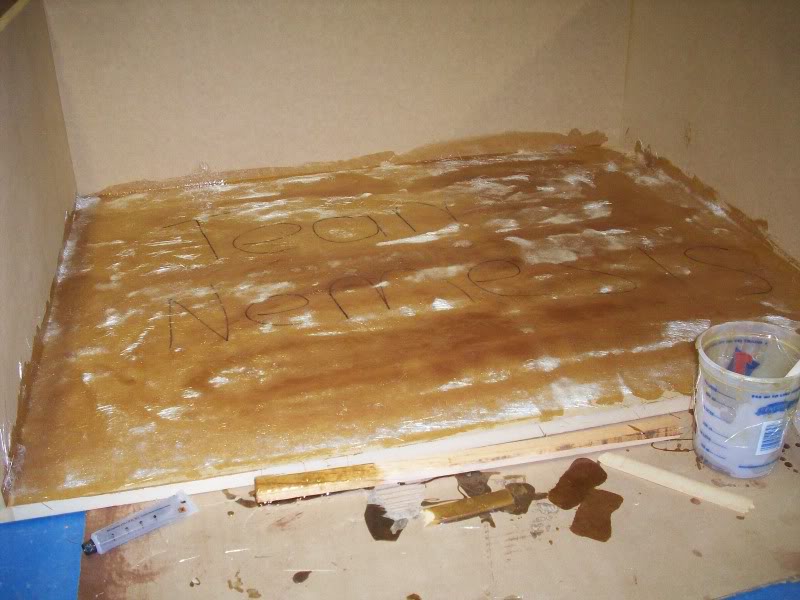

Well i had some resin left over from the gallon that i bought. It wont enough to do another layer on my floor so i put it on my back wall of the box.
Name:  007-4.jpg
Views: 3
Size:  85.4 KB
Reply With Quote
  #37
Old 01-24-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503

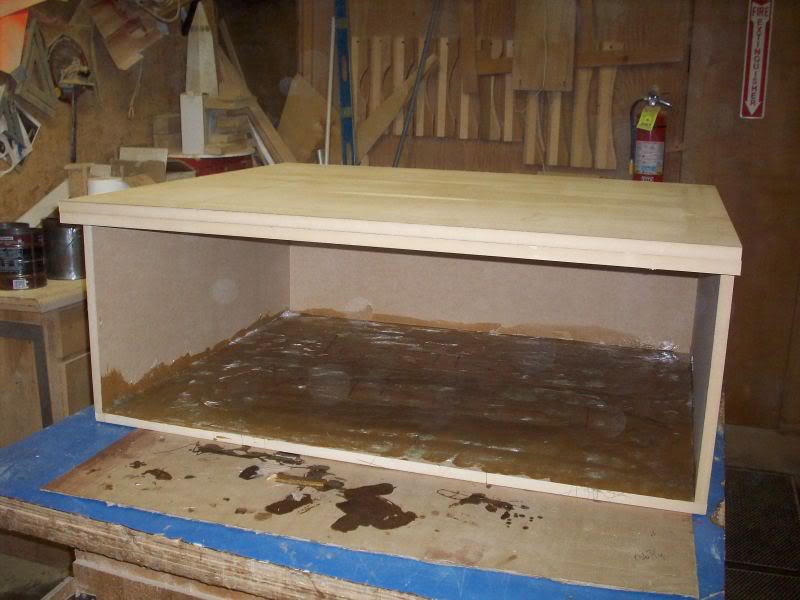

Well i got the front 2 baffles cut out.
Name:  008-4.jpg
Views: 2
Size:  71.7 KB

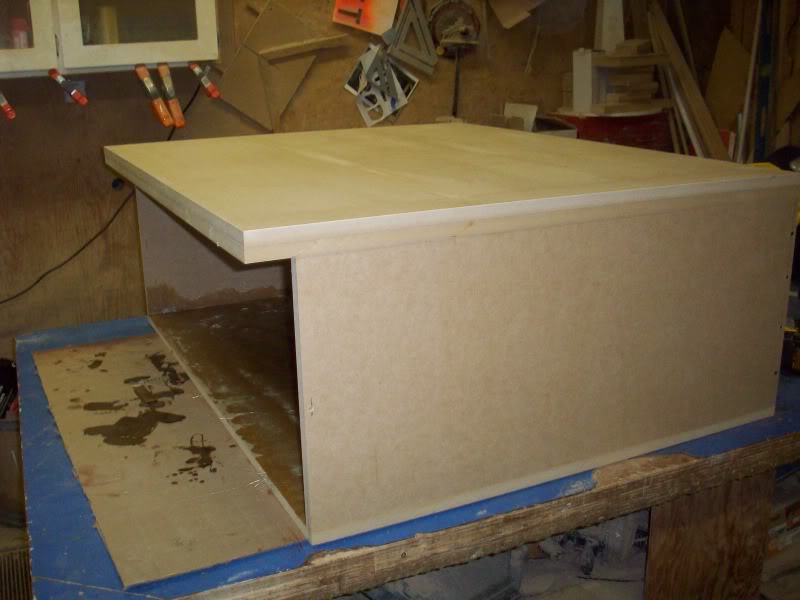

Uh oh, looks like a miss cut. HAHA. Jk, i had to cut it 2 inches longer to be able to fit the subs on the baffle.
Name:  009-2.jpg
Views: 4
Size:  65.1 KB
Reply With Quote
  #38
Old 01-24-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503

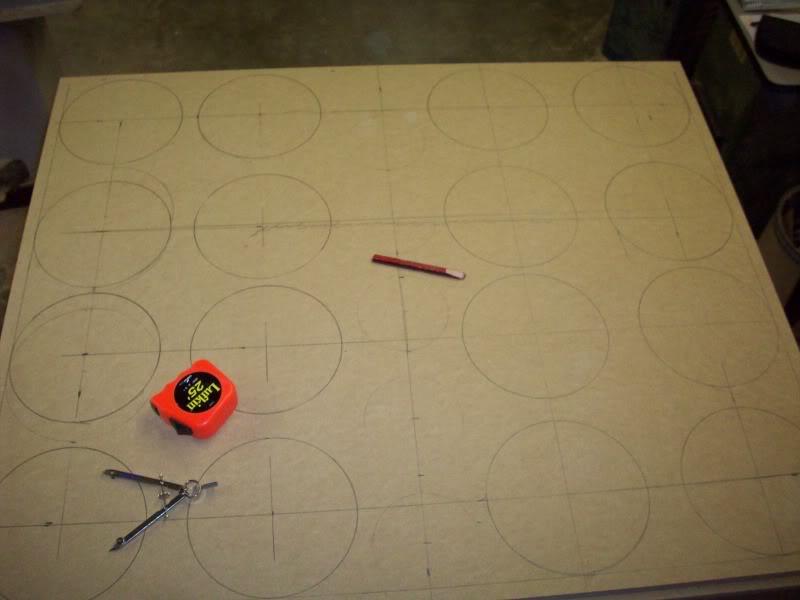

I got the subs drawn out on the front baffle. I cant draw the circles for the port yet, bc i aint sure exactly how big the flare is on the 4" aero. I should be able to order the ports either tomorrow or wednesday.
Name:  010-1.jpg
Views: 5
Size:  51.2 KB
Reply With Quote
  #39
Old 01-24-2010
MothMan999's Avatar
Member
iTrader: (3)

Join Date: Mar 2009
Location: Chantilly, VA
Posts: 858
That looks sick. Ive always wanted to do a build with a bunch of 8s kinda different.
Reply With Quote
  #40
Old 01-25-2010
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Quote:
Originally Posted by MothMan999 View Post
That looks sick. Ive always wanted to do a build with a bunch of 8s kinda different.
I'll take your 15 It'll go along nicely with the 15" Solo Baric I just got.
Reply With Quote
  #41
Old 01-25-2010
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
Looks great so far man. looks like alot of work.

Your Box makes my 10" enclosure that Im getting ready to build soon, look like a little craft project. haha.
Have you checked if that thing fits yet? that thing's got to be heavy. you might have to upgrade your springs now

Is it even necessary to calculate box volume for your setup? or is it just basically as much as you can get?
Reply With Quote
  #42
Old 01-25-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
Quote:
Originally Posted by RangOH View Post
Looks great so far man. looks like alot of work.

Your Box makes my 10" enclosure that Im getting ready to build soon, look like a little craft project. haha.
Have you checked if that thing fits yet? that thing's got to be heavy. you might have to upgrade your springs now

Is it even necessary to calculate box volume for your setup? or is it just basically as much as you can get?
Yea, the box is 9.6 cubes after all displacements.
Reply With Quote
  #43
Old 01-25-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
I got a package today. :) :) Woot Woot.

Hmm. What could it be?
Name:  001-9.jpg
Views: 3
Size:  60.7 KB

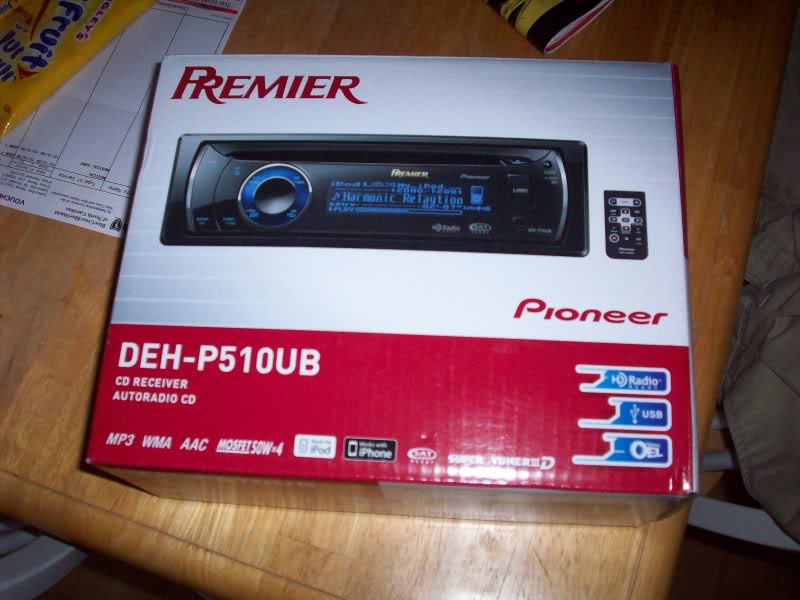

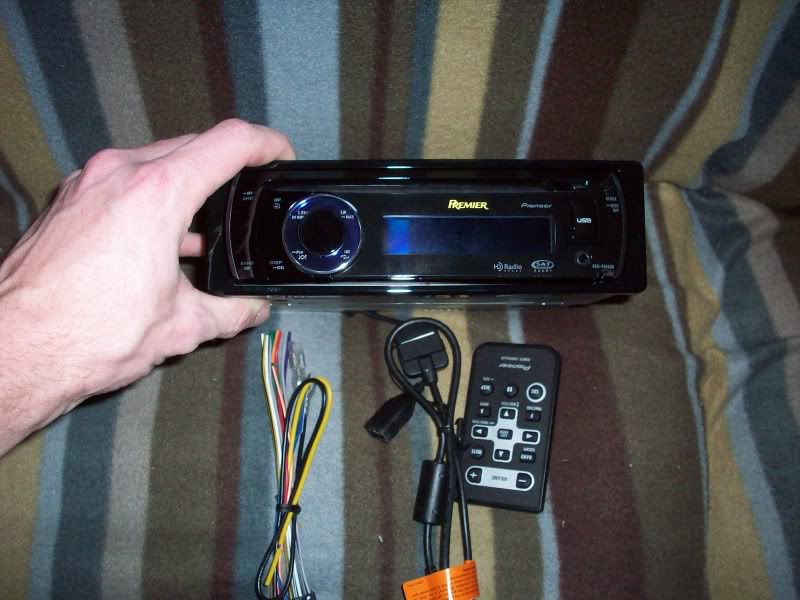

My new head unit. :)
Name:  002-8.jpg
Views: 3
Size:  83.8 KB
Name:  003-10.jpg
Views: 7
Size:  96.2 KB


I cant wait to get it installed and playing. Driving with out a radio for 2-3 weeks sucks. HAHA
Reply With Quote
  #44
Old 01-25-2010
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Nice headunit. As for what's in the box... I was going to guess more Juicey Fruit. Guess I'm wrong LOL
Reply With Quote
  #45
Old 01-25-2010
cucukid124's Avatar
Member

Join Date: Apr 2009
Location: lebanon township, NJ
Posts: 390
nice stuff broo
Reply With Quote
  #46
Old 01-25-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503

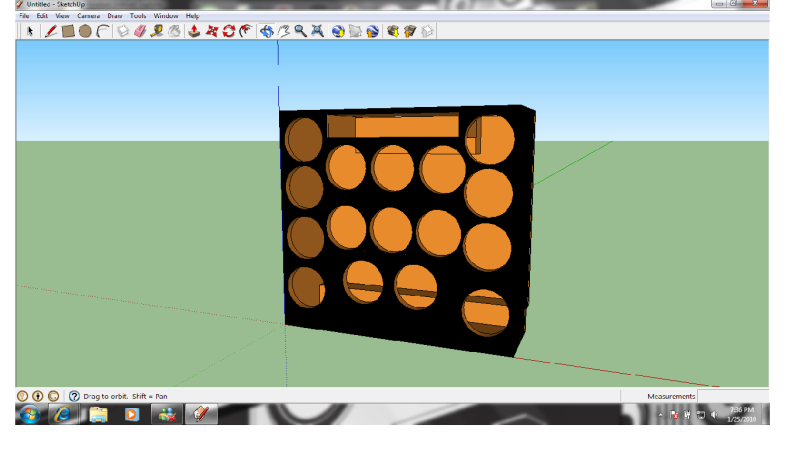

Here is the newest box design. Its tuned to 30-31 hz with 96 sq inches of port and it will be kerfed. :). I just couldnt draw it up in sketch up bc i aint that good at it yet.
Name:  slotport-8s.png
Views: 3
Size:  78.4 KB
Reply With Quote
  #47
Old 01-25-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503

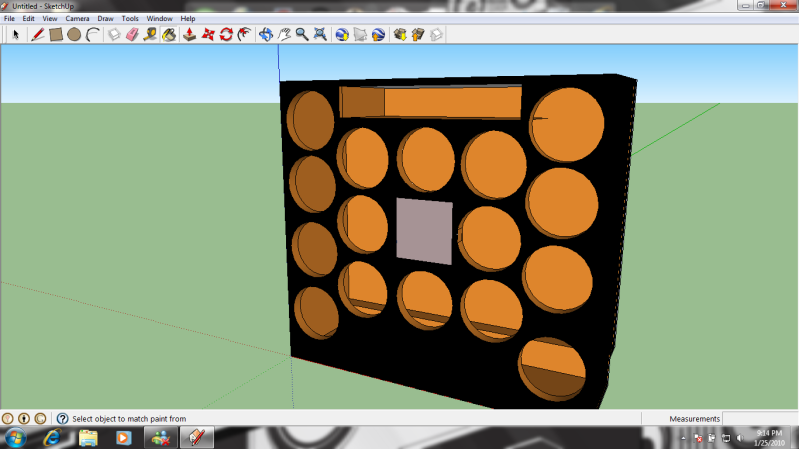

I redrew up the box again bc i did not like the placement of the subs in the box above. I like this one a lot better.
The sqaure in the middle will be plexiglass.
Name:  slotportwplexi.png
Views: 2
Size:  96.6 KB
Reply With Quote
  #48
Old 01-29-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503

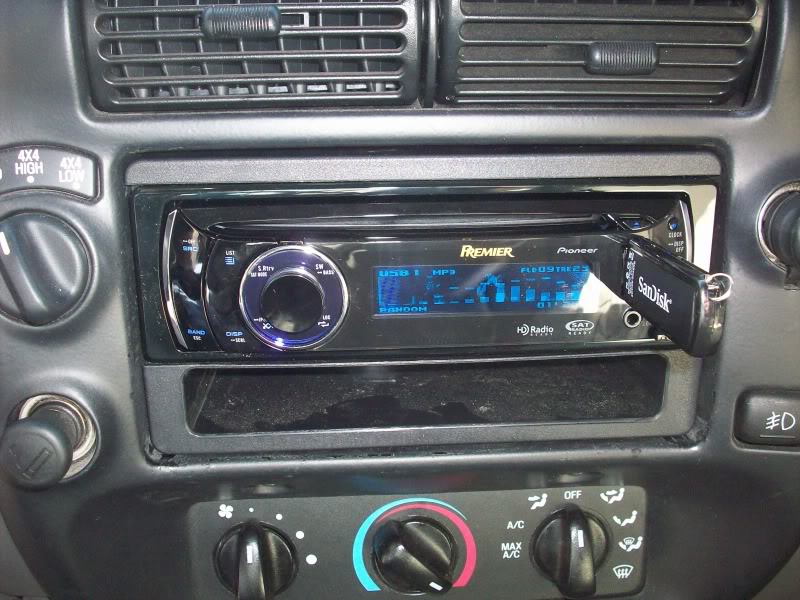

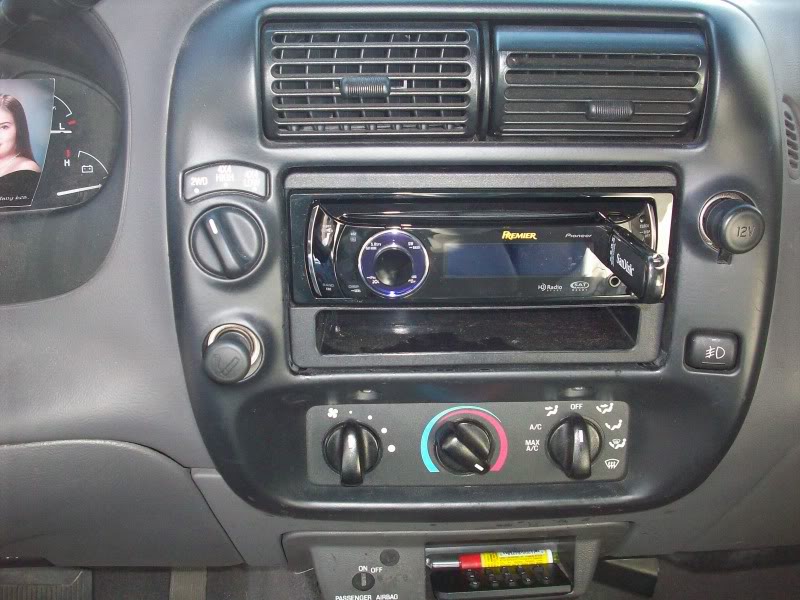

I got my head unit installed. This thing is awesome. I like it a lot. I had a pioneer head unit like 3 years ago. Im glad i sold my clarion indash and got this. My door speakers sound a lot better and a lot louder.

Name:  001-10.jpg
Views: 3
Size:  102.4 KB
Name:  002-9.jpg
Views: 5
Size:  120.7 KB
Reply With Quote
  #49
Old 01-29-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
The Pioneer Premier stuff is super nice, my F90BT falls under the Premier category.
Reply With Quote
  #50
Old 01-29-2010
Member

Join Date: Jun 2007
Location: Killafornia
Posts: 1,523
pioneer premier ftw
Reply With Quote
