Some audio stuff

A few weeks ago I built a new box for my 12" Audioque HDC3 D1. Sub is wired down to .5 ohm. Box is 2.3ft^3 and tuned to 32hz. I also just ditched my wet-cell Ever-Start Maxx battery and picked up a Deka 9A31s for inside the cab. For a single sub setup, this thing does work. Ok enough talking, onto the pictures.

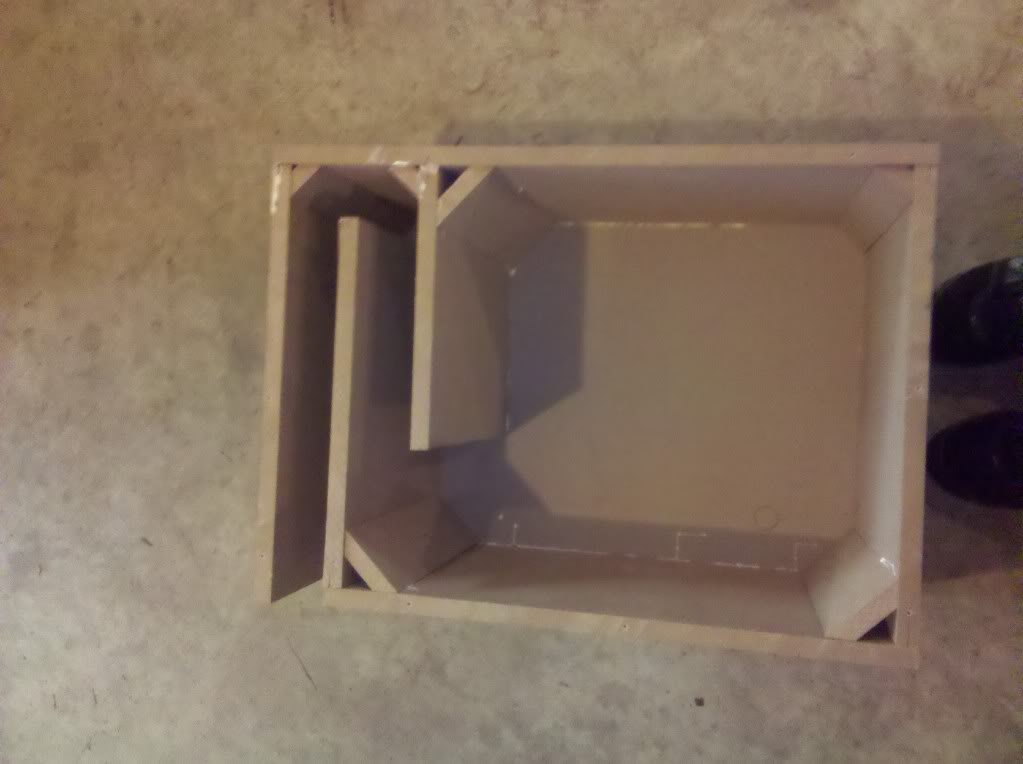

Box almost done:
Name:  IMG_20101227_133445.jpg
Views: 2
Size:  48.8 KB

Glued up, sub in, and glue drying:
Name:  IMG_20101227_223357.jpg
Views: 1
Size:  50.7 KB

Ditched the old box:


New box in:
Name:  IMG_20101228_112942.jpg
Views: 3
Size:  80.6 KB

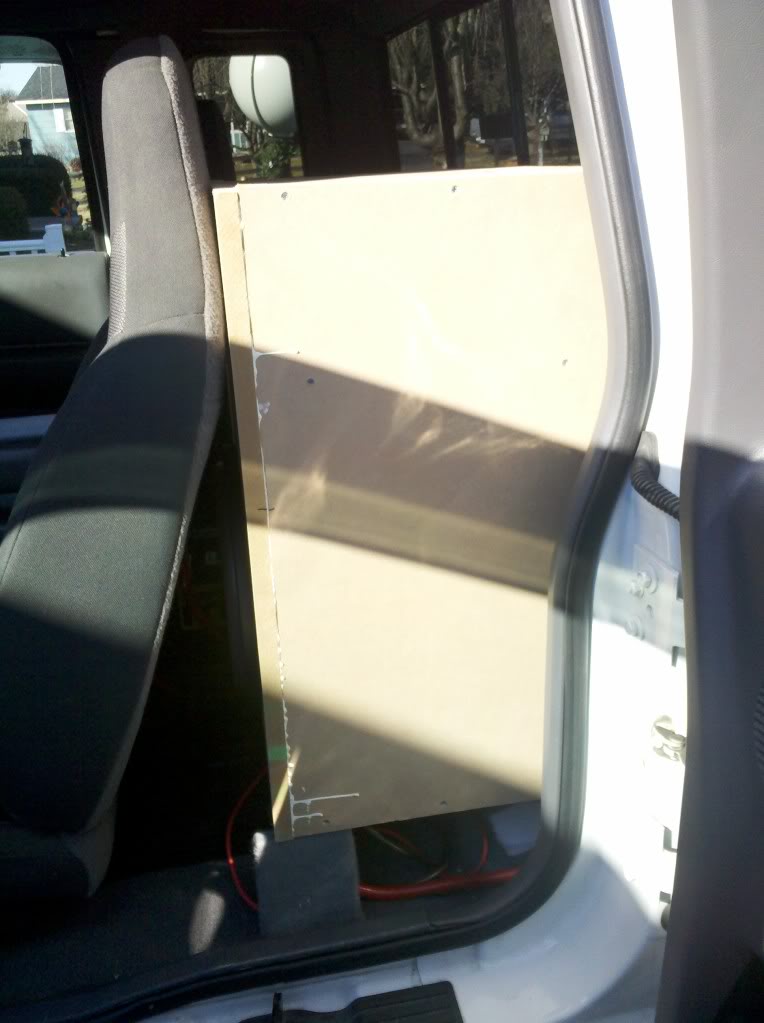

Name:  IMG_20101228_112834.jpg
Views: 3
Size:  67.3 KB
Name:  IMG_20101228_112850.jpg
Views: 3
Size:  51.3 KB

The business end of things:
Name:  IMG_20101228_112903.jpg
Views: 1
Size:  130.1 KB

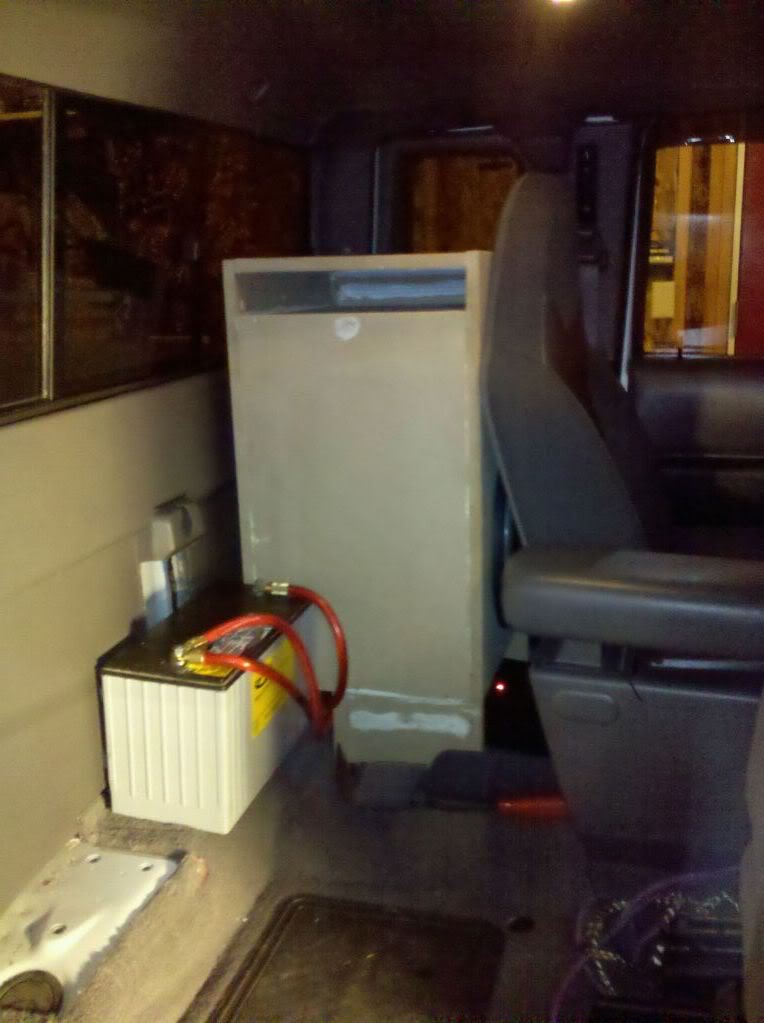

Got my Deka installed. Still need to make a mount for it. It's just sitting there for now:
Name:  PART_1295401217616.jpg
Views: 2
Size:  63.7 KB

Sexy ring terminals:
Name:  PART_1295401429869.jpg
Views: 1
Size:  81.4 KB

I'll try and get a video or two this weekend. Got all kinds of flex with this little thing. Let me know what you think.
Reply With Quote
  #2
Old 01-18-2011
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Dang, that box is huge. Much bigger than it appears in the build pictures.
Reply With Quote
  #3
Old 01-18-2011
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
It's smaller than what it appears to be in pictures.
Reply With Quote
  #4
Old 01-19-2011
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Forgot to add, the box will getting covered with charcoal carpet and I'll be making a box/cover for the battery.
Reply With Quote
  #5
Old 01-19-2011
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
Actually, not too shabby of a box, dick head haha
Reply With Quote
  #6
Old 01-19-2011
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Haha thanks.
Reply With Quote
  #7
Old 01-19-2011
Member

Join Date: Jun 2010
Location: SP, WI
Posts: 11
shoulda saved room and just upgraded the alt
Reply With Quote
  #8
Old 01-20-2011
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
$$$
Reply With Quote
  #9
Old 01-20-2011
Member

Join Date: Nov 2010
Location: SD
Posts: 191
1st time i have ever seen a battery inside the cab.
Reply With Quote
  #10
Old 01-20-2011
evilclown312's Avatar
Member
iTrader: (3)

Join Date: Dec 2008
Location: Logan ohio
Posts: 2,772
Quote:
Originally Posted by woofer700 View Post
1st time i have ever seen a battery inside the cab.
First time seeing a real system then :) haha

System is looking good man, where did you get those terminals?
Reply With Quote
  #11
Old 01-21-2011
Member

Join Date: Nov 2010
Location: SD
Posts: 191
^your joking im sure.
Reply With Quote
  #12
Old 01-21-2011
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Battery in back… is that the thing to do ?

I would be afraid of the fumes if there were any.
Reply With Quote
  #13
Old 01-21-2011
the Answer's Avatar
Member

Join Date: Feb 2010
Location: Webster, Fl.
Posts: 363
Quote:
Originally Posted by alexbreezy View Post
shoulda saved room and just upgraded the alt
extra batt is the first thing that u should do
Quote:
Originally Posted by evilclown312 View Post
First time seeing a real system then :) haha

System is looking good man, where did you get those terminals?
this
Quote:
Originally Posted by Scrambler82 View Post
Battery in backů is that the thing to do ?

I would be afraid of the fumes if there were any.
its a sealed batt so no fumes
Reply With Quote
  #14
Old 01-21-2011
evilclown312's Avatar
Member
iTrader: (3)

Join Date: Dec 2008
Location: Logan ohio
Posts: 2,772
Quote:
Originally Posted by woofer700 View Post
^your joking im sure.
No, not at all..
Reply With Quote
  #15
Old 01-21-2011
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Quote:
Originally Posted by woofer700 View Post
1st time i have ever seen a battery inside the cab.
It's quite common.

Quote:
Originally Posted by evilclown312 View Post
First time seeing a real system then :) haha

System is looking good man, where did you get those terminals?
I had one from when I bought my 1/0 and I accidently bought the other two. I thought I was ordering a different style but I got those instead. Glad I kept them now. To answer your question though, Car Audio at CarAudio.com.

Quote:
Originally Posted by Scrambler82 View Post
Battery in backů is that the thing to do ?

I would be afraid of the fumes if there were any.
Like I said above, it's quite common. Plus as Josh said, it's a sealed battery so no fumes will be coming from it.
Reply With Quote
  #16
Old 01-22-2011
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
Quote:
extra batt is the first thing that u should do
Yeah if you like to play your system with the truck off..
other wise your just adding stress to an already overworked alternator.
totally *** backwords way of upgrading the electrical system.
do not take this advice.

Quote:
First time seeing a real system then :) haha
a "real system" would not run a second battery as a replacement for a HO alternator.
Reply With Quote
  #17
Old 01-22-2011
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
These vids are pretty goofy, but you'll get the point..



Reply With Quote
  #18
Old 01-22-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by RangOH View Post
Yeah if you like to play your system with the truck off..
other wise your just adding stress to an already overworked alternator.
totally *** backwords way of upgrading the electrical system.
do not take this advice.

a "real system" would not run a second battery as a replacement for a HO alternator.
its very common to put a second battery in, its not the "*** backwards" way. that battery won't need to be charged as often as you think it will, that Amp won't draw that much.
As for the Op, Great install, looks like you can some noise with that.

Edit: a little background and adding more power :
If only a little extra current (12 to 19 amperes) is needed, the easiest way to enhance the system is to add an extra battery, or replace the existing battery with a larger one. If the difference is less than 5 amps, the existing power system will be able to handle it. For this, a capacitor is the best solution for every system, regardless of the presence of an adequate, but slow acting power supply.
Reply With Quote
  #19
Old 01-22-2011
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
Quote:
its very common to put a second battery in, its not the "*** backwards" way. that battery won't need to be charged as often as you think it will, that Amp won't draw that much.
hes running over well over 2000W of power last I knew. he needs a alt not a battery.

Quote:
a little background and adding more power :
If only a little extra current (12 to 19 amperes) is needed, the easiest way to enhance the system is to add an extra battery, or replace the existing battery with a larger one. If the difference is less than 5 amps, the existing power system will be able to handle it. For this, a capacitor is the best solution for every system, regardless of the presence of an adequate, but slow acting power supply.
Okay expert, how many batteries do I need to gain these 12-19 amps of power and why wont my truck's 650cca battery let me have some of its amps? whats this extra battery doing that my current one won't?
Reply With Quote
  #20
Old 01-22-2011
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Yea I plan on getting an alternator in the kinda near future.
Reply With Quote
  #21
Old 01-22-2011
Vonhanson's Avatar
Member
iTrader: (5)

Join Date: Sep 2009
Location: Glencoe, Minnesota
Posts: 1,609
more than likely he will need more than 1 battery if hes over 2k rms for sure.

a higher alt is a given tho.
Reply With Quote
  #22
Old 01-22-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by RangOH View Post
hes running over well over 2000W of power last I knew. he needs a alt not a battery.

Okay expert, how many batteries do I need to gain these 12-19 amps of power and why wont my truck's 650cca battery let me have some of its amps? whats this extra battery doing that my current one won't?
As an alternator charges your battery, the overall Amperage of the battery is reduced by 2-5 amps. Depending on the size of your battery, you can have anywhere from 20 amp/hours to 30 amp/hours. (12v batteries have 36 amps)
in a small system, used by those who just want a clear sound, a draw can be anywhere from 4 to 6 volts, which equals 12-16 amps, since a normal alternator provides around 13 -14 V. two batteries should suffice.
as for the OP, sorry for taking the general classiness of your post down.
Reply With Quote
  #23
Old 01-22-2011
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
It's cool man. I'm just lettin yall duke it out haha
Reply With Quote
  #24
Old 01-22-2011
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Here's a crappy video from earlier. Nothing was flexing because of the cold weather so the video isn't very exciting.

Reply With Quote
  #25
Old 01-22-2011
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
Quote:
As an alternator charges your battery, the overall Amperage of the battery is reduced by 2-5 amps. Depending on the size of your battery, you can have anywhere from 20 amp/hours to 30 amp/hours. (12v batteries have 36 amps)
in a small system, used by those who just want a clear sound, a draw can be anywhere from 4 to 6 volts, which equals 12-16 amps, since a normal alternator provides around 13 -14 V. two batteries should suffice.
as for the OP, sorry for taking the general classiness of your post down.
WTF are you talking about man. that makes no sense... at all.

You don't "draw" voltage, you draw current. and Ah have no significance unless qualified by the number of hours the battery is discharged due to manufacture variations.
Quote:
draw can be anywhere from 4 to 6 volts,
you mean voltage drop??

i've read your post like 10 times trying to understand what you said, still no luck, anyone else understand it, maybe you could explain it to me.
