13-50 and 13-54 differences

ok, a couple questions.

first of all, internally, what is the difference strength wise between a 13-50 and 13-54

second, to tell them apart, does anyone have a pic of a 13-50?
Reply With Quote
  #2
Old 04-23-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
1350:





Reply With Quote
  #3
Old 04-23-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
I don't know the internal differences but you can easily tell the 1350 because it has a slip yoke front output whereas the 1354 has a fixed yoke.
Reply With Quote
  #4
Old 04-23-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Believe all 1354's have the threads for the dampner thingy...but i'm not too positive on that. I know all the 1354's i saw at the yard had dampners...including older model rbv's with manual shifters.
Reply With Quote
  #5
Old 04-23-2009
Toreador4x4's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
ok. tylers has a dampner mount and it has a fixed front yoke. it says 13-54-xxx-xxx on the case, but on the front where it bolts up to the trans it says 13-50-xxx-xxx

i still think it is a 13-54 wooo

shane....we need 13-54 linkage now! lol
Reply With Quote
  #6
Old 04-23-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
uh oh...

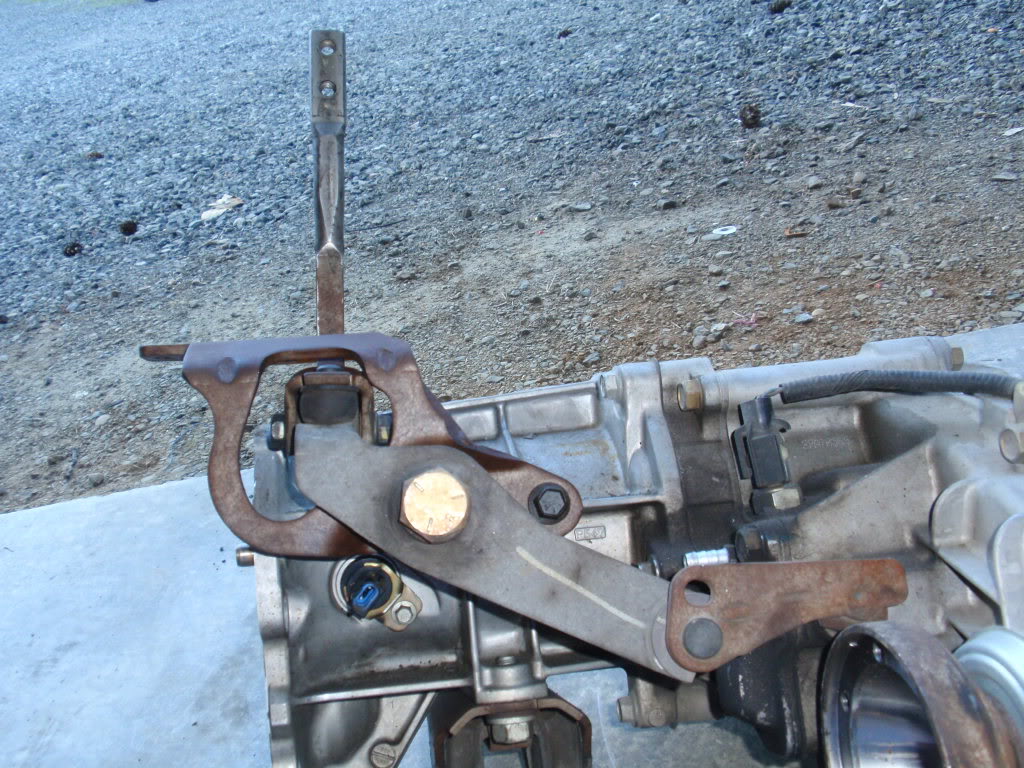

uhhhhh...now i gotta go lookin'. i do have two...but....you'll need to make a shift handle for it...it's off an fx4...so it's got threaded holes that are 7/8" apart.

Name:  P4210082.jpg
Views: 1
Size:  196.6 KB



I'd say yea...it's a 1354 youve got there.
Reply With Quote
  #7
Old 04-23-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Watch out though. The FX4 linkages won't work on an older 1354 without some modification.
Reply With Quote
  #8
Old 04-23-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Which piece Ryan? I've got in front of me...a 1350 linkage, a 1354 older linkage, and a 1354 fx4 linkage. only difference between the fx4 and the older 1354 is the piece that bolts to shifter stud stuckin' out the trans. Everything else is the same....the 'shift rails' if you well(the shifter side), the big long pivot.
Reply With Quote
  #9
Old 04-23-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
i told you i can get you an older linkage if needed so you dont have to modify it
Reply With Quote
  #10
Old 04-23-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Shane, I don't know this from experiance but a guy over on explorerforums tried to use the new linkage with the older 1354 and had to modify the end of it. The shift fork on the transfer cases are positioned differently between the new 1354 and the older one.

I could be wrong here though....
Reply With Quote
  #11
Old 04-23-2009
lepp1892's Avatar
Member

Join Date: Oct 2007
Location: Almont, MI
Posts: 103
There are a couple 1350 with fixed outputs on the front but they are pretty rare to find....
Reply With Quote
  #12
Old 04-23-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Quote:
Originally Posted by lepp1892 View Post
There are a couple 1350 with fixed outputs on the front but they are pretty rare to find....
The only fixed output 1350s I have seen are electric shift. That doesn't mean the fixed yoke manual shift 1350s didnt exist though.
Reply With Quote
  #13
Old 04-23-2009
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Quote:
Originally Posted by lepp1892 View Post
There are a couple 1350 with fixed outputs on the front but they are pretty rare to find....

Quote:
Originally Posted by RazorsEDGE View Post
The only fixed output 1350s I have seen are electric shift. That doesn't mean the fixed yoke manual shift 1350s didnt exist though.


The 1350 manual shift with a fixed yoke was from an Ranger STX High Rider edition. I have one sitting in my parents basement.



If i remember correctly, the 1350 is a 4 internal chain drive tc while the 1354 is a 6, however early year 1354 came with 4 chain as well
Reply With Quote
  #14
Old 04-23-2009
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Quote:
Originally Posted by Fx4wannabe01 View Post
uh oh...

uhhhhh...now i gotta go lookin'. i do have two...but....you'll need to make a shift handle for it...it's off an fx4...so it's got threaded holes that are 7/8" apart.





I'd say yea...it's a 1354 youve got there.

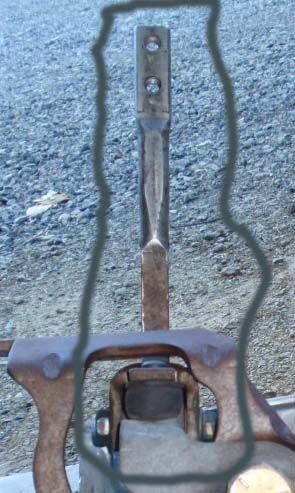

oh dang, if you could just snag this piece, I would be excited!!!!!!!
Attached Thumbnails
13-50 and 13-54 differences-untitled-1-copy.jpg
Reply With Quote
  #15
Old 04-23-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Quote:
Originally Posted by RazorsEDGE View Post
The only fixed output 1350s I have seen are electric shift. That doesn't mean the fixed yoke manual shift 1350s didnt exist though.

didnt they come in the early rangers and the BIIs
Reply With Quote
  #16
Old 04-23-2009
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926

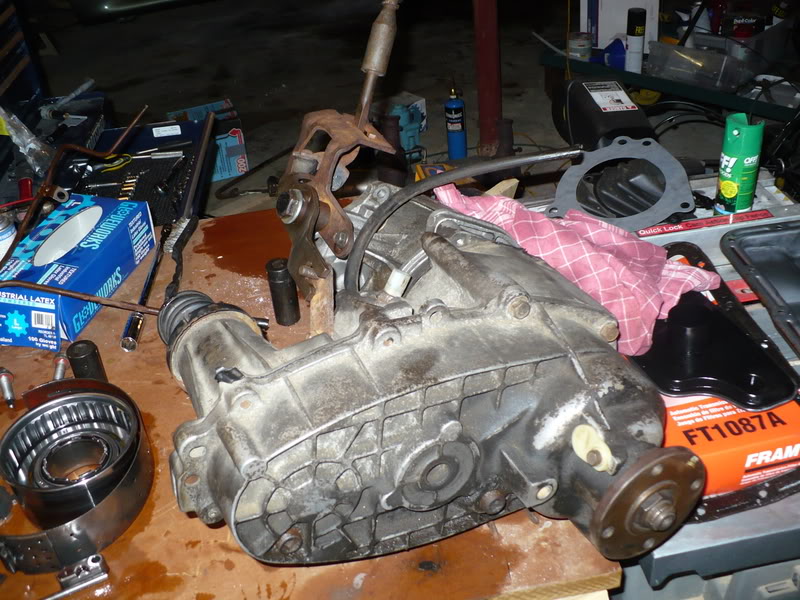

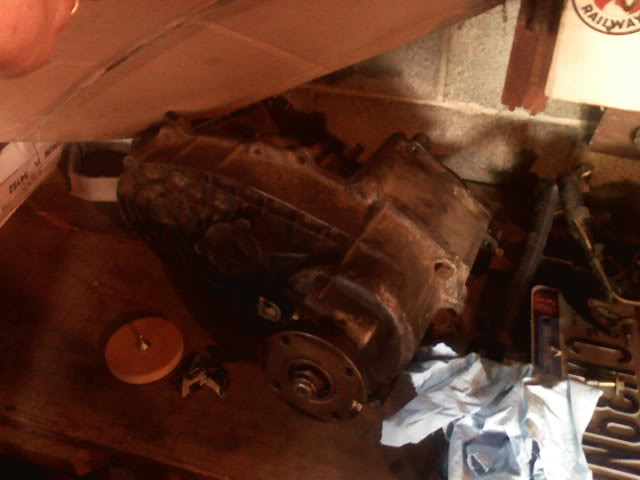

here the case Im running currently

Name:  pic030.jpg
Views: 1
Size:  123.9 KB
Name:  1006071436.jpg
Views: 1
Size:  35.6 KB
Reply With Quote
  #17
Old 04-24-2009
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
I just hope we can find the correct shifter linkage...I don't care what the ball looks like, I just want it to be functional.
Reply With Quote
  #18
Old 04-24-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
dude trust me between shane and i we will get you the right one
Reply With Quote
  #19
Old 04-24-2009
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
Awesome. I just need to find the right front driveshaft from a 95-97 Explorer and the shifter linkage and I'm almost good to go.
Reply With Quote
  #20
Old 04-24-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
can you do me a favor and take a pic of the front flange on your tcase justin was trying to explain but i couldnt under stand
Reply With Quote
  #21
Old 04-24-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
K K K. Downey.....Tyler.....Justie......i postponed the JY run to sunday. The JY run to look for a front shaft for ya and i'll look for 1354 older style linkage. I've got plenty of shift *****(i probably got 4. lol). Got a few boots.

I think downey's responsible for finding an auto trans/manual tcase bezel and boot. But i'll keep my eyes out for one.
Reply With Quote
  #22
Old 04-24-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
yep i will go look Saturday if i have time and hopefully get myself a boot
Reply With Quote
  #23
Old 04-24-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
You know Tyler, I have a bunch of my custom ball bearing shift ***** that are medium sized to fit a t-case if you want me to throw one in the box going to you and Justie... Along with his SD 3rd I promised him lol
Reply With Quote
  #24
Old 04-24-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Cam.....his look like this..should be just like yours...


(this is my adaptor......imagine that round end is part of the tcase...
[img]/img]

Here's what the shaft will look like....(bottom shaft, but it'll be longer than pictured...mines shortened for an adaptor)
Reply With Quote
  #25
Old 04-24-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
ok thanks Shane that is what i thought. does anyone know the length of 95-97 shaft?
