Axle seals and fluid change

Finally got around to changing that busted axle seal. Was really easy. I didn't do the bearings or anything extra because they still felt good and I'm hoping to get a new axle before long. Anyways on with the pics....

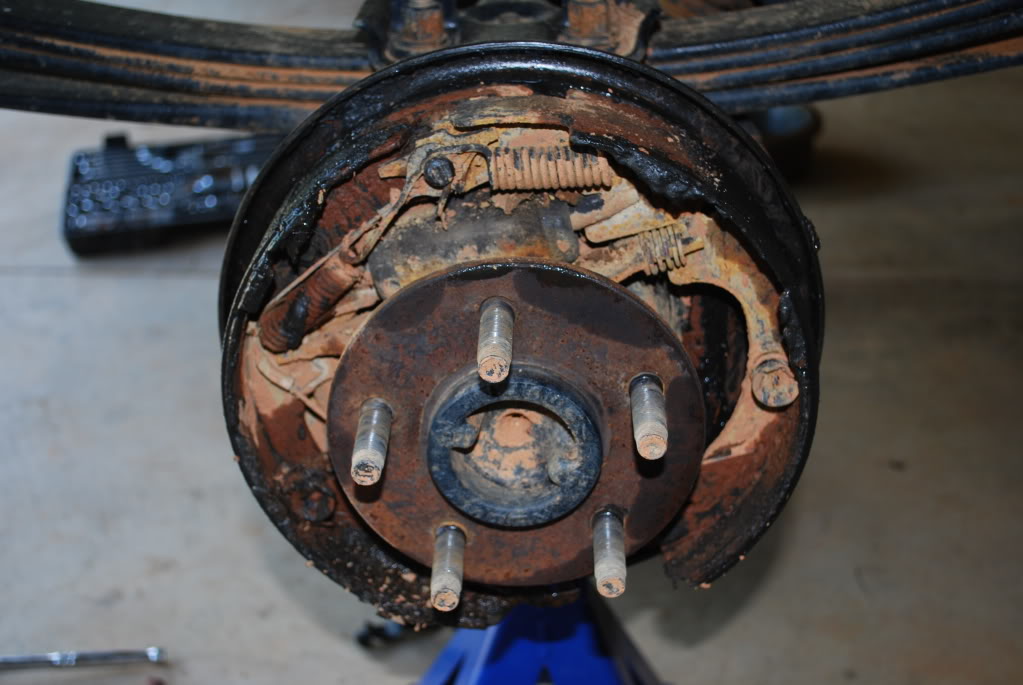

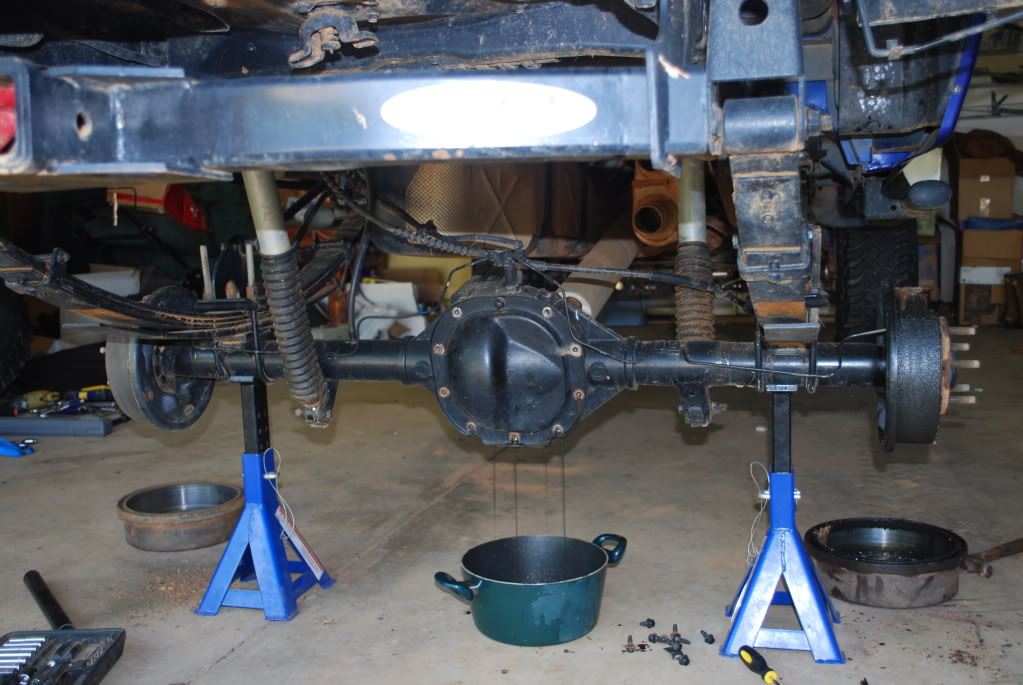

Straight nasty!!!
Name:  DSC_0446.jpg
Views: 3
Size:  116.3 KB
Name:  DSC_0447.jpg
Views: 3
Size:  139.3 KB

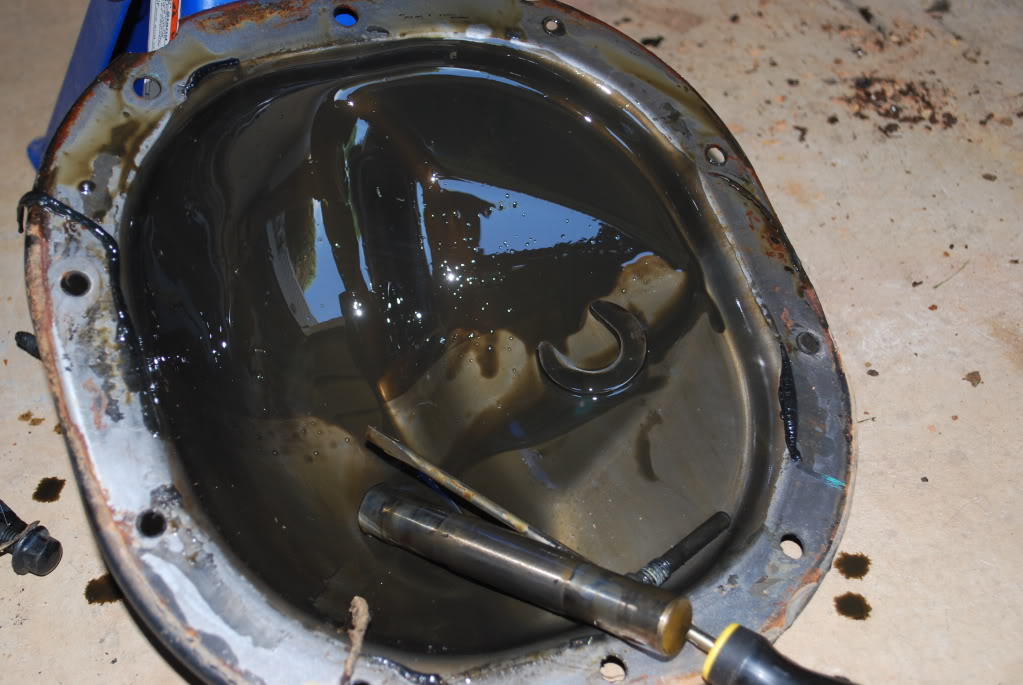

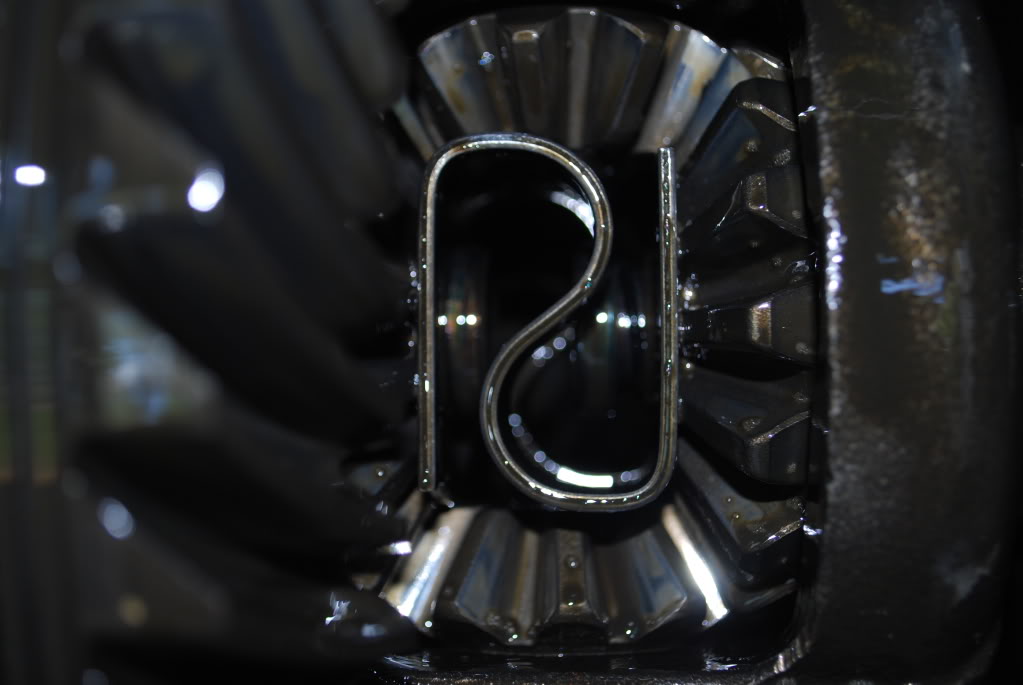

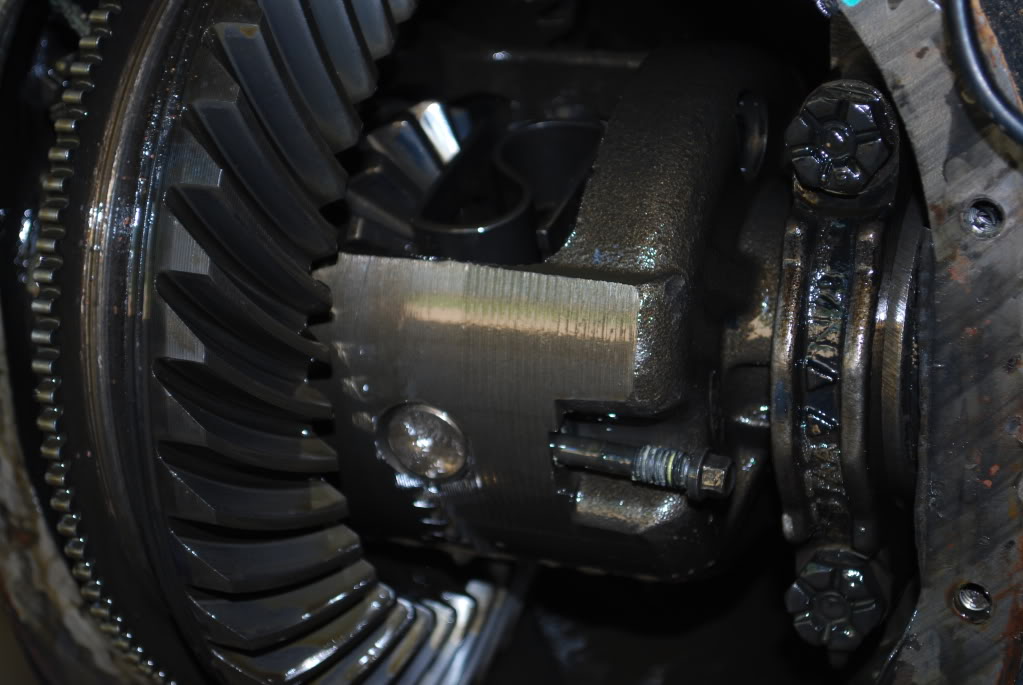

Taking the pin out to get the axle out.
Name:  DSC_0451.jpg
Views: 3
Size:  113.6 KB
Name:  DSC_0453.jpg
Views: 3
Size:  88.1 KB
Name:  DSC_0452.jpg
Views: 3
Size:  125.4 KB
Name:  DSC_0453.jpg
Views: 3
Size:  88.1 KB

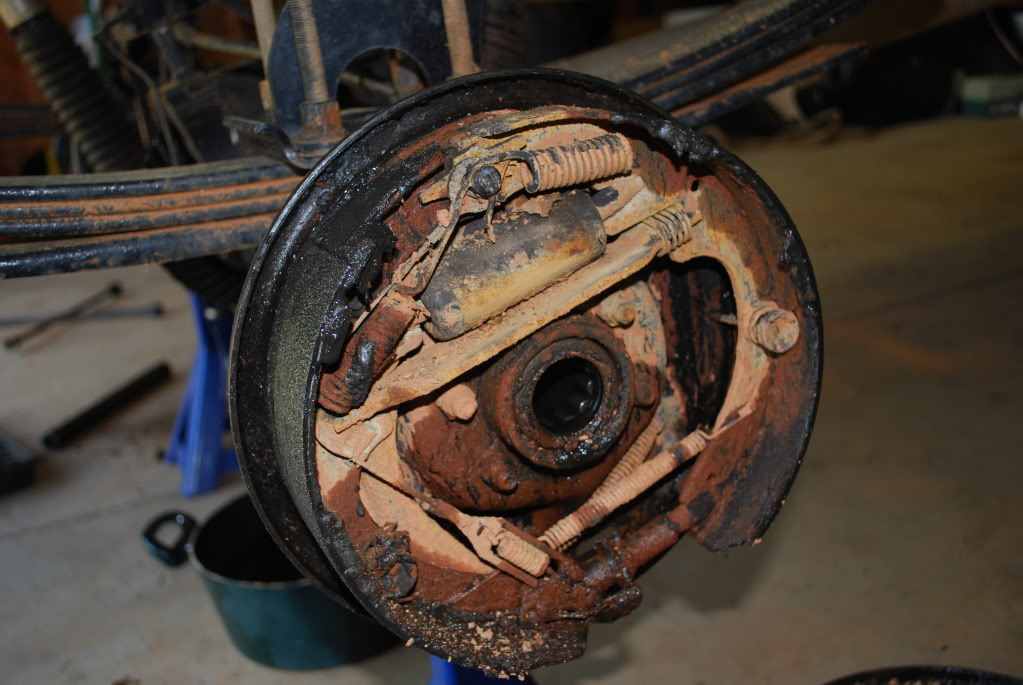

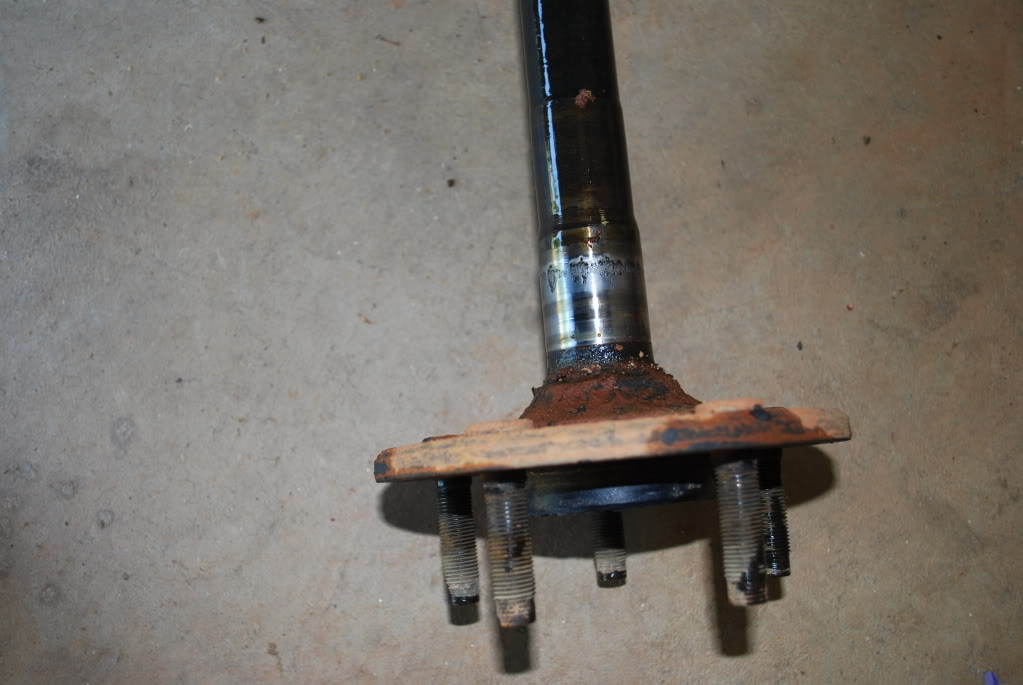

Axle out, it's a little rough but not too bad.
Name:  DSC_0455.jpg
Views: 5
Size:  97.8 KB
Name:  DSC_0454.jpg
Views: 3
Size:  134.2 KB

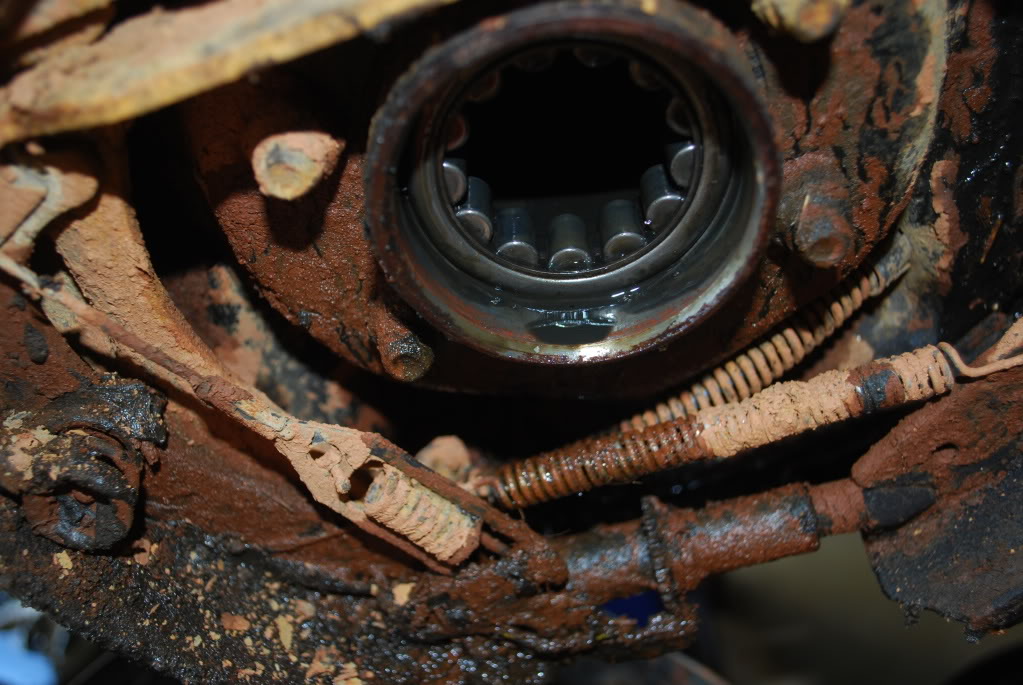

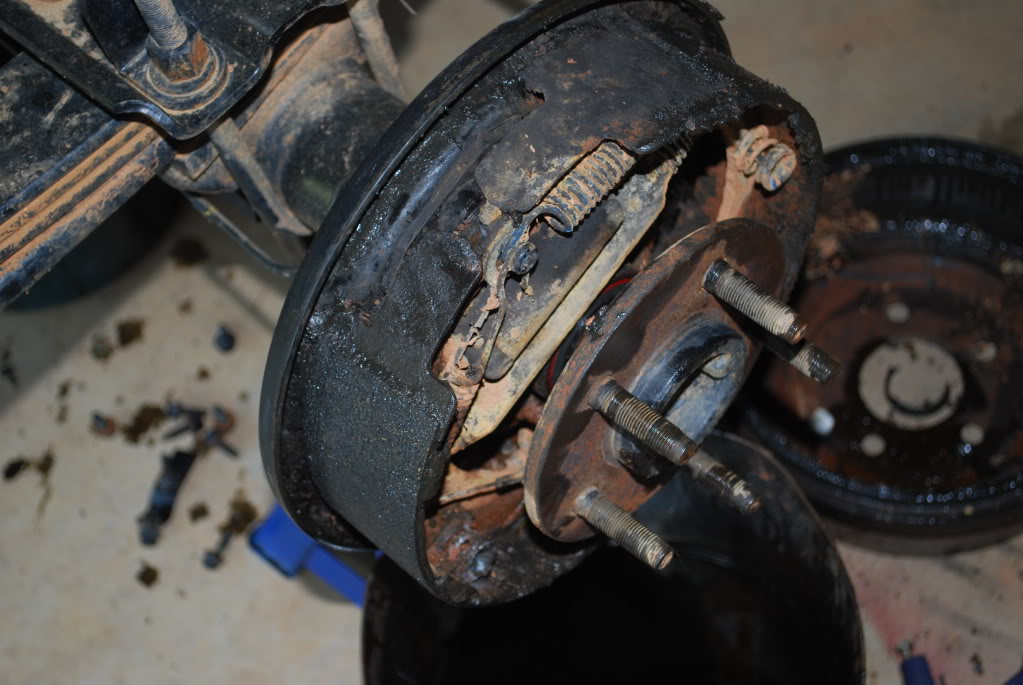

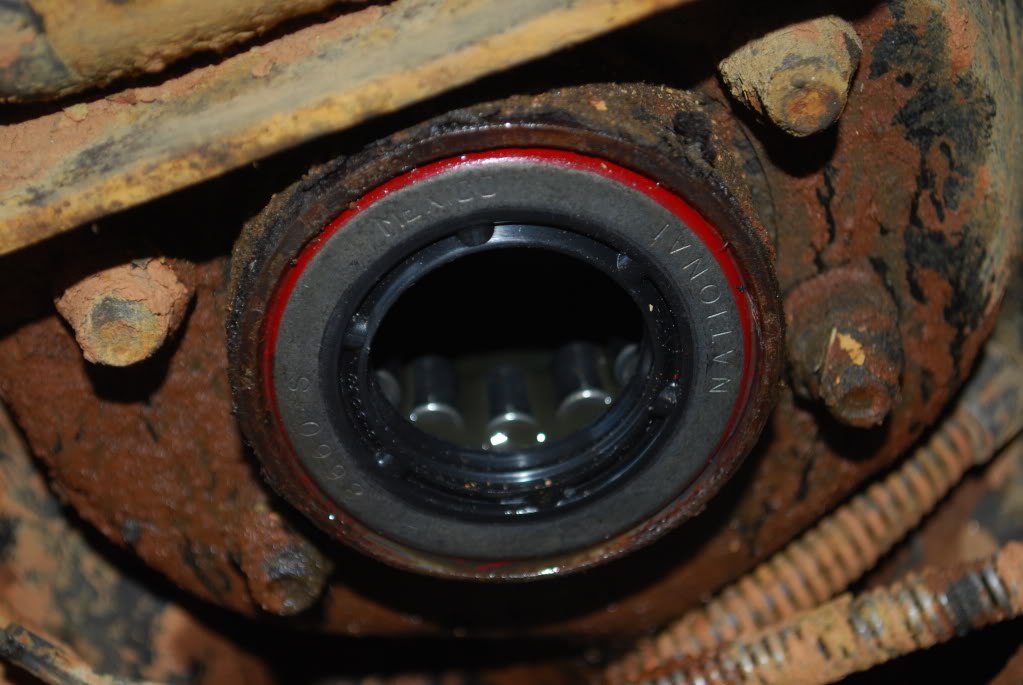

Old seal out and new seal in.
Name:  DSC_0458.jpg
Views: 3
Size:  152.8 KB
Name:  DSC_0464.jpg
Views: 3
Size:  116.8 KB
Name:  DSC_0467.jpg
Views: 3
Size:  131.8 KB

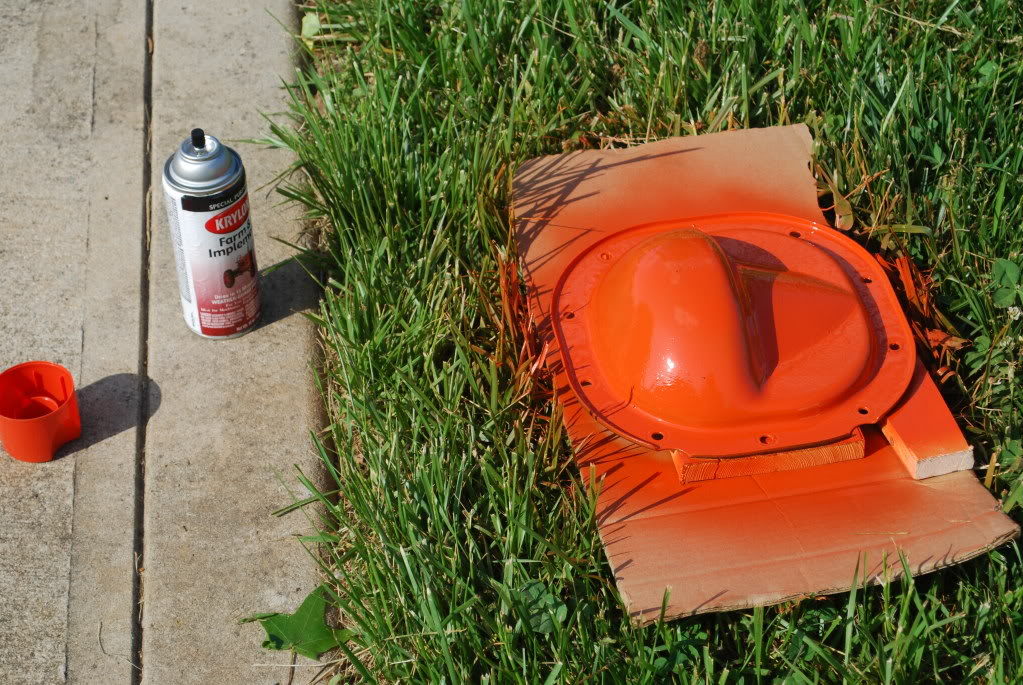

I still had that orange paint sitting around so I figured why not!
Name:  DSC_0466.jpg
Views: 3
Size:  232.6 KB

Just gotta get it all cleaned up and put back together.
Attached Images
File Type: jpg DSC_0453.jpg (88.1 KB, 3 views)

Last edited by seed60; 05-01-2009 at 05:47 PM.
Reply With Quote
  #2
Old 05-01-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Hunter orange diff cover FTW!
Reply With Quote
  #3
Old 05-01-2009
Jazz921's Avatar
Member
iTrader: (2)

Join Date: Sep 2007
Location: Evansville, IN
Posts: 997
yikes!! did you cahnge those nasty A$$ brakes to?
Reply With Quote
  #4
Old 05-01-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
that axle didnt look too good to me. was it making noise at all?
Reply With Quote
  #5
Old 05-01-2009
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by 01_ranger_4x4 View Post
that axle didnt look too good to me. was it making noise at all?
No noise. I know they aren't in the best shape, but they're gonna have to do for now. Gotta save my money for better things.
Reply With Quote
  #6
Old 05-01-2009
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
That did look nasty dude. I know all about dealing with that crap. Hows the brake shoes? They look soaked.
Reply With Quote
  #7
Old 05-01-2009
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by robert99ranger View Post
That did look nasty dude. I know all about dealing with that crap. Hows the brake shoes? They look soaked.
They were just a mess, soaked in oil and just about wore slap out. I cleaned everything up and I'm letting them soak in degreaser overnight. I'll finish cleaning up tommorrow and see how everything looks.
Reply With Quote
  #8
Old 05-01-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by seed60 View Post
No noise. I know they aren't in the best shape, but they're gonna have to do for now. Gotta save my money for better things.
i understand that. they do make a repair bearing kit for the 8.8 that moves the bearing further out on the shaft incase it does become an issue.
Reply With Quote
  #9
Old 05-01-2009
nross's Avatar
Member

Join Date: Nov 2008
Location: Binghamton, NY
Posts: 256
I'm going to be doing this same job this weekend. The only part that i'm unsure about is, what is the reason of taking out that bolt in the differental, and what is the torque spec for that?

In addition to this... I have a 4.10 L/S... 05 4.0 v6.... what gear lube and friction modifier do I use? Can I get the modifier any place besides ford?

Should I go ahead and change anything else while this is open?
Reply With Quote
  #10
Old 05-01-2009
Member
iTrader: (6)

Join Date: Mar 2008
Location: San Jose, CA
Posts: 822
I used Lucas brand that has friction modifier in it already. Or you can go with Royal Purple but it's a little more expensive. Just make sure it says Limited Slip on the bottle and your good to go.
Reply With Quote
  #11
Old 05-02-2009
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by 01_ranger_4x4 View Post
i understand that. they do make a repair bearing kit for the 8.8 that moves the bearing further out on the shaft incase it does become an issue.
I looked at those while I was at Autozone, they were like $30 something a piece. But that was before I pulled the shaft.

Quote:
I'm going to be doing this same job this weekend. The only part that i'm unsure about is, what is the reason of taking out that bolt in the differental, and what is the torque spec for that?

In addition to this... I have a 4.10 L/S... 05 4.0 v6.... what gear lube and friction modifier do I use? Can I get the modifier any place besides ford?

Should I go ahead and change anything else while this is open?
You have to take the bolt out so you can remove the pin which lets you get the axles out.

I found this http://www.explorerforum.com/forums/...d.php?t=144780 It says 15-30.

If you have the money to spend I would change it all, bearings and seals.

Last edited by seed60; 05-02-2009 at 08:09 AM.
Reply With Quote
  #12
Old 05-02-2009
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584

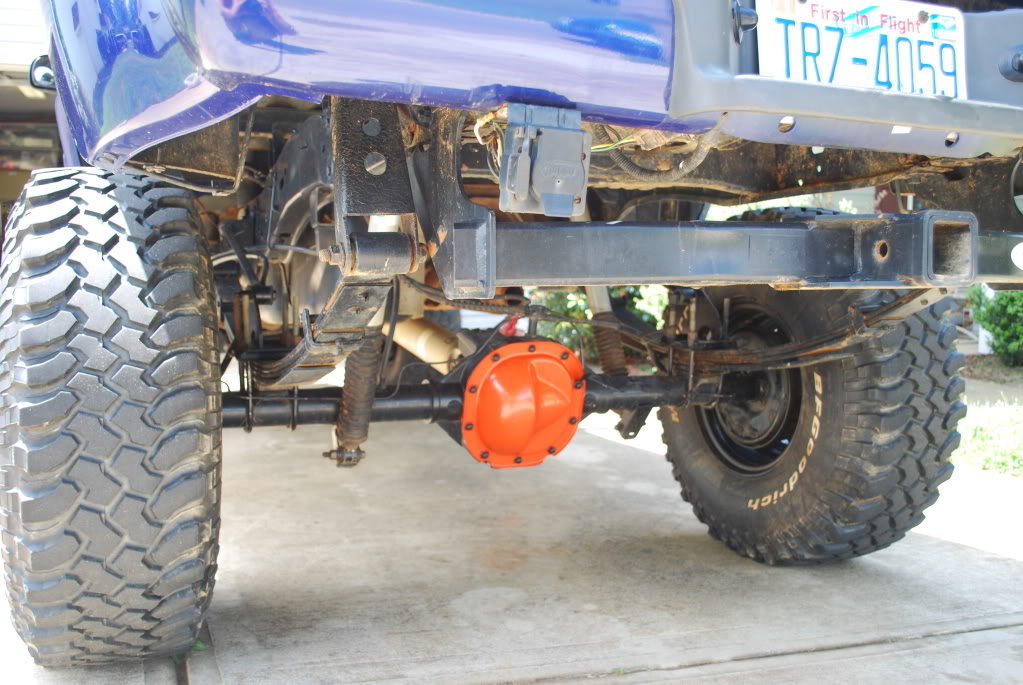

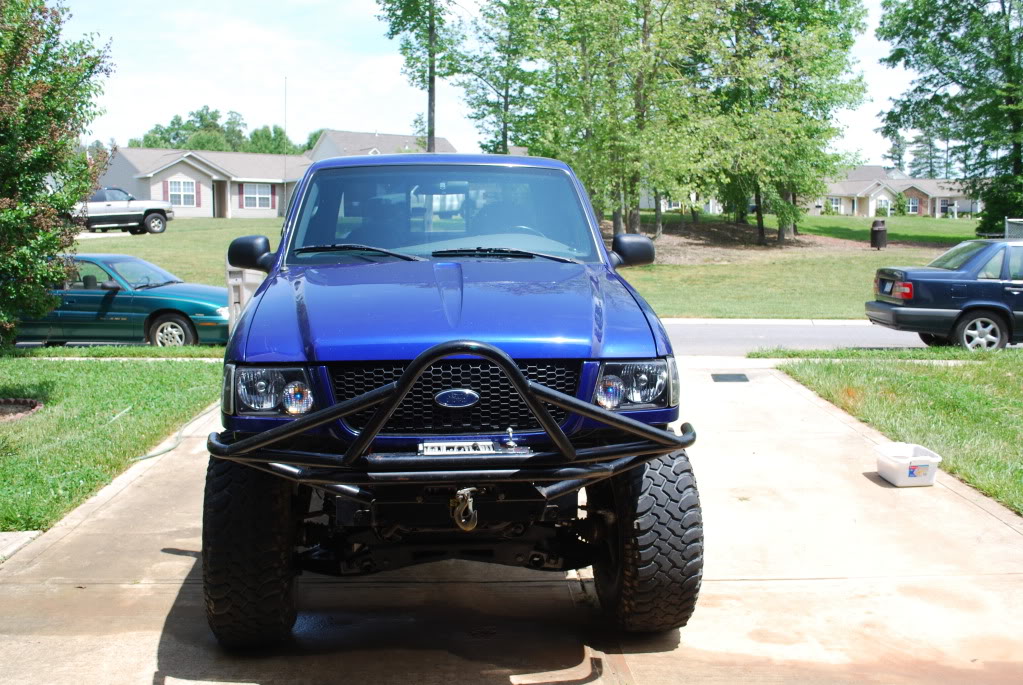

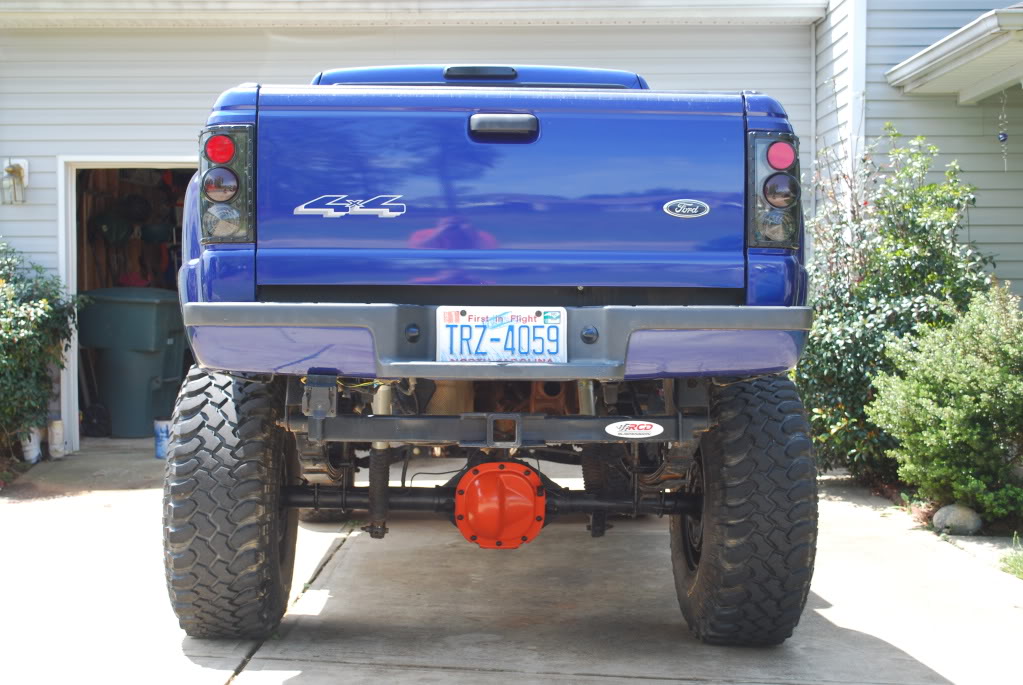

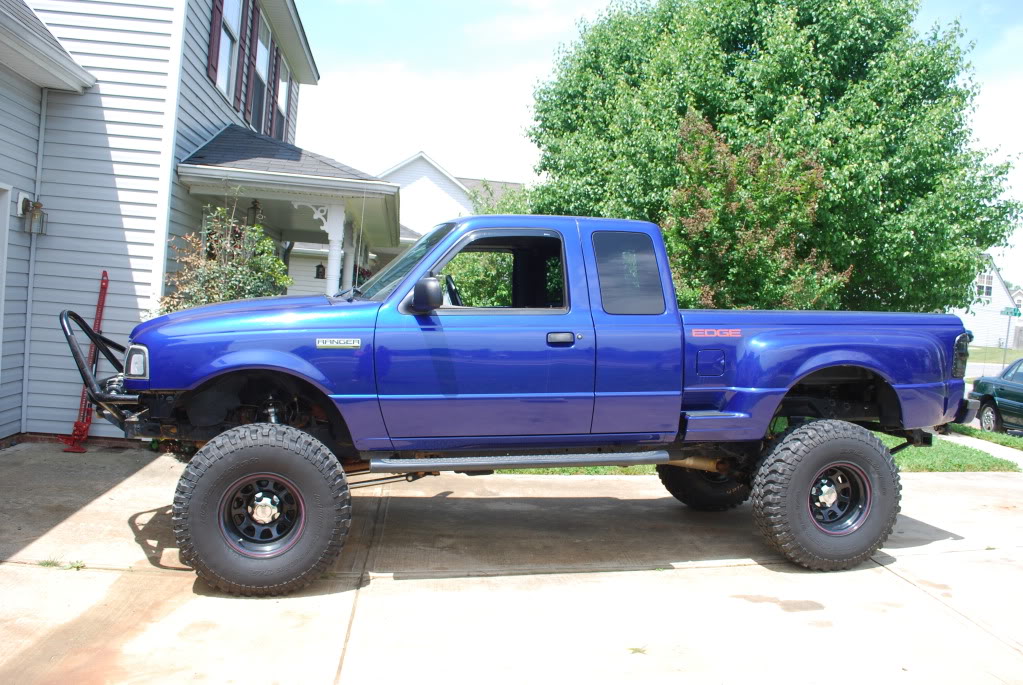

Got eveything cleaned up and put back together. So far everything's good to go. I was a little worried about how easily the c-clips came off and went on, but all the wheels are still on it. lol

Name:  DSC_0474.jpg
Views: 2
Size:  160.9 KB
Name:  DSC_0475.jpg
Views: 3
Size:  154.9 KB
Name:  DSC_0473.jpg
Views: 2
Size:  200.8 KB
Name:  DSC_0470.jpg
Views: 3
Size:  202.9 KB

Once again, big thanks to the site for all your help!!
