Changing spider gears on a 2007 8.8

Can they be changed fairly ease aftertakig off the plate cover? Where can I get a good set besides at the dealer?

I did a search but wasn't to helpful.
Reply With Quote
  #2
Old 07-06-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
You can get gears just about anywhere. And being the questions you asked I wouldn't attempt them yourself. Gears are a touchy item and you can waste a lot of money if you don't know what your doing.
Reply With Quote
  #3
Old 07-06-2012
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Spider gears can be done without much work depending on if you have a limited slip differential or an open. If its open you need to pop the diff cover off, slid the center pin out that retains the spider gears and replace them with new ones. Chances are though of the spiders are bad the side gears will be too so check them while youre in there. If you have a limited slip the process is a bit more involved but still pretty easy depending on your skill set.
Reply With Quote
  #4
Old 07-06-2012
Member
Thread Starter

Join Date: Jul 2011
Location: Shepherdsville,Ky.
Posts: 28
Done seen the the other gears and they look goor. How do I tell the difference between open and limited slip? I'm off to google now!

Thanks for the help.
Reply With Quote
  #5
Old 07-06-2012
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
An open diff looks like this

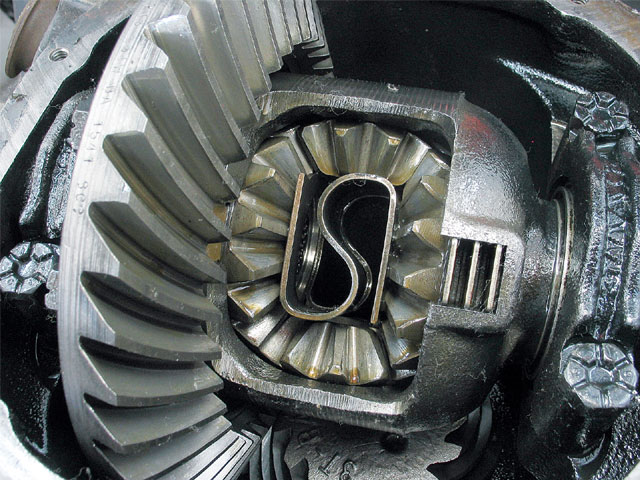

The limited slip looks like this


Not the large wavy spring in the limited slip carrier. The side gears are different and retain clutch packs behind them.
Attached Thumbnails
Changing spider gears on a 2007 8.8-diffparts.jpg   Changing spider gears on a 2007 8.8-116_0705_04_z-ford_8.8_rear_end-traction_lok_limited_slip.jpg
Reply With Quote
  #6
Old 07-06-2012
Member
Thread Starter

Join Date: Jul 2011
Location: Shepherdsville,Ky.
Posts: 28
I have limited slip. Do the axles have to be pulled to replace the spider gears?
Reply With Quote
  #7
Old 07-06-2012
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by digger658 View Post
I have limited slip. Do the axles have to be pulled to replace the spider gears?
To do the spiders no, to do the side gears yes. Both can be done with the the diff carrier still in the truck BTW.
Reply With Quote
  #8
Old 07-06-2012
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Why are you changing the spider gears?
Reply With Quote
  #9
Old 07-07-2012
Member
Thread Starter

Join Date: Jul 2011
Location: Shepherdsville,Ky.
Posts: 28
They had some wear and a few chips on the outer edge (peaks).
