Dumb luck front driveshaft find

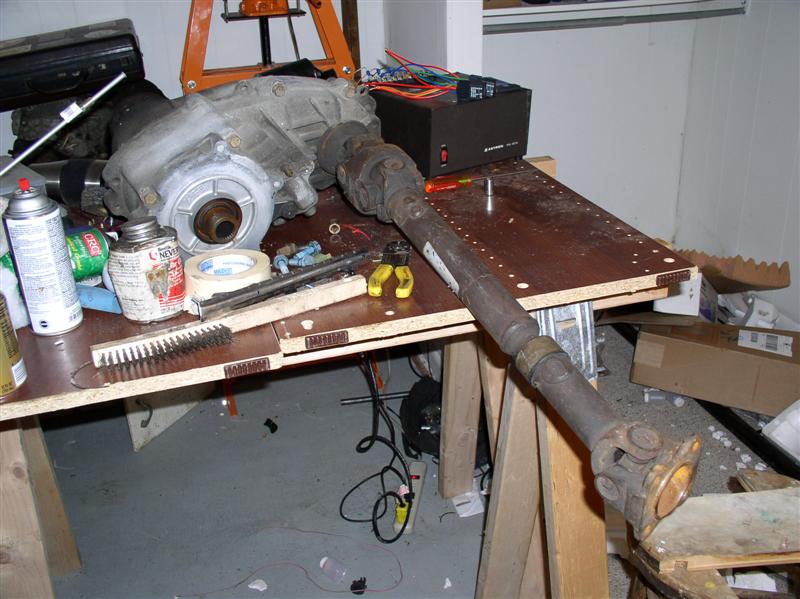

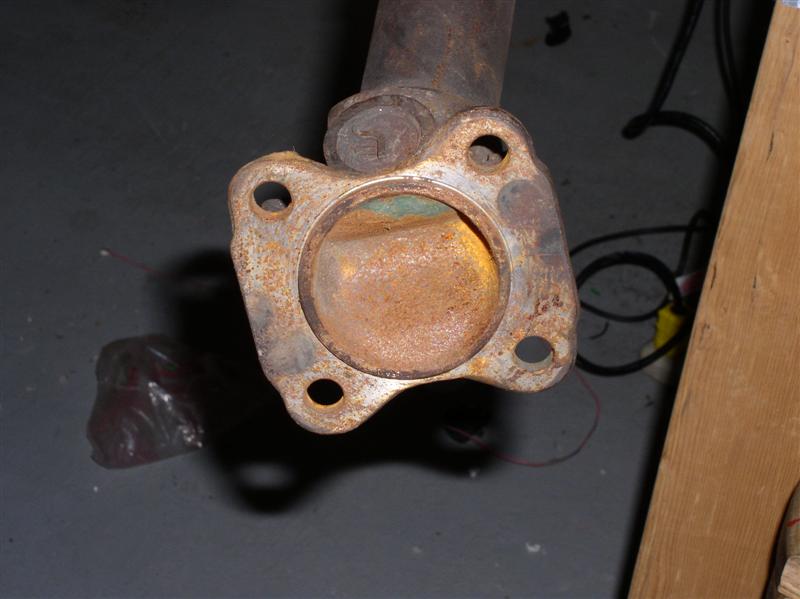

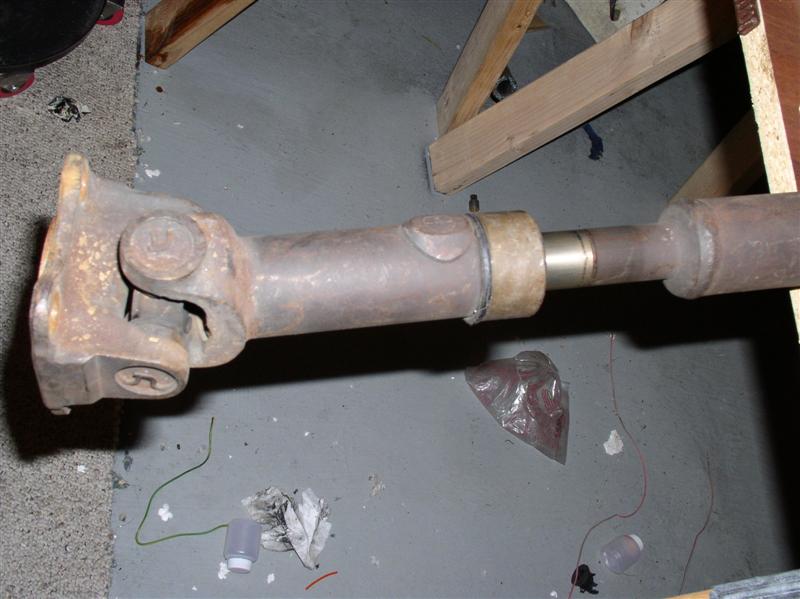

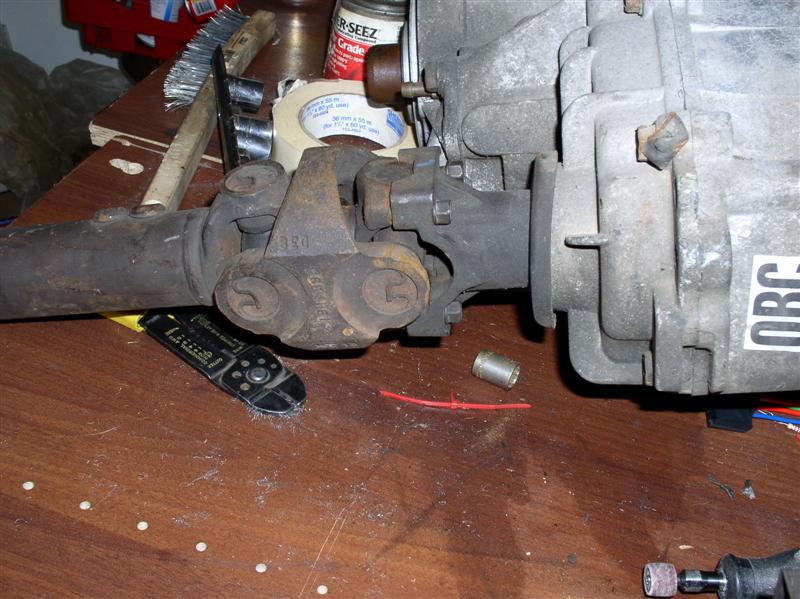

I've actually had this thing since like last summer. Never took it in from the shed to see how it matched up with the axle or the t-case.

I haven't checked the axle end, length or whatever, but the double-cardan joint bolts up to the t-case like it was made for it. It has about a 3" slip joint in the driveshaft which will probably be fine.

The guy that gave it to me at work pulled it out of a scrap pile that was going to be melted into new steel. He said he thought it was off a Dodge or something. I have not idea.

If you recognize this shaft let me know. It's probably the basis for my front shaft now.
Attached Thumbnails
Dumb luck front driveshaft find-picture-001-medium-.jpg   Dumb luck front driveshaft find-picture-002-medium-.jpg   Dumb luck front driveshaft find-picture-004-medium-.jpg   Dumb luck front driveshaft find-picture-005-medium-.jpg
Reply With Quote
  #2
Old 03-02-2008
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
haha nice i love finding stuff like that.
Reply With Quote
  #3
Old 03-02-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
sweet. 3" was enough for mine but my arms line up perfect to the driveshaft angle. not sure that would work for you.
Reply With Quote
  #4
Old 03-02-2008
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
That is sweet one time when I was offroading broke a driveshaft and I found another driveshaft in the tool box I forgot about (This was in my old zuki)
Reply With Quote
  #5
Old 03-03-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by zabeard View Post
sweet. 3" was enough for mine but my arms line up perfect to the driveshaft angle. not sure that would work for you.
That's one of the main questions. Until I get the t-case mounted and so forth it's hard to tell. Well, having SOMETHING that bolts up is a start. Modifying a shaft is cheaper than building one from scratch. I think probably it's long enough -- but it's a total guess and wishful thinking, lol.
Reply With Quote
  #6
Old 03-03-2008
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
That shaft looks to me from a mid to late '70's chevy half ton. The squareish flange bolts to the transfer case.
Reply With Quote
  #7
Old 03-03-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
do you know what Ujoint is on each end? isnt the tcase end a 1310? I have not found what a Stock Ford yoke is yet.
Reply With Quote
  #8
Old 03-03-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
I literally have no idea, lol. It fits. I'll figure out the rest later I suppose.

Well, I need to take that flange off and see how the u-joint fits up to the yoke on the D44. There are several yoke ends available for the 44 so it might just be I have to change yokes. I know they make those adapter u-joints with different sizes on the two cross axis.

Somebody school me here: is is best practice to put the double cardan up at the t-case? I'm surprised that on the Chevy axle it would be down at the diff. I can't remember which is supposed to be best.
Reply With Quote
  #9
Old 03-03-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
i would think it would be better up high and out of the dirt.

plus with the ranger setup that double cardon adds some length right where you need it so that the driveshaft does not rub the tranny cross member.
Reply With Quote
  #10
Old 03-03-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
nice find John...

Last edited by lifted97ranger; 03-03-2008 at 08:32 AM.
Reply With Quote
  #11
Old 03-03-2008
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Quote:
Originally Posted by n3elz View Post
I literally have no idea, lol. It fits. I'll figure out the rest later I suppose.

Well, I need to take that flange off and see how the u-joint fits up to the yoke on the D44. There are several yoke ends available for the 44 so it might just be I have to change yokes. I know they make those adapter u-joints with different sizes on the two cross axis.

Somebody school me here: is is best practice to put the double cardan up at the t-case? I'm surprised that on the Chevy axle it would be down at the diff. I can't remember which is supposed to be best.
My OEM double cardain in the front is up top, and the Tom Woods in the rear is also at the tcase (Jeep). I noticed that about the flange and cardain end also....weird.
Reply With Quote
  #12
Old 03-03-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by lifted97ranger View Post
that actually looks like a '97 and older BW1354 front shaft......

nice find John...
Thanks. It's a blessing for sure.

Don't know if that's what it is or not, but that square flange doesn't match the holes on the rear driveshaft flange. I'm not sure if the front and rear flanges were different or not.

Okay, well it's going to mount with the double-cardan up top then for sure. I'll figure out the rest later. Still have to drop the tranny and change the tailshaft.

I ordered the rest of the stuff to make my 1.5" 1/4" wall DOM tie rod and track bar since the drag link came out so nice. I'll be doing the "tie rod flip" when I do it and mounting it on top, and dumping the drop pitman arm I just put on (mo' money, mo' money [wasted])...well, not wasted. The truck is such a pleasure to drive until I get the rest done it's worth the $65 or whatevr I spent on it.
Reply With Quote
  #13
Old 03-03-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by n3elz View Post
Thanks. It's a blessing for sure.
i retract that statement above....not that i remember correctly, the front shaft on the '97 and older have the u-joint cups, not a flange.......

geeze, haven't had my truck for a weekend and I am already forgetting thigns
Reply With Quote
  #14
Old 03-03-2008
04 EDGE
Unregistered User

Posts: n/a
the internal transmission work was the most rewarding part of the conversion for me!
Reply With Quote
  #15
Old 03-03-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Ha ha! Well, I've taken apart an A4LD for practice, and I have the ATSG manual on it, so we'll see...I also have the "shift improver" kit (which in the case of the 5Exxx is really more of a "remedial" kit) going in as well when I do it.

I'm nothing if not foolish...I mean BOLD -- I'm nothing if not bold, yeah, that's what I meant...
Reply With Quote
  #16
Old 03-03-2008
04 EDGE
Unregistered User

Posts: n/a
you can do it john!!!!!!!!!!!!

now go out there and get it done!

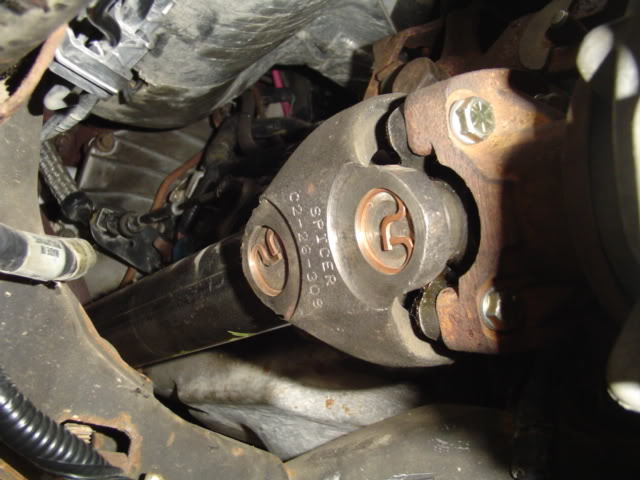

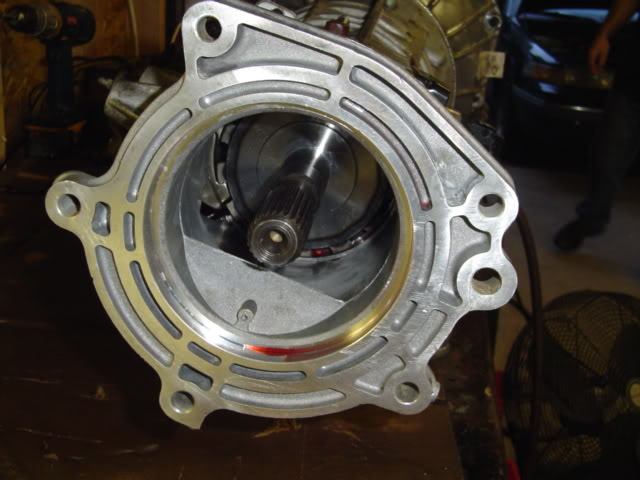

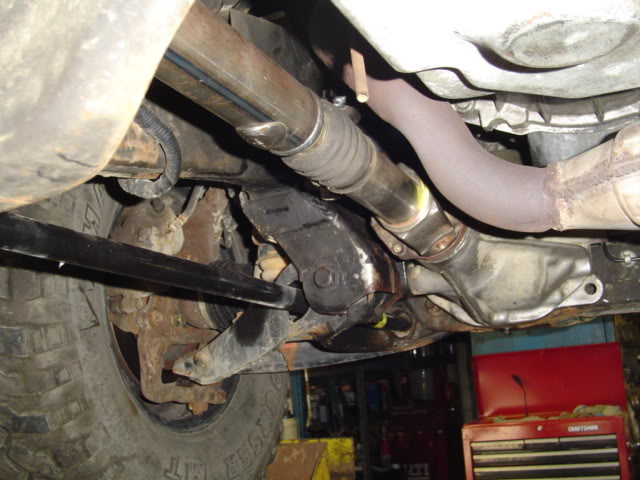

heres some motivation shots

Name:  DSC01863.jpg
Views: 4
Size:  53.3 KB
Name:  DSC01864.jpg
Views: 2
Size:  57.4 KB
Name:  DSC01856.jpg
Views: 3
Size:  50.4 KB
Reply With Quote
  #17
Old 03-03-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
I like that exhaust riser from the drivers side -- mine does not arch like that and will be in the way of the driveshaft at full stuff -- yet one more thing to change, lol.

Thanks for the pics! I'm pumped!
Reply With Quote
  #18
Old 03-03-2008
04 EDGE
Unregistered User

Posts: n/a
mine came like that
Reply With Quote
  #19
Old 03-03-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
Quote:
Originally Posted by n3elz View Post
Somebody school me here: is is best practice to put the double cardan up at the t-case? I'm surprised that on the Chevy axle it would be down at the diff. I can't remember which is supposed to be best.
To minimize vibration, a driveshaft with a conventional u-joint on one end and a constant velocity on the other should be installed like this, with a zero angle at the end with the conventional joint:



Obviously, depending on the geometry of the suspension, this may not be possible throughout the entire wheel travel. So, I would say that the angle should be optimized for the most common loaded static ride height.
Reply With Quote
  #20
Old 03-03-2008
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
I had a problem on my zuki if it was flexed out and I just gunned the hell out of it the driveshaft would come flying out! Sucks looking for half of it in the mud!! lol

Now you just need to find that 302 somewhere in your garage.
Reply With Quote
  #21
Old 03-03-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by rwenzing View Post
To minimize vibration, a driveshaft with a conventional u-joint on one end and a constant velocity on the other should be installed like this, with a zero angle at the end with the conventional joint:



Obviously, depending on the geometry of the suspension, this may not be possible throughout the entire wheel travel. So, I would say that the angle should be optimized for the most common loaded static ride height.
Good stuff, Bob -- thanks.
Reply With Quote
  #22
Old 03-03-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
This is a good resource for driveshaft geometry. Click "Tech info".
http://www.4xshaft.com/index.html
Reply With Quote
  #23
Old 03-03-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
I just went out and measured the front yoke on the D44 and it uses a 1330 u-joint. 1310's are about 3.25" long, and 1330's are about 3.625" (3-5/8") long. I didn't measure the ones on the other end of that shaft last night. I will when I get home today.
Reply With Quote
  #24
Old 03-03-2008
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
So you have not had a front shaft in at all?
Reply With Quote
  #25
Old 03-03-2008
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Pointless since I don't have the t-case in yet, lol. I have to drop the tranny and replace the tailshaft with one I "rescued" from an A4LD from an Exploder.

But as soon as I get a break in the weather I'm taking some days off and dropping that puppy, rebuilding it, modifying the exhaust, and putting it back in there. I already have a good rear 4x4 driveshaft. I'll probably sell the 4x2 rear driveshaft for whatever I can get for it. Anyone need an aluminum driveshaft for an extended cab 4x2?
Reply With Quote
