Front Differential help!

My front diff has been leaking for a while and i went to drive around in 4wd the other day (bad road conditions) and after a while i noticed a noise coming from the front end and it stopped when i took it out of 4wd im assuming that i've lost to much fluid so i went to the auto parts store today and got some but when i went to add it i didnt see a fill hole. Where is it and how much work is it to get too it? Also i need to replace the seal where the drive shaft connects, how do i take off the front drive shaft?
Reply With Quote
  #2
Old 12-18-2010
kiltro's Avatar
Member
iTrader: (1)

Join Date: Aug 2010
Location: Atlanta
Posts: 376
Does this help??

Name:  IMG00145-20101218-1206.jpg
Views: 3
Size:  45.1 KB

Name:  IMG00146-20101218-1208.jpg
Views: 2
Size:  52.7 KB

Name:  IMG00147-20101218-1208.jpg
Views: 2
Size:  52.3 KB

by the way, these came out of the 00-05 Ranger repair manual
Reply With Quote
  #3
Old 12-18-2010
Masteratarms93's Avatar
Member
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
those look like pics of a pre-98 D35 TTB front diff.
Reply With Quote
  #4
Old 12-18-2010
kiltro's Avatar
Member
iTrader: (1)

Join Date: Aug 2010
Location: Atlanta
Posts: 376
it's possible, but I wouldn't know. I'm a total noob.

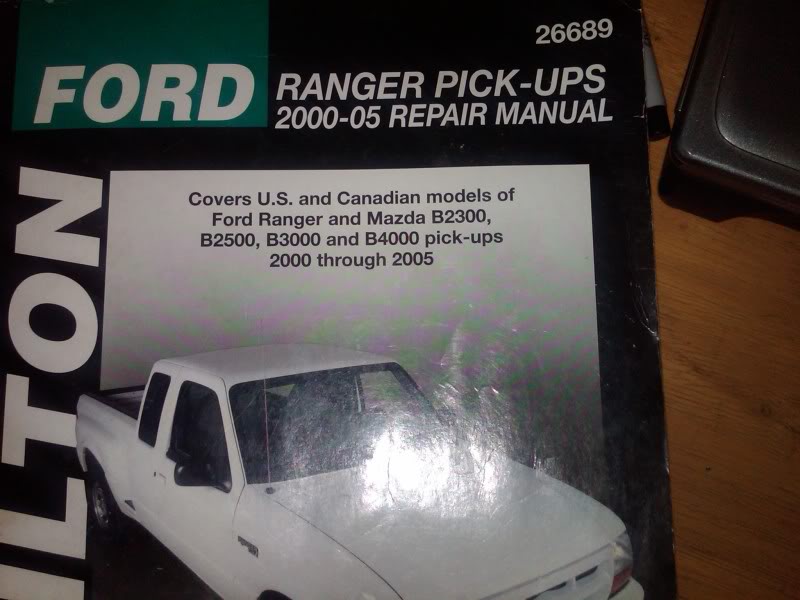

All I know is I got it from here:

Name:  IMG00148-20101218-1330.jpg
Views: 2
Size:  63.0 KB
Reply With Quote
  #5
Old 12-18-2010
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
the fill be behind it by the yoke I think :) its been SO long since Ive had IFS
Reply With Quote
  #6
Old 12-18-2010
ranger024x4's Avatar
RF Veteran
iTrader: (6)

Join Date: Aug 2004
Location: nova
Posts: 5,061
Quote:
Originally Posted by HighRollerII View Post
the fill be behind it by the yoke I think :) its been SO long since Ive had IFS
this.

also, fix the leak. where is it leaking from? my guess would be the pinion seal
Reply With Quote
  #7
Old 12-18-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
well its not like in those pics. there's something threaded sticking out the drivers side but im not sure it thats it, it has a square cut into it, not real sure how to describe it.
Reply With Quote
  #8
Old 12-18-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Quote:
Originally Posted by Redrider11 View Post
well its not like in those pics. there's something threaded sticking out the drivers side but im not sure it thats it, it has a square cut into it, not real sure how to describe it.
That's the plug.
Reply With Quote
  #9
Old 12-18-2010
Member
Thread Starter

Join Date: Oct 2009
Location: Garner,NC
Posts: 255
alright thanks guys. now how do you take the driveshaft off?
Reply With Quote
  #10
Old 12-18-2010
ranger024x4's Avatar
RF Veteran
iTrader: (6)

Join Date: Aug 2004
Location: nova
Posts: 5,061
is it the pinion seal that is leaking?
Reply With Quote
  #11
Old 12-18-2010
ranger024x4's Avatar
RF Veteran
iTrader: (6)

Join Date: Aug 2004
Location: nova
Posts: 5,061
there should be 2 bolts that hold on a clamp that holds the ujoint in place. take all 4 bolts out and you shoulb be able to move the d/s out of the way
Reply With Quote
  #12
Old 12-18-2010
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
Quote:
Originally Posted by Redrider11 View Post
alright thanks guys. now how do you take the driveshaft off?
axle side -- four 7mm I think bolts..
tcase side -- 8 allen head bolts.. ( I think its 8)
Reply With Quote
  #13
Old 12-18-2010
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
axle side is a t20 or t30 torx

i know this sounds mean so im sorry in advance, i dont know how else to say it

the fill plug is on the drivers side and has a 3/8" square drive spot in it. if you ran it dry enough where its noisy you probably have a bad bearing. and if you cant figure out how to fill it yourself, you probably shouldnt be replacing a pinion seal or bearings
Reply With Quote
  #14
Old 12-18-2010
malydeen's Avatar
Member
iTrader: (12)

Join Date: Jul 2007
Location: Minneapolis, MN
Posts: 632
Quote:
Originally Posted by KLC View Post
That's the plug.
The easiest way to fill it is get a quart bottle with the pointy cap. Get yourself some 3/8" tube feed the tube around the tire under the frame and into the fill hole. its gonna be messy, but it works pretty slick.
Reply With Quote
  #15
Old 12-18-2010
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
I always used one of those pumps that screws onto the bottle of fluid. They're like $5-$10 at the parts stores.
Reply With Quote
