FX4 shift lever

dose anyone know what the detentions are for the FX4 shift lever is? im looking to build my own out of an old lever

Thanks
-Andy
Reply With Quote
  #2
Old 01-11-2010
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
i can measure mine when im home. use a t-18/19 lever out of a 80s fod truck. it is almost the same length and on the same angle
Reply With Quote
  #3
Old 01-11-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by HillPrideRanger View Post
dose anyone know what the detentions are for the FX4 shift lever is? im looking to build my own out of an old lever

Thanks
-Andy
If you're going to make it from scratch, customize it to fit you perfectly, don't copy the stock shifter.
Reply With Quote
  #4
Old 01-11-2010
HillPrideRanger's Avatar
Member
Thread Starter

Join Date: Mar 2009
Location: Aurora, Colorado
Posts: 442
Quote:
Originally Posted by Dangerranger01 View Post
If you're going to make it from scratch, customize it to fit you perfectly, don't copy the stock shifter.
that's what im going to do i just want the stock measurements for a starting point
Reply With Quote
  #5
Old 01-11-2010
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Reply With Quote
  #6
Old 01-12-2010
HillPrideRanger's Avatar
Member
Thread Starter

Join Date: Mar 2009
Location: Aurora, Colorado
Posts: 442
Anyone with dementions?
Reply With Quote
  #7
Old 01-12-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
Approximate dimensions working from the bottom up:

1.25" = height of bottom clamp

6.25" = top of the clamp to the knee of the shift arm (includes the vibration damper section)

8.25" = from the knee to the base of the shift ball

2.125" = shift ball diameter

M12x1.75 = factory shift ball thread


The shift arm tapers from about 0.800" above the damper to about 0.600" as it goes up, then necks down sharply for the 12mm thread on top.

The angle between the clamp and the lower part of the shifter is about 10 degrees.

The angle of the knee is about 35 degrees.
Attached Thumbnails

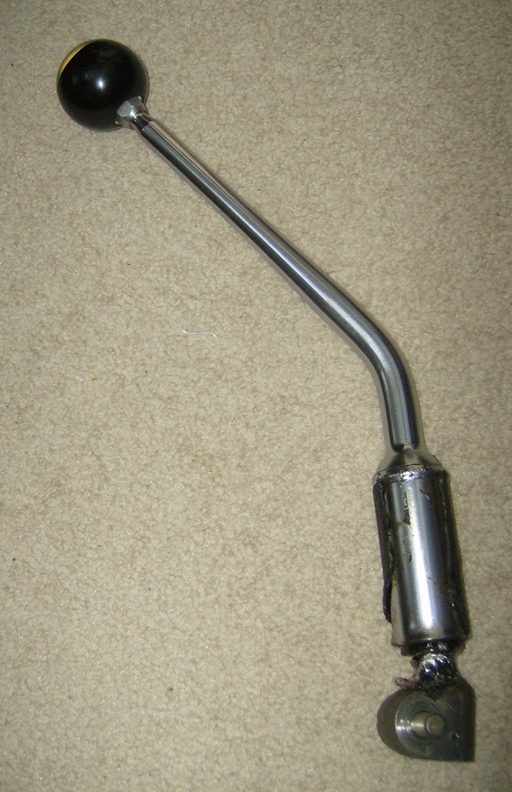

FX4 shift lever-fx4-shifter-2003.jpg
Reply With Quote
  #8
Old 01-12-2010
HillPrideRanger's Avatar
Member
Thread Starter

Join Date: Mar 2009
Location: Aurora, Colorado
Posts: 442
Quote:
Originally Posted by rwenzing View Post
Approximate dimensions working from the bottom up:

1.25" = height of bottom clamp

6.25" = top of the clamp to the knee of the shift arm (includes the vibration damper section)

8.25" = from the knee to the base of the shift ball

2.125" = shift ball diameter

M12x1.75 = factory shift ball thread


The shift arm tapers from about 0.800" above the damper to about 0.600" as it goes up, then necks down sharply for the 12mm thread on top.

The angle between the clamp and the lower part of the shifter is about 10 degrees.

The angle of the knee is about 35 degrees.
Awesome thank you very much!
Reply With Quote
  #9
Old 01-12-2010
HillPrideRanger's Avatar
Member
Thread Starter

Join Date: Mar 2009
Location: Aurora, Colorado
Posts: 442
and how much dose the vibration dampener reduce? like if i don't have one will i notice it a lot?
Reply With Quote
  #10
Old 01-12-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
Quote:
Originally Posted by HillPrideRanger View Post
and how much dose the vibration dampener reduce? like if i don't have one will i notice it a lot?
I don't know but Ford wouldn't have paid for it unless it made some difference.
Reply With Quote
