Icon5 gearing

i need help figuring out what kind of gears i have, i dont know much about axles, but i have a 02 ranger edge 4x4 with a 4.0 sohc and also how do i figure out what my t-bars are?
Reply With Quote
  #2
Old 10-08-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Go look on your door sticker. It will tell you both t-bar rating and gears. I'll put up some pictures in one minute.
Reply With Quote
  #3
Old 10-08-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Name:  1120081854.jpg
Views: 1
Size:  59.5 KB

Name:  0126091745_0001-1.jpg
Views: 1
Size:  101.0 KB

The first 2 letters/numbers are the torsion bars while the last 2 are the leaf rating.

You can also look on the rear axle diff cover tag for the gears

Name:  1205082039.jpg
Views: 1
Size:  58.9 KB
Reply With Quote
  #4
Old 10-08-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426

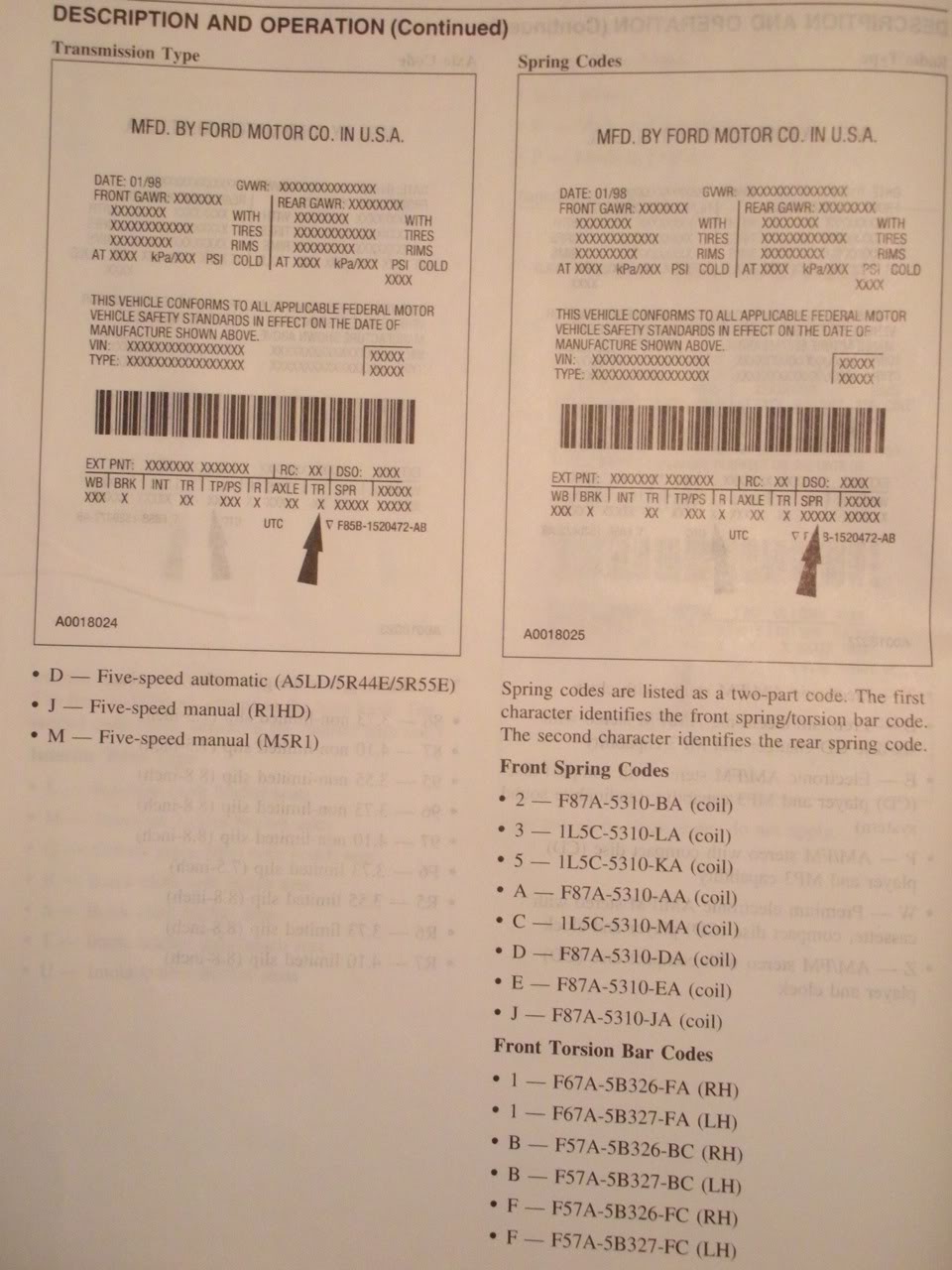

Here is a better way to decode the spring rate

Name:  DSCN0236.jpg
Views: 0
Size:  149.0 KB
Reply With Quote
  #5
Old 10-08-2009
RedComet6342's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: NC
Posts: 241
Thanks from what i got from the tag is i have a 4.10 limited slip (R7), and im guessing i have #1 bars since my spr is 1k
Reply With Quote
  #6
Old 10-08-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Correct! You have what pretty much every ranger owner wants haha
Reply With Quote
  #7
Old 10-08-2009
RedComet6342's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: NC
Posts: 241
Quote:
Originally Posted by 04blackedge View Post
Correct! You have what pretty much every ranger owner wants haha
great lol so what are #1 t-bars?
Reply With Quote
  #8
Old 10-08-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Just the strongest bars. They'll hold a crank longer than the other bars.
Reply With Quote
  #9
Old 10-08-2009
RedComet6342's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: NC
Posts: 241
great thanks for all the info very helpful, been trying to figure this out for a while now
