had to take my t-case out..

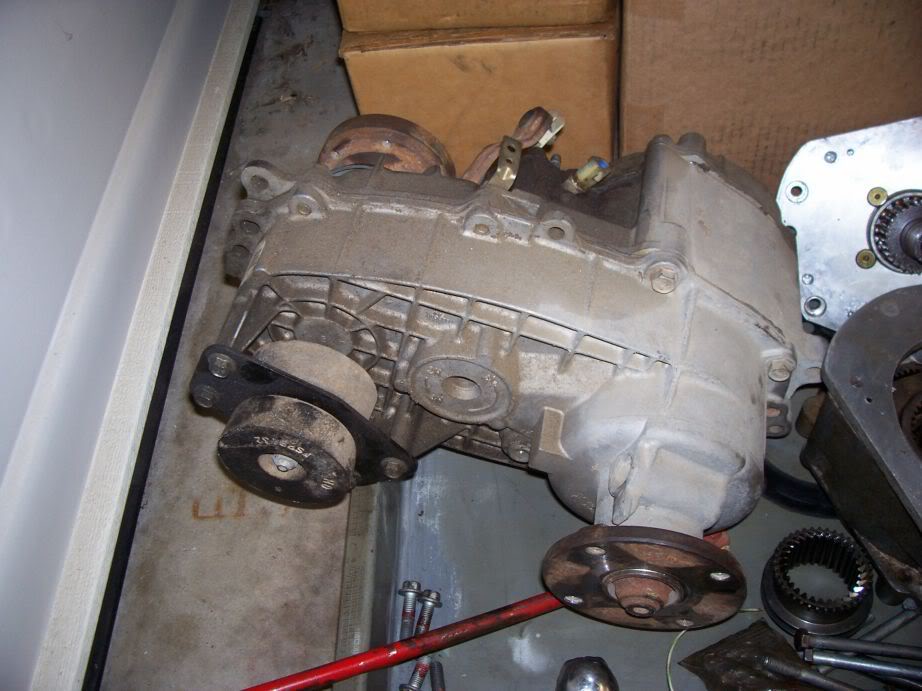

Ah, there it is..

Name:  100_0926.jpg
Views: 2
Size:  81.9 KB

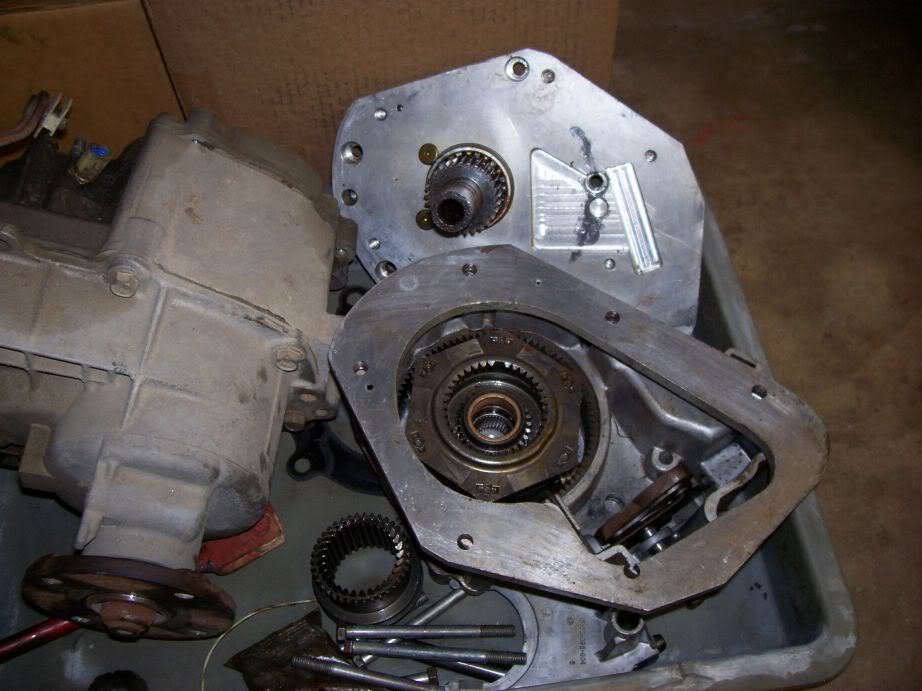

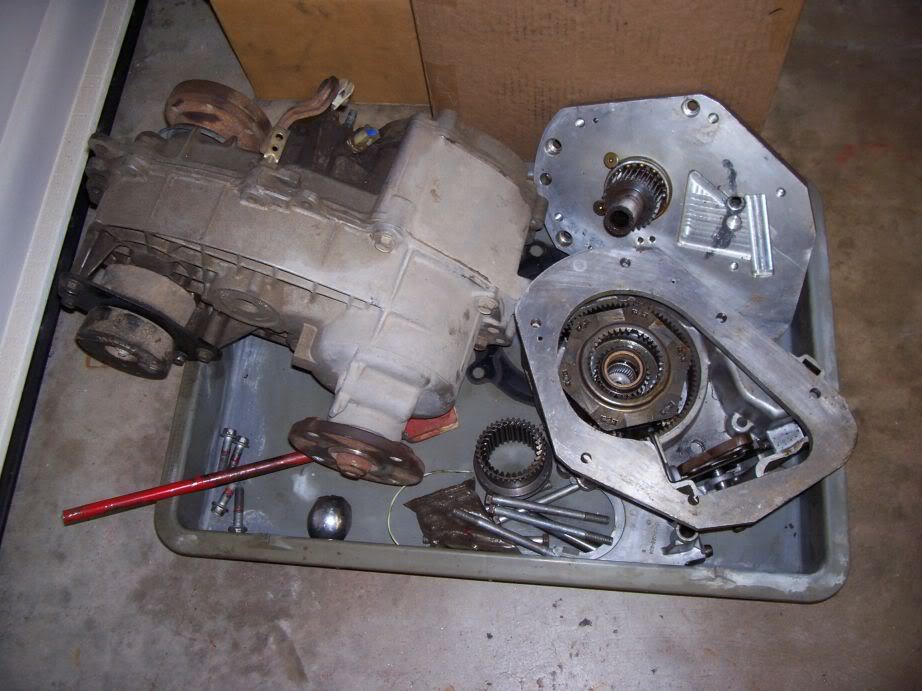

But.. what do we have here, next to the case?

Name:  100_0928.jpg
Views: 2
Size:  88.9 KB


Name:  100_0927.jpg
Views: 2
Size:  77.3 KB
Reply With Quote
  #2
Old 09-28-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
how are you going to setup your dual shifters? Ive had my doubler sitting around for a while and Ive been brainstorming a good setup.
Reply With Quote
  #3
Old 09-28-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Quote:
Originally Posted by redranger4.0 View Post
how are you going to setup your dual shifters? Ive had my doubler sitting around for a while and Ive been brainstorming a good setup.
I'm going to assume you have a 1350 or 1354 for your 2nd case.. I can't help you out too much there because my unit is a stubler (shorty doubler) and it's setup with a simple rod action: (pull) up and you're in HI, (push) down and you're in LO.
Reply With Quote
  #4
Old 09-28-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
ohhh..this is one of those gear reducers that goes in between the trans and the transfer case? correct? Like an overdrive unit...but your underdriving it.
Reply With Quote
  #5
Old 09-28-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by 2002FX4 View Post
I'm going to assume you have a 1350 or 1354 for your 2nd case.. I can't help you out too much there because my unit is a stubler (shorty doubler) and it's setup with a simple rod action: (pull) up and you're in HI, (push) down and you're in LO.
Mine should shift similar, Im going to rotate the stock shift lever on the tcase around so that it shifts up and down. My doubler just isnt as nice looking as yours.

Reply With Quote
  #6
Old 09-28-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Quote:
Originally Posted by Fx4wannabe01 View Post
ohhh..this is one of those gear reducers that goes in between the trans and the transfer case? correct? Like an overdrive unit...but your underdriving it.
Correct on the gear reduction unit, as is any transfer case with 4LO. This is basically a 2nd t-case, only without the output shaft part. Mine has the same gear set as a stock 1354 does (2.48:1). So after the two are mated, my double LO will be 6.15:1.
Reply With Quote
  #7
Old 09-30-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428

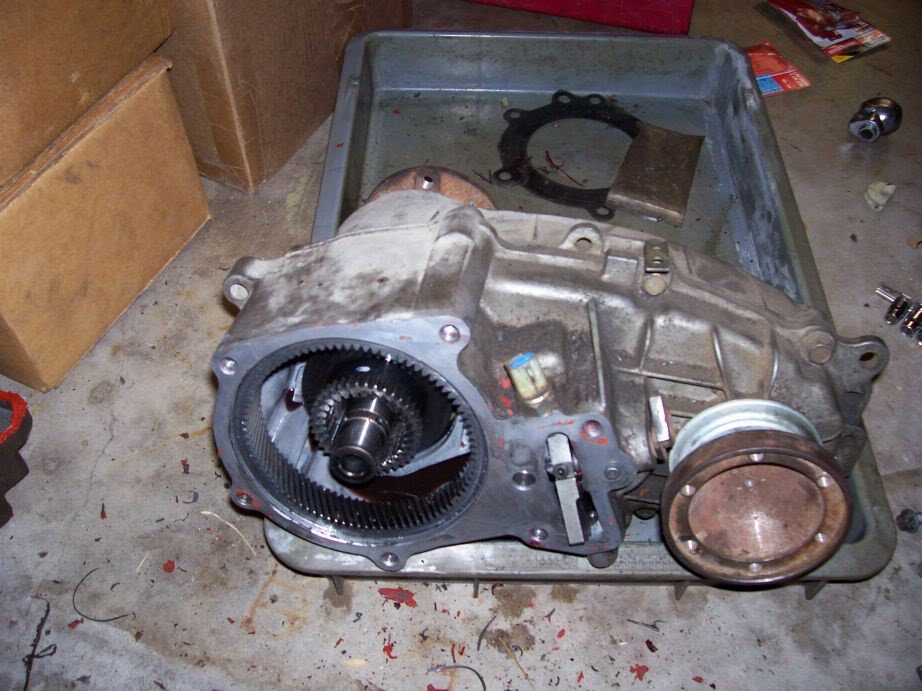

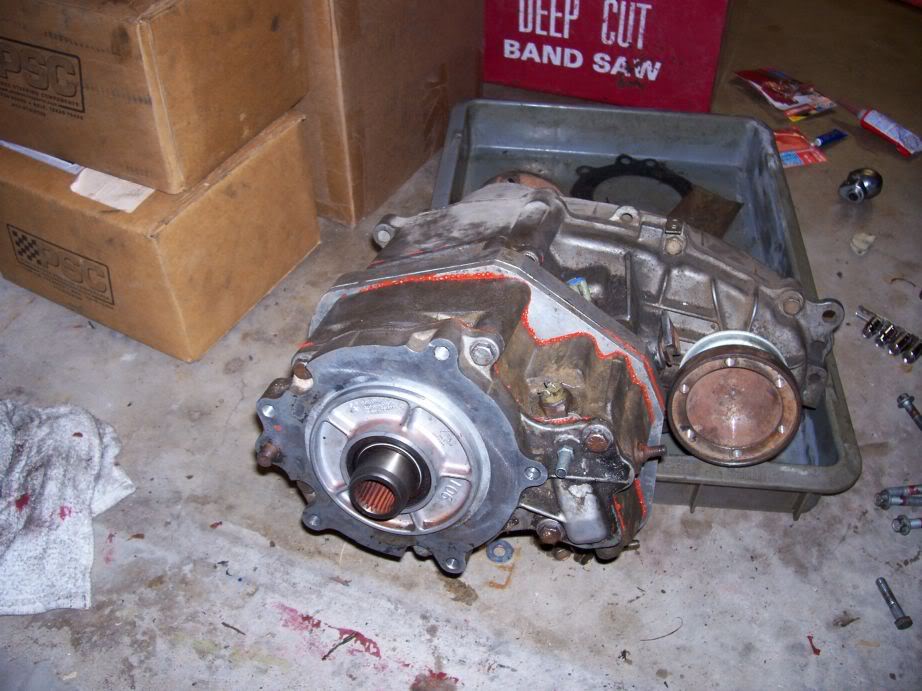

Got my doubler assembled today.. will get it back on the truck tomorrow, then move on with getting the t-case skid finished. Anyhow.. pics!

Name:  100_1017.jpg
Views: 1
Size:  97.7 KB

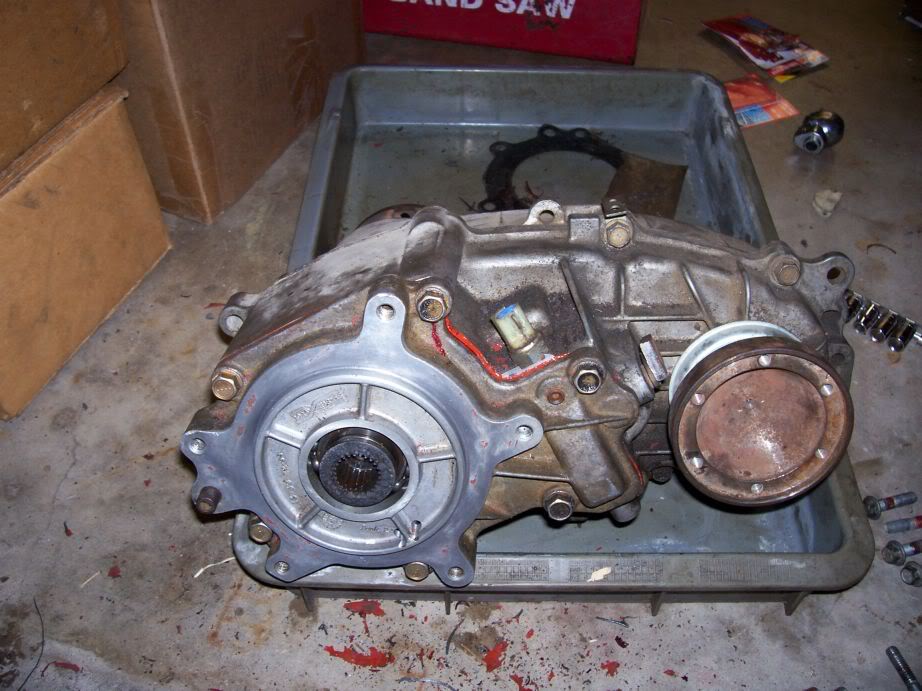

Name:  100_1018.jpg
Views: 1
Size:  102.2 KB

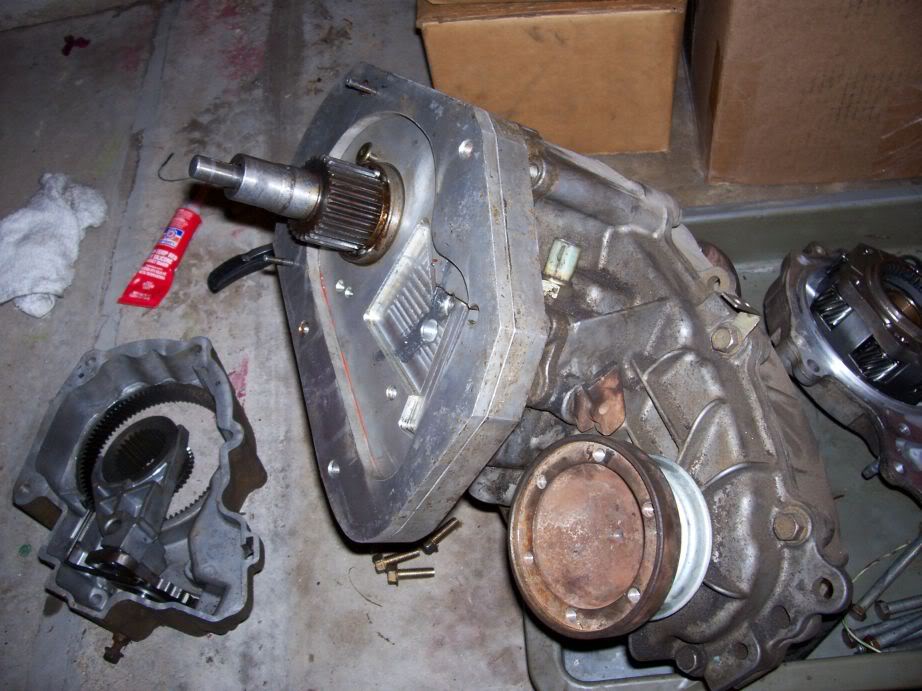

Name:  100_1009.jpg
Views: 1
Size:  99.5 KB

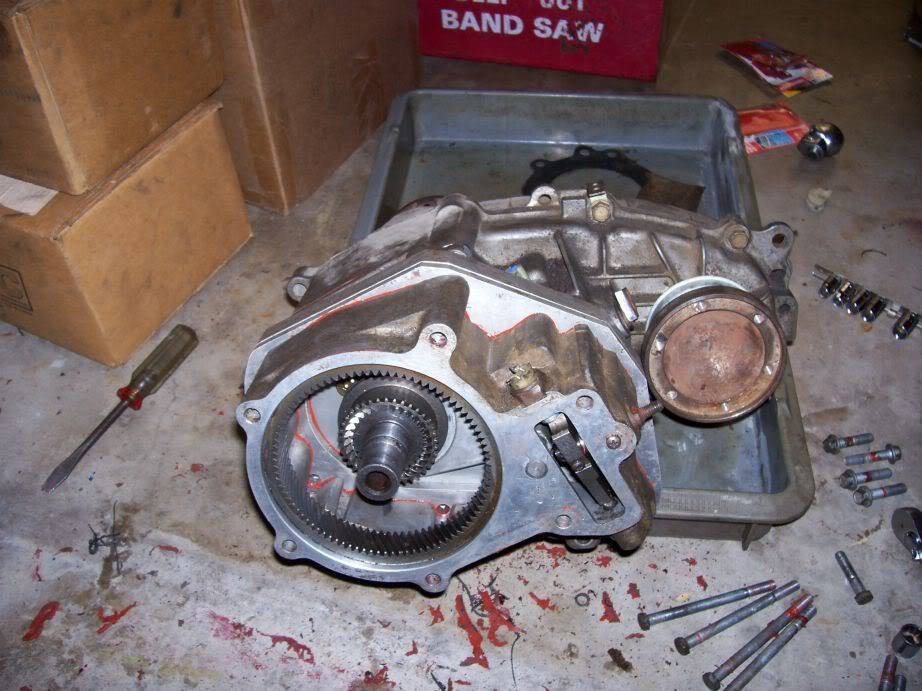

Name:  100_1020.jpg
Views: 1
Size:  103.3 KB

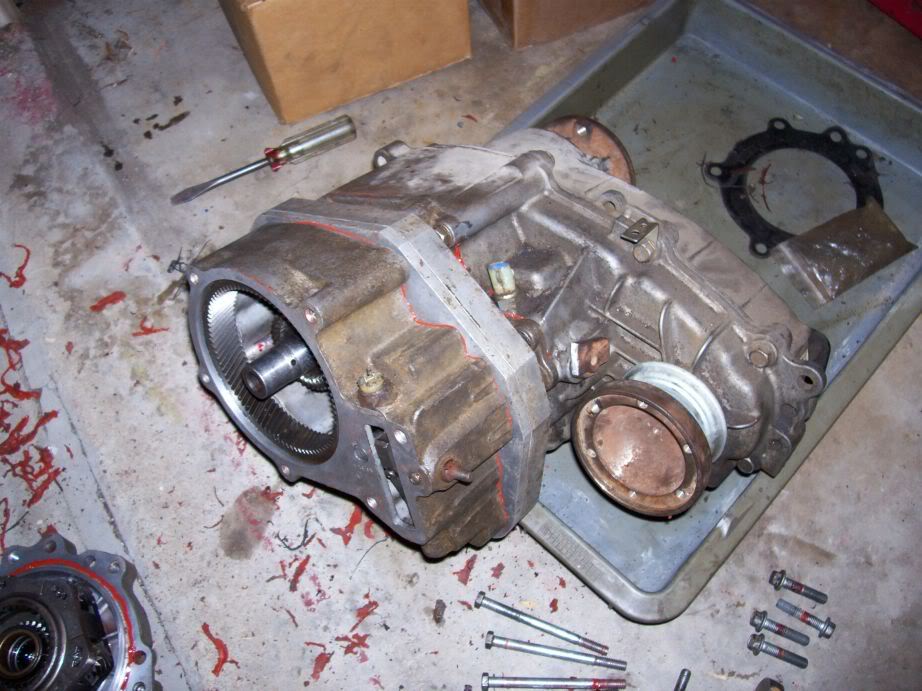

Name:  100_1021.jpg
Views: 1
Size:  104.3 KB

Name:  100_1013.jpg
Views: 1
Size:  99.0 KB

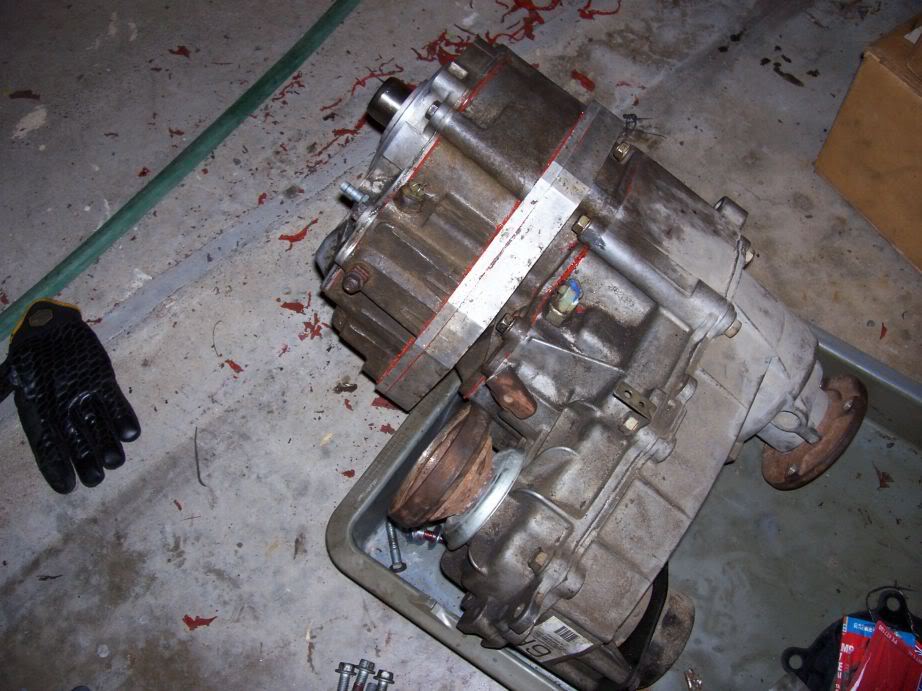

Name:  100_1023.jpg
Views: 1
Size:  102.5 KB
Reply With Quote
  #8
Old 09-30-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Nice, is the front drive shaft going to clear the doubler?

I can't really tell from the pictures.
Reply With Quote
  #9
Old 09-30-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Quote:
Originally Posted by 5speedin2.3 View Post
Nice, is the front drive shaft going to clear the doubler?

I can't really tell from the pictures.
Yeah it will. Though even I was surprised when I got it all together and stepped back for a 'whole picture' look.


And in case anyone notices, I cutoff the stock shift linkage on the case to modify it to clear the main/thick plate between the two cases..
Reply With Quote
  #10
Old 09-30-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Wow, thats going to be close.

Guess I would have to see a picture of the driveshaft mounted.

Now would be a good time to ditch the CV style driveshaft.
Reply With Quote
  #11
Old 09-30-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Quote:
Originally Posted by 5speedin2.3 View Post
Now would be a good time to ditch the CV style driveshaft.
Why would I do that?
Reply With Quote
  #12
Old 09-30-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
wait so did you cut the front case? or have someone do that?

very cool Kevin, I should do this, I already have 2 transfer cases.
Reply With Quote
  #13
Old 09-30-2008
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Damn son, you got alot done last night. What time did your finish at?
Reply With Quote
  #14
Old 09-30-2008
Rooks's Avatar
Member
iTrader: (7)

Join Date: Sep 2006
Location: Minneapolis, MN
Posts: 1,867
Looking good. Should crawl real nice once that's done.
Reply With Quote
  #15
Old 09-30-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Quote:
Originally Posted by zabeard View Post
wait so did you cut the front case? or have someone do that?

very cool Kevin, I should do this, I already have 2 transfer cases.
Someone else.. Everything from the thick aluminum plate forward (except for the cover plate) is what I got from the guy on Pirate.
Reply With Quote
  #16
Old 09-30-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
oh ok. cool, cant wait to see it done!
Reply With Quote
  #17
Old 10-07-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428

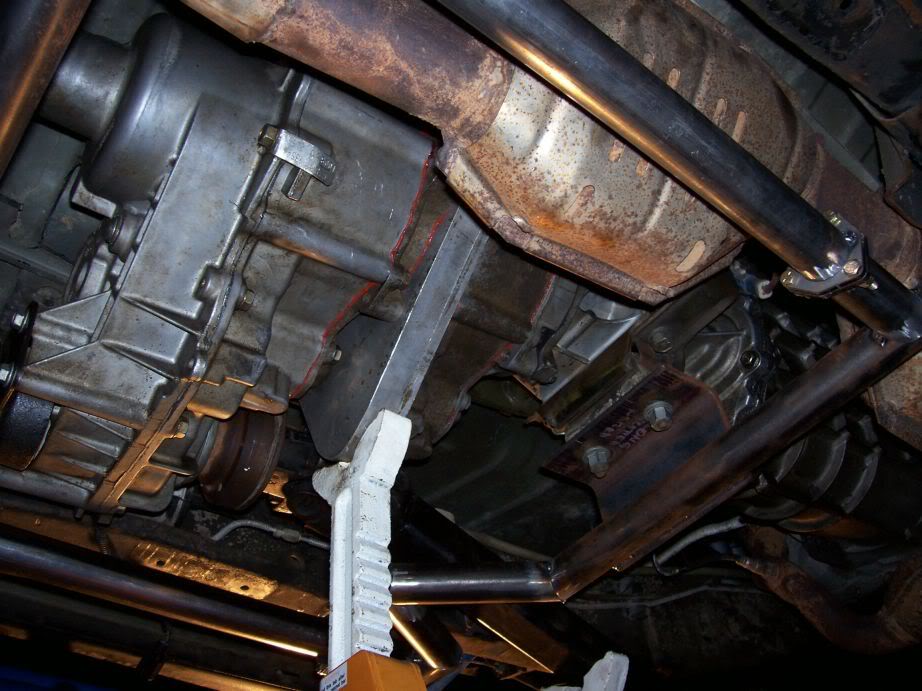

Okay.. got the sucka installed a couple days ago. I've been working on the t-case skid now that the doubler is in.

Name:  100_1046.jpg
Views: 1
Size:  99.5 KB

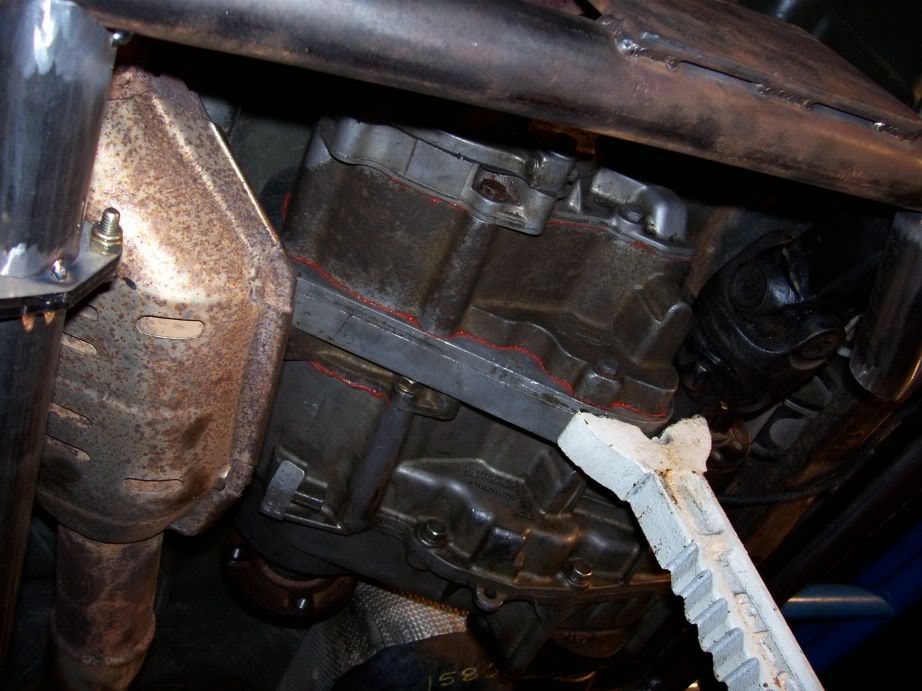

Name:  100_1042.jpg
Views: 1
Size:  85.4 KB
Reply With Quote
  #18
Old 10-14-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428

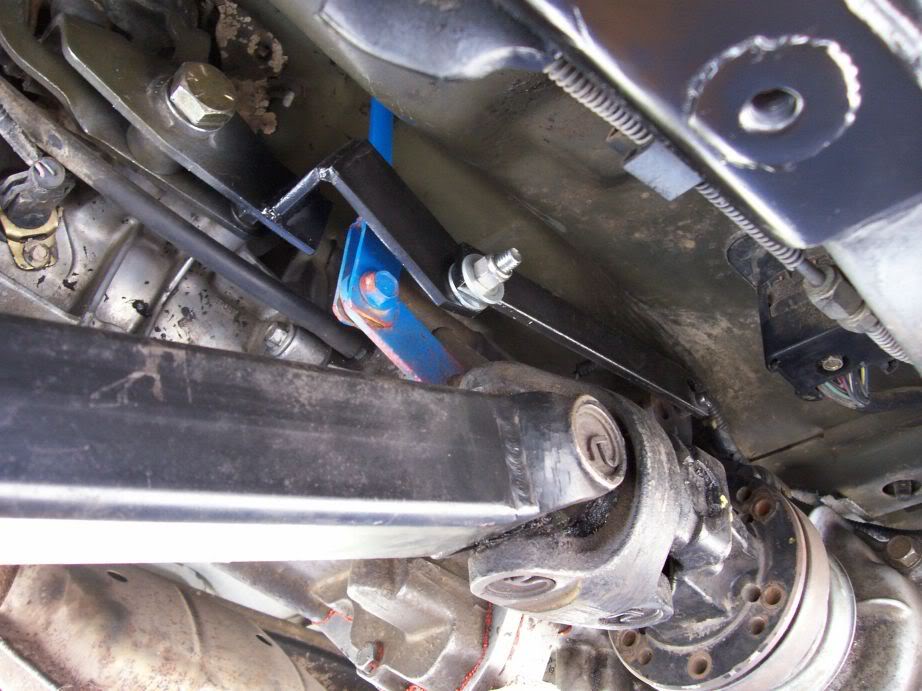

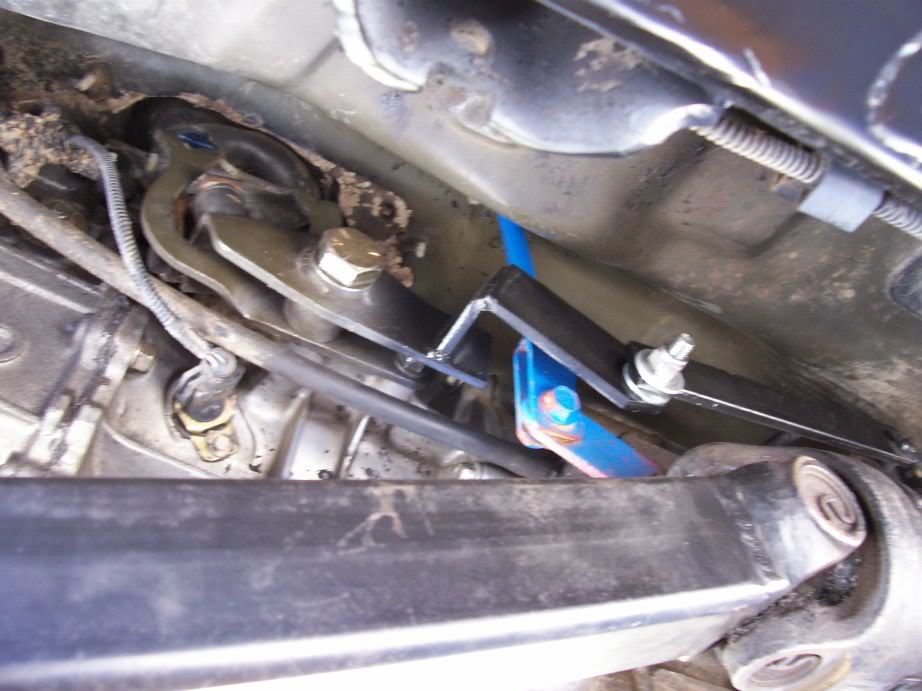

Linkage squared away..

Name:  100_1071.jpg
Views: 1
Size:  78.6 KB

Name:  100_1072.jpg
Views: 1
Size:  97.5 KB

And don't let the angle fool ya.. there's just enough clearance for everything to function.

Last edited by 2002FX4; 10-14-2008 at 05:05 AM.
Reply With Quote
  #19
Old 10-14-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Looks good! Now what did you do for the stuff in the cab?
Reply With Quote
  #20
Old 10-14-2008
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
I bet that thing crawls great. You do some good work.
Reply With Quote
  #21
Old 10-14-2008
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Quote:
Originally Posted by zabeard View Post
Looks good! Now what did you do for the stuff in the cab?
I got a peek already it looks real awsome.
Reply With Quote
  #22
Old 10-14-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Quote:
Originally Posted by zabeard View Post
Looks good! Now what did you do for the stuff in the cab?
I'll get a pic of that up soon. I just didn't have it all buttoned up when I snapped the pic of the linkage. But it's reeaalllyy simple, yet sweet! :)


Quote:
Originally Posted by seed60 View Post
I bet that thing crawls great. You do some good work.
Yeah I can't wait to try it. Though I've been making leaps and bounds with each project, as with any work involving several different projects on a rig, there's quite a few 'little' things left before I get to that point.

Thanks for the compliment! I generally take abit longer than is required, but that's just because I like to have a really clean, well-thought through design and have the work show it.
Reply With Quote
  #23
Old 10-14-2008
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
I generally take abit longer than is required, but that's just because I like to have a really clean, well-thought through design and have the work show it.
It really shows. I'm so jealous of your rig!
Reply With Quote
  #24
Old 10-14-2008
Hayn Time
Unregistered User

Posts: n/a
Great job on the linkage. The only problem that I found with the doubler set up is that intermediate shaft (the one you picked up off of pirate along w/ the unit) tends to fail. But, there was a guy on Pirate that was apperantly casting and not welding the two splines together. Did you by chance get one of those? BTW, nice job all together and great lookin rig.
Reply With Quote
  #25
Old 10-15-2008
2002FX4's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Quote:
Originally Posted by Hayn Time View Post
Great job on the linkage. The only problem that I found with the doubler set up is that intermediate shaft (the one you picked up off of pirate along w/ the unit) tends to fail. But, there was a guy on Pirate that was apperantly casting and not welding the two splines together. Did you by chance get one of those? BTW, nice job all together and great lookin rig.
Thanks.. the linkage was no easy brainstorm..

The one I bought from the guy on Pirate was made by 4-x-fab.com and the intermediate shaft is one piece, machine, splined, annealed and heat treated.
Reply With Quote
