Have 4.10 and wish to add L/S

Where can i find the parts new. Is it the same as a mustang???

OE or After Market or Performance.

Im Tired of only spinning 1 wheel Please HELP
Reply With Quote
  #2
Old 09-27-2009
cchsbuzz19's Avatar
Member
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
Its way cheaper to go and find a rear axle with L/S
Reply With Quote
  #3
Old 09-27-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Yeah i was just on summit and realized that new is gonna be a bit expensive..

So used axle would i be able to keep my current axle and just transfer the L/S Parts over to my axle
Reply With Quote
  #4
Old 09-27-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Do you have a 7.5 or an 8.8?
Reply With Quote
  #5
Old 09-27-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
8.8
Reply With Quote
  #6
Old 09-27-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Hmm... Try and find an Explorer axle with 4.10's and L/S and disks.
Reply With Quote
  #7
Old 09-27-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
How do you swap it to add disk brakes?
Reply With Quote
  #8
Old 09-27-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
I think there's a kit you can buy for the 8.8's to convert to disks but you're just better off getting an explorer axle that already has them and just cleaning it up and swapping it in.
Reply With Quote
  #9
Old 09-27-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
What about ebrake cable does the one i have work
Reply With Quote
  #10
Old 09-27-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
I think. Im not 100% sure though. There may be a write up on how to swap in an explorer axle.
Reply With Quote
  #11
Old 09-27-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Alright so if i dont decide to swap the whole axle will i be able to take out the L/S and add it to mine
Reply With Quote
  #12
Old 09-27-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
If it has the same spline as your axle which is most likely a 28 spline.
Reply With Quote
  #13
Old 09-27-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Do you know how to set up a ring and pinion? Measure backlash, pinion depth, etc? If not then it won't be a good idea for you to swap the L/S carrier into your existing axle.
Reply With Quote
  #14
Old 09-27-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
I work with people who know how to set them up.

How do i know if the ranger/exploder i get it from has 8.8, 4.10, 28 spline
Reply With Quote
  #15
Old 09-27-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Axle tag
Reply With Quote
  #16
Old 09-27-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Does it actually say what it has or is it coded
Reply With Quote
  #17
Old 09-27-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Coded. You know where the axle tag is? Do you know what to look for?
Reply With Quote
  #18
Old 09-27-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
It'll be like 4L10 88 and that will mean 4.10 LS in a 8.8. 373 75 would mean 3.73s in a 7.5. Its pretty easy to decode.
Reply With Quote
  #19
Old 09-27-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Its normally bolted to it am i correct.

Not sure what code to look for
Reply With Quote
  #20
Old 09-27-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Late post but i gotcha
Reply With Quote
  #21
Old 09-27-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Trent posted what codes to look for. And yes, you are correct. It's held on by one of the diff cover bolts. It's just a little metal tag. Can't miss it. And if that's not there then you can check the door sticker. Those aren't always reliable though.
Reply With Quote
  #22
Old 09-27-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426

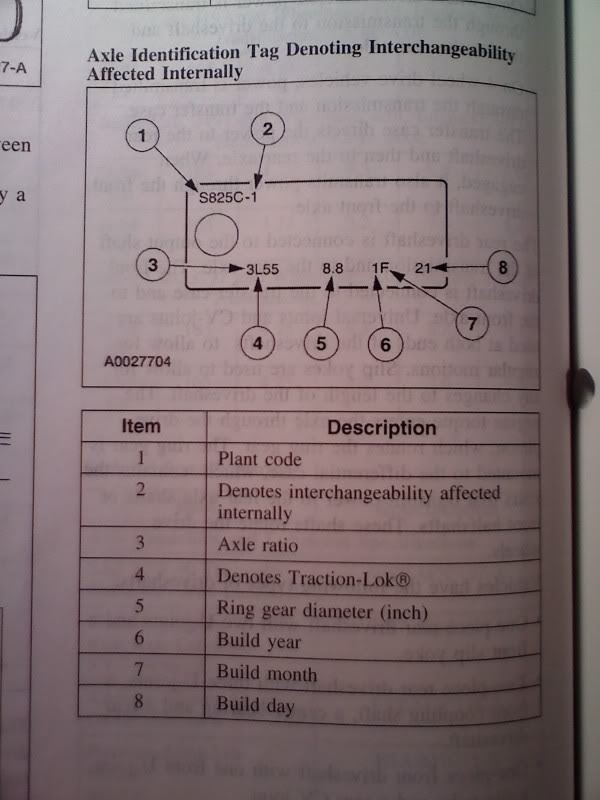

Here you go, I knew I had this somewhere:

Name:  1205082039.jpg
Views: 1
Size:  58.9 KB
Reply With Quote
  #23
Old 09-27-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
So Exploders are all 31 spline and Rangers 28


So if im keeping the old axle look for a 28 spline..

Also a guy at work said the mustangs will work if they have an 8.8 and you remove the axles and it basically bolts on

Am i right??
Reply With Quote
  #24
Old 09-27-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426

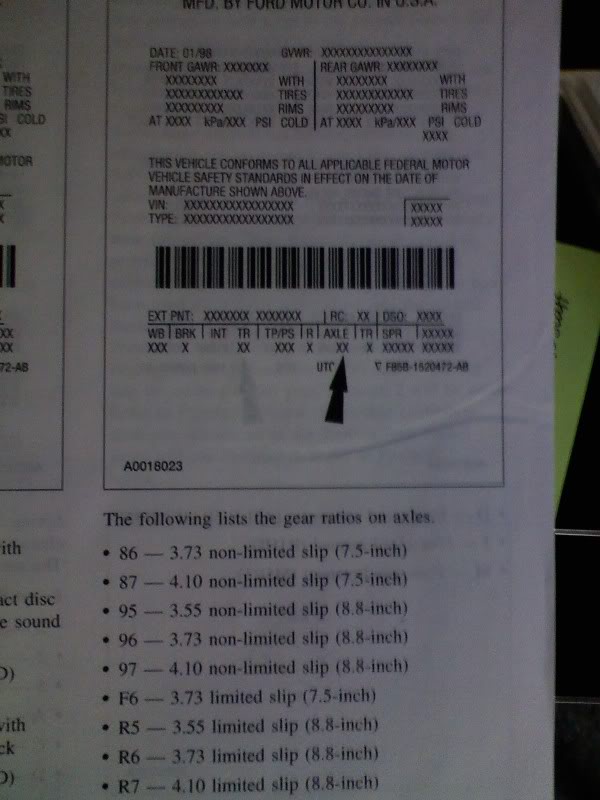

And for the door sticker if you just want to confirm

Name:  1120081854.jpg
Views: 1
Size:  59.5 KB
Reply With Quote
  #25
Old 09-27-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Look at Mr. Fancy with his pictures LOL
