Help!

Im trying to replace the boots on my CV shaft..

so i got that little pos plastic washer out of the hub, that holds in the CV shaft.

then i started pulling the CV shaft out of the hub, and it got hung up within say, the last inch of the hub.. im scared to pull/push too hard because i dont want to ruin the $250+ hub assembly..


any suggestions? should i just wiggle it more.. idk what to do. the last thing i need to do is ruin the CV shaft and the hub.. go from a $25 fix to $325+ fix...


oh and there are those little skinny metal washer looking things on the CV shaft, what are those? i already destroyed one..

Im getting fed up with working on my truck after the lift..
-its a PITA to find a good place to jack from/jeep the jack stands
-it took me 3-4 hours to get the front diff out, used to only be a 30 minute job
-the oil pan wont come out, its stuck between the cross member and the exhaust

idk what else there is to ***** about right now.
Reply With Quote
  #2
Old 09-11-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
no pictures?
Reply With Quote
  #3
Old 09-11-2007
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
a picture on 'almost out' lol no, how did i know that was going to be the first response?

and no others? shat.. anyways

i got it out.. and theres a new problem, sorry if the pics are fuzzy...

there are the little washer looking things, made out of THIN metal, now they are broken/mangled and one is stuck in the bearings.. im going to get it out one way or another, but my question is, were they part of the hub, or the CV shaft, and are they vital? i don't have the PHV crap anymore..

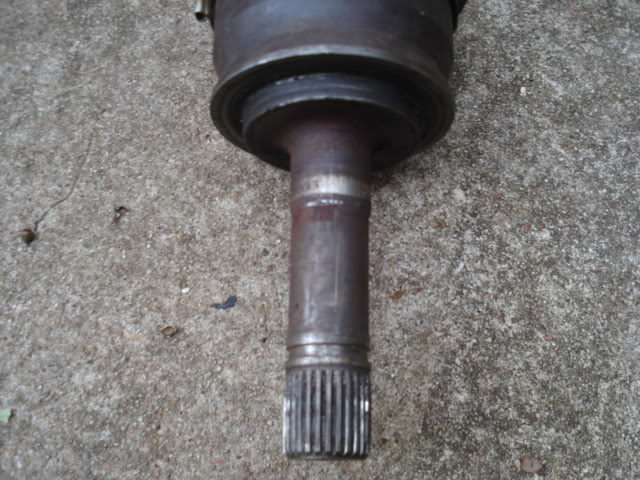

Name:  hub001.jpg
Views: 2
Size:  81.5 KB

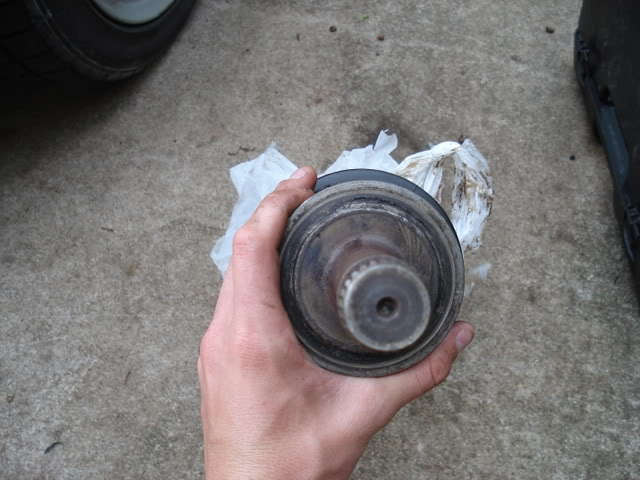

Name:  hub002.jpg
Views: 3
Size:  57.2 KB

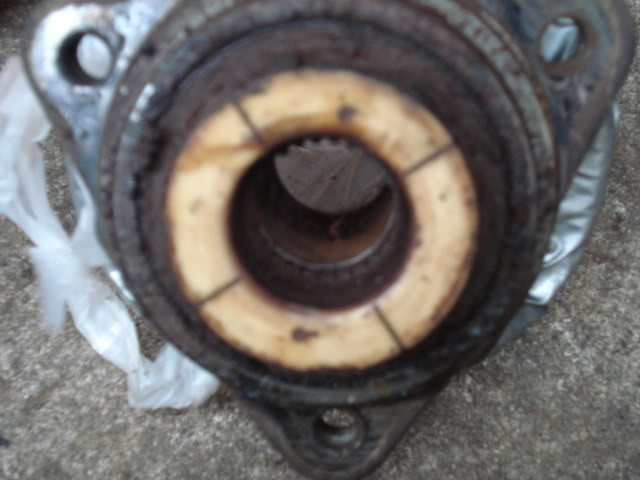

Name:  hub004.jpg
Views: 1
Size:  41.0 KB

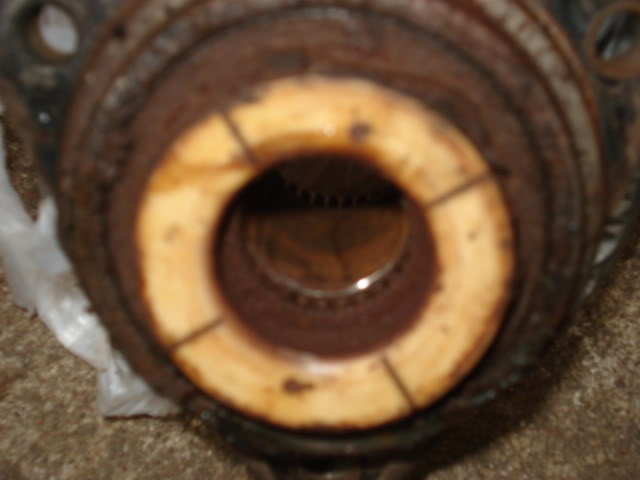

Name:  hub005.jpg
Views: 2
Size:  32.2 KB
Reply With Quote
  #4
Old 09-11-2007
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
oh yea, one more question, is there a trick to getting the crimped on clamp off the cv shaft? the farthest one on the ends.. the inner ones have a place to get leverage.. not the outers.. sorry no pics. i can get one if yall REALLLLY need it
Reply With Quote
  #5
Old 09-11-2007
RangerNVS's Avatar
Member
iTrader: (1)

Join Date: Mar 2005
Location: Temple, TX
Posts: 1,341
hey matt, first off I would pull the hub assembly off, it's only a couple of bolts and that would take care of that problem...that way you have a little more room to work, also those metal "thingies" are snap rings, and you have to have those in there, it is a secondary retainer to hold your CV axle from moving around. Also try a rubber mallet and hit it gently back in and see if it's binding up on some sand/mud/crap. Clean it out, and try it again.
Reply With Quote
  #6
Old 09-11-2007
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
haha, yea the boot was hitting the c/o mount. so i pulled the hub assembly.

where can i get those snap rings, and where do they go? i destroyed the 2? or 3? how ever many there were in there..
Reply With Quote
  #7
Old 09-11-2007
RangerNVS's Avatar
Member
iTrader: (1)

Join Date: Mar 2005
Location: Temple, TX
Posts: 1,341
lol...damn those metal retainers are just like a spring....you have to find the lip of it, and then "un-snake it * off of the shaft.
Reply With Quote
  #8
Old 09-11-2007
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
ha
well its too late now... are the like snap rings and can be replaced or did i **** myself?
Reply With Quote
  #9
Old 09-11-2007
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
FWIW, the easiest way i have found to pull the CV the last lil bit out is to pop the upper balljoint.
Reply With Quote
  #10
Old 09-11-2007
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i did that, then it hit the coil over, so i pulled the hub
Reply With Quote
  #11
Old 09-11-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
so is your hub trashed? or what are you ultimately trying to do?
Reply With Quote
  #12
Old 09-11-2007
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
no, i think i can salvage my hub.. i was trying to get it out to replace the outer boot, and to do that u have to replace the inner boot..

i talked to RangerNVS on the phone, looks like Krawltex f*cked up again.. they put the little plastic washer in back wards, and put the little coiled up springy metal washer thing in behind it instead of in front of it


im NEVER going back to them to have it worked on haha
Reply With Quote
  #13
Old 09-11-2007
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
I guess if I ever get lifted I won't be going to krawltex
Reply With Quote
  #14
Old 09-11-2007
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
ha no

well they wont have the opportunity to mess this up on yours, you don't have this **** i think.. but they messed enough other crap up..
