Help! Missing piece for transfercase swap!

Im missing the part that the shifter connects with the transfer case. Its Z or something close to it shaped I think...
Kinda looks like this I think? ____| Anyone know where I can find it or will sell it to me? |

Its going on my Bronco II manual transfercase swap.

Thanks
-Vic
Reply With Quote
  #2
Old 06-17-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
The shifter Linkage?

Hit a junkyard, that is the only place you are going to find them.
Reply With Quote
  #3
Old 06-17-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
What tcast you using? The lower half of the linkages are different between 1350 and 1354. I've got a decent assortment of left over parts I got for my swap...some shift arms, the upper half of the linkage. etc.
Reply With Quote
  #4
Old 06-17-2009
CrazyAznEdge's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: Tampa, Orlando
Posts: 433
Its a 1354 manual transfer case out of a 91 explorer. Atleast what I can remember, its at the shop right now having some work done on the motor but before I took it over there I knew I was missing that piece..
Reply With Quote
  #5
Old 06-17-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
For some reason photobucket isn't working for me. I tried loading pics.


Do you have any linkage at all? I know for sure I've got the part that actually bolts to the trans tailhousing along with the shifter and boot. I dont have the part that goes in between the handle and the tcase.
Reply With Quote
  #6
Old 06-17-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
haha...figured out the problem...stupid shane. lol. But I uploaded 'em on tinypic...




Pictured on left is 1350....on right is 1354...notice where the bends are. 1350 linkage wont work on 1354 because it hits the front output or the shaft. The upper part of the linkage however, will work on both 1350 or 1354....same piece and same shift arm. This is the piece that bolts to the housing, and I have this piece as extra if you need it.








Oh...I've got a few extra bushings and that huge bolt too if you need that.
Reply With Quote
  #7
Old 06-17-2009
CrazyAznEdge's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: Tampa, Orlando
Posts: 433
im going to double check and see which part I need. I think its the lower part to be honest because I got the shifter and some pieces but I cant quite remember. O but I just remembered to say that I am doing a 4.0 Swap with a C5.. I dont know if that changes anything in a bronco II.
Reply With Quote
  #8
Old 06-25-2009
CrazyAznEdge's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: Tampa, Orlando
Posts: 433
Does anyone have a spare of the last linkage from the shifter to the transfercase lever? Its the piece that is about 4inches long I think that connects with the U-shaped end of the shifter. 1354 Manual Transfer case. The JY around me only have the electric tc's in the yard.

someone help please
Reply With Quote
  #9
Old 06-28-2009
CrazyAznEdge's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: Tampa, Orlando
Posts: 433

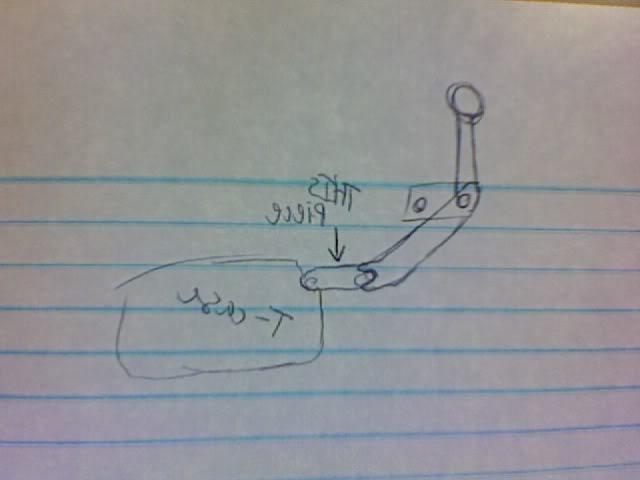

Its this piece from my sweet picture I drew. haha comp took the pic mirror image for some reason, but you get the idea

Name:  Photo48.jpg
Views: 25
Size:  22.0 KB
Reply With Quote
  #10
Old 06-28-2009
SHOman86's Avatar
Member

Join Date: Sep 2005
Location: Lakeland, Fl
Posts: 2,469
damn money bags...get er done. hey i was over by ucf last night...anywho back on topic.. why the change?
Reply With Quote
  #11
Old 06-29-2009
CrazyAznEdge's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: Tampa, Orlando
Posts: 433
Quote:
Originally Posted by SHOman86 View Post
damn money bags...get er done. hey i was over by ucf last night...anywho back on topic.. why the change?
haha moneybags?? the change from ranger to b2?
Reply With Quote
  #12
Old 06-30-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
That would be the part of the linkage that bolts to the 'stub' coming out of the tcase and then the rest of the linkage slides onto it via a bushing between the two.

There aren't any of those in my area right now, and I dont have any of those as spares.


GOOOOD picture though!! It really does help out, and I'm not joking either.
Reply With Quote
  #13
Old 06-30-2009
CrazyAznEdge's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: Tampa, Orlando
Posts: 433
haha thanks.. well if you ever come along one let me know..
