Hurst shifter

so i wanna get a hurst shifter my only problem is i have the 3" bl and i kinda suck at fabbing ha ha so if theres any one out there that could make me the extension for it let me know how much youd charge and ill paypal ya thanks alot!
Reply With Quote
  #2
Old 06-25-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Its going to be hard just because it is all personal preference
Reply With Quote
  #3
Old 06-25-2009
RangerJacoby99's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2009
Location: Thornton,CO
Posts: 374
oh ok i just actually read some post about it haha im not all here sometimes lol thanks man
Reply With Quote
  #4
Old 06-25-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
I made a few for my brother. He's liked a few of them. They go up and back different amounts. It's all about how you like it and messing around with the different sizes.
Reply With Quote
  #5
Old 06-26-2009
RangerJacoby99's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2009
Location: Thornton,CO
Posts: 374
is there a simple way to make umm being that i suck at fabbing? haha
Reply With Quote
  #6
Old 06-26-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Yeah I suck at paint lol. But this gives you a good idea of what you need to do.

Name:  HURSTEXTENSION.jpg
Views: 4
Size:  2.4 KB
Reply With Quote
  #7
Old 06-26-2009
RangerJacoby99's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2009
Location: Thornton,CO
Posts: 374
cool thanks alot Jeff!
Reply With Quote
  #8
Old 06-26-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I wanna say mine is close to 2.75" raise with 1.5" offset from the bottom holes to the top holes... And it clears a large Mickey Dee's cup perfect with the shorty console!
Reply With Quote
  #9
Old 06-26-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
hit up shane (FX4WANNABE01) hell help you out.
Reply With Quote
  #10
Old 06-26-2009
RangerJacoby99's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2009
Location: Thornton,CO
Posts: 374
i love this forum you guys kick a** thanks for the help!
Reply With Quote
  #11
Old 06-26-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Quote:
Originally Posted by mossyoak03 View Post
hit up shane (FX4WANNABE01) hell help you out.
Yeah Shane and his brother built mine, cuz Shane and I were busy with my tranny swap
Reply With Quote
  #12
Old 06-26-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
Quote:
Originally Posted by TrePaul86 View Post
Yeah Shane and his brother built mine, cuz Shane and I were busy with my tranny swap
yeah he helped me out alot ill get pics of mine tomorrow if need be.

this is what i went by
Reply With Quote
  #13
Old 06-26-2009
RangerJacoby99's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2009
Location: Thornton,CO
Posts: 374
yeah please do i got the shifter in the mail today and would like to install it maybe tomorrow or sunday!!!!!!!
Reply With Quote
  #14
Old 06-26-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by mossyoak03 View Post
hit up shane (FX4WANNABE01) hell help you out.
Quote:
Originally Posted by TrePaul86 View Post
Yeah Shane and his brother built mine, cuz Shane and I were busy with my tranny swap

Yup. i don't think Shane has even made the last few he has used. he always talks me into making them....but he made his t-case extension! lol
Reply With Quote
  #15
Old 06-27-2009
racsan's Avatar
Member

Join Date: Sep 2006
Location: central ohio
Posts: 647

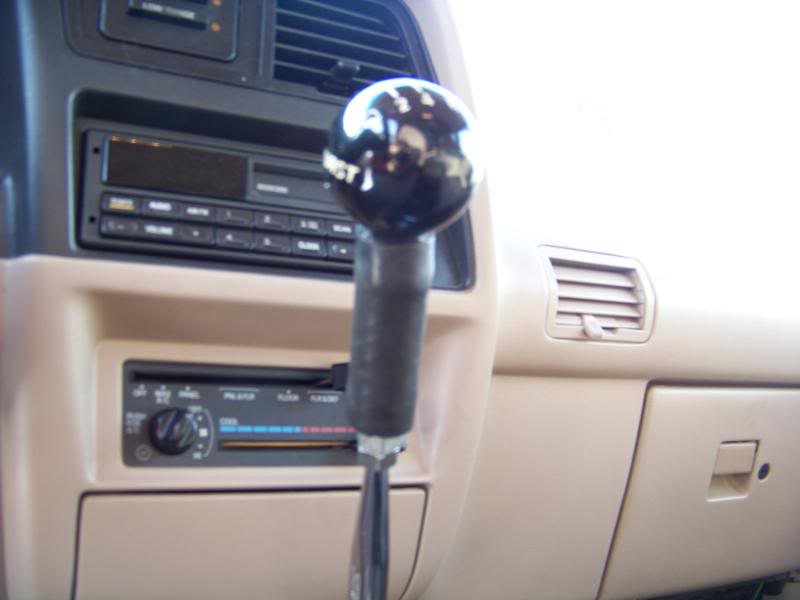

put a all-thread connector on the top of the lever where the **** goes on, insert a 38"-24 bolt that has the end cut off, use a jam nut on both ends and put the **** back on. you can leave plain or slide a peice of hose over the extention. i dont have a lift but thought the lever needed to be longer. this was quick, cheap and easy. Name:  100_5489.jpg
Views: 3
Size:  43.0 KB
Reply With Quote
  #16
Old 06-28-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by racsan View Post
. this was quick, cheap and easy.
...and obama'd up. That is ugle. (no offensive, but take the time to add an extension off the the bottom like it should be. Looks clean this way).
Reply With Quote
  #17
Old 06-28-2009
RangerJacoby99's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2009
Location: Thornton,CO
Posts: 374
yeah i think ill stick to making the extension haha i got the new shifter for looks and perfomance otherwise i would have just left stock on and put a nice little *** on it
Reply With Quote
  #18
Old 06-28-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
sorry man forgot about this thread about to clean up the truck today and ill get you some pics of it
Reply With Quote
  #19
Old 06-28-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
heres mine i had made.

Reply With Quote
  #20
Old 06-29-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369

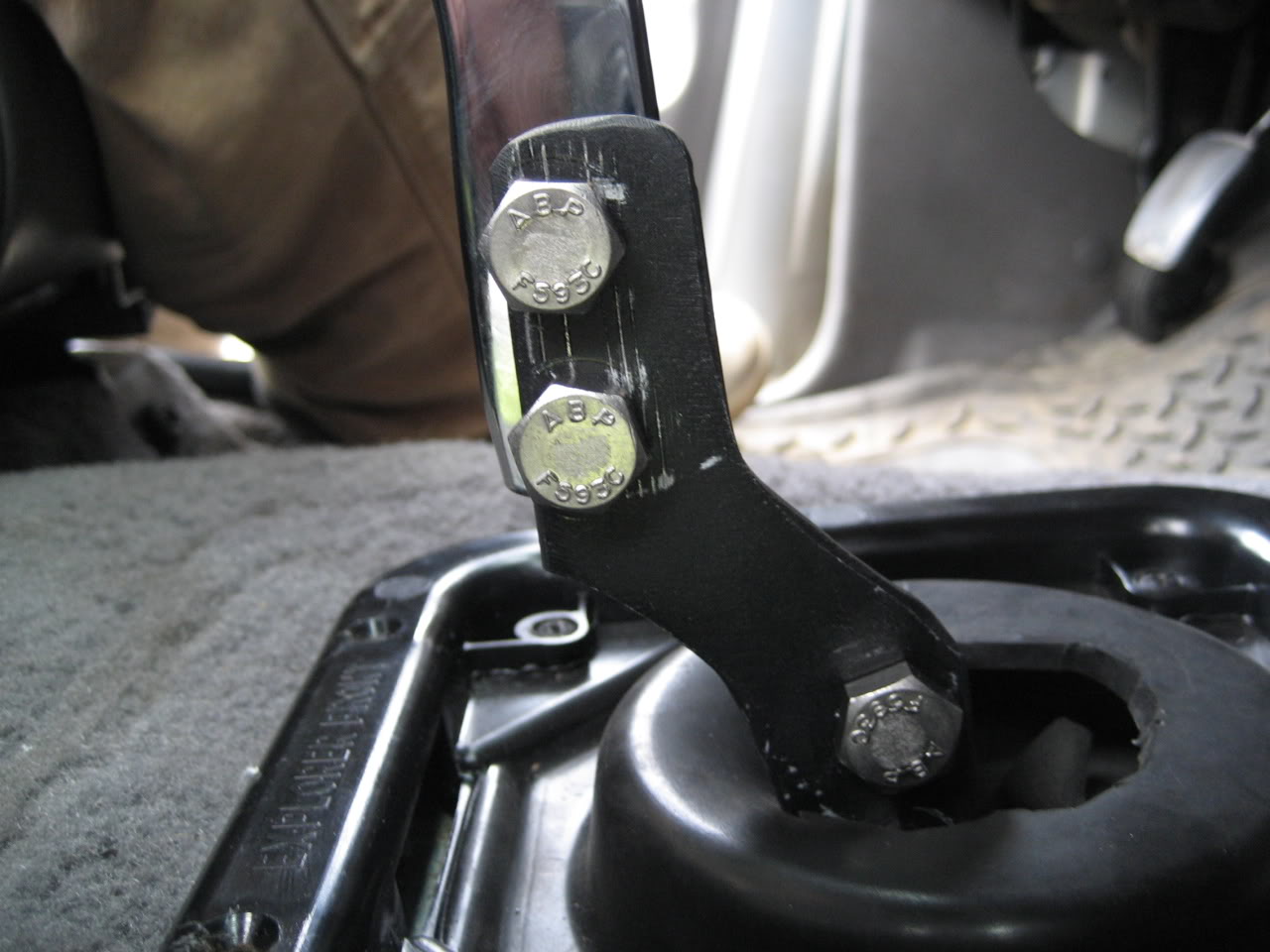

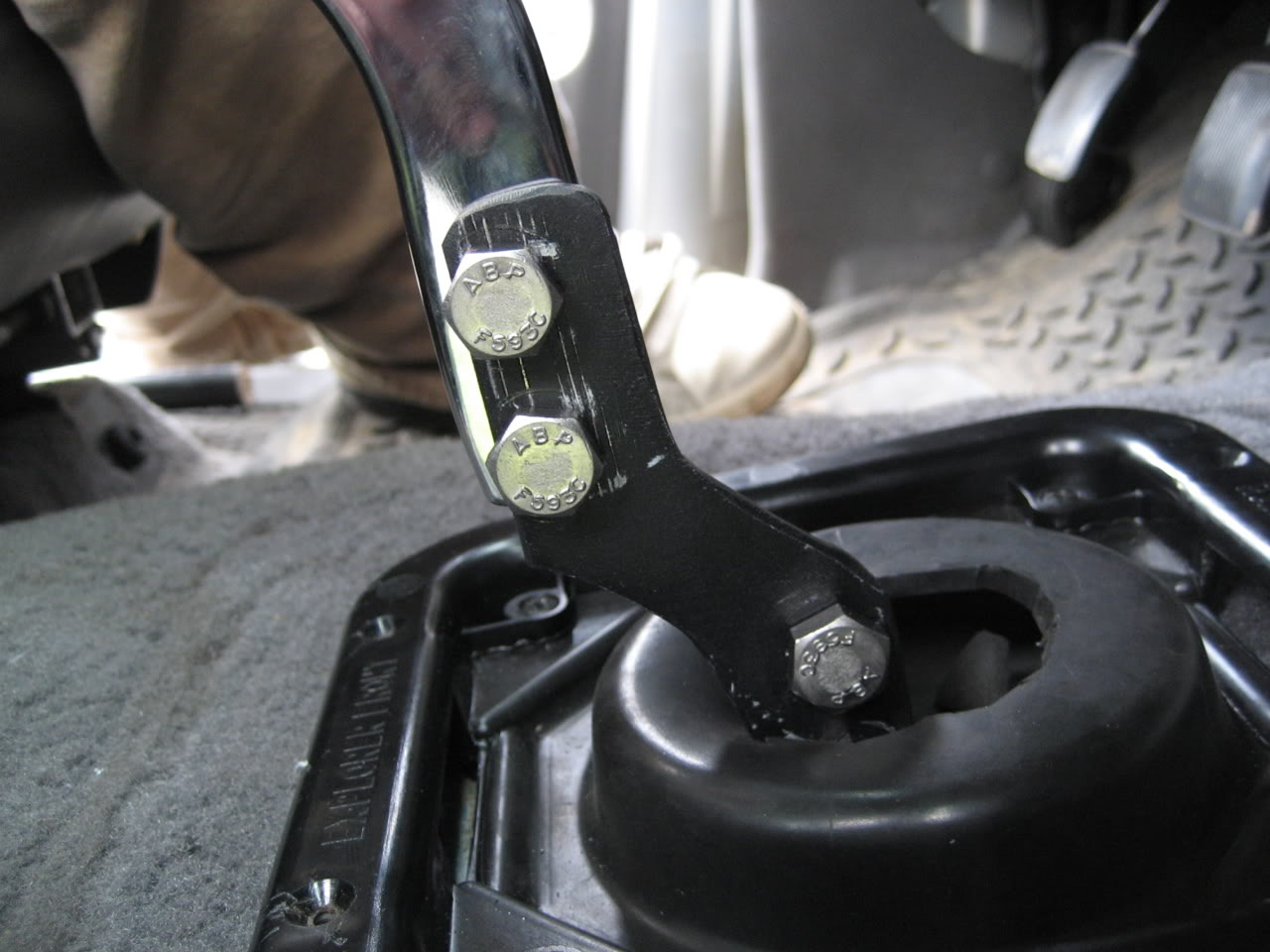

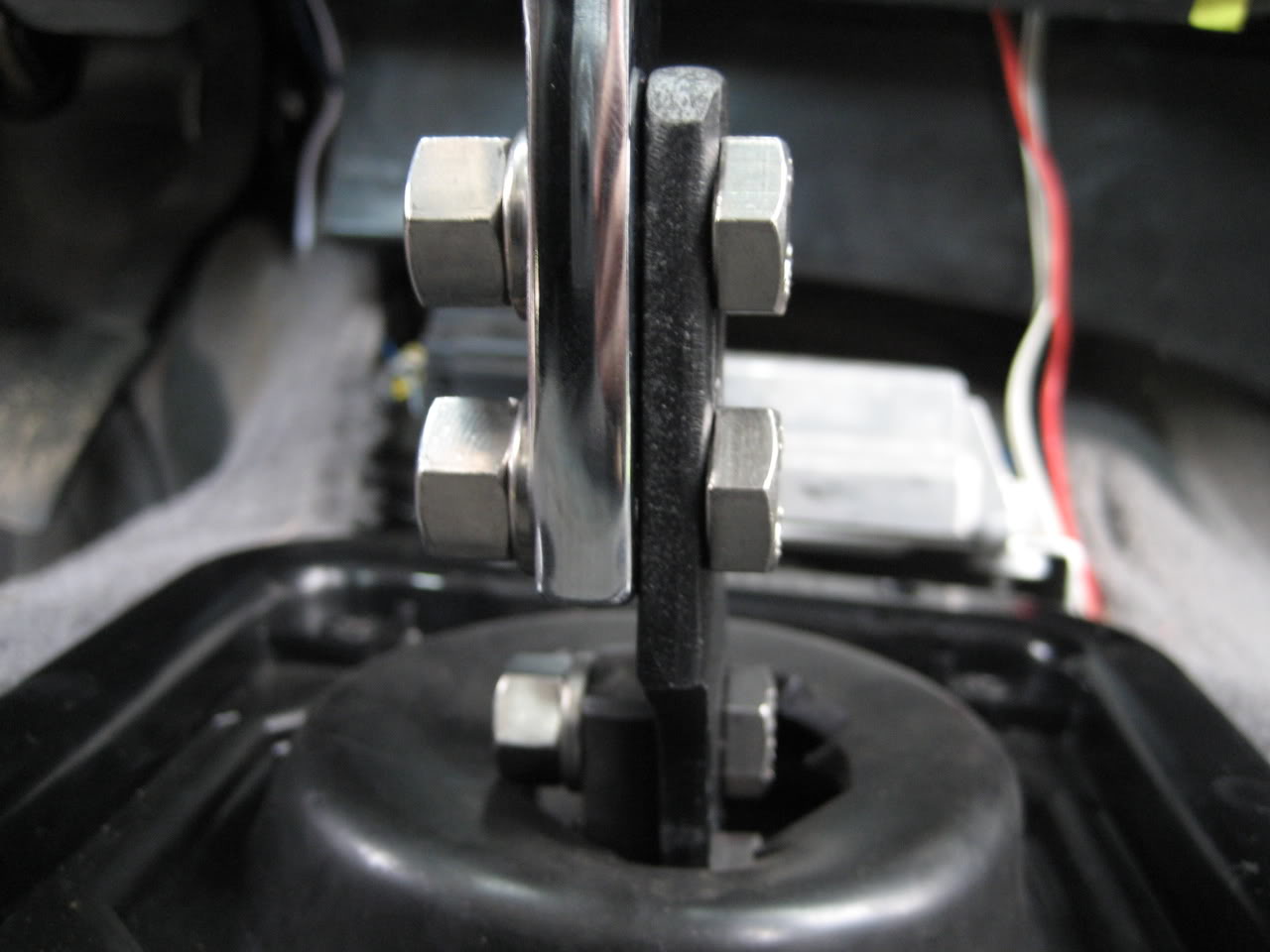

Here's mine:

Name:  IMG_0096.jpg
Views: 6
Size:  124.3 KB

Name:  IMG_0097.jpg
Views: 3
Size:  88.9 KB

Name:  IMG_0098.jpg
Views: 2
Size:  114.7 KB

All stainless nuts and bolts FTW! lol
Reply With Quote
  #21
Old 06-30-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
You can find more info here:

https://www.ranger-forums.com/forum2...ravaganza.html


You dont even need to get technical with it. A friend of mine and Trevor's has his going straight up using thin pieces of metal on each side of the hurst 'stub', give it approx 3" straight up extention(alot like my tcase extention below). IMO...thats still too much of a reach for me.


AAAAAAAND here's mine... 2.5" up, 1 1/8" back, 1/4" towards the driver(because of how it's mounted to the hurst). Trepaul's has the same measurements.






I LOL'd at that pic Marcus posted....I sent that via cell while I was bored at work! HAHA!
Reply With Quote
  #22
Old 06-30-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
OH!


And since you're bodylifted...DO NOT cut your floor rubber piece as pictured in Trevor's pic.....you dont need to. With the extention, The seal is actually VERY nice and it's quieter in the cab.

Trevor...I'll drop off that one you got me so you can quiet the inside down of yours since I obviously dont need it anymore. lol.
Reply With Quote
  #23
Old 06-30-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
YAY! lol
Reply With Quote
  #24
Old 06-30-2009
RangerJacoby99's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Feb 2009
Location: Thornton,CO
Posts: 374
thanks alot guys big help!
