Look what i did

So yesterday hit up a few more junkyards and look what jumped into the bed of my truck

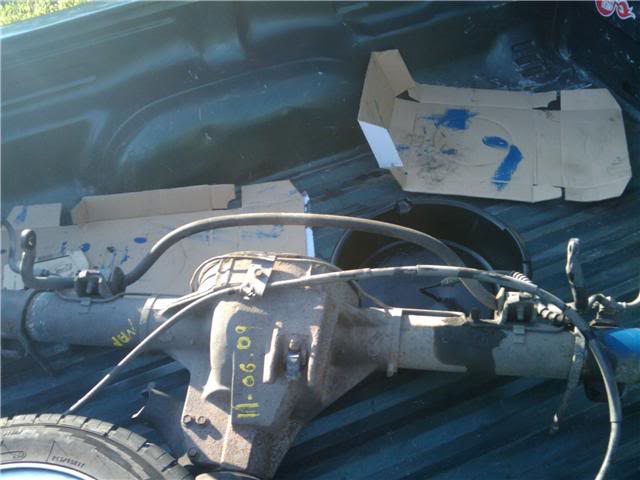

Name:  rearend.jpg
Views: 2
Size:  38.2 KB

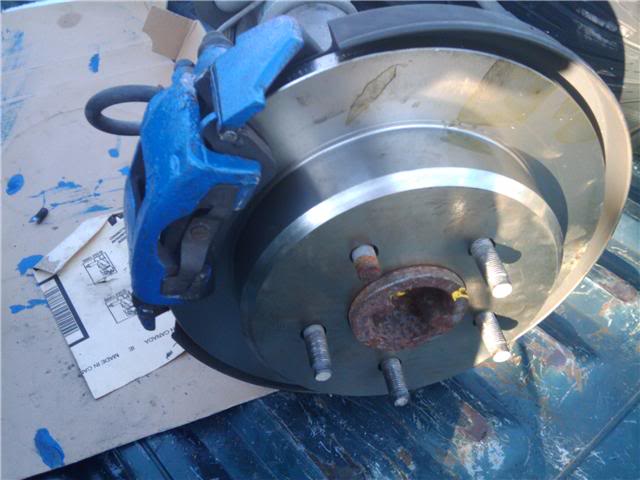

Name:  brakes.jpg
Views: 3
Size:  41.4 KB
Name:  noaxle.jpg
Views: 1
Size:  38.6 KB
Name:  installed88.jpg
Views: 2
Size:  27.0 KB

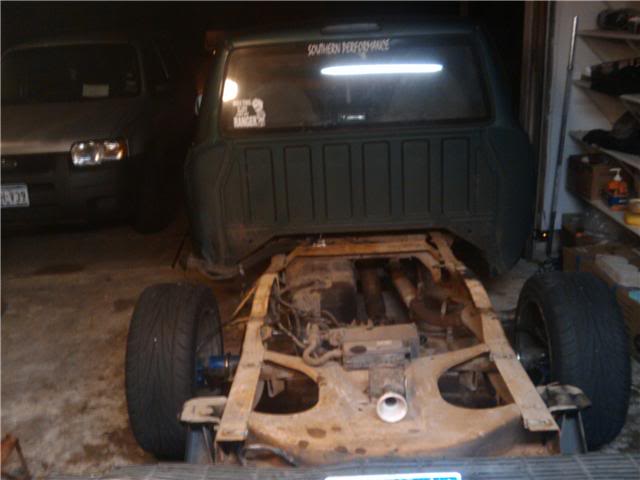

Name:  88in.jpg
Views: 4
Size:  30.4 KB

after i wash my truck ill get some new pics up
but the swap was fairly easy me and 1 other buddy were able to finish it in about 3-4hours or so i didnt install the sway bar since i didnt get all the parts and i forgot the rest of the parking brake so i dont have a parking brake either and i have to put my stock shackles on cuz i got a little lift in the rear but over all im happy what do ya'll think
Reply With Quote
  #2
Old 11-07-2009
93rangerXLT4x4's Avatar
Member

Join Date: Aug 2009
Location: Salmon Arm BC
Posts: 959
looks good.. i wanna pull the bed off mine too and clean the frame and smooth out the ripple in the side..if i had more income i'd be hitting the junkyards too as mine needs new rear leaf springs.
Reply With Quote
  #3
Old 11-07-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
nice find! disc brakes FTW. hope you replaced that broken stud though
Reply With Quote
  #4
Old 11-07-2009
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Did you have to weld on new shock mounts or was it just a straight up swap?
Reply With Quote
  #5
Old 11-07-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
explorer axles are always weld on shock tabs
Reply With Quote
  #6
Old 11-07-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Not if you want to drop
Reply With Quote
  #7
Old 11-08-2009
bruiser's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: lp,Texas
Posts: 482
had to weld on tabs but its nice very happy with the swap but i need new shocks anyways so thats next
Reply With Quote
  #8
Old 11-09-2009
the old guy's Avatar
Member

Join Date: Oct 2009
Location: pictou, nova scotia
Posts: 98
when you do a swap like that do you lose your anti locl brakes ?
Reply With Quote
  #9
Old 11-09-2009
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
same gearing as the previous axel or did you swap gears too?

any other pics of said truck?
Reply With Quote
  #10
Old 11-09-2009
PlumCrazy's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: Canal Winchester, OH
Posts: 65
Quote:
Originally Posted by the old guy View Post
when you do a swap like that do you lose your anti locl brakes ?
All you need to do is screw out the push rod on the master cylinder a little but, since the disc brake calipers require a little more fluid to engage than the drum brake wheel cylinders. If you have a manual like me and depend on you p brake, then you have to get creative with the cables and brackets as well since the Exploder cables are shorter and will not interchange with the Ranger's drum brake p brake cables.

-plumcrazy
Reply With Quote
  #11
Old 11-09-2009
bruiser's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: lp,Texas
Posts: 482
Quote:
Originally Posted by 04blackedge View Post
Not if you want to drop
your think about the leaf perches hes talking about where the shocks mount to the axle

also how would i go about getting my parking brake working?
get the rest of the expo p-brake or can i adjust it at the pedal??
Reply With Quote
  #12
Old 11-09-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Most end up using the Expo parking brake cable "Y" and retro fitting it to the ranger cable front half(side of frame) using cable clamps.

When I do the expo brakes, I plan on making a nice detailed how-to on the least covered topics(like parking brake).
Reply With Quote
  #13
Old 11-09-2009
PlumCrazy's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: Canal Winchester, OH
Posts: 65
Quote:
Originally Posted by Fx4wannabe01 View Post
Most end up using the Expo parking brake cable "Y" and retro fitting it to the ranger cable front half(side of frame) using cable clamps.

When I do the expo brakes, I plan on making a nice detailed how-to on the least covered topics(like parking brake).
Here is my p-brake bracket for the Exploder cables. It had to be moved further back than the original location. I have 64" springs so my front spring hanger is 6 inches further forward than it was stock.

Name:  0901091905.jpg
Views: 2
Size:  59.1 KB
Name:  0902091532a.jpg
Views: 2
Size:  50.7 KB
Name:  0902091532c.jpg
Views: 3
Size:  51.3 KB
Reply With Quote
  #14
Old 11-09-2009
bruiser's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: lp,Texas
Posts: 482
so i need to get the "Y" from the expo and fab a bracket??
o and btw bleeding the brake was not as hard or time consuming as i was led to belive
when i went and got it i had the guy cut the metal part of the brake line and that crimped it and allowed no air or fluid to enter or escape =)
i did flush 2 bottles trhough it to get the old stuff out though
Reply With Quote
  #15
Old 11-09-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Shouldn't need to fab a bracket...don't think you do anyhow. I was going to use the expo's bracket through the front spring bolt, then upen up the connector that goes in between the cable sections on the side of the frame. Would make a factory looking install, which is what i'm after for all my mods pretty much. Plumcrazy needed to make a bracket because of his longer leafs and his mount moving.
Reply With Quote
  #16
Old 11-09-2009
PlumCrazy's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: Canal Winchester, OH
Posts: 65
I dont think the cables were long enough to reach the stock location either, but that could be because of the lift

-plumcrazy
