Icon5 NEED HELP with vacuum hub assembly

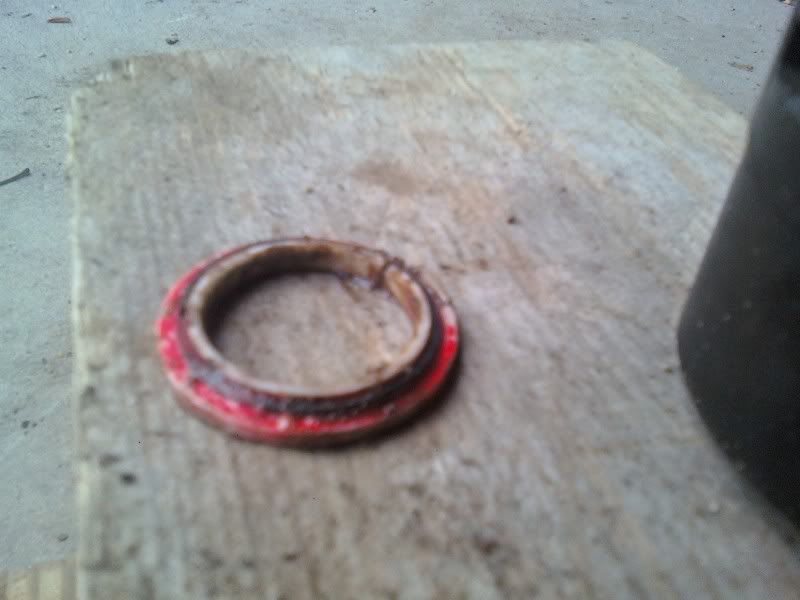

the little orange/white clip washer goes where? and flat side in or the side with lip in? before black cap assembly?? please help. i replaced wheeel bearing and whole assembly but dont know where this goes or how.. thanks guys.,.,.

Name:  1214081511.jpg
Views: 2
Size:  42.1 KB
Reply With Quote
  #2
Old 12-14-2008
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
It goes in behind the snap ring, with the flat side in.
Reply With Quote
  #3
Old 12-15-2008
AndyRanger1's Avatar
Member
Thread Starter

Join Date: Nov 2007
Location: Sticks, CT
Posts: 181
on the driveshaft?just push it all the way back?
Reply With Quote
  #4
Old 12-15-2008
mud_bogger's Avatar
Member

Join Date: Apr 2008
Location: Eagle Point, Or
Posts: 219
Yes, slide it over the shaft back towards the bearing assembly. You might have to reach behind the bearing unit and kinda push/pull the shaft towards you inorder to get the ring to snap in place.
Reply With Quote
  #5
Old 12-15-2008
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Flat side goes in first.

The ridge is grip the install tool.
Reply With Quote
  #6
Old 12-15-2008
AndyRanger1's Avatar
Member
Thread Starter

Join Date: Nov 2007
Location: Sticks, CT
Posts: 181
whats a silencer delete???
Reply With Quote
  #7
Old 12-15-2008
mud_bogger's Avatar
Member

Join Date: Apr 2008
Location: Eagle Point, Or
Posts: 219
The install tool? hmmmm snap ring pliers and a small screw driver seemed to work pretty good
