New Brakes and Slotted Rotors Pictures

Got the New Raybestos Pads on and the ATE slotted rotors. Just in time too, Almost had a big Accident last night stopped about 6" short of a Chevvy thanks to my new brakes.

The Pads arnt that quiet, I heard them sqeek a little when I applied them last night twice but were only $40

Name:  ATE.jpg
Views: 2
Size:  100.4 KB

Name:  drilled.jpg
Views: 2
Size:  69.1 KB

Name:  Raybestos.jpg
Views: 3
Size:  116.7 KB

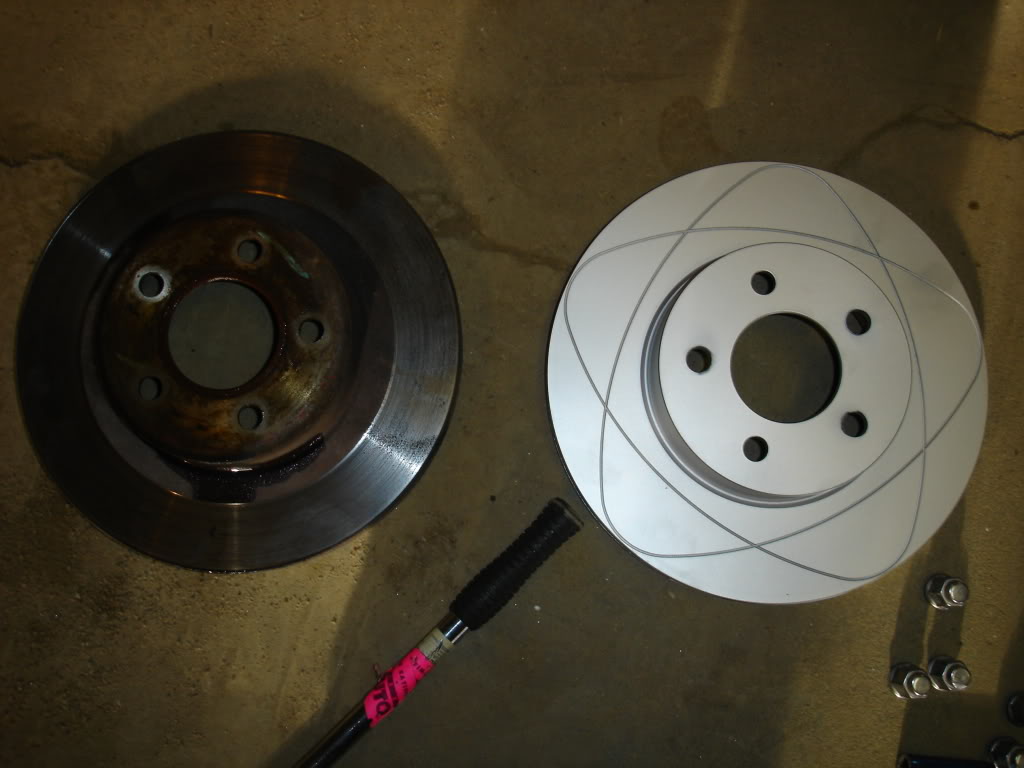

Name:  drilledrotorbynot.jpg
Views: 2
Size:  72.4 KB

Name:  OEM.jpg
Views: 3
Size:  92.6 KB

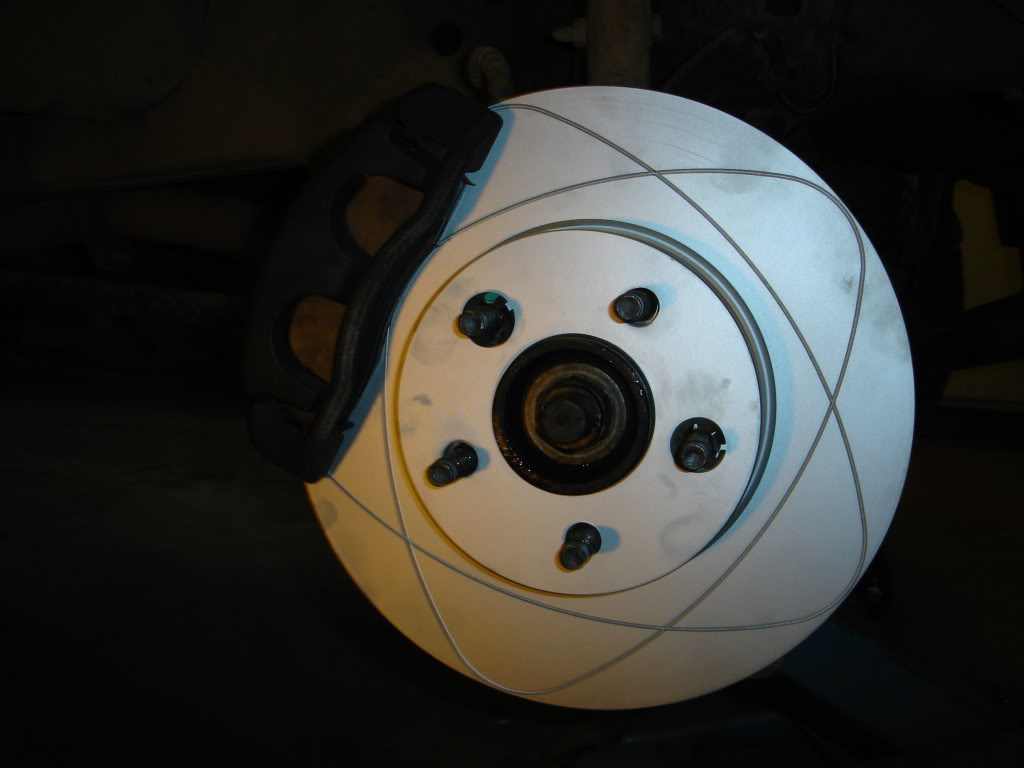

Name:  drilledon.jpg
Views: 3
Size:  55.4 KB

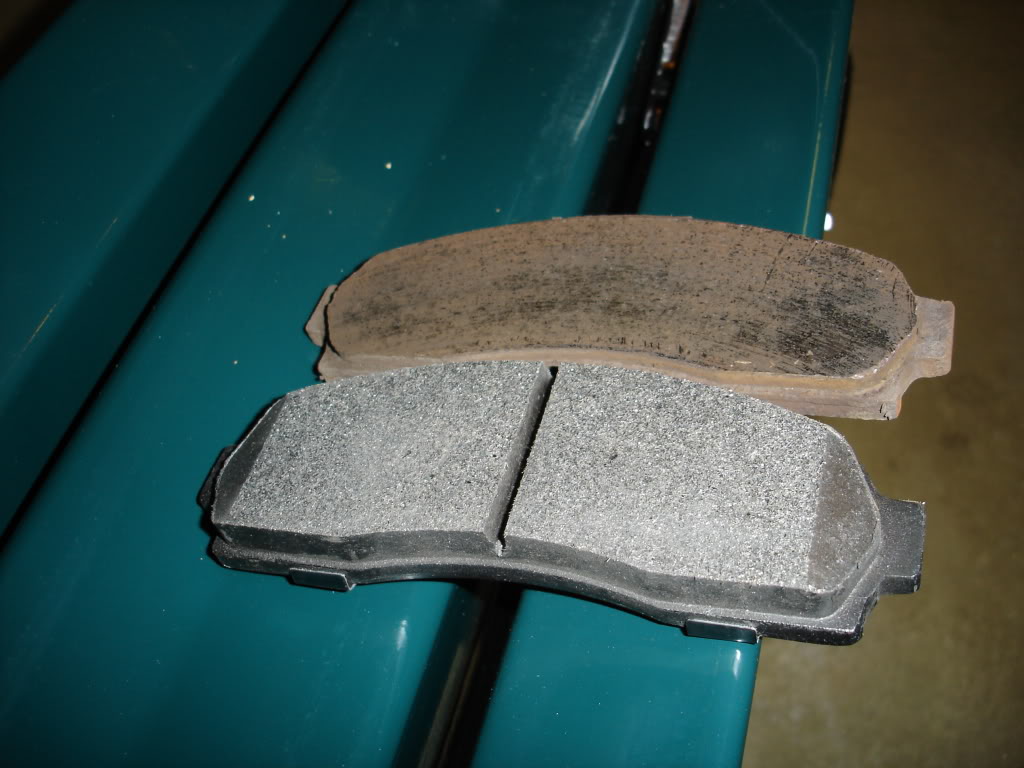

Name:  DSC04300-1.jpg
Views: 2
Size:  107.9 KB

Name:  DSC04298-1.jpg
Views: 2
Size:  111.3 KB

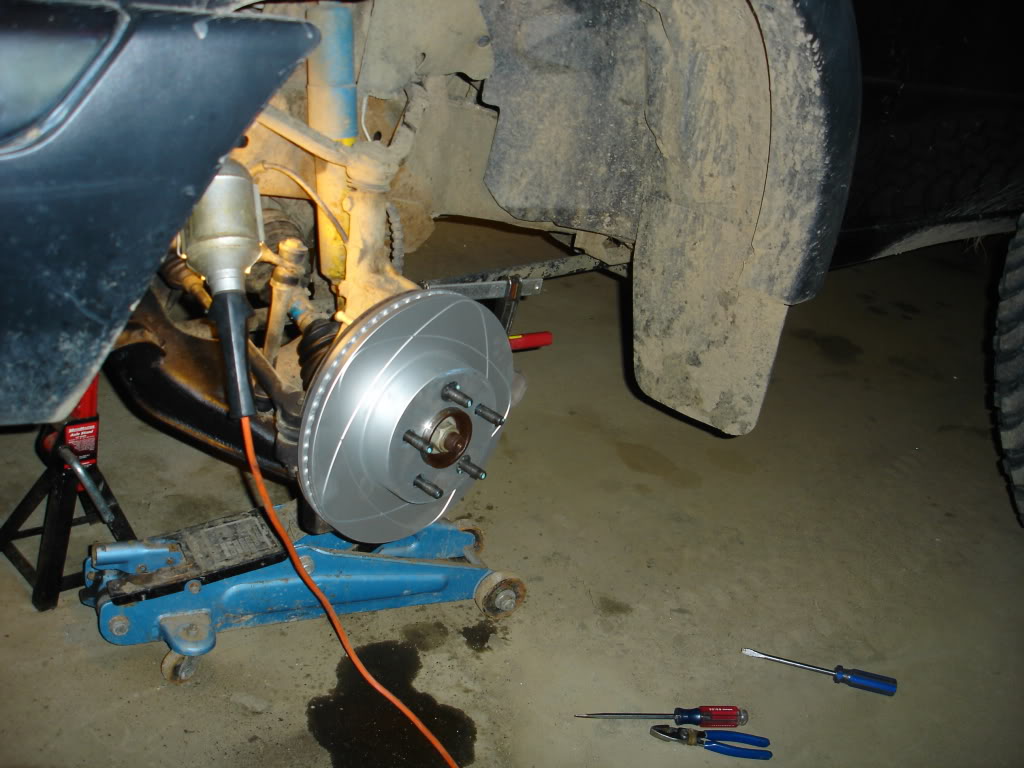

Name:  DSC04302.jpg
Views: 2
Size:  107.6 KB

Name:  closer.jpg
Views: 3
Size:  107.2 KB

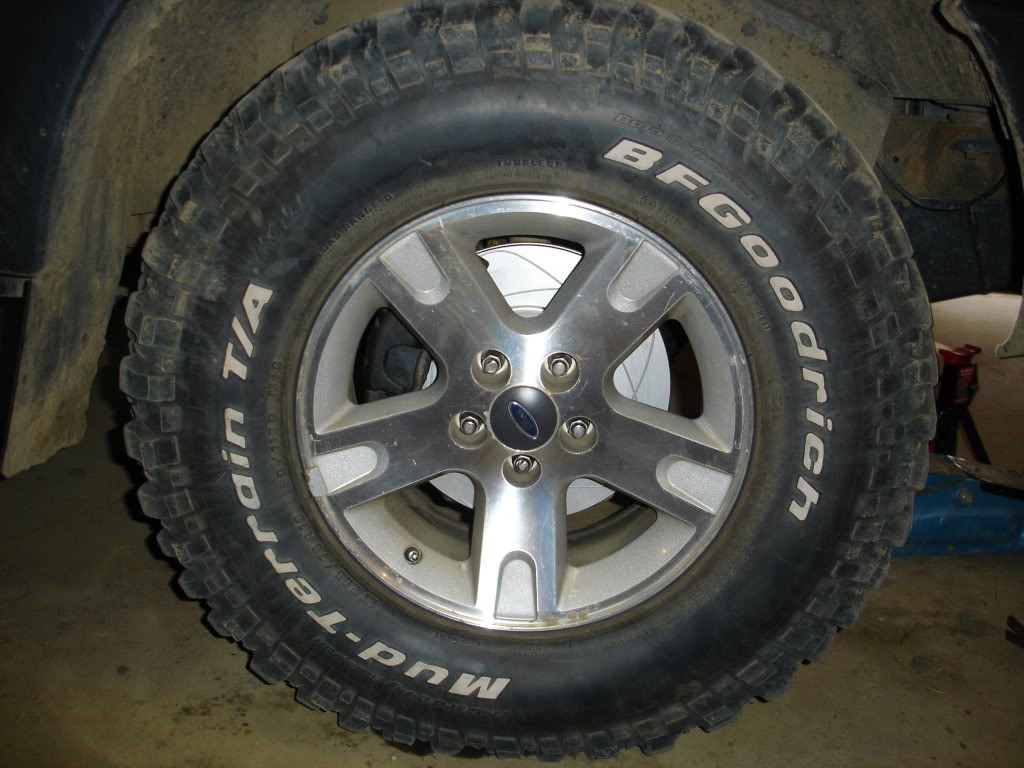

Name:  ontire.jpg
Views: 2
Size:  107.6 KB
Reply With Quote
  #2
Old 04-18-2009
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
wierd "slotted" design. looks good
Reply With Quote
  #3
Old 04-18-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
That's the strangest slotted rotor design I have ever seen.
Reply With Quote
  #4
Old 04-18-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
neat rotors bro, long as it works!
Reply With Quote
  #5
Old 04-18-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
They seam to work so far, hope they dont warp or anything. Says you cant machine them
Reply With Quote
  #6
Old 04-18-2009
NATEFX407's Avatar
Member

Join Date: Dec 2008
Location: Kawartha Lakes, ON
Posts: 459
Cool, did you bed them in?
Reply With Quote
  #7
Old 04-18-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by NATEFX407 View Post
Cool, did you bed them in?
X2 a very important step!! looks good though
Reply With Quote
  #8
Old 04-18-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Did you have fun setting them in? I know i did when i did mine lol. Kind of got old, but i couldn't believe how fast you can slow down!
Reply With Quote
  #9
Old 04-18-2009
NATEFX407's Avatar
Member

Join Date: Dec 2008
Location: Kawartha Lakes, ON
Posts: 459
Yeah and I like the burning smell after the 6-7 stop. Haha, I'm glad I didn't see any cops while I was doing that. Then afterwards when my brakes were hot I was trying not to let them rest on the disks, so I was using my e-brake at every traffic light. Haha
Reply With Quote
  #10
Old 04-18-2009
07rangersport's Avatar
Member
iTrader: (1)

Join Date: Mar 2008
Location: Maple Ridge CANADA
Posts: 800
Do they work well?? any improvement over stock? I'm thinking about that setup myself
Reply With Quote
  #11
Old 04-18-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
that is when they smell the worst, when you are sitting there with the pads touching the rotors. It is actually really bad to that when setting them in. I did mine late at night so i didn't have to deal with other cars and stuff on the road.

My slotted brakes work great! Maybe it is just cause they're new, but the better pads and better rotors are noticable. Most 4x4 guys with huge tires like the better brakes.
Reply With Quote
  #12
Old 04-18-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Quote:
Originally Posted by NATEFX407 View Post
Cool, did you bed them in?

Did I bed them In???? in english that means??? lol

Did i not do something right installing them?

and setting them in? how do u set disk brakes?
Reply With Quote
  #13
Old 04-18-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
keep use posted on how you like them and such. I might just get a set before I put my soft 8's on.
Reply With Quote
  #14
Old 04-18-2009
PUNKROCKPILOT's Avatar
Member

Join Date: Aug 2008
Location: Santa Maria
Posts: 446
I kinda like those. Let us know how they work out for ya. I hope you cleaned off the protectant coating off of them.
Reply With Quote
  #15
Old 04-18-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
It said on the box there pre surfaced and ready to run without machining or something.
Reply With Quote
  #16
Old 04-19-2009
nross's Avatar
Member

Join Date: Nov 2008
Location: Binghamton, NY
Posts: 256
Quote:
Originally Posted by Blackonblackfx4 View Post
It said on the box there pre surfaced and ready to run without machining or something.
The best way to describe bedding to me is the following.

The brake pad, and the rotor basically have to cut into each other. Once they cut into each other they kind of fit like puzzle pieces on the very small level of like scratches. Bedding in is basically digging those pads in to the rotors, to basically seat the pads in on those rotors perfectly. Also this is done to heat the rotors up, and basically I suppose let them become harder I believe. I am not too sure, I usually just put them on, and let them just do thier thing. If they dont squeek, they are good, and if they do squeek.. it will go away in time, or just do some hard stops.

The way that I learned this to be done is start by going 20 to 0 hard stopping (but not locking tires up).

Repeat this 3 times.

Go 40 to 0 hard stopping

Repeat 2 times

Go 60 to 0 hard stopping

Go for a highway drive and stay off the brakes, so the rotors dont overheat and warp.
Reply With Quote
  #17
Old 04-19-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Good to know i'll do this today. I bet thats why my old rotors and brakes had marks on them in the shape of the pad. I bet the previous owner didnt bed them in and burned the pad into the rotor
Reply With Quote
  #18
Old 04-20-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
I'd Like to inform everyone else who may do there brakes. dont forget the Locktight on the bolts, I did and today I lost a bolt while driving and it made the wheel lock right up.

Ironicly enough Police were following me at the time and pulled me over becuase my wheels were squeeling. Duhh

Got a new bolt and locktight'd all of them. good to go again.

And Yes once you bed them in they hook up like unreal comparied to stock. When to slam on the brakes it throws you forward hard, and pushed your stomache right up! I'd suggest chaning pads and rotors to everyone at least a good set of pads and bed them in right.
Reply With Quote
  #19
Old 04-20-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
^ lol and that's why I let my mechanic deal with my brakes.
Reply With Quote
  #20
Old 04-20-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
so you have been driving on them for 2 days how does it drive
Reply With Quote
  #21
Old 04-20-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Quote:
Originally Posted by Downey View Post
so you have been driving on them for 2 days how does it drive
Unbilivable. Way better than stock
Reply With Quote
  #22
Old 04-20-2009
NATEFX407's Avatar
Member

Join Date: Dec 2008
Location: Kawartha Lakes, ON
Posts: 459
Ouch man, glad you didn't break anything. You have to torque them pretty tight too, 80 lbs I believe.
Reply With Quote
  #23
Old 04-20-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Quote:
Originally Posted by NATEFX407 View Post
Ouch man, glad you didn't break anything. You have to torque them pretty tight too, 80 lbs I believe.

Yeah this time I really gave them some tourque at lease 80 lb's and i soaked the Bolt like dripping in lock tight
Reply With Quote
