  #26
Old 09-11-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
Originally Posted by 00Ranger4digbeast View Post
on the lookout for a shaft....

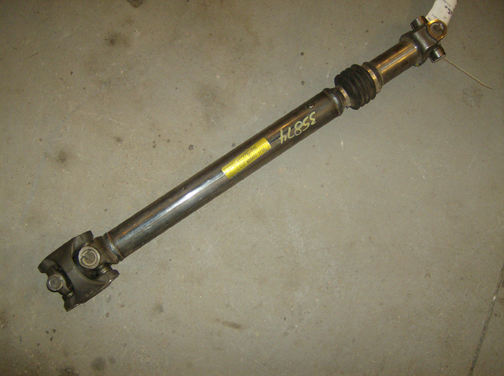

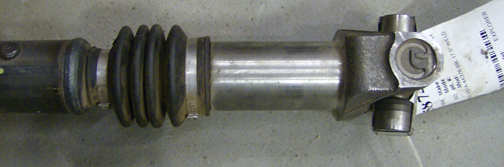

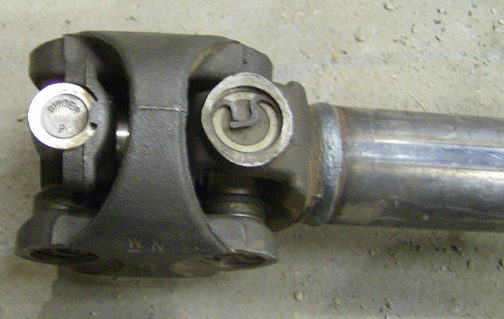

If there is any interest, I might be able to get more of the stock 1992 Explorer shaft assemblies like the ones that Fx4wannabe01 and RangerNVS converted. The cost would probably be somewhere around $160~180 each shipped but they are genuine Ford, new, never installed, complete with the Spicer universals. Little to no rust, just a little dusty from storage.
Attached Thumbnails
superlifted......driveshaft options???-92-explorer-double-cardan-driveshaft-001.jpg   superlifted......driveshaft options???-92-explorer-double-cardan-driveshaft-003.jpg   superlifted......driveshaft options???-92-explorer-double-cardan-driveshaft-004.jpg
Reply With Quote
  #27
Old 09-11-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
^^YUP! Brand spankin' new!! Love mine!! Thanks again, Bob!!
Reply With Quote
  #28
Old 09-11-2009
00Ranger4digbeast's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Hudson,Fl
Posts: 252
cant spend that much right now but thank u if i come up on some money ill shoot u a pm
Reply With Quote
  #29
Old 09-11-2009
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
If you decide to go with a manual 1354 get an older one that has the u joint style front output flange. You can then use a 95-97 Explorer front driveshaft that already has a double cardan u joint system that will work very well with the Superlift.
Reply With Quote
  #30
Old 09-11-2009
00Ranger4digbeast's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Hudson,Fl
Posts: 252
10 4 im hoping i can change to manual hubs also i have all the stuff to swap just not the AVM hubs....
Reply With Quote
  #31
Old 09-11-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
And if you put in an older manual 1354, there's no need to shorten the shaft! It'll bolt right onto the tcase's front output. In '98 Ford changed the front output of the tcase to that stupid CV bucket thing.
Reply With Quote
  #32
Old 09-11-2009
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
Quote:
Originally Posted by Fx4wannabe01 View Post
And if you put in an older manual 1354, there's no need to shorten the shaft! It'll bolt right onto the tcase's front output. In '98 Ford changed the front output of the tcase to that stupid CV bucket thing.
Hence why I love my early 1354 manual with the Explorer double cardan driveshaft that bolted up. Thanks again Shane!
Reply With Quote
  #33
Old 09-12-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by 0RangerEdge2 View Post
Hence why I love my early 1354 manual with the Explorer double cardan driveshaft that bolted up. Thanks again Shane!
No probs, brother. lol.
Reply With Quote
  #34
Old 09-12-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by RazorsEDGE View Post
I'm gonna be selling my superlift shaft soon........hopefully.
oooh! SAS in the works?
Reply With Quote
  #35
Old 09-12-2009
RangerNVS's Avatar
Member
iTrader: (1)

Join Date: Mar 2005
Location: Temple, TX
Posts: 1,341
gigidy
Reply With Quote
  #36
Old 09-12-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Reply With Quote
  #37
Old 09-12-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
You can swap the front output shafts between 1354s. My current t-case is from a 91? 93? Explorer, i took out the output shaft and put the one from the 99 ranger case in.
Reply With Quote
  #38
Old 09-12-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
If there is any interest, I might be able to get more of the stock 1992 Explorer shaft assemblies like the ones that Fx4wannabe01 and RangerNVS converted. The cost would probably be somewhere around $160~180 each shipped but they are genuine Ford, new, never installed, complete with the Spicer universals. Little to no rust, just a little dusty from storage.
Nice! In a couple months I might have to get one of those.
Reply With Quote
