two bolt holes need for manual TC?

Apparently your tranny has to be predrilled to accept the linkage for a transfer case. Looks like mine doesn't. It looks like there are bosses (flat areas that are not drilled out). I'm wondering if these are the correct location to drill and tap. If no, is there another way to mount the TC?

Any help would be appreciated. A purchase is pending this info.

Speed sensor side:



The other side. Is this the side that needs holes? If so, are they in the location of the bosses where I can drill and tap them?


The top side:
Reply With Quote
  #2
Old 06-08-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Do you have your manual TC and see how its linkage works?


Reply With Quote
  #3
Old 06-08-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
With the wrong tail housing, it'll still mount to it, you just wont have any way to engage 4wd without the bosses on the tailhousing for the bracketry..

I'm not 100% positive, I would suggest searching around in the Manual T-case threads. Check out their tailhousings that are correct.

I would be realy careful if those are the correct holes... It's only aluminum, and if you go too far, well, it won't be pretty....
Reply With Quote
  #4
Old 06-08-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011

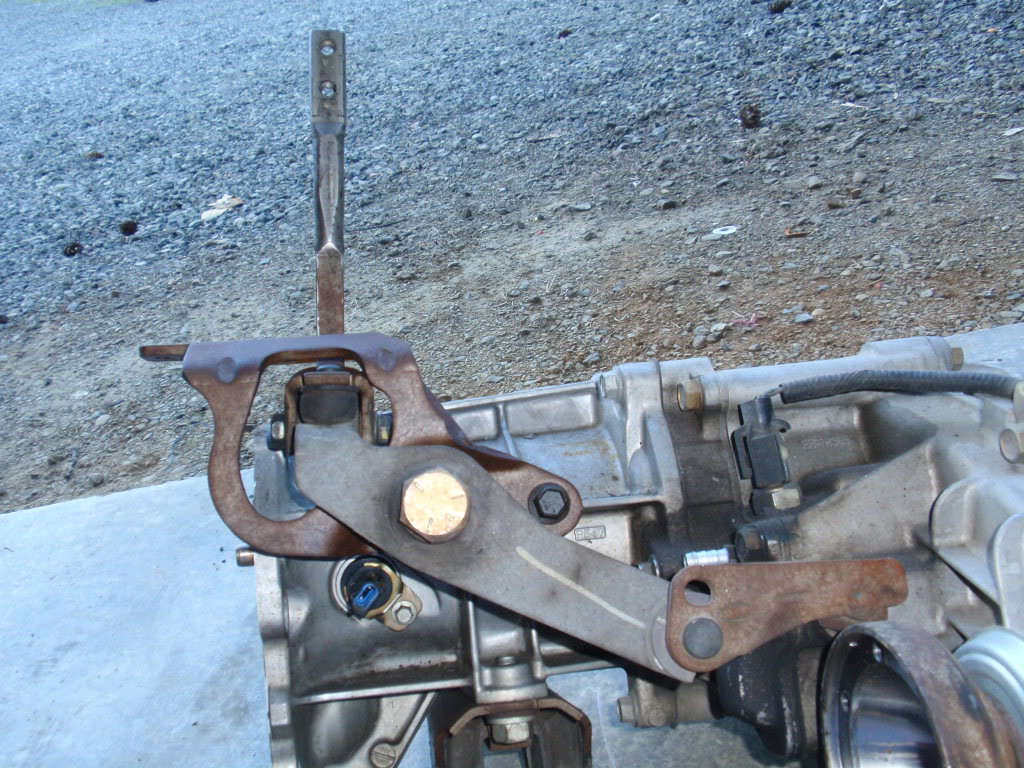

Okay, here is a KNOWN FX4 LII housing and linkage:
Name:  P4210082.jpg
Views: 2
Size:  196.6 KB
Reply With Quote
  #5
Old 06-08-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
He does NOT have the right tailhousing and it won't work for the swap. It will bolt up like I said, but no way to connect the linkage and secure it to the tailhousing.

PM Toreador4x4 about a tailhousing, I believe he has an extra and they're very hard to come by!

Thanks for posting those pics Grant! Finalized my advice! lol
Reply With Quote
  #6
Old 06-08-2009
graniteguy's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
Edit- pic alreadt posted.

The backhousing- is that an easy swap? Just unbolt the old and bolt on the new?
Reply With Quote
  #7
Old 06-08-2009
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Yeah. Just bolt the new one and good to go. I personally gave up on finding all the parts. If I was keeping my truck I would just get a Stak case when they finished the adapter housing for Rangers.
Reply With Quote
  #8
Old 06-08-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
i didnt even know stak was making an adapter housing...
Reply With Quote
  #9
Old 06-09-2009
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Quote:
Originally Posted by zabeard View Post
i didnt even know stak was making an adapter housing...
At least for the manuals they are.

STaK
Reply With Quote
  #10
Old 06-09-2009
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by fddriver02 View Post
At least for the manuals they are.

STaK
I send them an email every month or so, there website has said that since it went up.
Reply With Quote
  #11
Old 06-09-2009
graniteguy's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
Back on the tailhousing- what kind of interchange swaps over. Will a BII or 2.9L Ranger tailhousing from a manual swap out for a 4.0 manual tranny?

Will an automatic tailhousing swap over to a manual tranny? If so, just 4.0 or will the 2.9 ranger or BII work also?
Reply With Quote
  #12
Old 06-09-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Quote:
Originally Posted by graniteguy View Post
Back on the tailhousing- what kind of interchange swaps over. Will a BII or 2.9L Ranger tailhousing from a manual swap out for a 4.0 manual tranny?

Will an automatic tailhousing swap over to a manual tranny? If so, just 4.0 or will the 2.9 ranger or BII work also?

No, no, and no. The ONLY tailhousing you can use came from the 02 or 03 trucks with manual transmissions AND manual T-case. You can use older tailhousings from the manual tranny but you won't have the OSS hole and therefore no speedo.
Reply With Quote
  #13
Old 06-09-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
That's why a member on here gave up... Finding that tail housing.

It's really hard to find, and when you find it, it's realy expensive!
Reply With Quote
  #14
Old 06-09-2009
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
i found it and it was pretty cheap
Reply With Quote
  #15
Old 06-09-2009
graniteguy's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
my current set up with a 700r4 automatic tranny left me without a speedometer. With a GPS it hasn't been that big of a deal. Thanks for all the info. This has been enlightening.
