Upgraded rotors to Stoptech w/ problems!

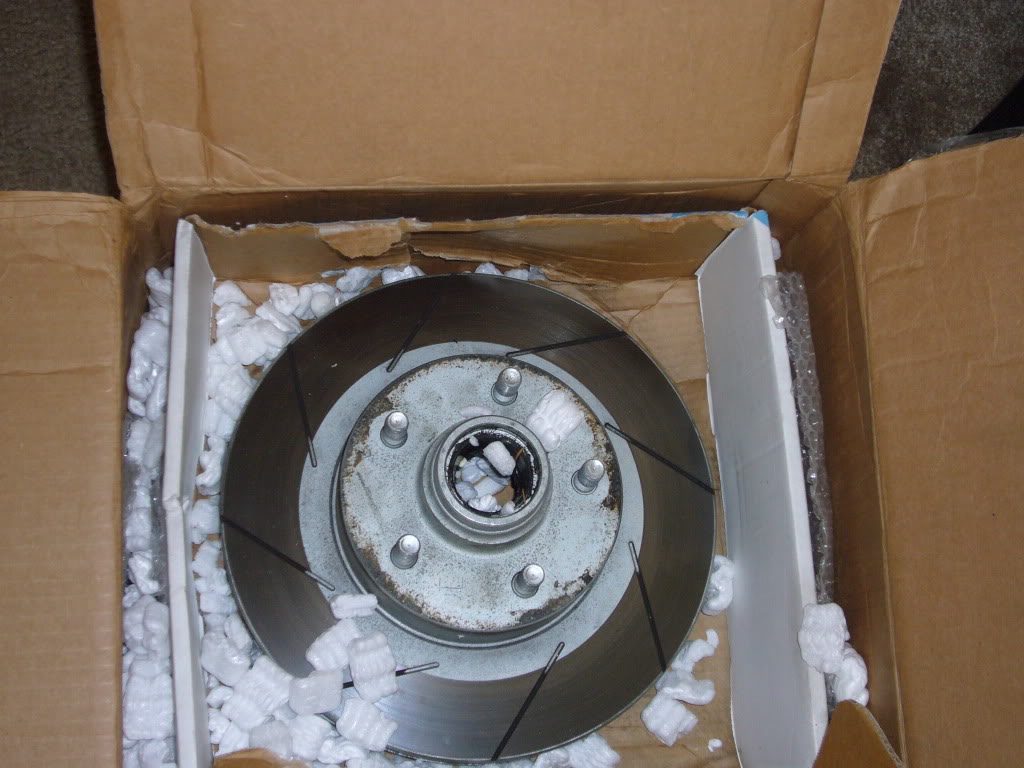

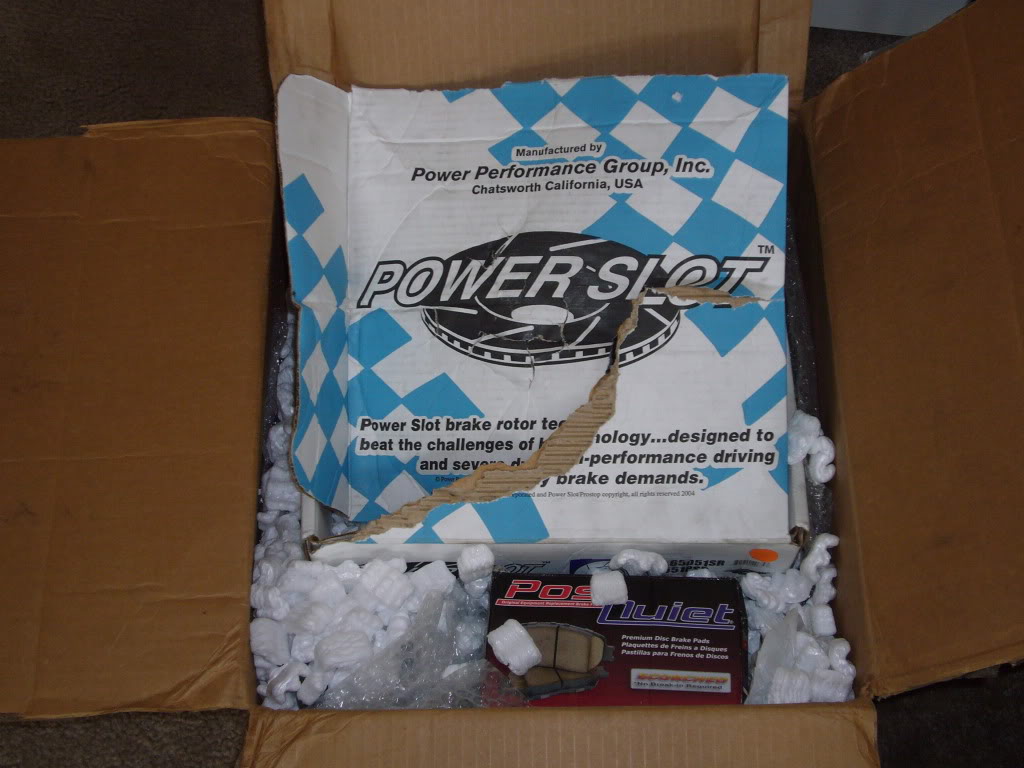

Ok, so that start this story off i was in need for a brake upgrade. My wheel and tire package weighs so much! So i didn't have the stopping power that i once had, running the stock wheels and tires. So i searched and searched. I came upon some Stoptech rotor and pads being sold by Dangerranger01. He gave me a pretty good deal on them. So they arrived:

Name:  P1030369.jpg
Views: 5
Size:  133.4 KB

Name:  P1030370.jpg
Views: 3
Size:  138.7 KB

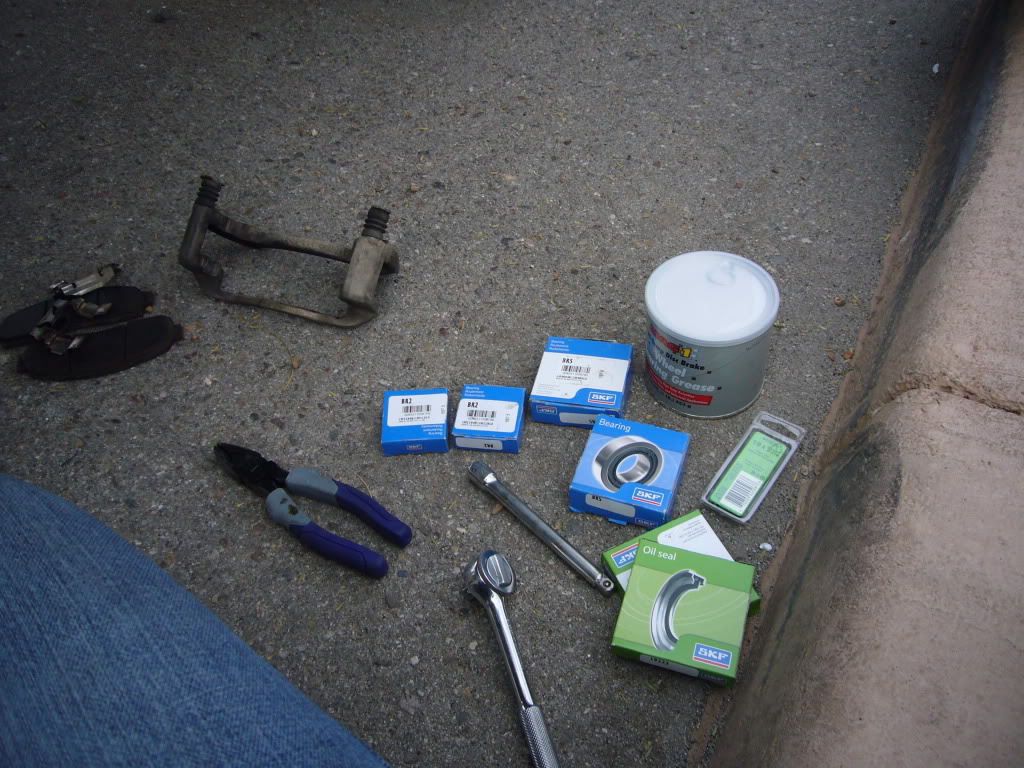

. . . . . and i gathered my materials:

Name:  P1030372.jpg
Views: 3
Size:  220.4 KB

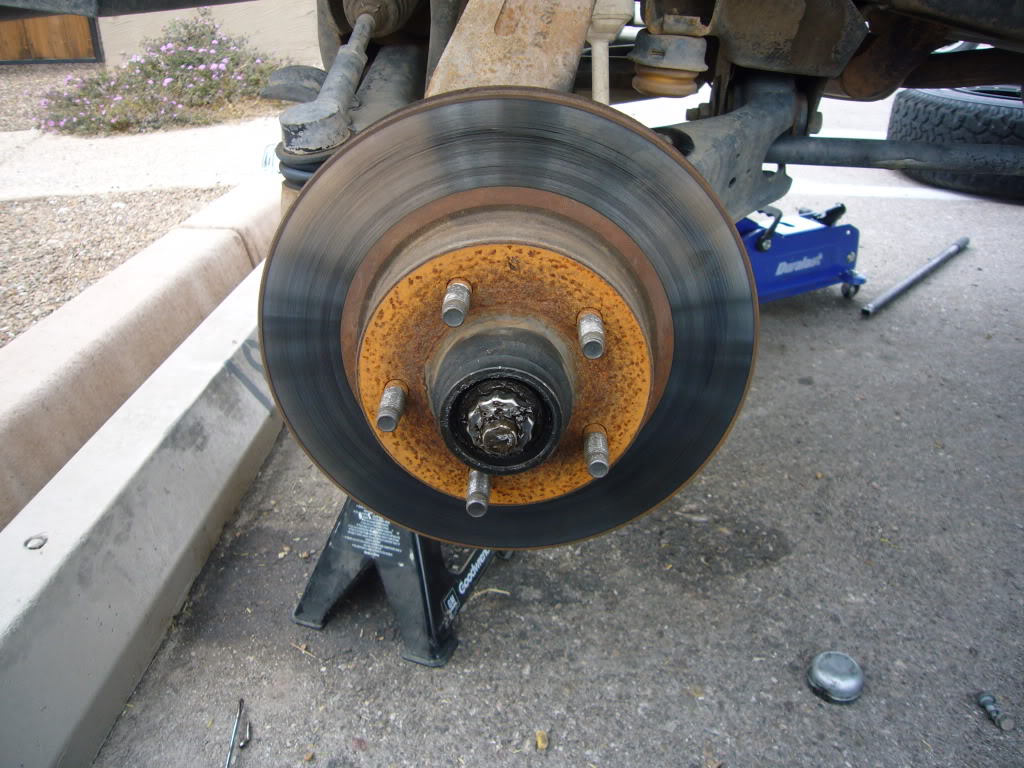

. . . . . and began the job:

Name:  P1030371.jpg
Views: 4
Size:  182.9 KB

. . . . . got it all put back together:

Name:  P1030387.jpg
Views: 4
Size:  114.9 KB

Name:  P1030390.jpg
Views: 5
Size:  135.5 KB

. . . . . But i started noticing problems after a few day driving around. The first problem was when i would lets off the brake with the truck in drive, the truck wouldn't roll. Next, every time i pushed on the gas the truck would pull to the left, and when i would let off the gas it would pull to the right.

So i took it into the shop for another issue, and had them look at my brakes. They were telling me that my rotors were too wide. I was pissed. I was thinking that i wasted two hundred plus dollars for nothing! I was about to convert it back to stock when i decided to pull the brakes apart again and realized what i did.

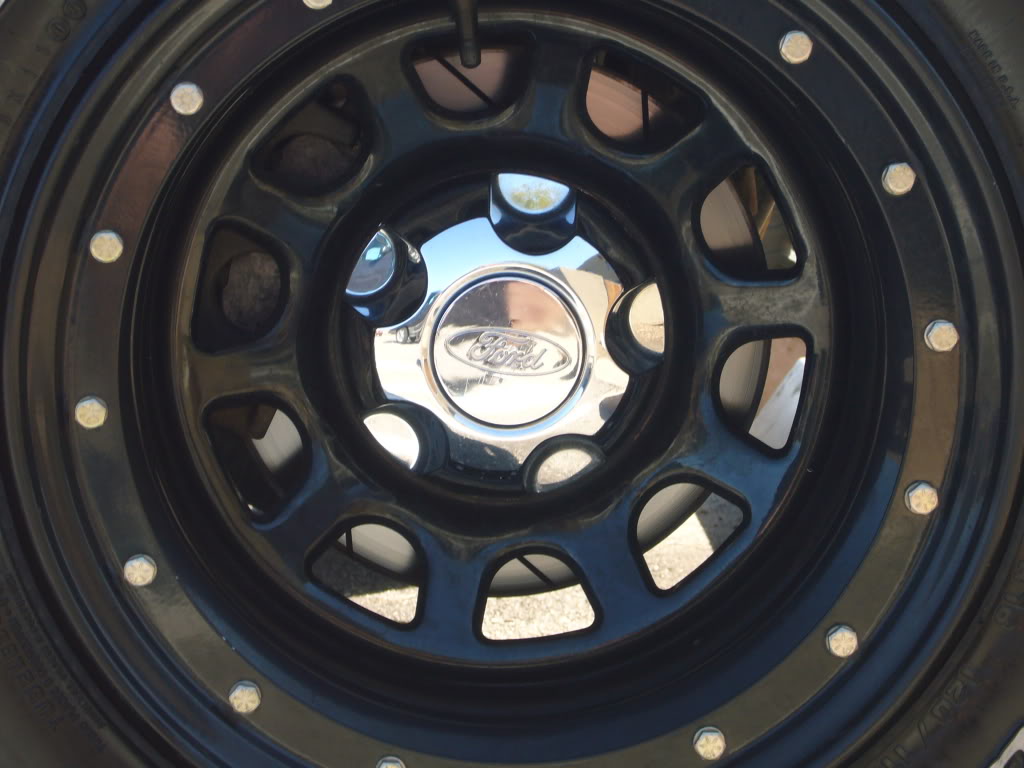

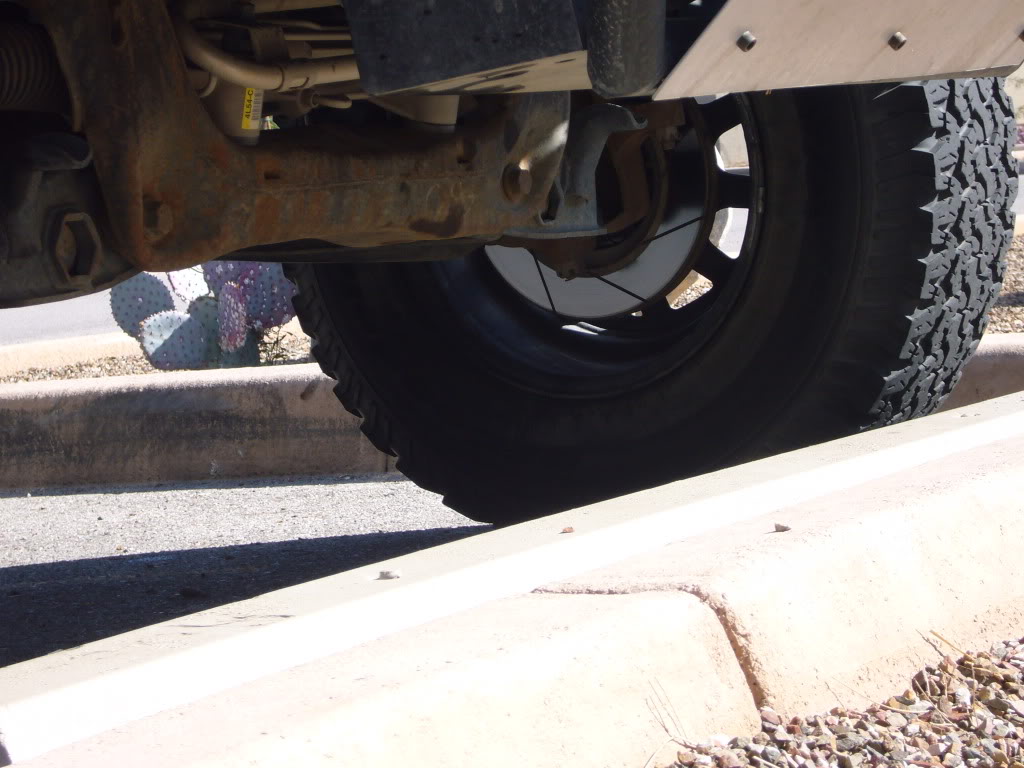

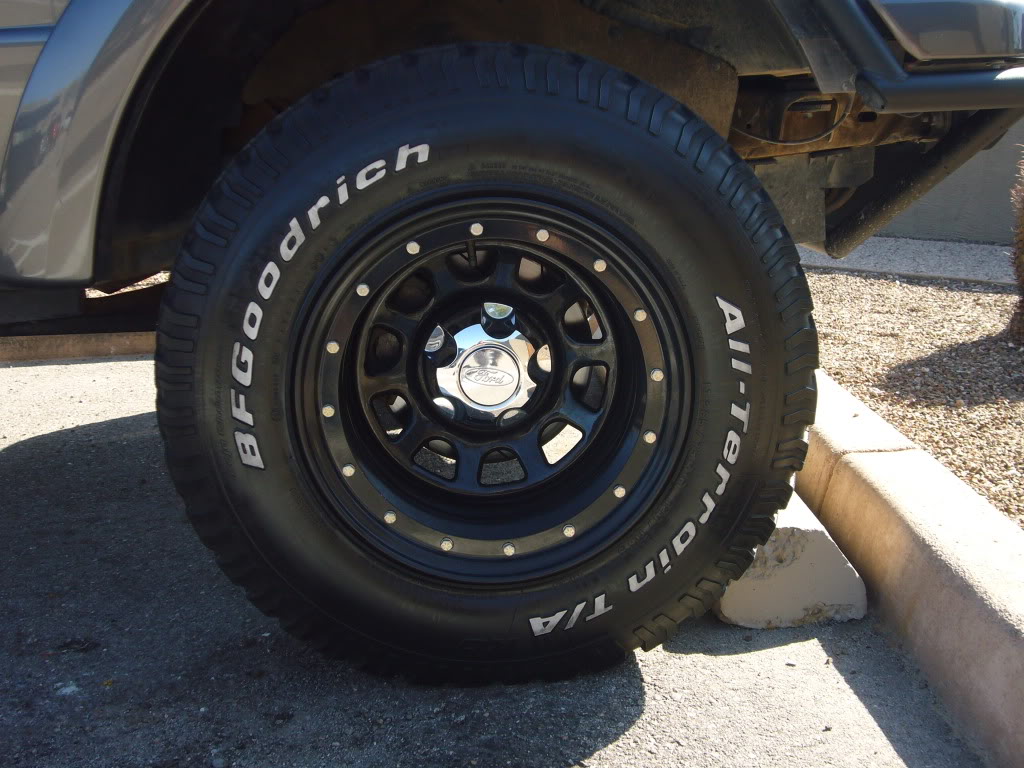

When replacing your brake pads, ALWAYS push the pistons all the way in, not three quarters of the way in. It was a stupid mistake that i made. Originally, when i was putting the calipers back on, i had to use some muscle to push the calipers down into place. So i was driving around with my brake pads just dragging on the rotors. Dumb mistake. Don't make the same mistake!!! Here are a few more pics of my nice washed truck. Oh yeah, the brake rotors and pads are a huge upgrade, a noticable difference.

Name:  P1030389.jpg
Views: 3
Size:  226.5 KB

Name:  P1030390.jpg
Views: 5
Size:  135.5 KB

Name:  P1030388.jpg
Views: 4
Size:  167.8 KB

Name:  P1030387.jpg
Views: 4
Size:  114.9 KB
Attached Images
File Type: jpg P1030390.jpg (135.5 KB, 5 views)
File Type: jpg P1030387.jpg (114.9 KB, 5 views)
Reply With Quote
  #2
Old 02-14-2010
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Glad it all worked out. Looks good but I think you either need some skinnier wheels or wider tires.
Reply With Quote
  #3
Old 02-14-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Could have been worse.

Truck looks good btw
Reply With Quote
  #4
Old 02-14-2010
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
Quote:
Originally Posted by 01RangerEdge View Post
Could have been worse.

Truck looks good btw
this, my glide pin had rusted, then snapped so i had to get all new calipers....

glad you figured it out... its so frustrating when you cant figure out what is wrong
Reply With Quote
  #5
Old 02-14-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
so all fixed? When I heard the shop you took it to said the rotors were too wide, I called MAJOR BS.

Reading your description, I started thinking that maybe there wasn't proper spindle nut tightening....like they were tightened way too tight. That would cause a resistance issue.

Sounds like it's all fixed up good to go. But how'd the calipers get on the pads and rotors if the gap between them wasn't enough to fit 'em?
Reply With Quote
  #6
Old 02-14-2010
dangelj316's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Yuma, AZ
Posts: 813
I tapped the caliper down around the pads and rotor. But it wasn't very hard to do that, but i should have known. Dumb mistake on my part.
Reply With Quote
  #7
Old 02-17-2011
dangelj316's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Yuma, AZ
Posts: 813
Update: My Stoptech rotors are warped. Does anybody out know of a rotor that wont warp? This is my second set of rotors that i'm on.
Reply With Quote
  #8
Old 02-17-2011
Member

Join Date: Feb 2011
Location: San Antonio
Posts: 7
All rotors are subject to warping when subjected to severe driving conditions....i.e. city stop-n-go traffic, extreme stops after a high speed runs, always on the brakes during lengthy downhills, larger rim/tire combos and of course driving style. Additionally calipers not releasing properly allowing the pads to drag can also overheat the rotors. Once they are overheated a splash of water from a puddle contributes to the warpage.
Reply With Quote
  #9
Old 02-17-2011
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Might want to look at your braking habits. As dan76 said, it takes quite a bit of heat to warp a good rotor.
Reply With Quote
  #10
Old 02-17-2011
dangelj316's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Yuma, AZ
Posts: 813
OK guys. Thanks for the advice.
