warn hubs question

O.k. this has prob. been put on here a thousand times but I couldnt find it, Im wanting to convert my 95 from auto hubs to manual(my auto hubs are shot), any way the 2 parts stores I checked on said I needed the conversion kit plus hubs?????? they were bothe over 300.00 for the whole thing? is that right? could anyone point me in the right direction as far as what parts I need, maybe where a good place to get them at, are they a pain to convert????? thanks in advance!!!
Reply With Quote
  #2
Old 01-15-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
The parts stores are correct you will need the new manual hubs and the conversion kit. The conversion kit consist of the correct hub nuts for the manual hubs (the auto hub nuts are totally different and wont work with manual hubs).

Here is the parts you will need:

Hubs: (I have been running the Mile Marker brand for 2 years now with no problems)
http://store.summitracing.com/partde...5&autoview=sku

Conversion Kit:
http://store.summitracing.com/partde...t=MMK-95-27997


$300 is far fetched for the parts.


Swapping manual hubs is super easy to do. Pull the old automatic hub off, remove the nuts, put new nuts on, install new hub. Remember, it takes a special socket to get the auto hub nuts off and another special tool to put the manual hub nuts on. Most auto parts stores (ie: O'Reilly Auto Parts, AutoZone, etc.) have these sockets. They run about $10 each. While you are at the auto parts store, grab yourself a repair manual. They are pretty detailed about removing and installing the lock outs...



If you need anymore help with them, shoot me a PM...
Reply With Quote
  #3
Old 01-15-2008
Member
Thread Starter

Join Date: Nov 2007
Location: topinabee,mi
Posts: 14
hey, thanks lifted ranger! thats sounds more like the ball park I was looking into!
Reply With Quote
  #4
Old 01-15-2008
racsan's Avatar
Member

Join Date: Sep 2006
Location: central ohio
Posts: 647
mile marker hubs are also available from autozone, im on my 2nd winter with them, no problems with them.
Reply With Quote
  #5
Old 01-15-2008
BRENSRANGER's Avatar
Member

Join Date: Jul 2006
Location: Minnesota
Posts: 1,308
manual hubs are the best!
Reply With Quote
  #6
Old 01-15-2008
Thumper102's Avatar
Member

Join Date: Jan 2006
Location: Colorado Springs, CO
Posts: 37

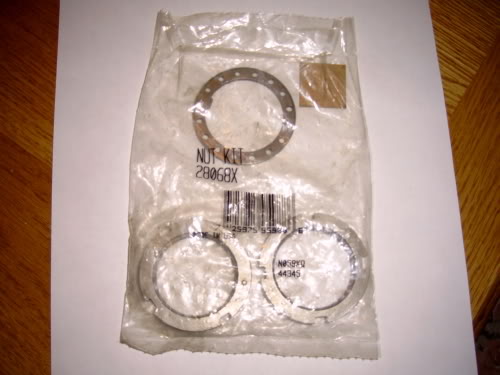

Don't blow your money on the Warn conversion kit, get two of these bags instead. Those are what's inside of that $50.00 cardboard box. The 4 Wheel Parts store here has 'em for around 6 bux a bag........you need two bags, one for each side. Part #28068X

Name:  hubnuts.jpg
Views: 5
Size:  29.0 KB
Reply With Quote
  #7
Old 01-18-2008
Member
Thread Starter

Join Date: Nov 2007
Location: topinabee,mi
Posts: 14
will that nut kit work for the mile marker hubs? so I wouldnt need the conversion kit?
Reply With Quote
  #8
Old 01-18-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by beaverpilot
will that nut kit work for the mile marker hubs? so I wouldnt need the conversion kit?
yes that nut kit will work with any TTB manual locking hubs.....no you will not need to conversion kit....those nuts is all the conversion kit is...
Reply With Quote
  #9
Old 01-18-2008
thef9est1's Avatar
Member

Join Date: May 2007
Location: OLY, Washington
Posts: 536
I would call around to some offroad stores and ask them about prices on warn manual locking hubs for your truck...and tell them that you have auto locking hubs and they will tell you will need a set of the convertion nuts...mine all together for my 97 was $200 for the hubs and $30 i think for the nuts...at the end with tax was just under $250...I like the manual because they seem and I'm sure are stronger but being able to not have to get out in the snow or rain with auto would be nice! good luck on the project! remeber to not tighten the nut down all the way...you got untill its on snug and then a 1/4 back....
Reply With Quote
  #10
Old 01-18-2008
thef9est1's Avatar
Member

Join Date: May 2007
Location: OLY, Washington
Posts: 536
oh and you will need a special socket for the nutts!!!! that was spendy for how you only use it twice
Reply With Quote
  #11
Old 01-18-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by thef9est1
oh and you will need a special socket for the nutts!!!! that was spendy for how you only use it twice
it comes in very handy if you do your own maintenance...
Reply With Quote
  #12
Old 01-18-2008
thef9est1's Avatar
Member

Join Date: May 2007
Location: OLY, Washington
Posts: 536
yes it does! i have used it sense just to get the ball barring out...i was gonna sell mine but i've used it again so maybe i will again and again.
Reply With Quote
  #13
Old 01-22-2008
Member
Thread Starter

Join Date: Nov 2007
Location: topinabee,mi
Posts: 14
o.k., finally ordered the parts!! do you guys know what size of sockets I need for the nuts? would like to pick them up before I get the parts----thks
Reply With Quote
  #14
Old 01-22-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
go to the auto parts store (AutoZone, O'Reilly, NAPA, etc.) and tell them what you are doing. They should be able to point you to the proper ones (remember, you will need 2, one for the auto hub nut and one for the manual hub nut)....
Reply With Quote
  #15
Old 01-22-2008
racsan's Avatar
Member

Join Date: Sep 2006
Location: central ohio
Posts: 647
my autozone had them in stock, seems like one was $12 and the other was $14
Reply With Quote
  #16
Old 01-22-2008
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
i like my manual hubs but i miss the automatic ones where all u have to do is push the button and roll back a little but and there is no way u should pay 300 for hubs and if your guna pay that much you should buy avm hubs
Reply With Quote
  #17
Old 08-18-2010
Member

Join Date: Jul 2010
Location: Newbury, Vermont
Posts: 23
I'm doing the same project as beaverpilot but was going to go with the warn standard locking hub. Aside from the hubs, I would just need two of the bags that Thumper listed (aside from the tools)? Its a 97 Mazda B4000. I'm really having difficulty finding out exactly what needs to be replaced and what parts I need to buy. Thanks a lot guys. Sorry to hijack your thread Beaverpilot
