08-up newer style mirror upgrade to 01 ranger

Hey guys I have been looking for that thread and have not been able to find it. Im looking for the thread where the guy drilled bigger holes and modded the newer style mirrors. lmk please. thanks
Reply With Quote
  #2
Old 07-29-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Reply With Quote
  #3
Old 07-29-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Drill out all the holes on the door, use washers, bam done! I'll post my pics later...I swapped 'em on.
Reply With Quote
  #4
Old 07-29-2009
2001fordranger's Avatar
Member
Thread Starter

Join Date: Jun 2009
Location: USA
Posts: 596
So Fx wanna after I looked earlier before I saw this post. I prefitted the mirrors and noticed that it seemd the original holes just need to be made bigger a little and your post verifies that.

Let me ask since I have a 01 and I also noticed the switch is different ; am I suppose to splice the new switch into the door switch . lmk thanks
Reply With Quote
  #5
Old 07-29-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Hi Martine.


I believe the link above talks about cutting and splicing your existing 'plug' for the mirrors. Transfer it over onto the new mirror and it'll be all good to go.

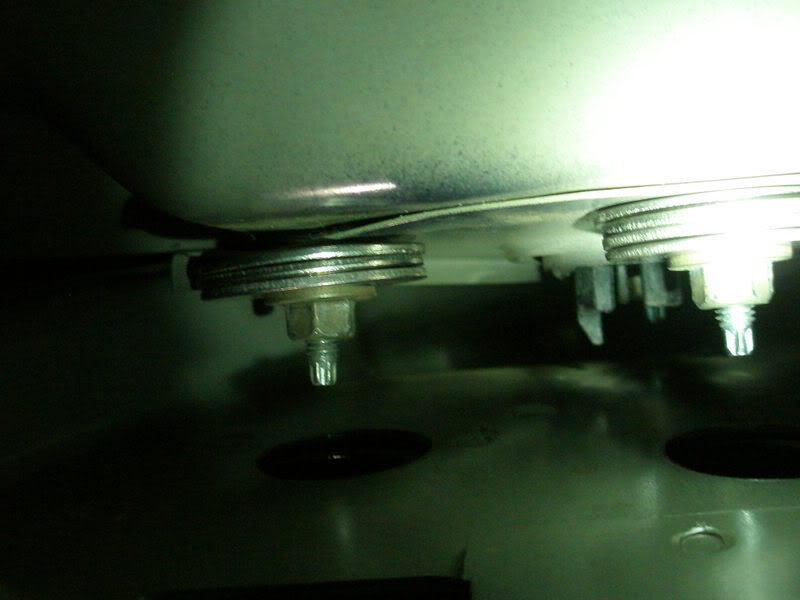

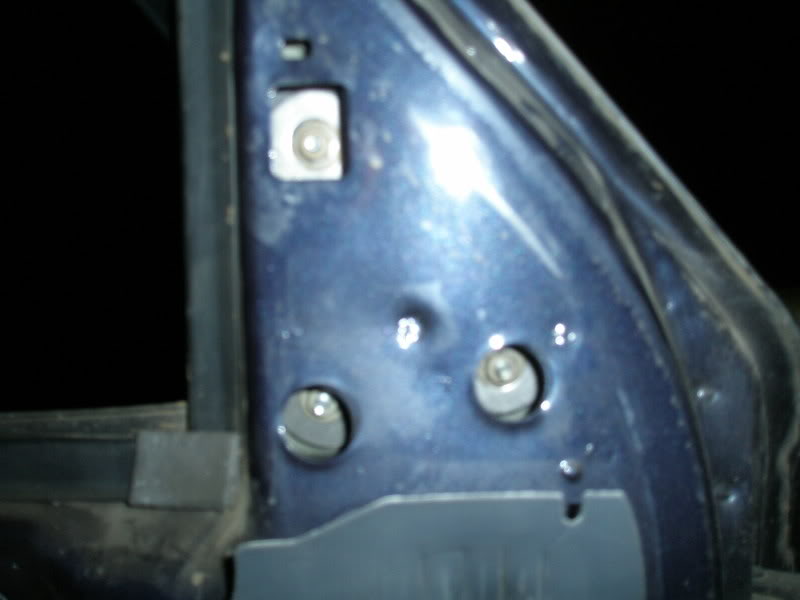

Yep...drilling the holes bigger and using washers on the backside, then the nut and they are secured.

I've got no pics of the drilled out doors, but I want to say it was 7/8" that I drilled the holes out to? idk.

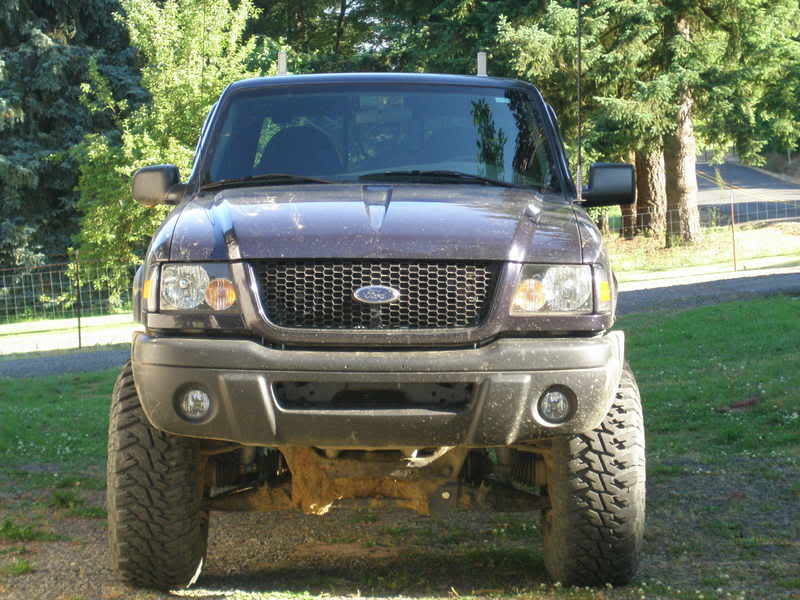

Name:  P7140063.jpg
Views: 28
Size:  44.6 KB

Name:  P7140051.jpg
Views: 31
Size:  41.1 KB

Name:  P7080010.jpg
Views: 52
Size:  75.1 KB
Reply With Quote
  #6
Old 07-29-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
oh yeah....I don't have power anything in my truck, I'm just going by what I remember from that thread before all teh pics and details got deleted by the whiney original poster. lol.
Reply With Quote
  #7
Old 07-30-2009
2001fordranger's Avatar
Member
Thread Starter

Join Date: Jun 2009
Location: USA
Posts: 596
oh yea cool i figured it out after looking at the thread. so i will be performing this mod tomorrow and doing a updated rightup and video.
Reply With Quote
  #8
Old 07-31-2009
2001fordranger's Avatar
Member
Thread Starter

Join Date: Jun 2009
Location: USA
Posts: 596
what size washer did you use. i got 7/8 washer but those suckers are huge. is that a typo in the writeup. thks
Reply With Quote
  #9
Old 07-31-2009
2001fordranger's Avatar
Member
Thread Starter

Join Date: Jun 2009
Location: USA
Posts: 596
and for power mirrors sonething aint right. so i think a another hole in both doors need to be drilled because you cant fit the mirrors on because of the power switch on them. the mirrors stop just sort of being flushed.
Reply With Quote
  #10
Old 07-31-2009
Member

Join Date: May 2008
Location: Roseville, CA
Posts: 246
Quote:
Originally Posted by 2001fordranger View Post
and for power mirrors sonething aint right. so i think a another hole in both doors need to be drilled because you cant fit the mirrors on because of the power switch on them. the mirrors stop just sort of being flushed.
Yeah I read that somewhere before that you need to drill new holes to get it to fit. Not a big deal we just cant go back to our old mirrors if we change our minds later
Reply With Quote
  #11
Old 08-01-2009
2001fordranger's Avatar
Member
Thread Starter

Join Date: Jun 2009
Location: USA
Posts: 596
actually i got it done by drilling another hole in the middle so that the power switch could fit through. and yes you can always go back to the original mirrors; thats where washers would come in. well idk :)
Reply With Quote
  #12
Old 08-01-2009
Member

Join Date: May 2008
Location: Roseville, CA
Posts: 246
hrm hadn't thought about washers but who would want to go back to the original mirrors anyways
