can someone please identify this piece

and were i could get a replacement and how to put it on, mine is a little cracked and faded

Reply With Quote
  #2
Old 09-23-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
ill trade you mine for that keypad entry haha

its a doorsill, but i have no idea what ford calls it
Reply With Quote
  #3
Old 09-23-2009
joshtank's Avatar
Member
Thread Starter

Join Date: Jun 2009
Location: Winston GA
Posts: 1,240
Quote:
Originally Posted by Smakes View Post
ill trade you mine for that keypad entry haha

its a doorsill, but i have no idea what ford calls it
lmfao this pics is off of stuffforyourranger.com
shhhhh
Reply With Quote
  #4
Old 09-23-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I don't know the technical name....but if you go to the ford dealership, describe it to the parts counter, they'll get it ordered up. only about $20 per side and it's an easy replacement part.
Reply With Quote
  #5
Old 09-23-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by Smakes View Post
ill trade you mine for that keypad entry haha

its a doorsill, but i have no idea what ford calls it
Lol thats Cody's truck. I think that piece is called window molding or window trim.
Reply With Quote
  #6
Old 09-23-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
bam!

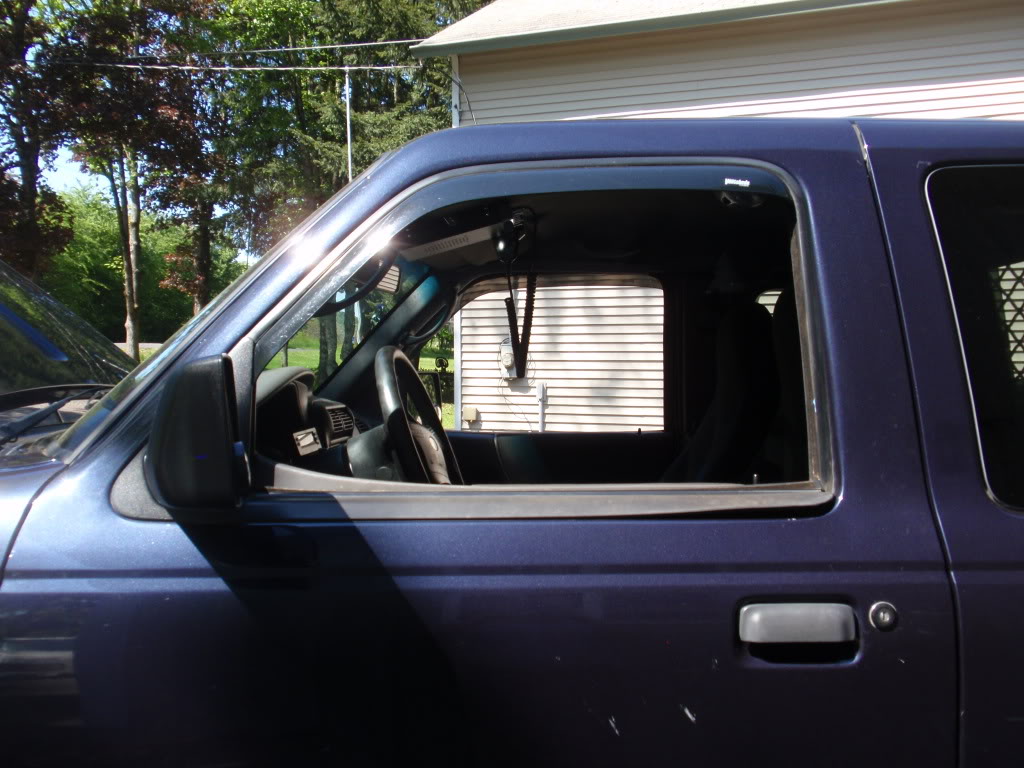

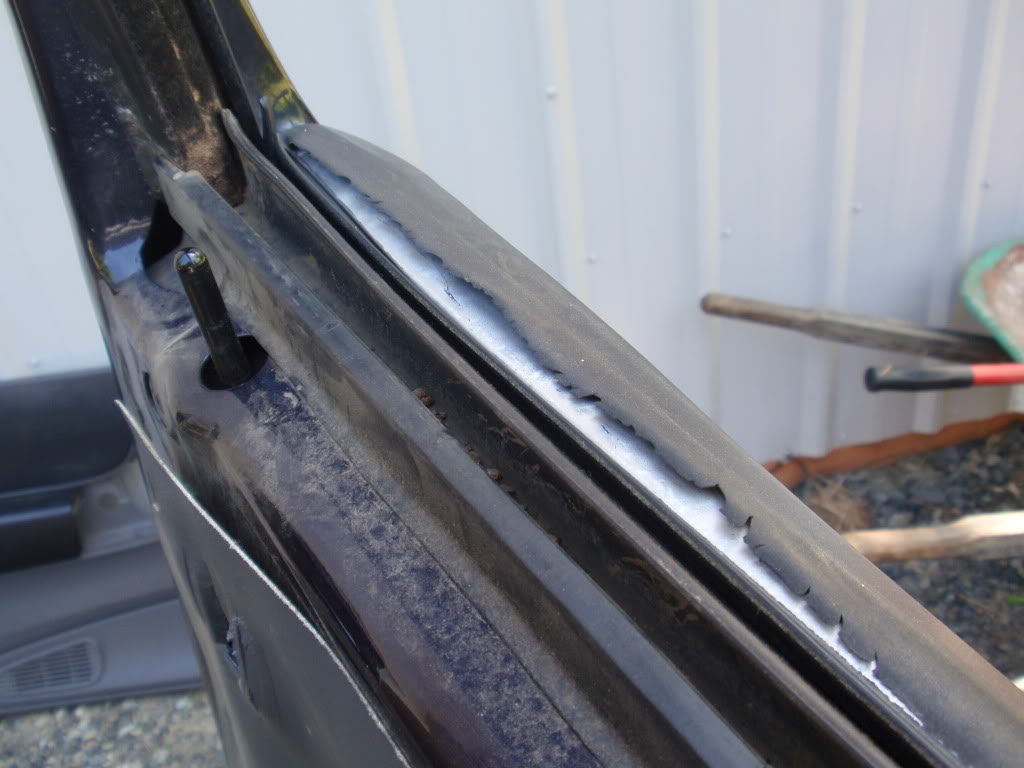

Before:
Name:  P5220016.jpg
Views: 97
Size:  100.1 KB
Name:  P5220014.jpg
Views: 97
Size:  149.1 KB

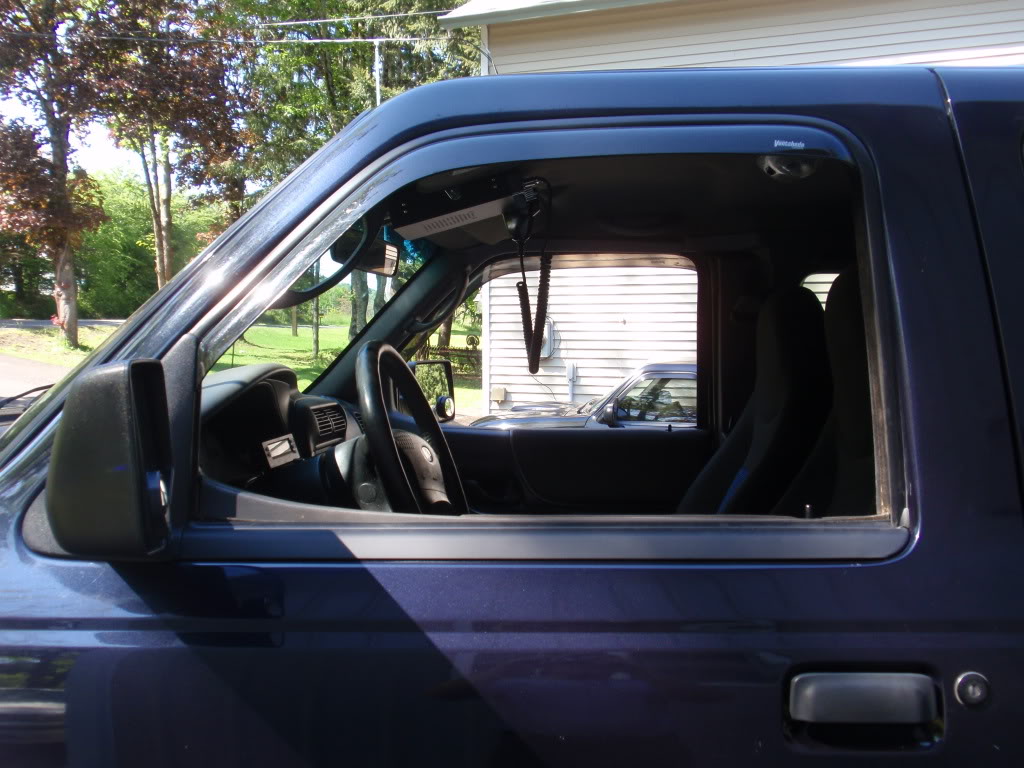

After:
Name:  P5220019.jpg
Views: 96
Size:  154.0 KB

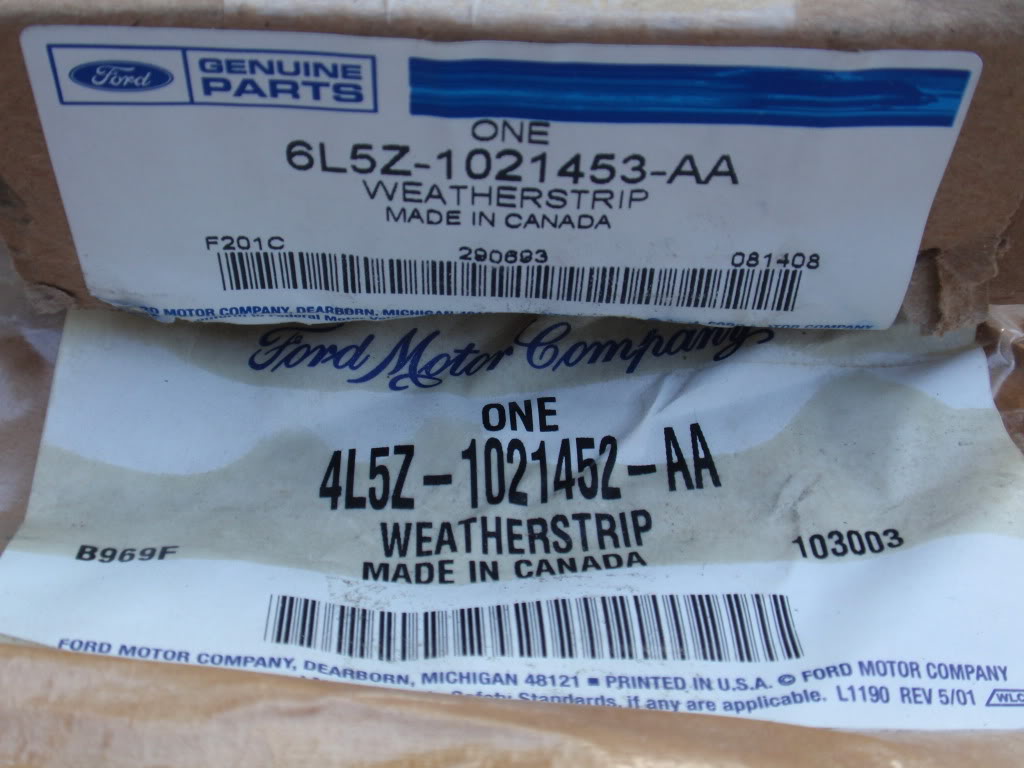

Believe it's the same part number for '00 and up.
Name:  P5220022.jpg
Views: 97
Size:  113.9 KB


To install, you must remove the door panel to remove the mirror, then remove that molding(just pull up), push on your new one, get it lined up to the back of the window area, install mirror, install door panel. DONE!
Reply With Quote
  #7
Old 09-23-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Is that metal underneath it or is it all rubber? My girlfriends looks just like yours did, I wonder where I can order new ones for her Sentra.
Reply With Quote
  #8
Old 09-23-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
dam i need to go get one. my driver side one has a gnarly dent in it that i have to look at every day
Reply With Quote
  #9
Old 09-23-2009
blueranger789's Avatar
Member

Join Date: Mar 2009
Location: Boiling Springs, SC
Posts: 619
Quote:
Originally Posted by Smakes View Post
dam i need to go get one. my driver side one has a gnarly dent in it that i have to look at every day
i need to do the same both of mine have dents in them
Reply With Quote
  #10
Old 09-23-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
It's thin sheetmetal with that rubbery vinyly coating on it.



Part numbers shown are for my '01. Should be the same for '01+, but older models, no clue.
Reply With Quote
  #11
Old 09-23-2009
blueranger789's Avatar
Member

Join Date: Mar 2009
Location: Boiling Springs, SC
Posts: 619
shane you are the man to ask for just about every repair, spare part and anything else anyone can ask about, thanks bro
Reply With Quote
  #12
Old 09-23-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
they are $46 each last time i bought them
Reply With Quote
  #13
Old 09-23-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
^OUTCH! I know mine are slightly different than yours...but I wonder if they bumped the price like they did the torsion bars?
Reply With Quote
  #14
Old 09-24-2009
joshtank's Avatar
Member
Thread Starter

Join Date: Jun 2009
Location: Winston GA
Posts: 1,240
Quote:
Originally Posted by Fx4wannabe01 View Post
bam!

Before:



After:


Believe it's the same part number for '00 and up.



To install, you must remove the door panel to remove the mirror, then remove that molding(just pull up), push on your new one, get it lined up to the back of the window area, install mirror, install door panel. DONE!
WOW hell of a difference,thanks for the help and the part number
Reply With Quote
  #15
Old 09-28-2009
texasfan1000's Avatar
Member

Join Date: Sep 2006
Location: Amarillo, TX
Posts: 629
LMC Truck Parts - Page 14

I cant tell but maybe #6, I am not sure if this part is inside the door or not.
Reply With Quote
  #16
Old 09-28-2009
Silver's Avatar
Member

Join Date: Jun 2006
Location: edenton,nc
Posts: 2,708
would be nice to find a set for 20 bucks ea
Reply With Quote
  #17
Old 09-28-2009
nate_g_2003's Avatar
Member

Join Date: Jun 2009
Location: Deer Park, TX
Posts: 976
Thanks for the info Shane. Those will be saved for future ref.
Reply With Quote
  #18
Old 12-04-2011
NewShockerGuy's Avatar
Member

Join Date: Sep 2011
Location: NOVA
Posts: 599
Icon2

Quote:
Originally Posted by Fx4wannabe01 View Post
bam!


Believe it's the same part number for '00 and up.



To install, you must remove the door panel to remove the mirror, then remove that molding(just pull up), push on your new one, get it lined up to the back of the window area, install mirror, install door panel. DONE!

Just tried looking these up on newfordparts.com and I can find the first one, but I can't find the one below.. does anyone know if they changed numbers on these?

I need to order both of them.

Not going to order from LMC because they want 60+ bucks for them..

Thanks,
-Nigel
Attached Thumbnails
can someone please identify this piece-p5220022.jpg
Reply With Quote
  #19
Old 12-05-2011
Member

Join Date: Aug 2009
Location: Forney,Tx
Posts: 62
I pulled those off my daughters truck recently. I peeled the dried out rubber, lightly sanded and sprayed them with satin black spray bomb. They look fine now.
