Front End Conversion

has anybody done the 01-03 front end conversion on there 98-2000 rangers? I'm trying to get some parts rounded up and I need to know what to get.
Reply With Quote
  #2
Old 01-05-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
youll need

fenders
hood
header panel
headlights and corning lights
grille assembly
bumper and valance
hood latch

and i think thats about it
Reply With Quote
  #3
Old 01-05-2009
chevyslayer925's Avatar
Member
iTrader: (4)

Join Date: Jan 2008
Location: Trexlertown,Pennslyvania
Posts: 1,293
ive done the conversion on my 00, need the header panel,grille, headlights, corners i spent prolly 300 for the conversion wasnt too bad
Reply With Quote
  #4
Old 01-05-2009
chevyslayer925's Avatar
Member
iTrader: (4)

Join Date: Jan 2008
Location: Trexlertown,Pennslyvania
Posts: 1,293
why would you need fenders? i did the conversion on my 00 you dont need fenders if your doing an 01-03 conversion
Reply With Quote
  #5
Old 01-05-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by GT_hatchback View Post
has anybody done the 01-03 front end conversion on there 98-2000 rangers? I'm trying to get some parts rounded up and I need to know what to get.
nobody has done it at all. lol.


mossy just about covered it....but i will note:

no need for fenders or hood latch...since you dont need to change the hood. Even if you do upgrade to the 01-03 powerdome, you still dont need to swap latches. You will also need to get the headlamp retainer sliders as well to hold the headlamps to the header panel properly. There's also little nutset/jnut wtf u call those things on the header panel to secure the grille to it...same goes iwth the corner lamps.






To eliminate the extra turnsignal bulb, simply unclip the extra bulb, and put in an electronic flasher designed for LEDs...this will get rid of the 'hyperflash' when you disconnect a bulb. AND it's alot safer than running a hot hot bulb just ziptied away and possibly covered with electrical tape.




before:

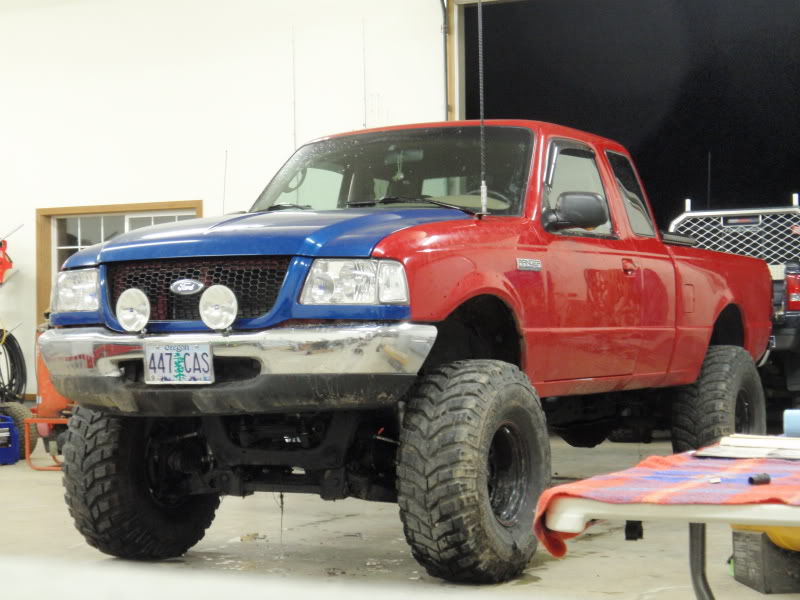

after:
Name:  PB060180.jpg
Views: 2
Size:  104.8 KB

Name:  PA260096.jpg
Views: 2
Size:  82.2 KB
Reply With Quote
  #6
Old 01-05-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
sorry about the fender part i was thinking about when i had to replace mine.

are you sure the hood latches are the same?
Reply With Quote
  #7
Old 01-05-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I've done the 01-03 swap on a 98, and put an 01-03 hood on another 98.....latches just fine and no need. I've actually dont remember if ive ever even seen it discussed during any swap thread either.
Reply With Quote
  #8
Old 01-05-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
alright just wondering thanks
Reply With Quote
  #9
Old 01-05-2009
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
Shane is correct no need for the latch or the hood unless you want a power dome. If you go with 04 or newer the hood and latch are required. Bumper is optional also.
Reply With Quote
  #10
Old 01-05-2009
Member
Thread Starter

Join Date: Jan 2009
Location: OH
Posts: 38
can I use the the bolts/retainers for the header panel and new headlights that are on my 2000? And for the bumper do I have to get new brackets and stuff. If I have to get them along with other things where can I get them?
Reply With Quote
  #11
Old 01-05-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
believe me...you want the headlamp retainers at least. some of the little screws andsuch should work out fine...when idid that one, i ended up getting all new hardware/clips etc.

here's what you need...2 of each...so 4 total.

Reply With Quote
  #12
Old 01-05-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Is that your personal garage Shane?
Reply With Quote
  #13
Old 01-05-2009
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
dang, that red one looks freakin awesome. never saw that one, lol
Reply With Quote
  #14
Old 01-07-2009
Member
Thread Starter

Join Date: Jan 2009
Location: OH
Posts: 38
http://cgi.ebay.com/ebaymotors/ws/eB...3645&viewitem= I was thinking about ordering this kit but I dont know where to get the bolts and other stuff that I need....any suggestions???? oh and does the middle of the grill pop off? I wanted to put in the honeycomb style.
Reply With Quote
  #15
Old 01-07-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
oh shoot. ya..that's all the major pieces right there in that auction.

hit up a local autoparts store...that's where i went. i'm loading pics for ya...hang on...
Reply With Quote
  #16
Old 01-07-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721

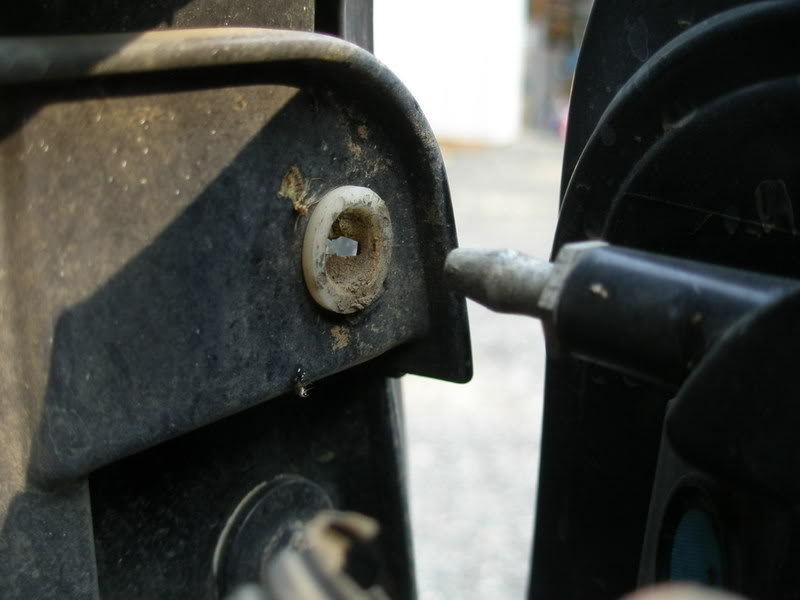

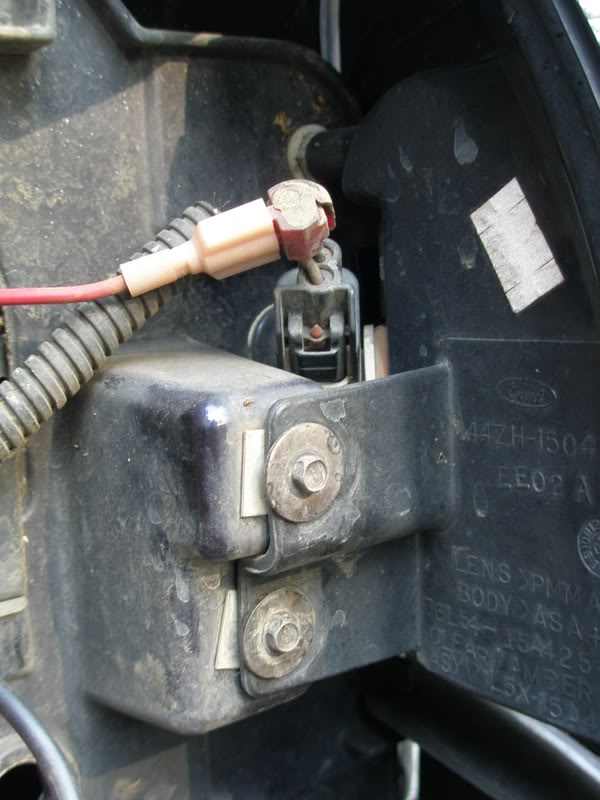

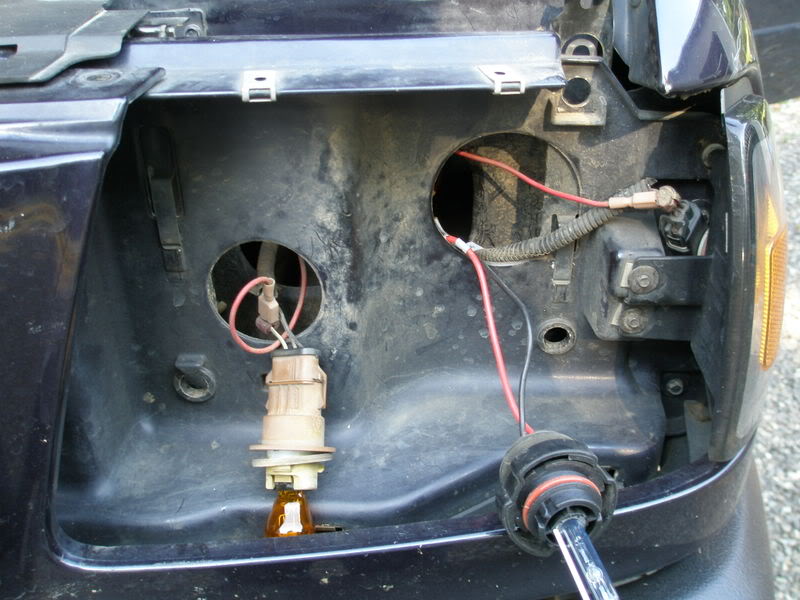

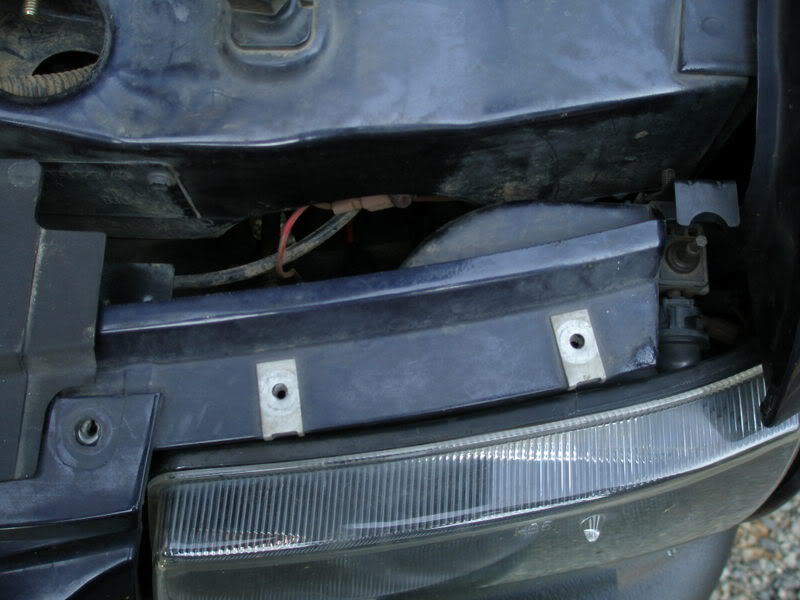

I took these pics for another person doing an 01-03 conversion to their 98-00...

all pics are taken of a factory '01(my truck). Some things you certainly dont need like te plastic cover things....but i like to make things look factory and correct.

Name:  P7020090.jpg
Views: 2
Size:  67.3 KB

Name:  P7020091.jpg
Views: 2
Size:  70.3 KB

Name:  P7020092.jpg
Views: 3
Size:  95.0 KB

Name:  P7020094.jpg
Views: 2
Size:  85.8 KB

Name:  P7020096.jpg
Views: 3
Size:  72.2 KB

Name:  P7020097.jpg
Views: 3
Size:  71.6 KB

Name:  P7020098.jpg
Views: 2
Size:  85.7 KB

Name:  P7020100.jpg
Views: 2
Size:  49.3 KB

Name:  P7020101.jpg
Views: 3
Size:  69.3 KB

Name:  P7020102.jpg
Views: 3
Size:  91.7 KB

Name:  P7020104.jpg
Views: 2
Size:  79.9 KB
Reply With Quote
  #17
Old 03-10-2009
PlasticHero's Avatar
Member
iTrader: (3)

Join Date: Jun 2005
Location: Ottawa, IL
Posts: 701
Digging this up because it has some good info on it and I dont want to lose it later (thanks guys).

Also, heres a little list I've been thinking about

Are the little silver things the so called 'tabs' I need from the dealer? or are they transferable from truck to truck?

Will my 00 lights fit in the 01 light spot?

Shane, you mentioned replaceing the extra bulb with a flasher? What size and how would I do it?

I'm sure Ill think of more.

Another note, the painted headlight mod... has anyone done it with white paint? I'm curious on how it would come out.

And Shane, your barbed wire pinstripe is BA!
Reply With Quote
  #18
Old 03-10-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Quote:
Will my 00 lights fit in the 01 light spot?
Nope, they have to be 01 and up.

Quote:
Are the little silver things the so called 'tabs' I need from the dealer? or are they transferable from truck to truck?

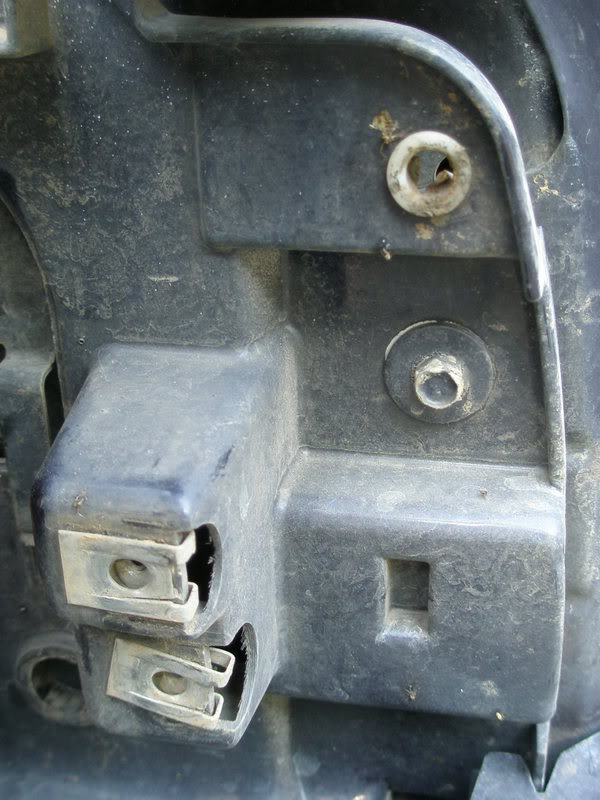

Which "tabs"? The little nutserts? like these? If so, they just slide right off.

Name:  P7020098.jpg
Views: 2
Size:  85.7 KB

Quote:
Another note, the painted headlight mod... has anyone done it with white paint? I'm curious on how it would come out.
Someone here has done it with sonic blue, and it turned out good. If you don't like it, then just paint over it lol.

And for the Flasher, I think you just splice it into the wire, just like you would for an LED.
Reply With Quote
  #19
Old 03-10-2009
PlasticHero's Avatar
Member
iTrader: (3)

Join Date: Jun 2005
Location: Ottawa, IL
Posts: 701
Quote:
Originally Posted by chainfire View Post
And for the Flasher, I think you just splice it into the wire, just like you would for an LED.
If that was the case couldn't I just kind of 'cut out' the extra bulb?
Reply With Quote
  #20
Old 03-10-2009
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789
just take the bulb out and put a EP27 Flasher relay in.
Reply With Quote
  #21
Old 03-10-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Quote:
Originally Posted by PlasticHero View Post
If that was the case couldn't I just kind of 'cut out' the extra bulb?
If you do that, there is not enough resistance for the other bulb. You will get a very fast flash from the signal bulb, it will get very annoying.
Reply With Quote
  #22
Old 03-25-2009
Member

Join Date: Nov 2007
Location: Chillicothe, Oh
Posts: 72
Sweet when I get my ranger back I'm going to the junk yard and gettin my swap!!!
