How do you remove tail lights on flareside ?

Yeah like the title says, How do you remove tail lights on flareside ? I have spray in bed liner is that going to be a problem ?
Reply With Quote
  #2
Old 08-30-2005
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
the flairside should be the same as style side.

there are 2 screws on the light on the outside of the truck that need to come out. Then you have to open your tailgate and there are 2 more screws pointing in towards the light. Thoes need to come out. Its really simple but if you need a pic, let me no.
Reply With Quote
  #3
Old 08-30-2005
winks's Avatar
Member
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
^ exactly
Reply With Quote
  #4
Old 08-30-2005
a311fanam's Avatar
Member

Join Date: Dec 2004
Location: Westerly, RI
Posts: 2,006
yea 4 screws total
Reply With Quote
  #5
Old 08-30-2005
dangerranger's Avatar
Member

Join Date: Aug 2005
Location: muskego, wi
Posts: 536
Did u order aftermarket tail lights? If so i would suggest doing a little more than just screwing them in after u replace the stock ones. U dont want to have them stolen.
Reply With Quote
  #6
Old 08-30-2005
KARPE's Avatar
Member

Join Date: Apr 2005
Location: Valrico, Fl 33594
Posts: 4,748
like what ?? ^^^
Reply With Quote
  #7
Old 08-30-2005
Member
Thread Starter

Join Date: Nov 2004
Location:
Posts: 3,115
No I am nightshading the stock ones, pics are nice, if you got a pic handy of the 2 screws in the bed that would be great, I am thinking I have to cut up the spray in liner.
Reply With Quote
  #8
Old 08-30-2005
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
im at work right now so i can get the pic tomorrow.
Reply With Quote
  #9
Old 08-30-2005
Member
Thread Starter

Join Date: Nov 2004
Location:
Posts: 3,115
can't hurt I might not need it, but if you have time.
Reply With Quote
  #10
Old 08-30-2005
04edge's Avatar
Member

Join Date: Jan 2005
Location: Beecher,IL
Posts: 512

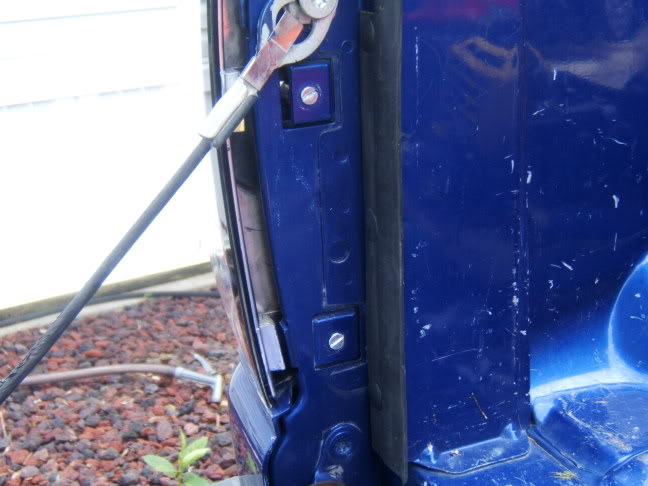

here a pic yours should be phillips mine arent because i had aftermarket ones and the stocks screws didnt work
Name:  Picture118.jpg
Views: 9
Size:  48.4 KB
Reply With Quote
  #11
Old 08-30-2005
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
well..i hope its not hard to take out tailights or find all the screws...

but i guess u possibly are screwed if they went over them...or it will at least be really hard to clean around them

good luck!
Reply With Quote
  #12
Old 08-31-2005
Member
Thread Starter

Join Date: Nov 2004
Location:
Posts: 3,115
The bed liner is not hard to cut with a razor, and it does not seem to stick to any bolts. I cut around the bed bolts to do the body lift it came off pretty easy and they are going to re-spray it for free so oh well.

thanks for the pics.

Hey what kind of aftermarket lights do you have ? I didn't think their were many for flaresides.
Reply With Quote
  #13
Old 08-31-2005
dangerranger's Avatar
Member

Join Date: Aug 2005
Location: muskego, wi
Posts: 536
Andy, Instead of using regular screws or whatever use torques screws. there was a forum on here not to long ago about people getting the lights stolen.
Reply With Quote
  #14
Old 08-31-2005

Join Date: Jun 2004
Posts: 0
Do one better and get "Security Torx" screws:

Reply With Quote
  #15
Old 08-31-2005
04edge's Avatar
Member

Join Date: Jan 2005
Location: Beecher,IL
Posts: 512
Quote:
Originally Posted by Ranger1
The bed liner is not hard to cut with a razor, and it does not seem to stick to any bolts. I cut around the bed bolts to do the body lift it came off pretty easy and they are going to re-spray it for free so oh well.

thanks for the pics.

Hey what kind of aftermarket lights do you have ? I didn't think their were many for flaresides.
no problem with the pics. As for the tail lights they are ALTEZZA G4 euro tail lights while they dont make them for stepsides and dremel and a steady hand and they work just need to mod the key holes
Reply With Quote
  #16
Old 08-31-2005
04edge's Avatar
Member

Join Date: Jan 2005
Location: Beecher,IL
Posts: 512
Quote:
Originally Posted by Matt
Do one better and get "Security Torx" screws:


thats a great idea but where would i be able to get some of those i looked at the hardware stores around here but i cant find any.
Reply With Quote
  #17
Old 08-31-2005

Join Date: Jun 2004
Posts: 0
You can pick some up here - http://www.aaronssecurityscrews.com/ - but there are wicked expensive! 30 bucks for 10 of them there. Other than that, I'm not sure where to get them, maybe a Home Depot, Lowes, or True Value hardware store may have them...
Reply With Quote
  #18
Old 09-03-2005
Member
Thread Starter

Join Date: Nov 2004
Location:
Posts: 3,115
Checked it out today they did not spray liner there, they did not spray past where the tailgate is, and those screws are hinden by the tailgate
Reply With Quote
  #19
Old 09-03-2005
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
dont go for the special torx...get a tailgate lock, whats to prevent someone from getting the special torx wrench???
Reply With Quote
  #20
Old 09-03-2005
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
nothing but they prob wouldnt expect that you would have torx bolts
Reply With Quote
  #21
Old 09-03-2005
Member
Thread Starter

Join Date: Nov 2004
Location:
Posts: 3,115
I am keeping mine stock, I am not concerned with someone stealing my taillights, but are just going to be stock ones with nightshade so I don't think i am a target.
Reply With Quote
  #22
Old 09-04-2005
Member
Thread Starter

Join Date: Nov 2004
Location:
Posts: 3,115
Quote:
Originally Posted by RangerJustin
dont go for the special torx...get a tailgate lock,
I was thinking about this, I have a soft bed cover, I think getting a tailgate lock is a bad idea. I think if I had one and someone wanted to steal something out of my bed they would just cut my cover and maybe mess my truck up for the hassel, but with out one and someone wanted to steal out of my bed I would hope they would take what they want and not mess my truck up. But I have never heard anyone around me say someone took something out of their truck so it really should not matter.
Reply With Quote
  #23
Old 09-04-2005
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by rangererv
the flairside should be the same as style side.

there are 2 screws on the light on the outside of the truck that need to come out. Then you have to open your tailgate and there are 2 more screws pointing in towards the light. Thoes need to come out. Its really simple but if you need a pic, let me no.
Quote:
Originally Posted by Ranger1
Checked it out today they did not spray liner there, they did not spray past where the tailgate is, and those screws are hinden by the tailgate
Ben READ the SECOUND post agian.......o dear this is to funny
