Remove and Install Stock Fiberglass Flareside Bedside

Hello everyone...I've been searching the forums like mad but haven't come across the answer yet.

The drivers side bedside on my 2000 flareside Ranger got backed into and I'm trying to figure out if it's possible to remove only the bedside. I would replace it with a stock fiberglass bedside I found online.

I've seen a few threads that mention drilling out spot welds but is that the same for the fiberglass bedsides? Has anyone ever done this before who could shed some light on the process?

Any help/ideas would be much appreciated...Thanks
Reply With Quote
  #2
Old 07-20-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
There are no spot welds on a fiberglass bed,lol.
It actually unbolts. You see that plastic rail ontop of the bed? There are torx bolts under it. Then there are ones behind the bumper, and i not sure about the front, just look around.
Reply With Quote
  #3
Old 07-20-2010
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by dee11smile View Post
Hello everyone...I've been searching the forums like mad but haven't come across the answer yet.

The drivers side bedside on my 2000 flareside Ranger got backed into and I'm trying to figure out if it's possible to remove only the bedside. I would replace it with a stock fiberglass bedside I found online.

I've seen a few threads that mention drilling out spot welds but is that the same for the fiberglass bedsides? Has anyone ever done this before who could shed some light on the process?

Any help/ideas would be much appreciated...Thanks
the stepside bed sides bolt on, no need to drill spot welds. the bed rail caps hide the screws that hold the top of it on, the step pad hides a couple screws, theres a screw under the rear bumper behind the rear wheel well and theres a couple screws by where the tail light is fastened on near the tailgate latch. they are all torx heads if i remember correctly. also since its the drivers side the three or four screws that hold the filler neck on need to come out too.
Reply With Quote
  #4
Old 07-20-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011

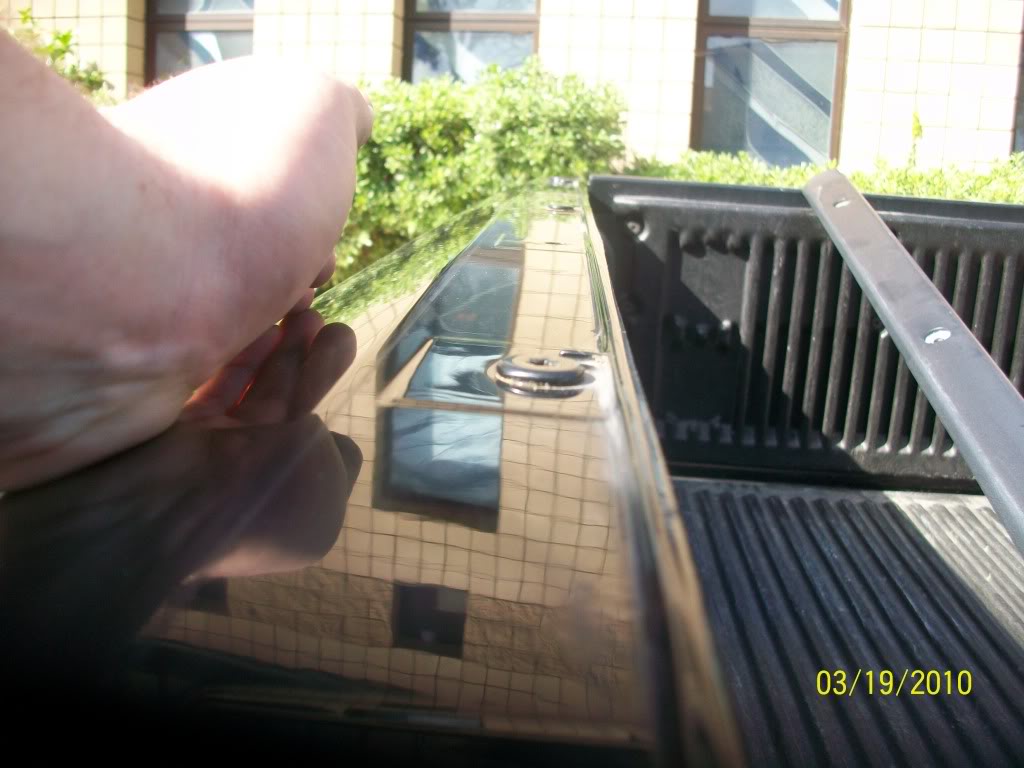

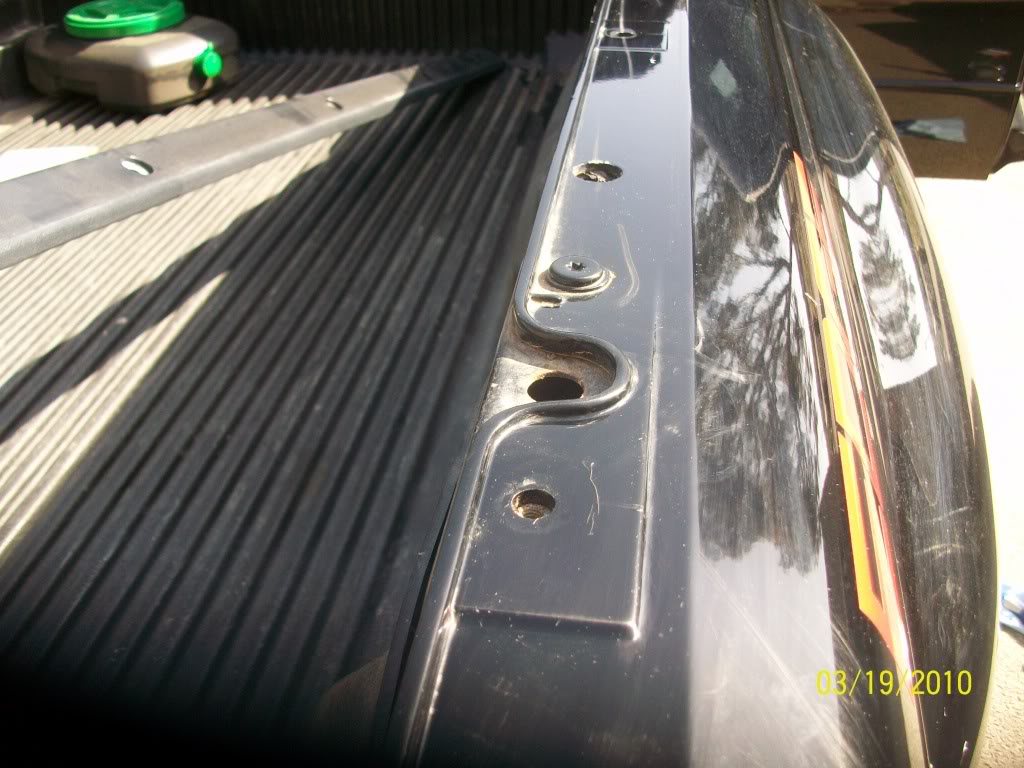

Just a quick search came up with there pictures to help you otu...

Name:  100_1436.jpg
Views: 258
Size:  150.4 KB

Name:  100_1437.jpg
Views: 205
Size:  120.9 KB
Reply With Quote
  #5
Old 07-20-2010
Member
Thread Starter

Join Date: Nov 2008
Location: atlanta
Posts: 2
Awesome thanks everyone...This is exactly what I needed!!!! Yeah I thought spot welds for fiberglass sounded off but you never know...Thanks again!
Reply With Quote
  #6
Old 07-20-2010
Member

Join Date: Jun 2007
Location: Killafornia
Posts: 1,523
torx... because thieves forget about allen keys
Reply With Quote
  #7
Old 04-09-2012
Member

Join Date: Apr 2012
Location: Claremore, OK
Posts: 2
Hey I have a crack in my bedside. Where did you find one online? If you don't mind me asking.
