How To: Remove Fender Flares

Why risk getting overspray on your trucks paint if you're painting the flares? Its really easy to remove them.

Materials Needed:
-1/4" Drive ratchet
-7/32" Socket
-Flathead Screwdriver
-Automotive Fastener Remover

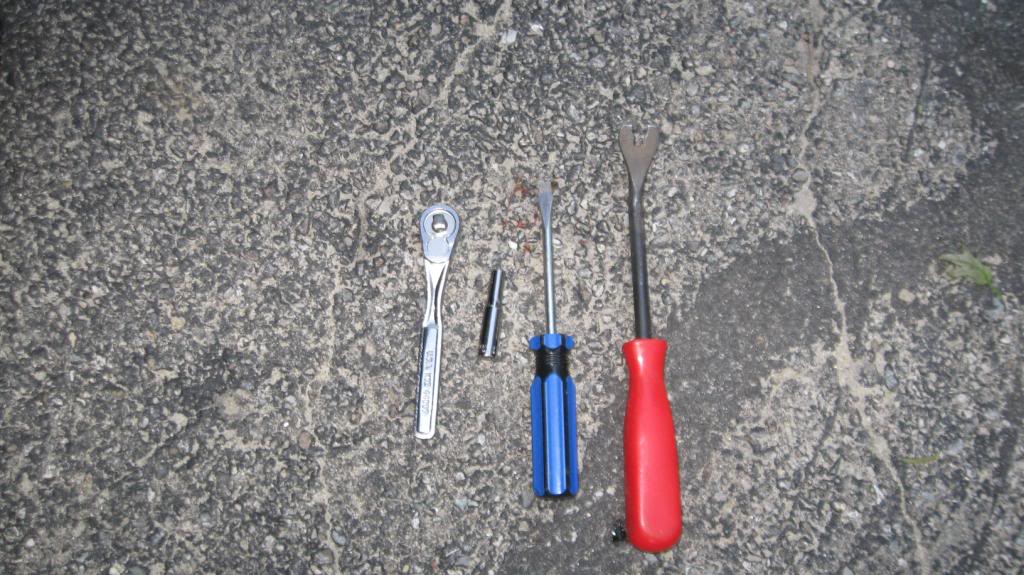

Here's a picture of the stuff you'll need:
Name:  IMG_0277.jpg
Views: 192
Size:  136.1 KB

First, Remove the screw on the rear part of the flare closest to the cab on the front with the 7/32" socket. This was on my flares on my 99, may be different on other year trucks.
Name:  IMG_0274.jpg
Views: 213
Size:  55.6 KB

Now, use the automotive fastener remover, which can be found at any automotive parts store, and remove the 6 pins on the underside of the fender flares. Simply slide the tool between the pin and the flare and pry it out. Using pliers takes way too long and will ruin the head of the fastener, making them not reusable so thats why I purchased the tool, its very handy.
Name:  IMG_0275.jpg
Views: 192
Size:  55.9 KB
Name:  IMG_0276.jpg
Views: 198
Size:  55.3 KB

Once you remove those pins, simply pick an end to start on and pull towards you on the flare. There are little white pins attached to the flare and the fender itself. Don't be afraid, just pull on them til they pop out of the flare. They will say stuck in the fender but thats not a problem because you'll remove them later.

When you get the flare off, this is what you'll see. All these pins need to be removed in order to put the flare back in place after you paint them or simply after you clean behind them as some like to do.
Name:  0429001332.jpg
Views: 452
Size:  119.2 KB

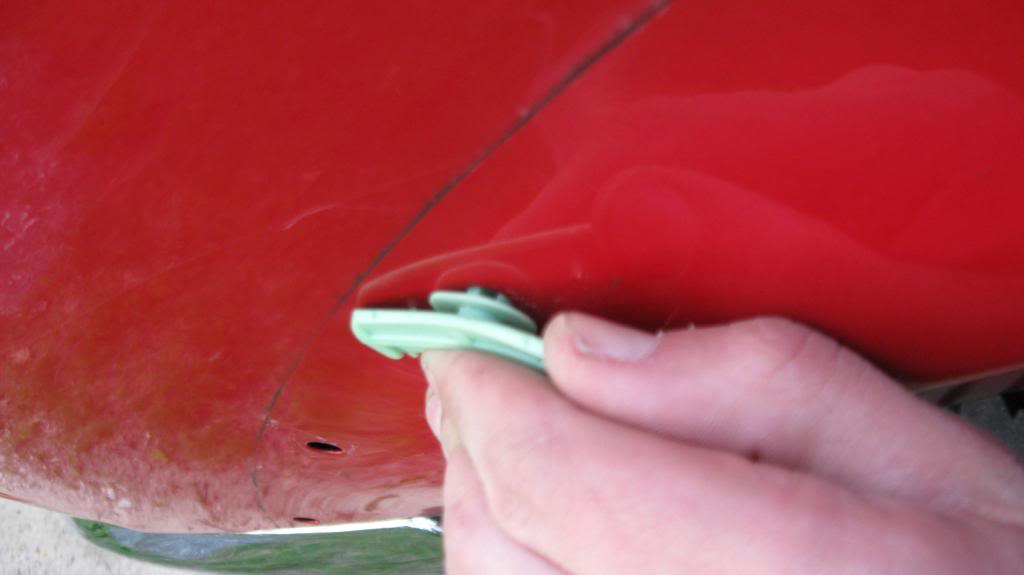

To get those white pins out, simply pull on them gently. You will see a little flap on each side of them.
Name:  IMG_0269.jpg
Views: 193
Size:  33.6 KB

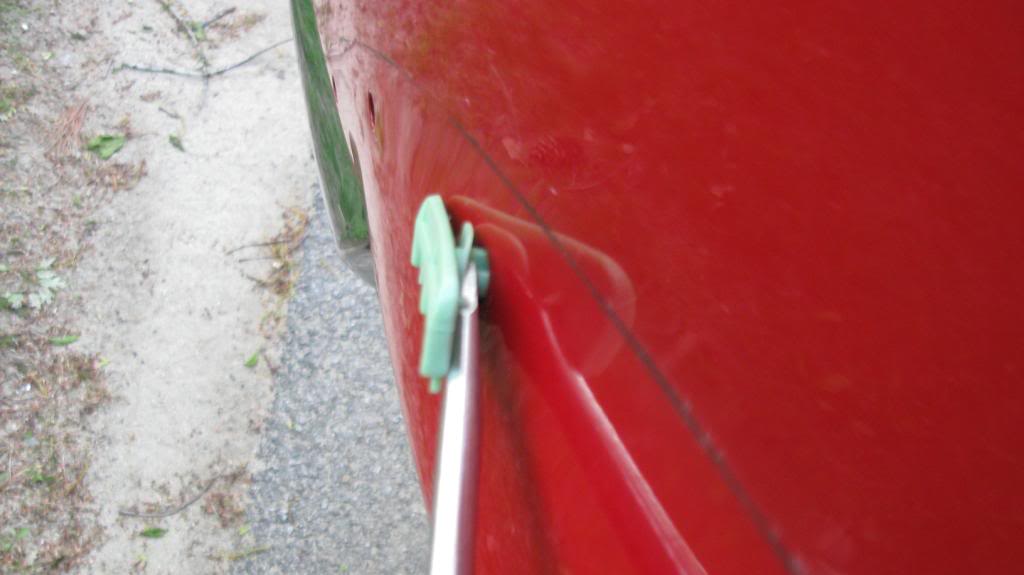

With the flathead screwdriver, push each of the flaps, one at a time, inward towards the center stud on the pin while pulling gently.
Name:  IMG_0270.jpg
Views: 197
Size:  52.8 KB

Once you have both flaps out, pull the pin out with your hand, it should come out easily.
Name:  IMG_0271.jpg
Views: 191
Size:  40.1 KB
Name:  IMG_0272.jpg
Views: 191
Size:  39.2 KB

Work your way around, and take them all off. This is what it will look like.
Name:  IMG_0263.jpg
Views: 554
Size:  65.5 KB

Once you paint the flares and clean behind where they were, simply put the white pins back onto the flare then push them on starting at one side working your way around the flare. Then, put the automotive fastener pins back on the under side of the flare and remember to screw that 7/32" bolt back into the backside of the flare, where the mudflap was.

Final product:
Name:  IMG_0279.jpg
Views: 933
Size:  85.3 KB

Truk lewkz gud!
Reply With Quote
  #2
Old 04-30-2010
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
If only it was that easy...
Reply With Quote
  #3
Old 04-30-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Note: If you just pull out on the flare, those clips that are left in the pics above, should all still be attached. I've never pulled flares off and those clips being left on the body. It may take a little persuasion with a knife on the 'ears' of the clips, but all should come off with the flare. I've ripped mine off so much that I had to replace many of those clips because they were so warn down and didn't clip too well to the fenders.
Reply With Quote
  #4
Old 04-30-2010
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
You got lucky Pedro with your push-pins coming out that easy. The heads of mine just folded over and I had to cut the heads and push the bodies through the other side.
Reply With Quote
  #5
Old 04-30-2010
99offroadrngr's Avatar
TOYOTA
Thread Starter
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by rangerboy101 View Post
You got lucky Pedro with your push-pins coming out that easy. The heads of mine just folded over and I had to cut the heads and push the bodies through the other side.
lol yeah...idk how shane gets the white pins out with the flare not a single one stayed attached to the flare it was easier just leaving them in the body and removing them afterwards
Reply With Quote
  #6
Old 04-30-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Quote:
Originally Posted by 99offroadrngr View Post
lol yeah...idk how shane gets the white pins out with the flare not a single one stayed attached to the flare it was easier just leaving them in the body and removing them afterwards
I removed the white clips with my flares also, just used needle nose pliers to squeeze the clip together from the back and they popped right out.
