How thick does a bracket need to be for...

... a set of 10,000lb tow hooks?

I snagged a pair pretty cheap but I ain't got nowhere to mount them up front.

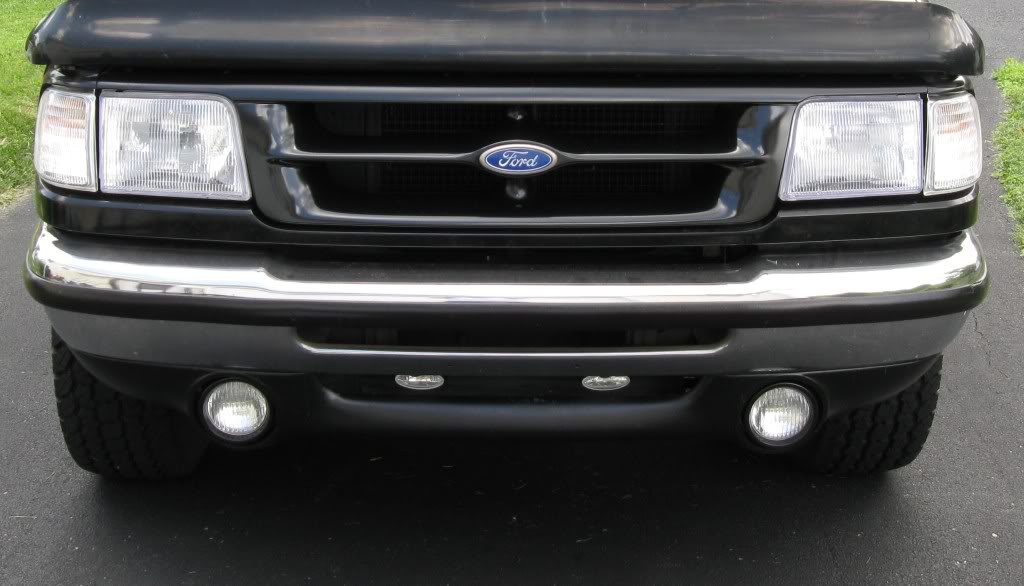

I'm thinking a slab of 3/8" or 1/2" thick steel should be more than enough. Sort of a L shaped bracket. I need to drop down about 3" and forward about 2" so the hooks will just stick out the open area right above those little fog lights or right where those fog lights are in the pic (they've been moved behind the grille since this pic).

Name:  blackgrill2.jpg
Views: 2
Size:  85.7 KB

Looks like I can drill holes in the bracket to bolt on beside the bumper mounts on the frame & use some longer bolts to hold the bracket to the mount & drill 2 holes in the lower area of the bracket for the tow hooks.

One of these days, I'd like to build a cross bar behind the bumper for a hitch, but alas I have no metal and no welder.

I don't want to weld to the frame because of the future hitch mod.

No need for ultra-super heavy duty building here, I'll only use the hooks in case I get stuck in the ice/snow & need a little help getting free.... no pulling the truck out of a 6' deep mud pit or anything crazy like that.
Reply With Quote
  #2
Old 08-11-2010
t5cents's Avatar
Member
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
1/4 would be fine....1/2 is HUGE..lol
Reply With Quote
  #3
Old 08-11-2010
t5cents's Avatar
Member
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
just do some bracing on ur angles so its not just ripping on the one weld where the 2 pieces meet...
Reply With Quote
  #4
Old 08-11-2010
steveo1271's Avatar
Member

Join Date: Oct 2009
Location: lexington,sc
Posts: 780
1/2in would be one beefy bracket
Reply With Quote
  #5
Old 08-11-2010
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Well, I was going to use a flat slab of steel & cut an L shaped bracket out of it... no welding. I thought it wouldn't hurt if it was a little thicker than normal in case of side loads.
Reply With Quote
  #6
Old 08-11-2010
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Hey, I just noticed that my last post was #500 for me...

Wheeeeeeeeee!
