Lighting help!!!!

OK So I bought some lights off of Korey89 and they don't have the wiring harness and relay. So my question is how do I wire all this up? I heard that you don't need to use relays if you use big enough wire and switches and things that are supposed to hold that amount of power. So just wondering what I need to do.

Also I think I am going to buy some cheaper lights at advanced auto for the rear and underneath the truck for wheeling. Could I wire into those relays even if they are on different switches?
Reply With Quote
  #2
Old 10-07-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
.
Attached Thumbnails

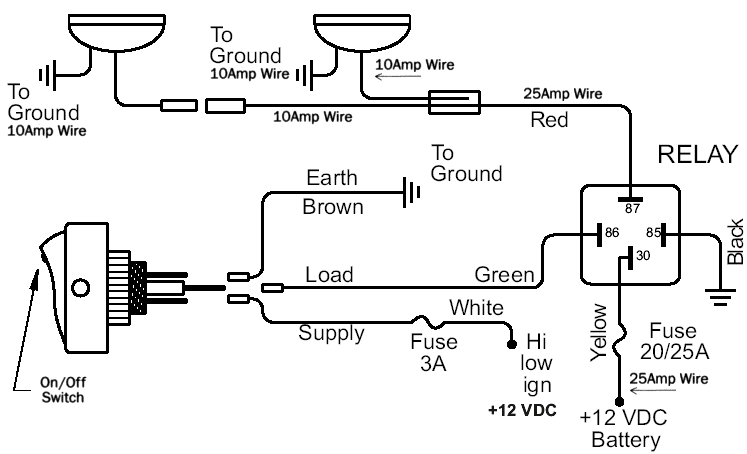

Lighting help!!!!-relay-diagram.gif

Last edited by Redneckstone; 10-07-2008 at 07:29 PM.
Reply With Quote
  #3
Old 10-07-2008
98liftedranger's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
That pic didn't work!
Reply With Quote
  #4
Old 10-07-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
try that... grabbed it offline they prob dont like hosting
Reply With Quote
  #5
Old 10-07-2008
98liftedranger's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Works now!
Reply With Quote
  #6
Old 10-08-2008
98liftedranger's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
So what all do I need to buy? What size relay and all that stuff. What size wire? I have some like 8 or 10 gauge speaker wire, will that work? Just need to know before I go and buy the wrong ****!
Reply With Quote
  #7
Old 10-08-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
what size lights
Reply With Quote
  #8
Old 10-08-2008
98liftedranger's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538

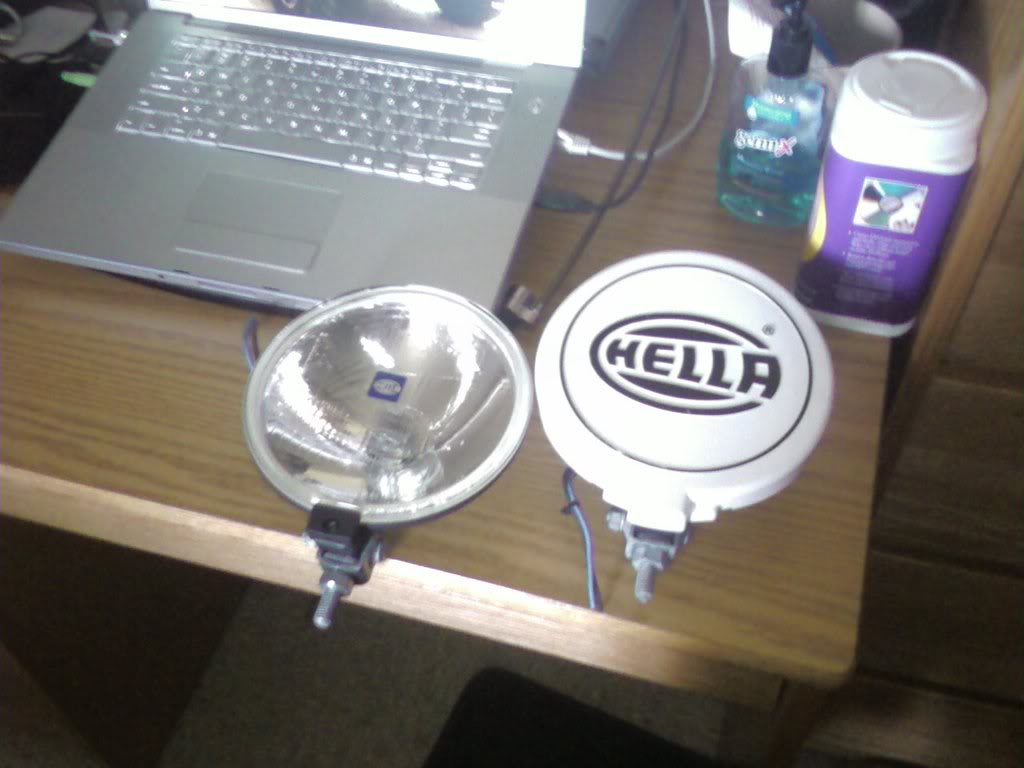

I believe they are 7" Hella's. They say Comet 500 on the back. Here is a pic.

Name:  gay69.jpg
Views: 3
Size:  67.5 KB
Reply With Quote
  #9
Old 10-08-2008
98liftedranger's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Also on this. I am going to buy 8 more lights for underneath the truck. 4 on each side. I want to wire each side to one switch. How do I do this? When do I wire them in? Before or after the relay? Should I just use everything that comes with the lights and wire them into one switch? If there is no relays what size ones do I need to run 8 55W lights?

I know its a lot but I don't wanna **** this up. Thanks!
Reply With Quote
  #10
Old 10-08-2008
yetti96's Avatar
Member

Join Date: Mar 2008
Location: Fort Myers, FL
Posts: 371
A standard relay is good for about 30 amps. At 55w each light will draw about 4.6A each, so conservatively we will say 5A each is the draw. A maximum of 6 lights can be powered from a standard relay. The relay is used to switch the power properly. Most stitches, even if they say they are rated for that much power, are crappy and can easily melt or break and short out on or near the mounting surface. Another purpose for this it to not have to bring the power all the way to the switch and through the firewall and all. The "high power" side of the replay can remain in a safer place than inside the cab. Look up various size charts for the length and draw you will have and the proper size. 8-10 Ga wire should be sufficient, but I doubt that it is speaker wire like you previously stated. I would run at least 10ga wire, I did that for my air compressor for my horns. Properly fuse the system and wiring the relays and such and you will be fine. Sounds like you have a little more reading to do.


Why do you need so many lights under the truck?
Reply With Quote
  #11
Old 10-08-2008
98liftedranger's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Yeah I am not the best with wiring thats why I'm asking. LOL I have done systems and a few lights but nothing like this. I want the lights for wheeling so that I can light up the ground.

Do you have maybe a diagram like stone posted? And where would the fuse run to? I know the relay is in the wiring but where would the fuse be to? The fuse box? Cause I normally run everything to the battery.

I need all the help I can get or maybe a place to find all this info to get it done! Thanks
Reply With Quote
  #12
Old 10-13-2008
98liftedranger's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Bump! Anymore help??
Reply With Quote
  #13
Old 10-13-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
FIRST sticky in the general tech/electrical section:

https://www.ranger-forums.com/forum2...ad.php?t=53994
Reply With Quote
  #14
Old 10-13-2008
98liftedranger's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Yes but that is only for 1 or 2 lights. I am going to be running more than that. But I will try and see if I can do it off of that. Thanks
Reply With Quote
  #15
Old 10-13-2008
Step Over the Edge's Avatar
Member

Join Date: Dec 2007
Location: Albuquerque, NM
Posts: 324
The diagrams are for 2 lights but the concepts are the same. Read about calculating amperage from wattage and voltage. Out of those 3 you can always find 1 given the other 2. They are very simple calculations. Any line coming off the battery should be fused at some point, the closer to the battery the better. Do you know what a relay does? how it works? Read about it. All your questions can be answered with simple google searches. If you understand what you read then I think you'll understand it better by figuring it out for yourself. Unless you want somebody on here to draw you a diagram for your specific application, all the information is already available.
Reply With Quote
  #16
Old 10-13-2008
98liftedranger's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Yeah that is what I am doing now. With those diagrams I am searching google and drawing my own diagram so that I can figure it out before I start anything.
Reply With Quote
  #17
Old 10-13-2008
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Oh man, I didn't know that you didn't have any wiring or relays or anything. I had a bunch of that stuff sitting here when I shipped it out and figured you already had the stuff, but I just gave it all to my friend the other day.

Those are Hella 500's.

You need wire, a relay, a toggle switch, some connectors, and an inline fuse.
Reply With Quote
  #18
Old 10-13-2008
98liftedranger's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
OK I will add that stuff to the list.
