Looking for pics of exhaust

I'm going to be changing my exhaust to exit in front of the rear wheel. Can anybody who has done this please post some pics of yours. I'm undecided if I want it to exit at a 45* angle or 90* angle. Also what do you think looks better - round, oval or rectangular tips? Thanks
Reply With Quote
  #2
Old 06-05-2005
John Moorehead's Avatar
Member

Join Date: Jun 2004
Location: Murfreesboro, TN
Posts: 1,002
Don't know if this is what you're looking for, but....

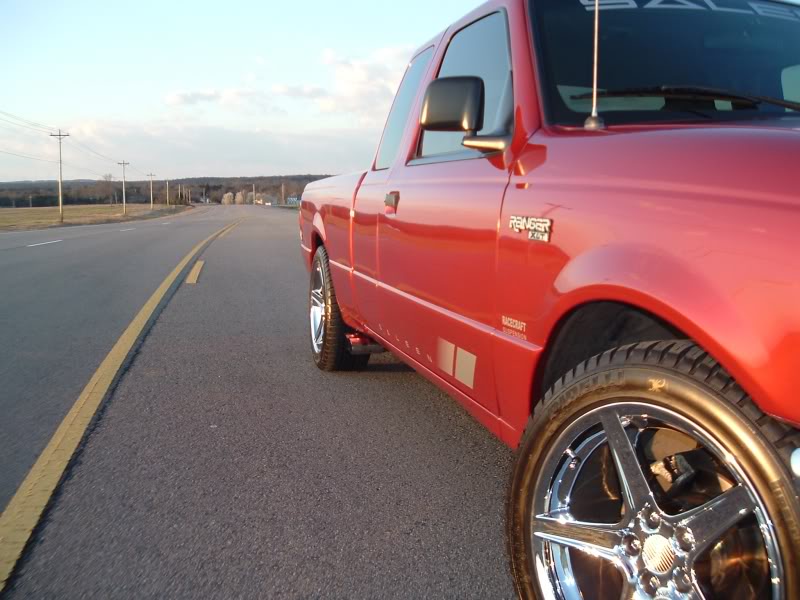

Name:  SunsetRanger3.jpg
Views: 3
Size:  78.6 KB

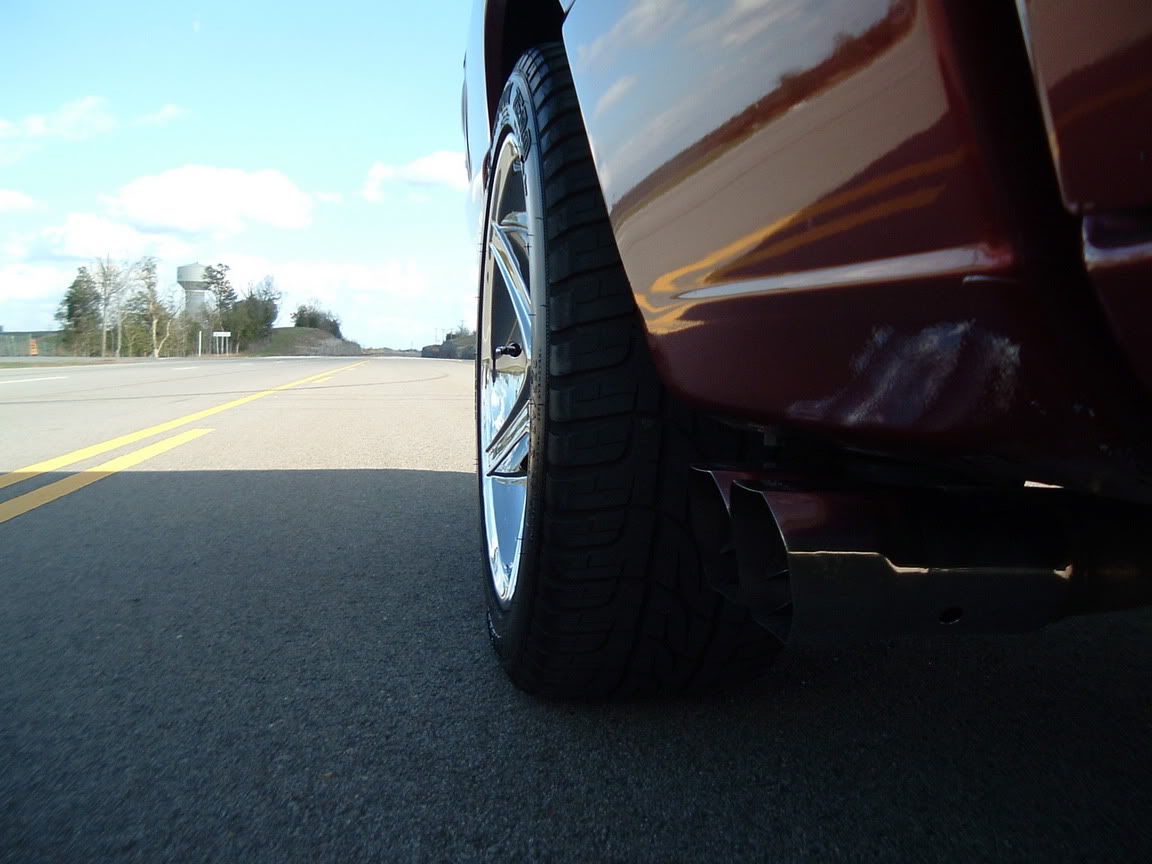

Name:  DSCF0702.jpg
Views: 3
Size:  111.2 KB

And a side shot......or two

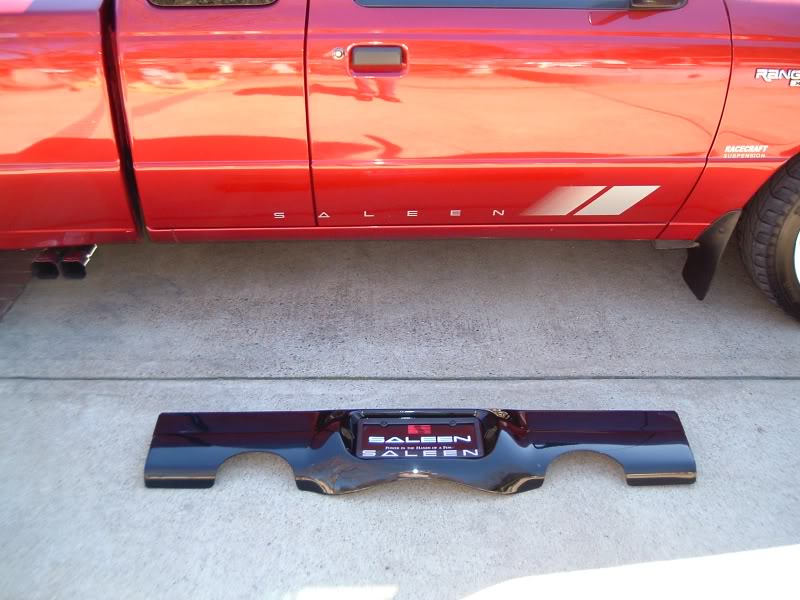

Name:  DSCF0006.jpg
Views: 2
Size:  74.0 KB

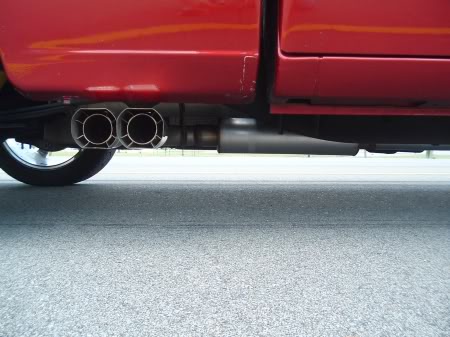

Name:  highway_photos_006.jpg
Views: 3
Size:  34.2 KB
Reply With Quote
  #3
Old 06-05-2005
BILLZFX4's Avatar
Member

Join Date: Jun 2004
Location: Worth, IL
Posts: 248

Bassani Forward exit cat-back system.
Reply With Quote
  #4
Old 06-05-2005
John Moorehead's Avatar
Member

Join Date: Jun 2004
Location: Murfreesboro, TN
Posts: 1,002
^^^^^^

Looks really good........


I actually almost went with that exit tip....I have a Bassani Muffler too. I had mine exit with the square tips because I had planned to use the FRPP body kit......then they didn't make it.

I'm about to go duals, as you can see in the 3rd pic.
Reply With Quote
  #5
Old 06-05-2005
Member

Join Date: May 2004
Location: Fuquay Varina, NC
Posts: 3,048
i think there are a few more pics on my website

Reply With Quote
  #6
Old 06-05-2005
meatloaf's Avatar
Member
Thread Starter

Join Date: Apr 2005
Location: Gilbert AZ
Posts: 80
John & Tater,
The square and oval tips are lookin good to me.
Reply With Quote
  #7
Old 06-05-2005
Member

Join Date: Nov 2004
Location: Danville, VA
Posts: 2,664
John...get your truck dirty for once...


haha
Reply With Quote
  #8
Old 06-05-2005
John Moorehead's Avatar
Member

Join Date: Jun 2004
Location: Murfreesboro, TN
Posts: 1,002
Quote:
Originally Posted by TippnOver
John...get your truck dirty for once...


haha

Surely you mistake me.....If my truck got dirty, I'd sell it.

Reply With Quote
  #9
Old 06-05-2005
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
John I really like your exhaust
Reply With Quote
  #10
Old 06-05-2005
John Moorehead's Avatar
Member

Join Date: Jun 2004
Location: Murfreesboro, TN
Posts: 1,002
Thanks man!

For those interested, here are the exact components I used:

1) Bassani Pro XS 2.5" Single In/Single Out muffler ($95)

2) Borla Intercooled tip, dual sqaure model ($135)

3) Piping and labor to make it exit where it's at ($50)

So, right at $280 total.....but the best part is, I've got a lot of low end PLUS a good deal of top end power. When I had my truck straight piped, I had awesome top-end, but almost no TQ at all.

Plus, this setup has a sound all it's own. It sounds like a really loud Infinity (G35, FX35)

Thanks again!
Reply With Quote
  #11
Old 06-05-2005
gatorblue92's Avatar
RF Veteran

Join Date: Jun 2004
Location: Delaware
Posts: 8,238
Quote:
Originally Posted by John Moorehead
Thanks man!

For those interested, here are the exact components I used:

1) Bassani Pro XS 2.5" Single In/Single Out muffler ($95)

2) Borla Intercooled tip, dual sqaure model ($135)

3) Piping and labor to make it exit where it's at ($50)

So, right at $280 total.....but the best part is, I've got a lot of low end PLUS a good deal of top end power. When I had my truck straight piped, I had awesome top-end, but almost no TQ at all.

Plus, this setup has a sound all it's own. It sounds like a really loud Infinity (G35, FX35)

Thanks again!
wow thats a good deal... and the fx35 has a very distinct sound... i like it
Reply With Quote
  #12
Old 06-05-2005
John Moorehead's Avatar
Member

Join Date: Jun 2004
Location: Murfreesboro, TN
Posts: 1,002
Thanks! The tone isn't identical to the FX, because the FX note is slightly more "refined".....mine still has the truck "lope" to it at idle...it's while revving/accelerating when they sound the same.....
