OEM Side Bar Brackets

Hi everyone,

I recently acquired some side bars/running boards of CraigsList for my Ford Ranger XLT. They are all black and look OEM. I had no problem bolting the rear section on the bars/boards but the front (2x) bolts have no where to bolt to. There are two holes where I can put the bolts through but no thread to bolt into. I'm guessing these would have came with some brackets of some sort. Can anyone lead me to the right direction in what I need to do to make these side bars fit?

Side bars/running boards


Thanks!
Attached Thumbnails
OEM Side Bar Brackets-d37f9272.jpg
Reply With Quote
  #2
Old 07-25-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
There should be a separate bracket with two studs/bolts attached to it that you slide up into the cab and then they drop down to bolt that bracket on. Hard to explain but I can likely get you a pic later tonight if you want!
Reply With Quote
  #3
Old 07-25-2012
Member
Thread Starter

Join Date: Apr 2012
Location: Ocean Springs, MS
Posts: 5
Sure, but it seems I'm missing that part. Is there any way I could order it separately?

If not, I'm just going to end up welding it on!
Reply With Quote
  #4
Old 07-25-2012
VH5150's Avatar
Level III Supporter
iTrader: (9)

Join Date: Dec 2009
Location: Rutland VT
Posts: 834
You'll need to order them from Ford--I had a couple of extra sets a while back, but I sold them on here. I'll see if I can get a pic for you.
Found it.

Unfortunately, I don't have the part numbers any more. You'll need left and right sides; when I ordered mine from my local dealer, I had to buy 5 of each-they wouldn't break the master pack.
Attached Thumbnails
OEM Side Bar Brackets-015-1.jpg
Reply With Quote
  #5
Old 07-25-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Yep, those are the ones I was going to post!
Reply With Quote
  #6
Old 07-25-2012
Member
Thread Starter

Join Date: Apr 2012
Location: Ocean Springs, MS
Posts: 5
Thanks guys for the help. Btw, any idea how much the dealership is charging for these brackets?

Hopefully they aren't to expensive.
Reply With Quote
  #7
Old 07-27-2012
zane_pauls's Avatar
Member

Join Date: Jan 2012
Location: Broomfield, CO
Posts: 71
I took my running bars off and I think I still have those brackets. If I can find them, they are yours for the shipping if interested.
Reply With Quote
  #8
Old 07-27-2012
Member
Thread Starter

Join Date: Apr 2012
Location: Ocean Springs, MS
Posts: 5
Brackets

zane_pauls,

Sure!, I would definitely be interested if you find them.

Just let me know! Thanks! :)
Reply With Quote
  #9
Old 05-03-2013
morsetaper2's Avatar
Member

Join Date: May 2013
Location: Gaithersburg, MD
Posts: 32
New guy here digging up an old thread. How do you remove these brackets? I have removed the step/nerf bars and want to sell them. They are removed, but I have to get these front brackets off the truck. How do you remove it? From up top inside the cab, or from below?

If it matters, truck is 2011 Ranger XLT 4-door extended Cab 2x4

Thanks
Attached Thumbnails
OEM Side Bar Brackets-morsetaper2-45243-albums-ranger-stuff-2486-picture-nerf-bar-frt-bracket-14949.jpg
Reply With Quote
  #10
Old 05-03-2013
Clinton's Avatar
Member
iTrader: (19)

Join Date: Dec 2010
Location: PA.
Posts: 1,417
take them off from underneath, you have to push them or pull them through the wider hole closer to the front tire
Reply With Quote
  #11
Old 05-03-2013
morsetaper2's Avatar
Member

Join Date: May 2013
Location: Gaithersburg, MD
Posts: 32
Quote:
Originally Posted by Clinton View Post
take them off from underneath, you have to push them or pull them through the wider hole closer to the front tire
Thanks, you are exactly correct. Took the step bars off in the dark maybe a week plus ago. Got a look in the light this eve after posting my question. And it was easy as can be. Thanks for your response, I appreciate it.
Reply With Quote
  #12
Old 05-03-2013
Clinton's Avatar
Member
iTrader: (19)

Join Date: Dec 2010
Location: PA.
Posts: 1,417
Anytime, glad you got it worked out!
Reply With Quote
  #13
Old 05-25-2013
morsetaper2's Avatar
Member

Join Date: May 2013
Location: Gaithersburg, MD
Posts: 32
I have a complete set of step / nerf bars for sale in THIS AD IN CLASSIFIEDS.

A forum member here messaged me and asked me to trace or measure up these front brackets before I sell them, as he is missing them. I made CAD drawings of them, hope this helps some others. They are in PDF format, located HERE.

Brackets as removed are not "flat". I think they are flat until they are installed. So you might notice in some pictures they look "dished". I believe the large nuts distort the steel of the bracket once they are installed.

Note... if you buy my step/nerf bars, all brackets and all hardware is included! You won't have to make your brackets, as you get it all!

Mark

Last edited by morsetaper2; 05-26-2013 at 05:49 AM.
Reply With Quote
  #14
Old 05-26-2013
Member
iTrader: (1)

Join Date: Nov 2011
Location: Copper Cliff, Ontario
Posts: 112
Hi guys, it was me that had emailed Mark asking if he could be so nice as to trace/draw on paper with a scale next to it, the brackets for me. Man, this is awesome, 1:1 scale cad drawings in PDF format.... printed out right to scale! Looks like I have a personal project for our mechanic here at work today.. slow on the weekends, so he will fab these up for me in no time.

Thanks again Mark, this was perfect.
Reply With Quote
  #15
Old 09-06-2013
NewShockerGuy's Avatar
Member

Join Date: Sep 2011
Location: NOVA
Posts: 528
Icon2

Quote:
Originally Posted by Linh View Post
Hi everyone,

I recently acquired some side bars/running boards of CraigsList for my Ford Ranger XLT. They are all black and look OEM. I had no problem bolting the rear section on the bars/boards but the front (2x) bolts have no where to bolt to. There are two holes where I can put the bolts through but no thread to bolt into. I'm guessing these would have came with some brackets of some sort. Can anyone lead me to the right direction in what I need to do to make these side bars fit?

Side bars/running boards


Thanks!
Not to bump a old thread but is your ranger an extended cab? I noticed that these running boards are longer than what I have seen. And they are a little differently shaped. The ones I've seen from ford for the older rangers are normally round.

Reason I ask is because I'm trying to find a pair for a standard cab.

Thanks,
-Nigel
Reply With Quote
  #16
Old 05-18-2016
Member

Join Date: Aug 2013
Location: Phoenix Arizona
Posts: 7
those are actually the super cab running boards, the extended cab have different back brackets and those running boards are the newer 2001 and up boards.
Reply With Quote
  #17
Old 08-16-2016
Member

Join Date: Jun 2011
Location: Tampa
Posts: 68

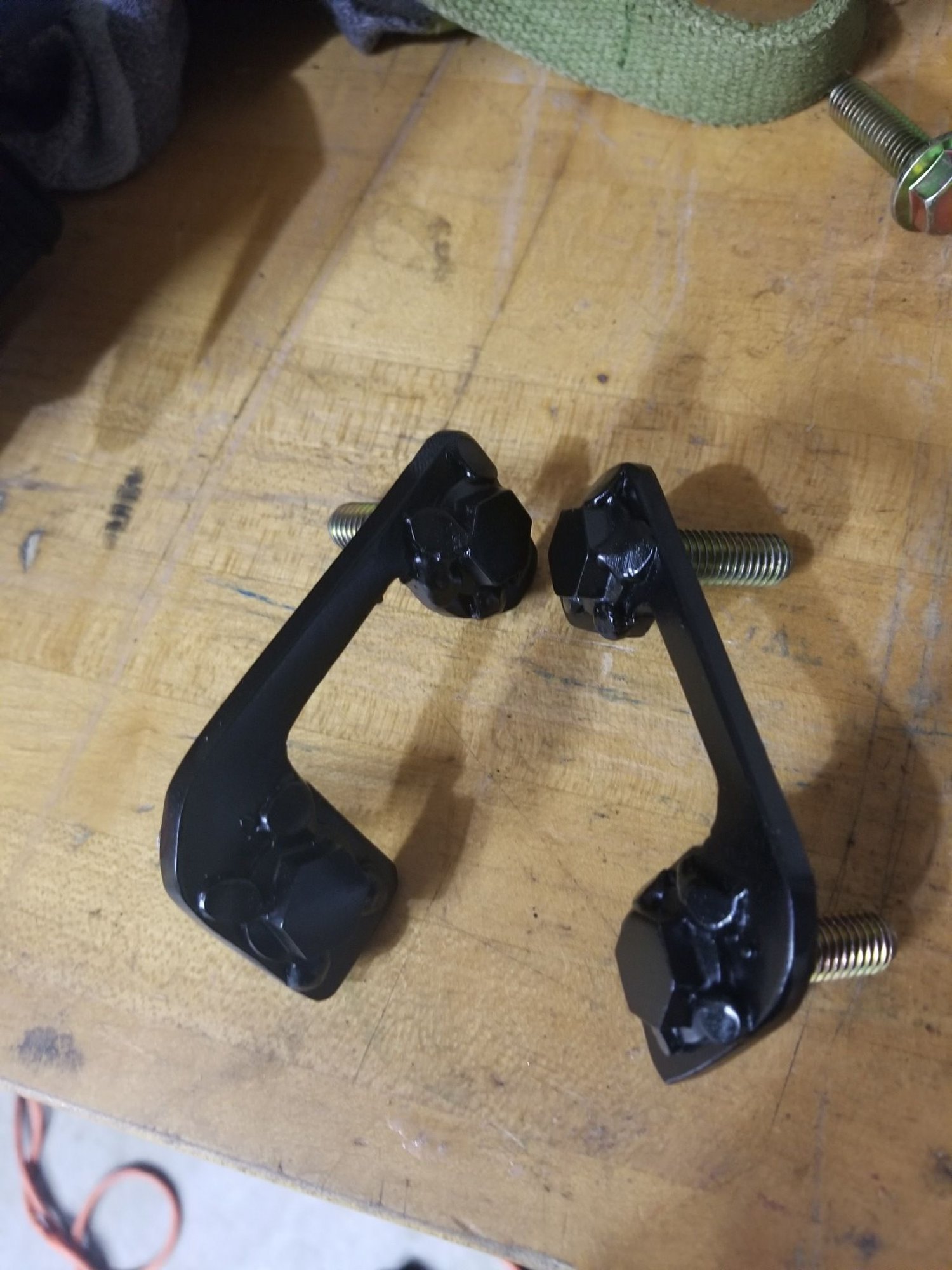

running board brackets

i got a set of these brackets left and right 10 bucks plus shipping
Attached Thumbnails
OEM Side Bar Brackets-image1-1-.jpg
Reply With Quote
