Tonneau cover on over the edge type bed liner?

How would I go about putting a tonneau cover on an my ranger which as a bed liner that wraps up over the top side of the truck bed?
Has anyone ever done this and what did you do to make it work?
Reply With Quote
  #2
Old 09-01-2006
buzzair's Avatar
Member

Join Date: Dec 2005
Location: White Plains, NY
Posts: 2,341
It just goes over the liner. no problem

Reply With Quote
  #3
Old 09-01-2006
Member
Thread Starter

Join Date: Nov 2005
Location: Central PA
Posts: 31
How do you bolt the tonneau cover frame to the bed or liner?
Do I need to drill holes in the liner?

I should also mention that my liner is not a factory ford liner if that would makea difference
Reply With Quote
  #4
Old 09-01-2006
buzzair's Avatar
Member

Join Date: Dec 2005
Location: White Plains, NY
Posts: 2,341
Clamps hold it down. Your overthinking it :)

Reply With Quote
  #5
Old 09-01-2006
Member
Thread Starter

Join Date: Nov 2005
Location: Central PA
Posts: 31
Nah I dont think so.
I am almost certain that my bedliner does not indent underneath the edge of the bed like yours does. Its just a straight up.

When I put a Contico tuff box on it last winter, I had to drill 2 holes to allow the mounting hardware to catch the underneath of that lip.

I was hoping that I would not have to drill 6+ holes for all the tonneau cover hardware.
Reply With Quote
  #6
Old 09-01-2006
smash_lizard's Avatar
Member

Join Date: May 2006
Location: Raleigh, NC
Posts: 298
Quote:
Originally Posted by PA_Probe
Nah I dont think so.
I am almost certain that my bedliner does not indent underneath the edge of the bed like yours does. Its just a straight up.

When I put a Contico tuff box on it last winter, I had to drill 2 holes to allow the mounting hardware to catch the underneath of that lip.

I was hoping that I would not have to drill 6+ holes for all the tonneau cover hardware.

You have a stepside or fleetside? I know the caps on the rails are different for both. MAybe that has something to do with it?
Reply With Quote
  #7
Old 09-01-2006
Member
Thread Starter

Join Date: Nov 2005
Location: Central PA
Posts: 31
Its a fleet side. and its NOT a factory bedliner.
I will try to get pics of my liner tomorrow.
Reply With Quote
  #8
Old 09-01-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
is your bedliner one peice? if so then youd have to either cut off the 'over the rail' part... or cut some holes in it for the clamps....

what theyre showing is an under the rail one with some bed rail caps...
Reply With Quote
  #9
Old 09-01-2006
buzzair's Avatar
Member

Join Date: Dec 2005
Location: White Plains, NY
Posts: 2,341
Quote:
Originally Posted by PA_Probe
I will try to get pics of my liner tomorrow.

That will help
Reply With Quote
  #10
Old 09-05-2006
Member
Thread Starter

Join Date: Nov 2005
Location: Central PA
Posts: 31
Well I didnt get to take pics of my bedliner. It is a Rugged Liner brand liner and I am definitely gonna have to modify or remove it to put a tonneau on.

Anyone have any suggestions on the best place to buy a soft tonneau cover and under the rail bed liner?
Reply With Quote
  #11
Old 09-05-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by PA_Probe
Well I didnt get to take pics of my bedliner. It is a Rugged Liner brand liner and I am definitely gonna have to modify or remove it to put a tonneau on.

Anyone have any suggestions on the best place to buy a soft tonneau cover and under the rail bed liner?

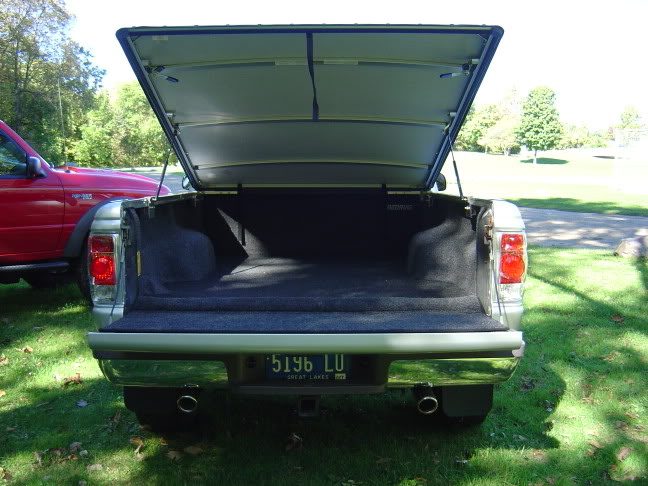

I love my Extang full tilt and my Bedrug.....



Name:  Dsc01939.jpg
Views: 2
Size:  85.5 KB
Name:  Dsc01891.jpg
Views: 4
Size:  72.6 KB
Reply With Quote
  #12
Old 09-05-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
you can buy my bed liner ha... or just take a razor blade and cut off the over the rail part and its the same thing... no ones gunna see it so who cares...
