Winch Buildup/Cleanup Thread(Updated)

Well as you all have seen in the other thread I picked up a HS9500i Warn Winch. It was permanantley mounted to a Jeep for two years in the lovely salt of Michigan winters so it needs help. Its heavily oxidized and the powdercoat is peeling everywhere. Just though I would post this thread as a before/teardown/paint/rebuild if anyone wanted to know what is involved.

Before



Cable Removed


Right side end housing and solenoid cover removed.


Motor Removed


Inside view of the motor.


Drum and center section.



Solenoids


Winch totally disassembled.


Evan took the fairlead rollers home to clean them up. This is some before and after of them.



I have contacted Warn and they have sent me new labels and emblem for it. I have new gaskets for it as well that I have to pick up from the local offroad shop.

Well here are the accomplishments of Erv and I today. I sandblasted everything in the AM and took off to his house around 1. After a can of Self Etching Primer, Two cans of Duplicolor Dark Shadow Grey and Two and a half cans of clear here is the result. Hopefully pics of it all mounted will come tommorrow. I am very impressed with how it came out.

Primer



Solenoid cover done. This is the only peice that I may repaint, it was the test peice, doesnt look bad but could stand to be redone.


Roller Drum coated in leftover POR15 that Evan had.


Everything sprayed with paint.





All components cleared. If I remember there is about 6+ coats of paint and 6+ coats of clear on everything but the motor. The motor got 10 coats or more of clear and numerous coats of paint. The cooling fins were a pain to cover. fairlead not pictured.



Ok its all done, looks great. I will get better pics when its light outside. Have to wire it up for the front and rear, also install the front hitch.





Last edited by 04lvl2; 10-29-2006 at 11:10 PM. Reason: Updated pictures
Reply With Quote
  #2
Old 10-26-2006
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
sweet action!
Reply With Quote
  #3
Old 10-26-2006
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
you got some work ahead of ya. looks like yer getn it done tho
Reply With Quote
  #4
Old 10-26-2006
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
Looks good, are you going to mount it to your front or how are you going to do that?

Rocky
Reply With Quote
  #5
Old 10-26-2006
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
nice. make sure to tape up the end of the motor really good and to use as little pressure as posible with the sand blaster.

Did you find the moly lube you needed.
Reply With Quote
  #6
Old 10-26-2006

Join Date: Jun 2004
Posts: 0
No powdercoating for it? Would that hold up better than paint because the type of tool that it is?
Reply With Quote
  #7
Old 10-26-2006
04lvl2's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
Quote:
Originally Posted by RockysFord
Looks good, are you going to mount it to your front or how are you going to do that?

Rocky
I have this cradle sitting in the garage right now, actually two of them becuase one was damaged in shipping. I have a front hitch to go on and the trailer hitch in the rear.

Reply With Quote
  #8
Old 10-26-2006
04lvl2's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
Quote:
Originally Posted by casfz1
nice. make sure to tape up the end of the motor really good and to use as little pressure as posible with the sand blaster.

Did you find the moly lube you needed.
No on the lube, I have to hit Autozone and Pepboys on Saturday and see what they got.
Reply With Quote
  #9
Old 10-26-2006
04lvl2's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
Quote:
Originally Posted by Matt
No powdercoating for it? Would that hold up better than paint because the type of tool that it is?
I am sure that powdercoat would be better in the long run but being its not going to be a permanent mount it will not be in the weather as much as it used to. I think the paint will hold up fine.
Reply With Quote
  #10
Old 10-26-2006
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
they didnt take the old mount??
tight.
i try and get some pix of the fairleads finished.
Reply With Quote
  #11
Old 10-26-2006
04lvl2's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
Quote:
Originally Posted by rangererv
they didnt take the old mount??
tight.
i try and get some pix of the fairleads finished.
I have to call them and see what they want to do.
Reply With Quote
  #12
Old 10-26-2006
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Are you going to put the wire cable back on or you getting the rope one?
Reply With Quote
  #13
Old 10-26-2006
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376

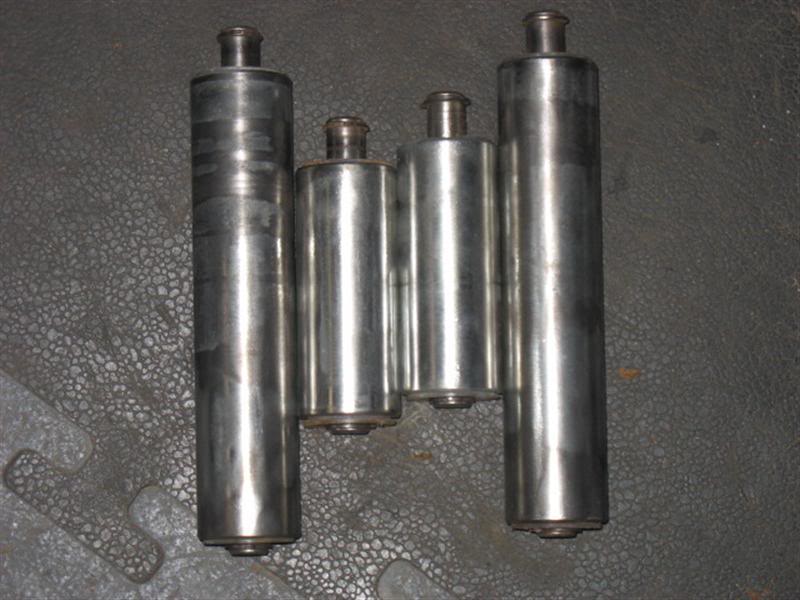

Name:  Picture047Medium-1.jpg
Views: 2
Size:  63.9 KB

compaired to mine
Name:  Picture048Medium-1.jpg
Views: 1
Size:  59.5 KB
it might looks as clean as mine one day

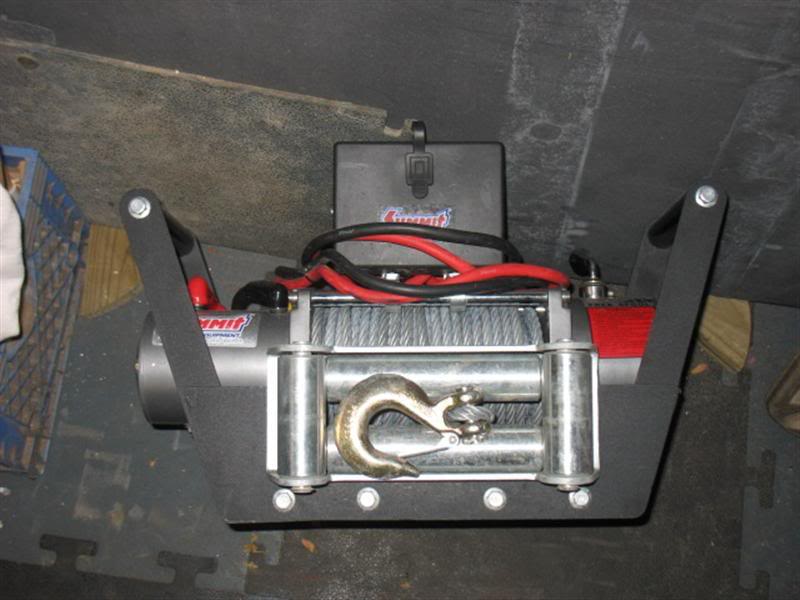

Name:  Picture049Medium.jpg
Views: 1
Size:  55.1 KB
Reply With Quote
  #14
Old 10-26-2006
04lvl2's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
Thanks Evan, they look alot better.
Reply With Quote
  #15
Old 10-26-2006
04lvl2's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
Quote:
Originally Posted by Roach2004
Are you going to put the wire cable back on or you getting the rope one?
For now the wire cable is staying. Maybe in the future I will get the synthetic line.
Reply With Quote
  #16
Old 10-26-2006
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
lookin good fellas..just another thing added to the list of things done to the good ole truck
Reply With Quote
  #17
Old 10-26-2006
01xltranger4x4's Avatar
Member
iTrader: (3)

Join Date: May 2005
Location: MI
Posts: 3,200
Kick *** bill, its going to look really good.
Reply With Quote
  #18
Old 10-26-2006
SHOman86's Avatar
Member

Join Date: Sep 2005
Location: Lakeland, Fl
Posts: 2,469
looks good man have fun puttin that thing back together lol
Reply With Quote
  #19
Old 10-26-2006
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
Nice job Evan.
Reply With Quote
  #20
Old 10-26-2006
04lvl2's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
Quote:
Originally Posted by SHOman86
looks good man have fun puttin that thing back together lol
Nothing to it man, its alot easier than you think
Reply With Quote
  #21
Old 10-26-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks good bill! definatly a nice addition
Reply With Quote
  #22
Old 10-26-2006
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
Lookin good bill!!!
Reply With Quote
  #23
Old 10-27-2006
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
Quote:
Originally Posted by casfz1
Nice job Evan.
thanks
Reply With Quote
  #24
Old 10-27-2006
mudranger96's Avatar
Member

Join Date: Oct 2005
Location: Lehigh Acres, FL
Posts: 2,549
Very nice looks good
Reply With Quote
  #25
Old 10-28-2006
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
you got some updated pix yet damit?
i didnt spend all day workin on it and have no pix shown.

ha j/m


btw, i forgot about that snap ring that broke... we gotta get one tomorrow
Reply With Quote
