Axle Holder for Engine Stand

Just thought I'd post this up... I picked up a newer 8.8 w/ disc & limited slip to go into my '68 Mustang. I have to do a fair bit of work to it to make it fit like grinding off all the current mounts, painting it, replacing seals, etc.

I'll likely have quite a few hours into it so I figured I may as well make it a little easier on myself and not have to do it on the floor of the garage.

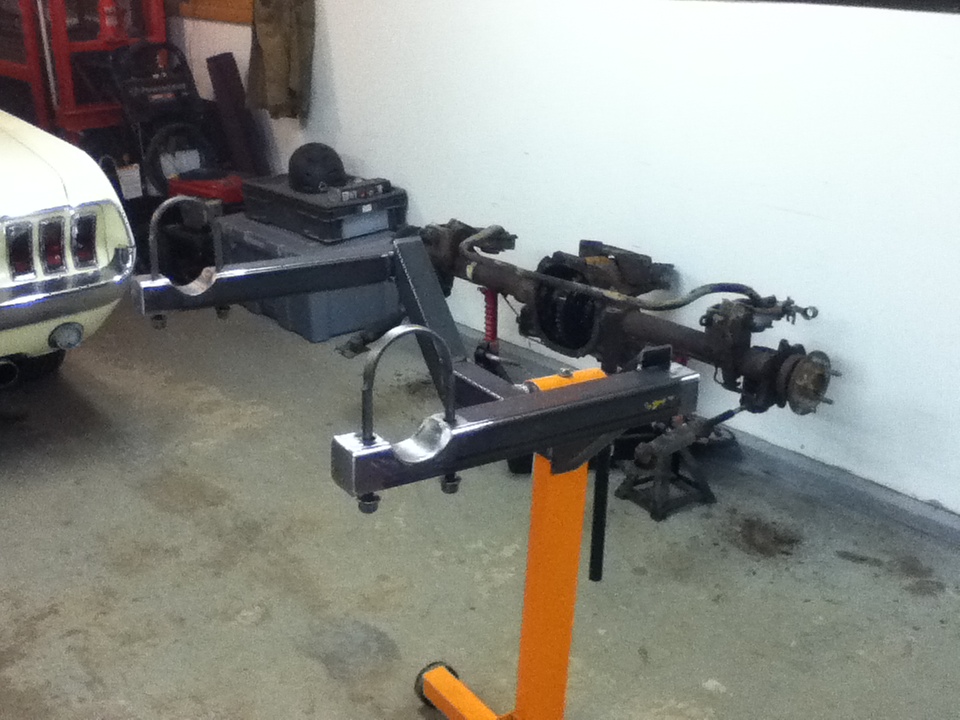

It's not done yet, but here's what I've got so far. The ends of the angled pieces will be cleaned up and welded closed. I found a piece of 2 3/8" tubing that was the same size as what's needed to fit into the engine stand so it is completely removable and is able to swivel just like the engine mount.

I'll post up some better & clearer pics when it's done!

Attached Thumbnails
Axle Holder for Engine Stand-img_0363_zpsc5c0d6b7.jpg
Reply With Quote
  #2
Old 10-17-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Interesting idea / looks good
Reply With Quote
  #3
Old 10-17-2012
FULLSCALE's Avatar
Level III Supporter

Thread Starter
iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Thanks! I think it'll work well for what I need. I made the cutout part in the tube a little larger and I used Explorer 8.8 u-bolts so it should work for other larger axles as well.
Reply With Quote
  #4
Old 10-17-2012
FULLSCALE's Avatar
Level III Supporter

Thread Starter
iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181

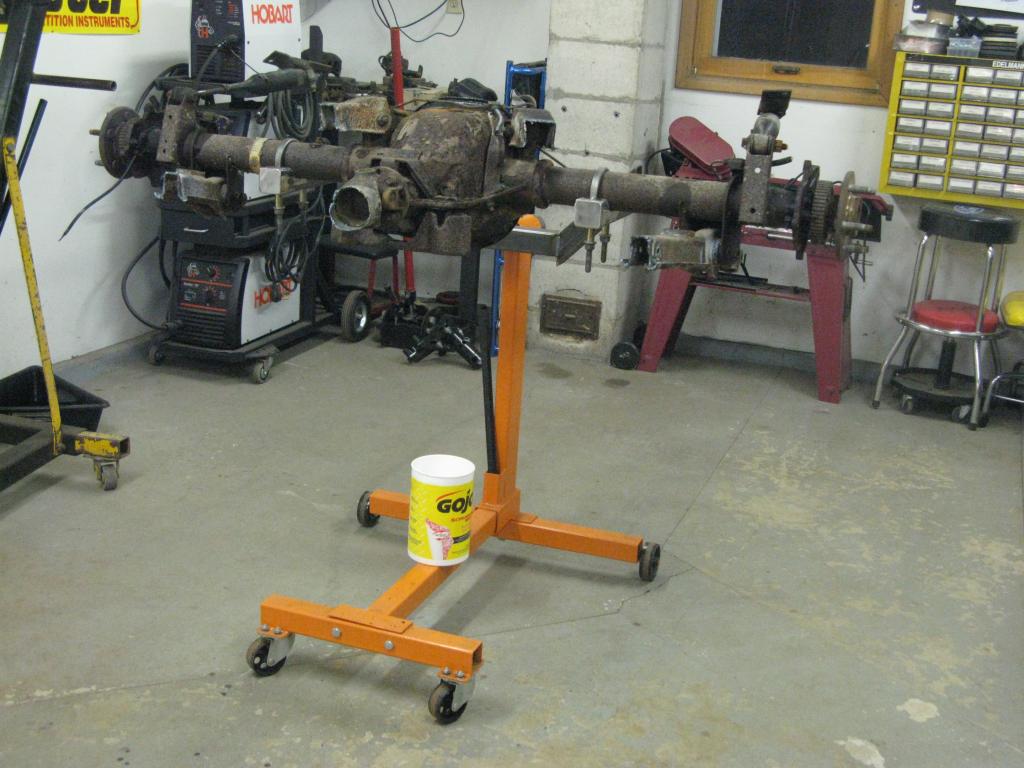

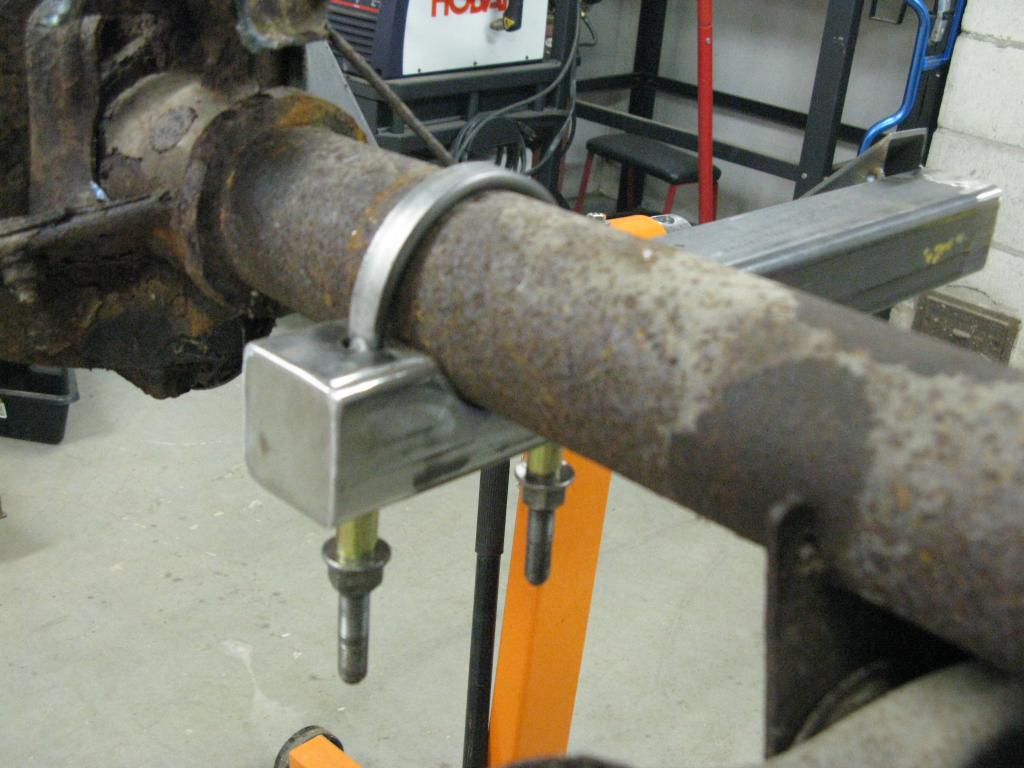

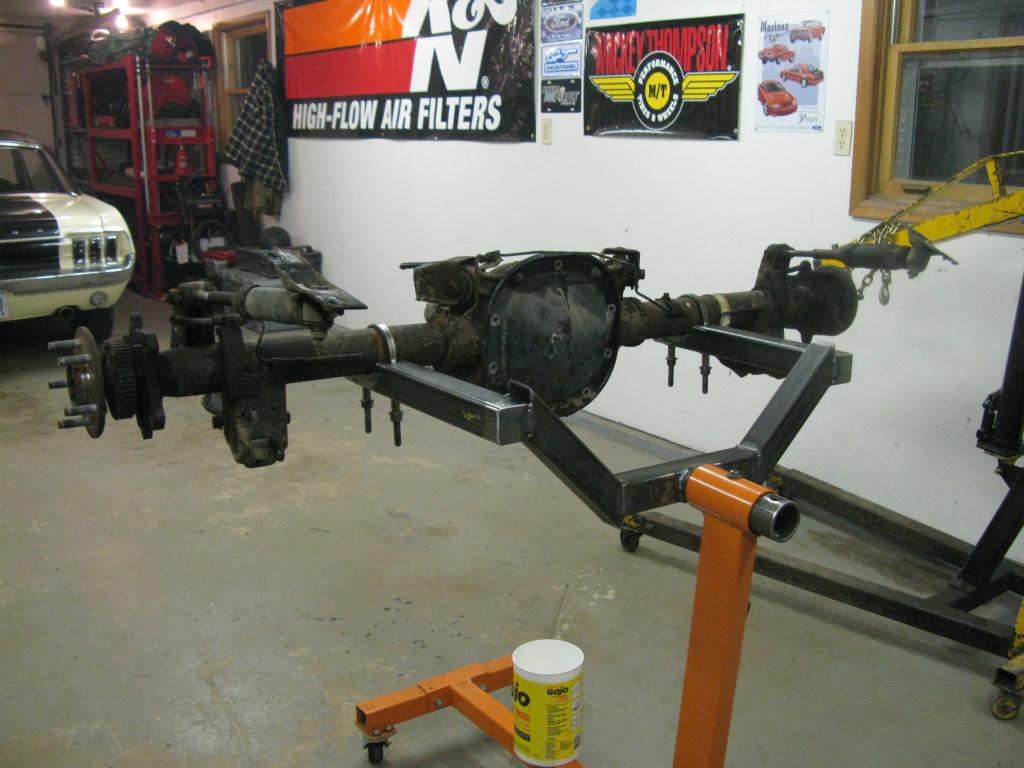

Got the main sections welded tonight, but I still have to finish the ends of the angled tubes and cap them.

I just wanted to make sure everything would work the way I had planned before I finished it completely and it looks like it does! It works great, the engine stand itself flexes more than the holder I made does.





Attached Thumbnails
Axle Holder for Engine Stand-img_6179_zpsf8144438.jpg   Axle Holder for Engine Stand-img_6178_zps0ff42c62.jpg   Axle Holder for Engine Stand-img_6176_zpsff14d4ba.jpg
Reply With Quote
  #5
Old 10-17-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
R U worried about the stand tipping sideways ?

That is the best idea I have seen in a long time, great tool with a lot of uses.
Reply With Quote
  #6
Old 10-17-2012
FULLSCALE's Avatar
Level III Supporter

Thread Starter
iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Thanks, and no I'm not worried... it is well balanced when the axle is centered.
Reply With Quote
  #7
Old 10-17-2012
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
why do you have to live in canada?!?! i need a set of used quad shocks in the worst way
Reply With Quote
  #8
Old 10-18-2012
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
that is an awesome idea. nice work!

this would have been so handy for me the last several years.
Reply With Quote
  #9
Old 10-18-2012
FULLSCALE's Avatar
Level III Supporter

Thread Starter
iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Quote:
Originally Posted by Toreador4x4 View Post
why do you have to live in canada?!?! i need a set of used quad shocks in the worst way
Shipping wouldn't likely be too much! lol
Reply With Quote
  #10
Old 10-18-2012
FULLSCALE's Avatar
Level III Supporter

Thread Starter
iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Quote:
Originally Posted by zabeard View Post
that is an awesome idea. nice work!

this would have been so handy for me the last several years.
Thanks! It'll definitely come in handy between this one and my father-in-law's Chevelle. Who knows what else down the road...

I'm planning on doing a T5 swap as well so I'll probably make another to hold a transmission sometime.
Reply With Quote
  #11
Old 10-18-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Awesome idea! Great work Adam!
Reply With Quote
  #12
Old 10-18-2012
FULLSCALE's Avatar
Level III Supporter

Thread Starter
iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Thanks. I worked away at the axle on it tonight and this thing is awesome! I bet I got more than twice what I would have done if it was still on the floor on stands. It's nice to be able to work away, then just loosen the u-bolts and flip it over.
Reply With Quote
  #13
Old 10-18-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Quote:
Originally Posted by Toreador4x4 View Post
why do you have to live in canada?!?! i need a set of used quad shocks in the worst way
Quote:
Originally Posted by FULLSCALE View Post
Shipping wouldn't likely be too much! lol
Teamwork my friends....
Justin, I have more rust on my hood. Actually coming through, I need to find time to bring it to the dealer to bitch some more.
Reply With Quote
  #14
Old 10-18-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
this is an awesome idea. I wish i thought of this when i was doing the axle work on my previous E4
Reply With Quote
  #15
Old 10-20-2012
FULLSCALE's Avatar
Level III Supporter

Thread Starter
iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Thanks! It's working out well.

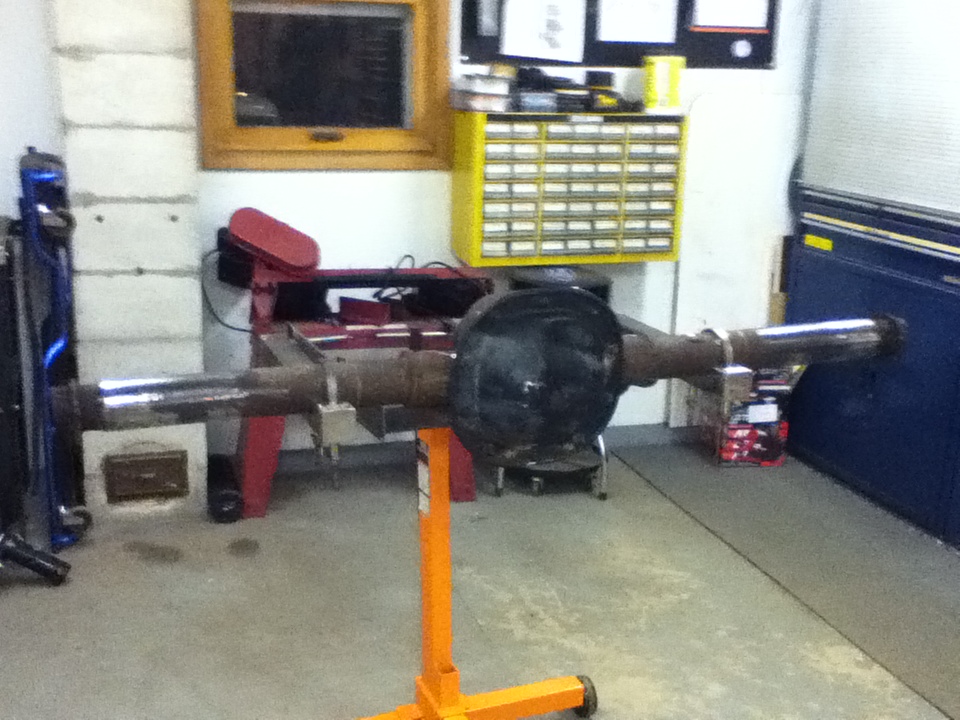

I've been cutting and grinding on the axle quite a bit over the past few days and the stand seems to be holding up well. Even makes a good storage stand when it's on it's side!



Attached Thumbnails
Axle Holder for Engine Stand-img_0376_zpsbf52a9c3.jpg   Axle Holder for Engine Stand-img_0382_zps20c32dc5.jpg
Reply With Quote
  #16
Old 10-21-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Quote:
Originally Posted by FULLSCALE View Post
Clean up in shop 1 !

You planned well for the flip.

Not that I will be building one but maybe I could borrow it, seeing it is setup for an 8.8… NOT too far to go pick it up.
Reply With Quote
  #17
Old 10-21-2012
FULLSCALE's Avatar
Level III Supporter

Thread Starter
iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
lol it did work out better than expected for turning it sideways. No clean up, that's just a black lid already there to catch the drips!
Reply With Quote
  #18
Old 10-21-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Quote:
Originally Posted by FULLSCALE View Post
lol it did work out better than expected for turning it sideways. No clean up, that's just a black lid already there to catch the drips!
The floor does look clean !

Good luck with the new tool, great idea.
Reply With Quote
  #19
Old 10-21-2012
Member

Join Date: Jul 2007
Location: alberta
Posts: 457
That's one of the best ideas I've seen lately! Good work.
Reply With Quote
  #20
Old 10-21-2012
FULLSCALE's Avatar
Level III Supporter

Thread Starter
iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Thanks!
Reply With Quote
  #21
Old 10-21-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Quote:
Originally Posted by Scrambler82 View Post
The floor does look clean !

Good luck with the new tool, great idea.
You could eat off that floor. Adam takes pride in his garage and it shows.
Reply With Quote
  #22
Old 10-22-2012
FULLSCALE's Avatar
Level III Supporter

Thread Starter
iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
I try to... I clean it once or twice a week depending on how much work is done out there! And yes, I have eaten off that floor before. lol
Reply With Quote
  #23
Old 10-22-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Quote:
Originally Posted by FULLSCALE View Post
I try to... I clean it once or twice a week depending on how much work is done out there! And yes, I have eaten off that floor before. lol
You would. lol
Reply With Quote
  #24
Old 10-22-2012
FULLSCALE's Avatar
Level III Supporter

Thread Starter
iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
I didn't intend to, but the food was too good to waste. lol
Reply With Quote
  #25
Old 10-22-2012
oldblue01's Avatar
Member

Join Date: Jul 2012
Location: Venango, PA
Posts: 375
That's awesome! A little bit of Americ.... er uh Canadian ingenuity!
