Bracing the Shackle?

I've seen it done all these ways, i was just wondering which would be the best and most practical for my application

Should i take some of my left over 1.5"x.250" DOM and weld it between the shackles?

.75x.120 DOM?
3/4" Solid stock?

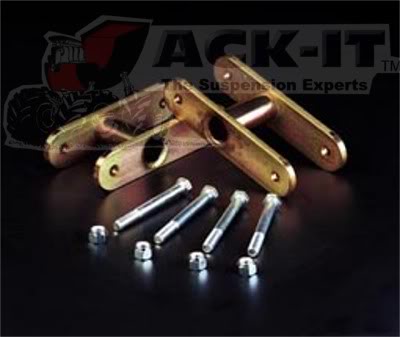

Name:  KG60002_chevy.jpg
Views: 5
Size:  18.7 KB



should i cut a piece of 1/4, 3/8 or 1/2" to weld between the shackles?

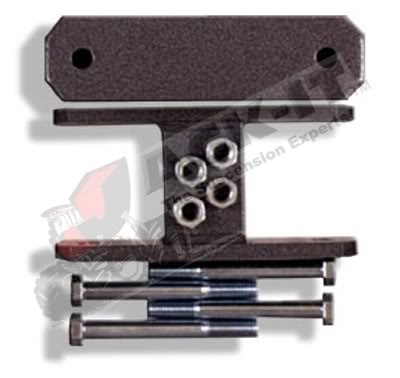

Name:  WAR124.jpg
Views: 3
Size:  19.9 KB


or should i put a piece on the front face of it kinda like the RCD ones are done?

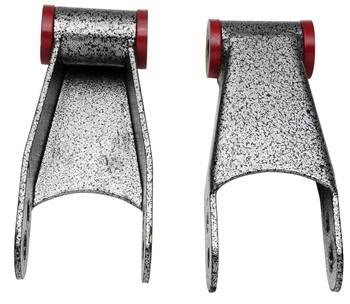

Name:  Shackles_150.jpg
Views: 2
Size:  21.0 KB


these are kinda cool.

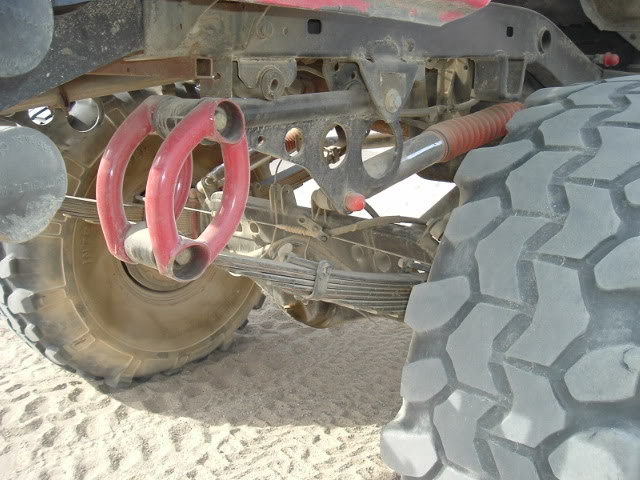

Name:  TDS22K6003.jpg
Views: 4
Size:  67.4 KB

Last edited by 99ranger4x4; 10-01-2008 at 12:07 PM.
Reply With Quote
  #2
Old 10-01-2008
Alon's Avatar
Member
iTrader: (13)

Join Date: Jun 2004
Location: Long Beach, CA
Posts: 2,555
Why not do the tube and plate the front?
Reply With Quote
  #3
Old 10-01-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
why not.. there is no real answer to that..


1.5"x.250 DOM in the middle and some 1/4" plate on the outside it is haha
Reply With Quote
  #4
Old 10-01-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Overkill is better than underkill
Reply With Quote
  #5
Old 10-01-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
yes it is.. but there's a limit and i'll get pics tomorrow when i go down there to brace my shackles.

but my buddy built some sliders for under his truck, they go from the t-case mount back to where the carrier bearing on the drive shaft is... the tube is .375 aka 3/8" wall.. thats a bit much
Reply With Quote
  #6
Old 10-01-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
a piece of 1.5"x.25 wall would be more then enough, The bolts hold the shackle together the tubing is just to add some strength to them. No need to go crazy with it.
Reply With Quote
  #7
Old 10-01-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i just foresee all sorts of problems with the front shackle.. i want to try and cut down on them
Reply With Quote
  #8
Old 10-01-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by 99ranger4x4 View Post
i just foresee all sorts of problems with the front shackle.. i want to try and cut down on them
A piece of 1.5x.25 wall DOM will be plenty strong, if your breaking that then a plate isnt going to add anything but unneeded weight to the mix.
Reply With Quote
  #9
Old 10-02-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
true.
Reply With Quote
  #10
Old 10-02-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
I never but the "brace" in the middle of mine, but mine look like they are much thicker then yours.
Reply With Quote
  #11
Old 10-02-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
mine are 3/8" plate
Reply With Quote
  #12
Old 10-02-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Mine are 3/8ths also, yours just look thinner in the pictures I guess.

Heres the shackles I'm running.
http://www.ruffstuffspecialties.com/...dium-p-60.html
Reply With Quote
  #13
Old 10-02-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
which picture? and unlike you i'm going to be beating mine on rocks all the time, so the stronger the better.

i had some 1/4" ones on there... and the kid who made them over finished the hell out of them with the sander so they were more like 3/16"
Reply With Quote
  #14
Old 10-02-2008
Gravel Maker's Avatar
Member

Join Date: Sep 2007
Location: Sacramento
Posts: 72
Depends on your final usage.....

If you are crawling with them leave them loose, if its a desert truck plate them like crazy! Loose and they will flex better before breaking the bolt.
Reply With Quote
  #15
Old 10-03-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by Gravel Maker View Post
If you are crawling with them leave them loose, if its a desert truck plate them like crazy! Loose and they will flex better before breaking the bolt.
Good to know. Thanks Dan!

I might order some diff covers sooner or later, if you need a test subject for bumpers or anything let me know haha.

The parts for my SAS are still holding up great, even after some abuse!
Reply With Quote
  #16
Old 10-03-2008
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
Quote:
Originally Posted by 5speedin2.3 View Post
Good to know. Thanks Dan!

I might order some diff covers sooner or later, if you need a test subject for bumpers or anything let me know haha.

The parts for my SAS are still holding up great, even after some abuse!
The diff covers are solid too, you won't be disappointed, got one sitting on my floor waiting to go on next week when I'm off.
Reply With Quote
  #17
Old 10-03-2008
Gravel Maker's Avatar
Member

Join Date: Sep 2007
Location: Sacramento
Posts: 72
Thanks Guys!

But back to shackles, I had always run both H style shackles & greasable bolts for years and one day I had a bolt break and the shackle twist to a pretzel. I started thinking about it and decided I had seen alot of broken shackle bolts over the years and every one was greasable and I had also seen lots of wasted H style shackles too. Then and there I decided to never again use a greasable bolt and I decided to test H vs. Loose shackles. With the same vehicle we got about 3/4" more flex with loose shackles......
Reply With Quote
  #18
Old 10-04-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
I'm not as worried about flex as i am strength.. no one on here can really vouch for how hard i am on my truck (granted i was kinda hard on it) but ever since i came up here i wheel different, and now I'm gonna be on more rocks than dirt probably. I'll run em like this and if i have troubles i'll figure something else out, who knows this setup may never see the trails

btw I'm running 9/16" Grade 8 bolts

and for diff covers, you'll be seeing an order for one for a D44 before too long i dont need my precious spool and 5.13s getting smooshed
Reply With Quote
