building my front hitch

The other day i somehow ended up with a free winch, (yeah i know i'm pretty lucky ), and i was going to make a receiver for it for a front hitch (but that's later)
I picked up a good reese hitch from a buddy for $20.... now the question is do you guys prefer of welding or bolting the hitch on?? I'm just worried if i use some grade 8 bolts they might brake if someone toes me out of somewhere or if i use the winch.
I'll post pics as it comes along (if it ever gets a little warmer out instead of the teens and twenties haha)
thanks guys
Reply With Quote
  #2
Old 12-11-2010
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
I welded mine on my old 01, but I always prefer bolt on. Easier to mod, remove, change, etc.

That said, my Warn came with 4 grade 5 bolts to mount the winch itself. I've heard that it is so the bolts bend before breaking (5 vs 8), but that's just internet speculation from others.

If you use some 1/2" grade 8 bolts, I would not worry about breaking them, you could hang your truck from one.

Edit: depending on how you weld it vs bolt can make a huge difference on how strong it is, so you would really have to be more specific. Either way your best bet is to put the weld or bolt in a tensile not shear position.

Last edited by buckgnarly; 12-11-2010 at 10:12 AM.
Reply With Quote
  #3
Old 12-11-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I welded mine on, honestly it was for strength purposes. I didn't want to take the chance of it ripping off.

If you have good welding skills you could do it yourself pretty easily. Luckily my sisters fiance is a certified welder, so I let him stick weld it
Reply With Quote
  #4
Old 12-12-2010
cummins kid's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: CT
Posts: 59
Yeah my best bet is to take off the bumper and to see what my best bet is bolting vs. welding. The only problem is that its down pouring here today.
I do have a nice mig welder at work and all the other necessary cutting and grinding tools and i also do some good welding. So I'll take it off at work tomorrow and go from there
Reply With Quote
  #5
Old 12-12-2010
scott5640's Avatar
Member
iTrader: (-1)

Join Date: Mar 2009
Location: Davenport FL
Posts: 901
could i weld a hitch to the top of the frame rails? i also got a hitch and want a front reciever...getting body lift so thats y i wana put it up top
Reply With Quote
  #6
Old 12-12-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
You can. I'm pretty sure that's how Shane put his on
Reply With Quote
  #7
Old 12-15-2010
scott5640's Avatar
Member
iTrader: (-1)

Join Date: Mar 2009
Location: Davenport FL
Posts: 901
he had a front hitch meant for a front...i dont...i still gota grind down the welds the hitch plates had...
Reply With Quote
  #8
Old 12-15-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by 05Ranger2wd View Post
he had a front hitch meant for a front...i dont...i still gota grind down the welds the hitch plates had...
Quote:
Originally Posted by Fx4wannabe01 View Post
Thank you for the open invitation to *****.

Hidden Hitch placed ONTOP of frame then welded. Placed ontop to compensate for the bodylift. If I could do it again, I would. It sits too high and I had to trim the valence, otherwise w/o a trim, the bumper would be pushed up allll the way and way too tight of a gap. Next time, I would modify a rear hitch to fit and have it sticking out the hole perfectly.
better off using a rear hitch lol
Reply With Quote
  #9
Old 12-15-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Mine is a modded rear hitch
Reply With Quote
  #10
Old 12-15-2010
05blackranger's Avatar
Member
iTrader: (3)

Join Date: Jun 2009
Location: Mequon, WI
Posts: 406
Quote:
Originally Posted by 99offroadrngr View Post
better off using a rear hitch lol
x2. For my front hitch we used an old jeep hitch cut to size and welded to the top of the frame rails. The perfect height for a bodylifted truck.
Reply With Quote
  #11
Old 12-15-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Yeah, i used a rear hitch from a silverado and a friend did all the work cutting and welding. i just held the hitch up when he needed me to lol
Reply With Quote
  #12
Old 12-17-2010
scott5640's Avatar
Member
iTrader: (-1)

Join Date: Mar 2009
Location: Davenport FL
Posts: 901
im havin a hard time cuttin the old mounting plates off tho...other than that itll most likely work...i hope itll be high enough after the body lift....
Reply With Quote
  #13
Old 12-17-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by 05Ranger2wd View Post
im havin a hard time cuttin the old mounting plates off tho...other than that itll most likely work...i hope itll be high enough after the body lift....
Why not wait until the body lift is done?
Reply With Quote
  #14
Old 12-18-2010
scott5640's Avatar
Member
iTrader: (-1)

Join Date: Mar 2009
Location: Davenport FL
Posts: 901
thats what im doing....getting it ready for when the lifts done...then attack the front end with it...its a 10k lbs hitch too:D
Reply With Quote
  #15
Old 12-18-2010
malydeen's Avatar
Member
iTrader: (12)

Join Date: Jul 2007
Location: Minneapolis, MN
Posts: 632
The sheer strength of a half inch SAE Grade 8 bolt is 14,730 lbs. You will have 4 of them holding the hitch to the frame, this means that you would have to have a dynamic load of well over 58,920 lbs in order to sheer those bolts (Keep in mind the friction of the hitch against the frame). Your hitch pin will snap well before this point.
Reply With Quote
  #16
Old 12-18-2010
scott5640's Avatar
Member
iTrader: (-1)

Join Date: Mar 2009
Location: Davenport FL
Posts: 901
im just gonna weld mine to the frame
Reply With Quote
  #17
Old 12-19-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by malydeen View Post
The sheer strength of a half inch SAE Grade 8 bolt is 14,730 lbs. You will have 4 of them holding the hitch to the frame, this means that you would have to have a dynamic load of well over 58,920 lbs in order to sheer those bolts (Keep in mind the friction of the hitch against the frame). Your hitch pin will snap well before this point.
The frame or the hitch will fail before the bolts will.
Reply With Quote
  #18
Old 12-19-2010
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Quote:
Originally Posted by malydeen View Post
The sheer strength of a half inch SAE Grade 8 bolt is 14,730 lbs. You will have 4 of them holding the hitch to the frame, this means that you would have to have a dynamic load of well over 58,920 lbs in order to sheer those bolts (Keep in mind the friction of the hitch against the frame). Your hitch pin will snap well before this point.
That's encouraging... I've got 6x 1/2" grade 8 bolts holding my rear hitch in place and I was going to use 4x 5/8" grade 8 bolts to bolt for a front hitch & my bumper... I think that should hold up to anything I'll ever throw at it.
Reply With Quote
  #19
Old 12-19-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by 05Ranger2wd View Post
im havin a hard time cuttin the old mounting plates off tho...other than that itll most likely work...i hope itll be high enough after the body lift....
The hell are you using to cut?? Metal chop saw or shoot, even a careful operator on a 4.5" grinder with a cut-off wheel would get the job done nicely.


Roughly you're making this...
Name:  PA050138.jpg
Views: 10
Size:  56.3 KB

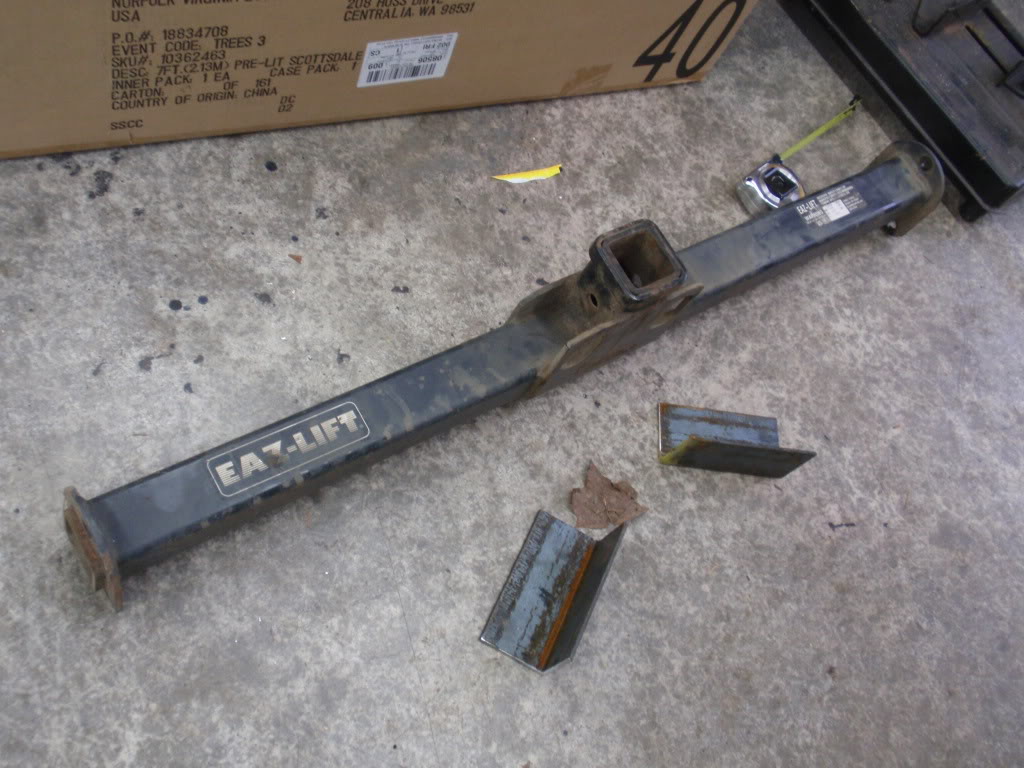

From these...
Name:  PC170073.jpg
Views: 9
Size:  142.4 KB

So it fits here...
Name:  PC180003.jpg
Views: 10
Size:  113.4 KB


(or 3" up on a BL'd truck). TEST FIT TEST FIT TEST FIT the bumper before fully welding the stuff together!!! There's both the Y and Z axis to worry about so remember that.


Quote:
Originally Posted by malydeen View Post
The sheer strength of a half inch SAE Grade 8 bolt is 14,730 lbs. You will have 4 of them holding the hitch to the frame, this means that you would have to have a dynamic load of well over 58,920 lbs in order to sheer those bolts (Keep in mind the friction of the hitch against the frame). Your hitch pin will snap well before this point.
In addition to my above quotes from another thread, I also wish I would've just made it bolt-on. It's easy enough using nuts welded to small plates that slide into the holes in the frame holes. Did that on my little brother's hitch that he later sold as a 'kit'. We made it for 7/16" hardware though.

If I could also do it again, I would've made the hitch stick out of the bumper farther. The pin is so flippin' far back it's a pain and I can't insert a normal ball hitch because of it and putting my plate insert in is a ***** and a half to slide the pin in.

Last edited by Fx4wannabe01; 12-19-2010 at 10:26 PM.
Reply With Quote
  #20
Old 12-20-2010
cummins kid's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: CT
Posts: 59
Yeah I came to the conclusion that I'm just going to bolt it on. I took my measurements last night and going to start hacking and welding my hitch tomorrow.
Reply With Quote
  #21
Old 12-21-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I welded mine because I don't plan on removing mine so there was no need to make it a "bolt on" setup
Reply With Quote
