Cab Guard, Rails & Rear Rack, project finished

I finally finished this project. I started it a long time ago, but had to put it aside for other projects.
The Cab Guard and Rear Rack are made with 1 x 2", 11-guage tubing.

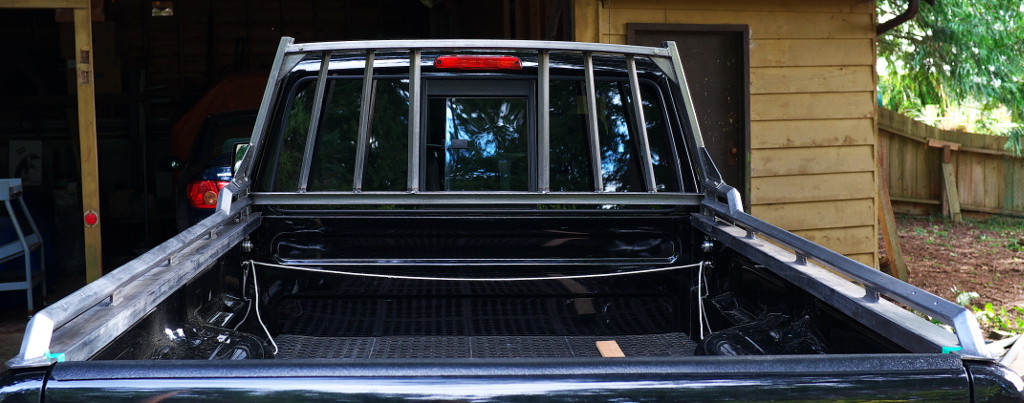

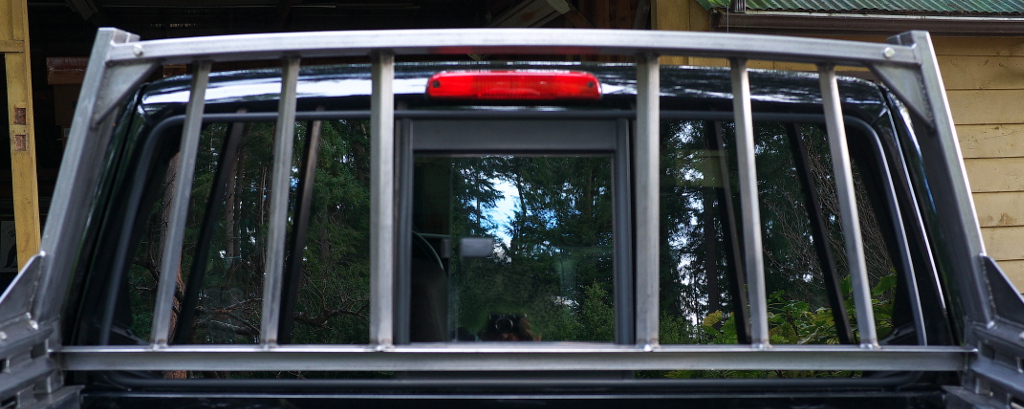

The bars in the cab Guard are 1" square and 3/4" square tubes, turned 45 degrees and the top of the bars are tipped in towards the center.

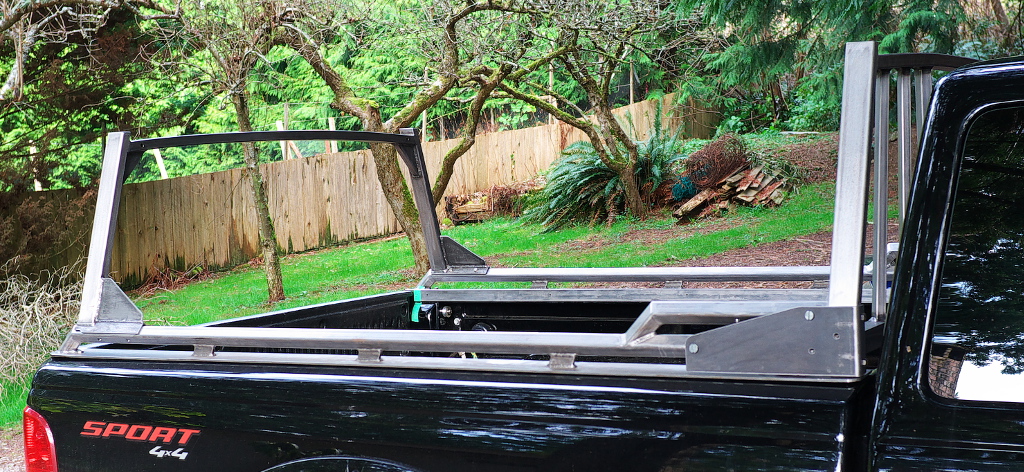

The Rails are made with 1 1/4" square tubing and are turned diamond. The bed-side covers are 1/8' x 3".
Most important is the roll-up bed cover still fits!
...Terry
Attached Thumbnails
Cab Guard, Rails & Rear Rack, project finished-x100_0182a.jpg   Cab Guard, Rails & Rear Rack, project finished-x100_0171r.jpg   Cab Guard, Rails & Rear Rack, project finished-x100_0174r.jpg   Cab Guard, Rails & Rear Rack, project finished-x100_0178r.jpg
Reply With Quote
  #2
Old 04-28-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Nice work.

Back Rack design different and looks good.
Reply With Quote
  #3
Old 04-29-2013
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
That looks awesome!
Reply With Quote
  #4
Old 04-30-2013
JTBeast's Avatar
Member

Join Date: Mar 2010
Location: Dublin, GA
Posts: 58
Quote:
Originally Posted by seed60 View Post
That looks awesome!
X2!!
Reply With Quote
  #5
Old 05-04-2013
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
well done sir! looks great and very functional.
Reply With Quote
  #6
Old 05-09-2013
Jake9488's Avatar
Member

Join Date: Jan 2012
Location: California
Posts: 116
I love it, Great job Mr. Robinson
Reply With Quote
  #7
Old 05-09-2013
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
i am not one that likes the look of a back rack, but this really does look good. very well done. love the design
Reply With Quote
  #8
Old 05-09-2013
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
That looks great!
Reply With Quote
  #9
Old 07-07-2013
Diesel_Brad's Avatar
Member

Join Date: Nov 2011
Location: PA
Posts: 211
Looks REALLY nice. how did you bed the top bars that are cab level?
Reply With Quote
  #10
Old 07-07-2013
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
Great work!!!!
Reply With Quote
  #11
Old 07-08-2013
pafenton's Avatar
Member

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
Very Nice!
Reply With Quote
  #12
Old 07-09-2013
Overkill-F1's Avatar
Member
Thread Starter

Join Date: Aug 2007
Location: Powell River,BC, Canada
Posts: 56
Quote:
Originally Posted by Diesel_Brad View Post
Looks REALLY nice. how did you bed the top bars that are cab level?
I'm guessing you are asking about bending the top bars? That is the one part of the job I had a machine shop do for me. He said it would be easy to do and I ordered all my steel from him, so he gave me a good deal on his labor.
He started with 20 foot long 1x2" tube, secured one end, heated short sections of the tube and bent it a little at a time while cooling one side of the tube with a wet rag. He just worked his way along the tube until it had a 1" curve over 48" length.
...Terry
Reply With Quote
  #13
Old 07-10-2013
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
I now need this on my truck!
