Finished up Headache Rack and Front Bumper

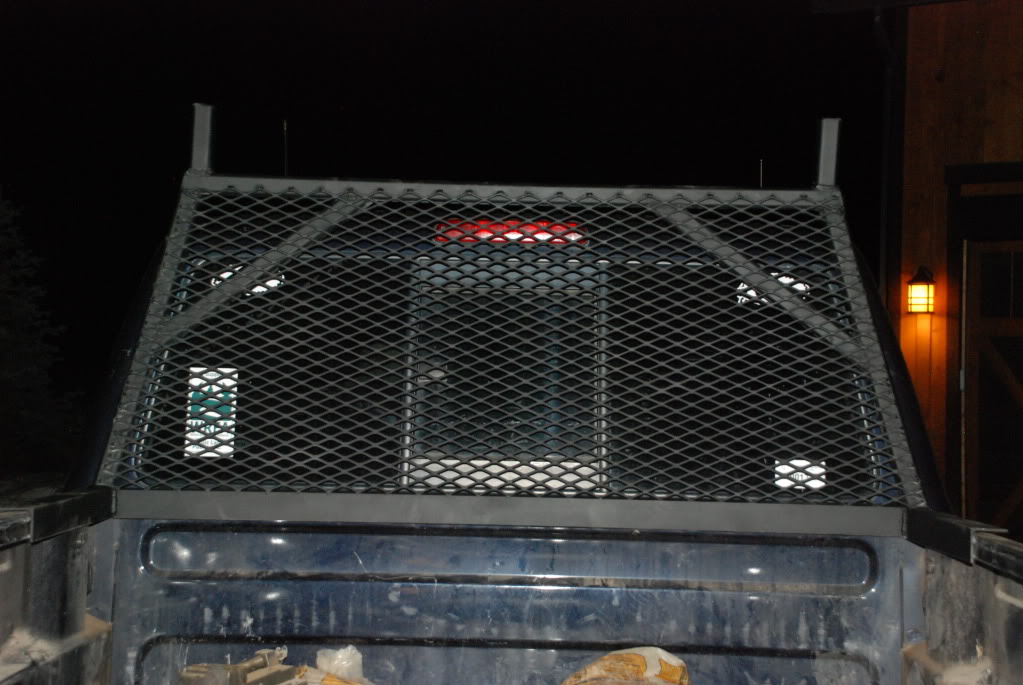

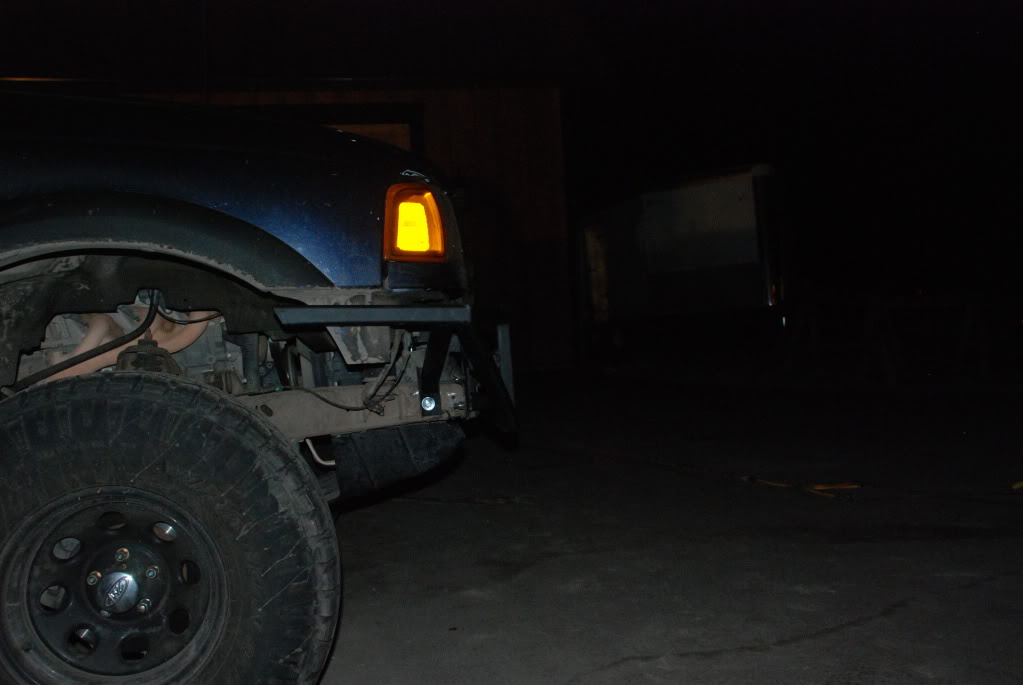

I finished the rack and bumper a couple days ago. Still need to plate my bumper and install fogs on it. So here is a few pics. Name:  DSC_0038-1.jpg
Views: 10
Size:  50.6 KB Name:  DSC_0045-1.jpg
Views: 8
Size:  67.3 KB Name:  DSC_0042-1.jpg
Views: 8
Size:  110.4 KB
Tell me what you all think
Reply With Quote
  #2
Old 02-18-2011
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
looks good. guess its the night pics, but the headache rack looks a little tall.
if you were closer i'd have you build me some stuff.
Reply With Quote
  #3
Old 02-18-2011
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
That bumper should look right nice all plated up
Reply With Quote
  #4
Old 02-18-2011
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
What type of welder did you use?

Does that bumper feel plenty sturdy?
Reply With Quote
  #5
Old 02-18-2011
RANGERDANGER17's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: Carbondale, Colorado
Posts: 65
Quote:
Originally Posted by Taylor View Post
What type of welder did you use?

Does that bumper feel plenty sturdy?
I used my brand new Lincoln Electirc Power MIG® 140C with a 75% Air 25% CO2 tank. And the bumper is pretty sturdy. This was my first time welding
Reply With Quote
  #6
Old 03-20-2011
dirtybird819's Avatar
Member
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
Hey how bout some more pics? How did u mount it?
Reply With Quote
  #7
Old 03-22-2011
Member

Join Date: Oct 2010
Location: aspers, PA
Posts: 801
that headache rack looks nice, you actually went with the same approach on yours as i did with mine, looks good, and i like that bumper
Reply With Quote
  #8
Old 03-23-2011
RANGERDANGER17's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: Carbondale, Colorado
Posts: 65
Quote:
Originally Posted by dirtybird819 View Post
Hey how bout some more pics? How did u mount it?
Which one are you wanting to see how its mounted?
Reply With Quote
  #9
Old 03-23-2011
dirtybird819's Avatar
Member
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
The bumper. I see the one mount in the second pic but there has to be more than that
Reply With Quote
  #10
Old 03-23-2011
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
bumper looks legit, wish I had a regular bed sometimes for a headache rack
Reply With Quote
  #11
Old 03-23-2011
dirtybird819's Avatar
Member
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
I seen one on a step side once and I liked it.
Reply With Quote
  #12
Old 03-23-2011
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
if you're building it yourself you can make it for whatever you want!
Reply With Quote
  #13
Old 04-03-2011
RANGERDANGER17's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: Carbondale, Colorado
Posts: 65
Quote:
Originally Posted by dirtybird819 View Post
The bumper. I see the one mount in the second pic but there has to be more than that
if you look at the 1st pic i mounted it to the PA body lift bumper brackets also
Reply With Quote
  #14
Old 06-20-2011
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Quote:
Originally Posted by RANGERDANGER17 View Post
I finished the rack and bumper a couple days ago. Still need to plate my bumper and install fogs on it. So here is a few pics.
Tell me what you all think
How is this going, bumper plated over yet ?

The bumper should be interesting, how/where did you plan on mounting the Fogs ?

The headache rack looks tall, might be the angle of the pic, but it does look higher than most.

Name:  DSC_0042-1.jpg
Views: 11
Size:  110.4 KB

AND the side supports… none ! there should be triangular supports on the outside edge of the rail angle iron support attaching to the rack, IT WILL BOUNCE AROUND !



This one is a Back Rack cut down from a style side bed to fit a Steppie.
The top bar was opened up for the 3rd brake light, so it is a little shorter than your BUT for me it works, for you it might not.

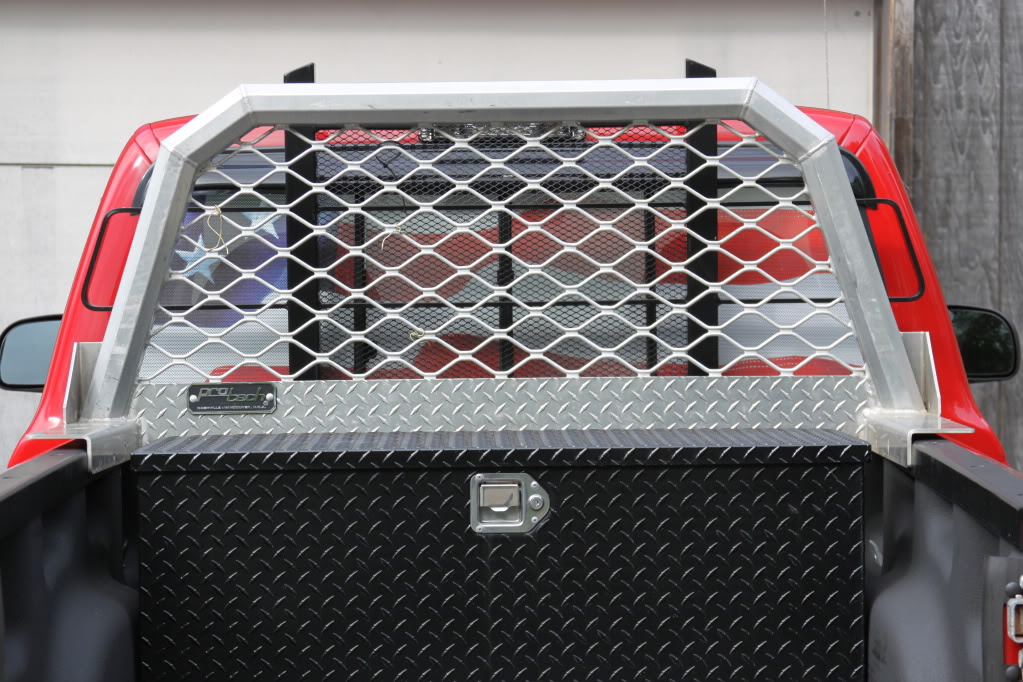

Name:  IMG_0006.jpg
Views: 33
Size:  172.2 KB

This one is a Pro-Tech, not much difference in the top bar heights.

Just a pic for comparison, man, not criticizing.

If this is your first welding project you will be doing things in welding, nice work.

Sorry for the late response but better late then never.
Reply With Quote
