Fabricated Step bars, Pics please

Im bouncing around the idea of having some tube steps made. Since I can't reallt find something i like prefabbed for a reg. cab ranger. I was wondering if any one has made tube steps. I've been eyeballing Zabeards sliders but the aren't exactly what im thinking of. My idea is kinda a cross between a rock slider and the dominator tube steps. Here's a very rough idea of what I mean.

truck
________________
\_______________/ -tube tighter to the body was even thinking of using
---- \______/ ----- rectangular tubing.
---- step



have the step extend at an angle from the main tube so the step would be slightly lower than main tube, and not to extend further form the body than the wheels stick out.
___
|_|
-- \
So if any has done something similar at all or any fabbed step bars post up the pics please.

Also to all the guys that are actually skilled at this stuff just how feasible is this idea. My fab skills are pretty rudimentary, but I have access to equipment and people who do have the skills. Im figuring on hanging around to help where ever I can and try and pick up some skills.
Reply With Quote
  #2
Old 02-22-2009
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Nfab makes them for extended cab Rangers, I've been unable to find a picture tho.
Reply With Quote
  #3
Old 02-22-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
I really wanted the dominators, but they don't make them for the Rangers anymore. I have zabeard sliders and love them.
Reply With Quote
  #4
Old 02-22-2009
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
Quote:
Originally Posted by Trigger01 View Post
I really wanted the dominators, but they don't make them for the Rangers anymore. I have zabeard sliders and love them.
I love the look of them also and I dont have to use my step bars getting into the truck i just jump in but my g/f is only 5'2 and she has too. Im afraid that she would break her leg if she slip on them.
Reply With Quote
  #5
Old 02-22-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by k.blakeley View Post
I love the look of them also and I dont have to use my step bars getting into the truck i just jump in but my g/f is only 5'2 and she has too. Im afraid that she would break her leg if she slip on them.
Do them in line-x so they aren't slippery. I did mine in bedliner in a can and it isn't bad at all.
Reply With Quote
  #6
Old 02-24-2009
jdcrush's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Winnipeg, Manitoba
Posts: 378
Quote:
Originally Posted by korey89 View Post
Nfab makes them for extended cab Rangers, I've been unable to find a picture tho.
well thats the problem, I have a reg cab ranger and for what the fools want to charge, Id rather have some made and know they are solid.

Last edited by jdcrush; 02-24-2009 at 12:03 PM.
Reply With Quote
  #7
Old 02-24-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yeah i would just have some made that are kinda like a modified slider so to speak. just more step than slider use.


kinda like these maybe..





Reply With Quote
  #8
Old 02-24-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
With something like that I don't think they will slide at all. Won't the steps get hung up, rendering the "sliders" useless?

Why not just make the sliders out of square 2"x4" stock, or maybe bigger. Then put some grip tape along where you step.
Reply With Quote
  #9
Old 02-24-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
just makes sliders
Reply With Quote
  #10
Old 02-24-2009
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
big lifted chevy that parks by me on campus has some step bars very similar to what you described. if i get the chance, i'll try and snap some pics for ya.
Reply With Quote
  #11
Old 02-24-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
i thought he said he wanted steps not sliders..thats why i posted them
Reply With Quote
  #12
Old 02-25-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Quote:
Originally Posted by INT3RC3PTOR View Post
i thought he said he wanted steps not sliders..thats why i posted them
Ahh I see lol, I thought he wanted a combination of both.
Reply With Quote
  #13
Old 02-25-2009
jdcrush's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Winnipeg, Manitoba
Posts: 378
No it would be more of a step than a slider. It mostly a step because the g/f *****es about being able to get in now and my 31s go on this weekend. The bottom pic that andy posted is more like what im thinking of doing. Thanks man that gives me a visual to work from. Now I just need to start make measurements.
Reply With Quote
  #14
Old 02-25-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
bah tell your gf to go have her fermur broken and then re-lengthend, thats what I told mine to do. That and don't wear a skirt lol.

(didnt take to kindly to either of those)

3

But that is a cool idea, update this thread, I want to see the outcome.
Reply With Quote
  #15
Old 02-25-2009
jdcrush's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Winnipeg, Manitoba
Posts: 378
yah sure thing chain, I likely post up as much of the specs as i can. im getting psyched my buddy who is installing my tires has a real nice bender in his shop I'll be checking what he got for tubing. I hope he has something with a thick enough wall in his shop.
Reply With Quote
  #16
Old 02-25-2009
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by jdcrush View Post
yah sure thing chain, I likely post up as much of the specs as i can. im getting psyched my buddy who is installing my tires has a real nice bender in his shop I'll be checking what he got for tubing. I hope he has something with a thick enough wall in his shop.
a .120 or even .095 wall is more then enough for a simple step like you want.
Reply With Quote
  #17
Old 02-25-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
1.75 diam and .095 wall DOM is what beards sliders are made out of so i would use that
Reply With Quote
  #18
Old 02-25-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
i thought his were crew? but yeah if its just a step, its no real biggie if you dont use anything super strong. Just depends on what you got laying around for cheap,the size you want, and if your friend has the die sizes you want.
Reply With Quote
  #19
Old 02-28-2009
jdcrush's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Winnipeg, Manitoba
Posts: 378
well good news and bad news. Good: my buddy has everything I need to get this done. Bad: The taxman kicked me in the bag today so now I got save up some cash since I just spent all my truck money on the new tires
Reply With Quote
  #20
Old 02-28-2009
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Maybe somewhat like Jimd's?

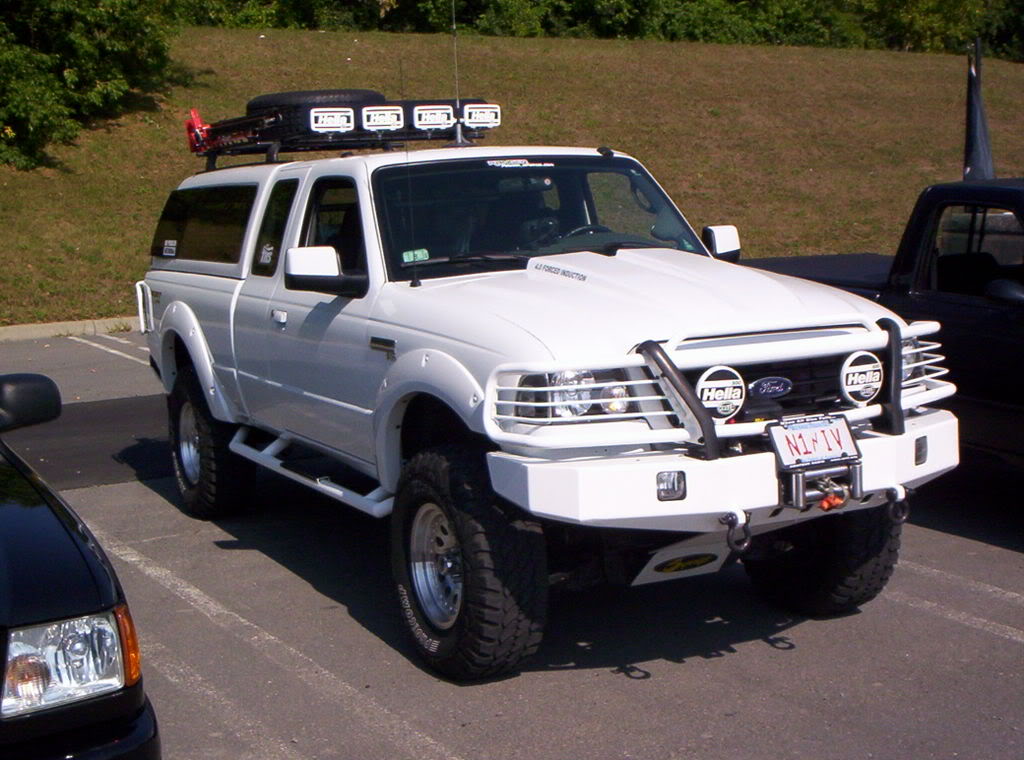

Name:  100_1621-1.jpg
Views: 11
Size:  125.0 KB

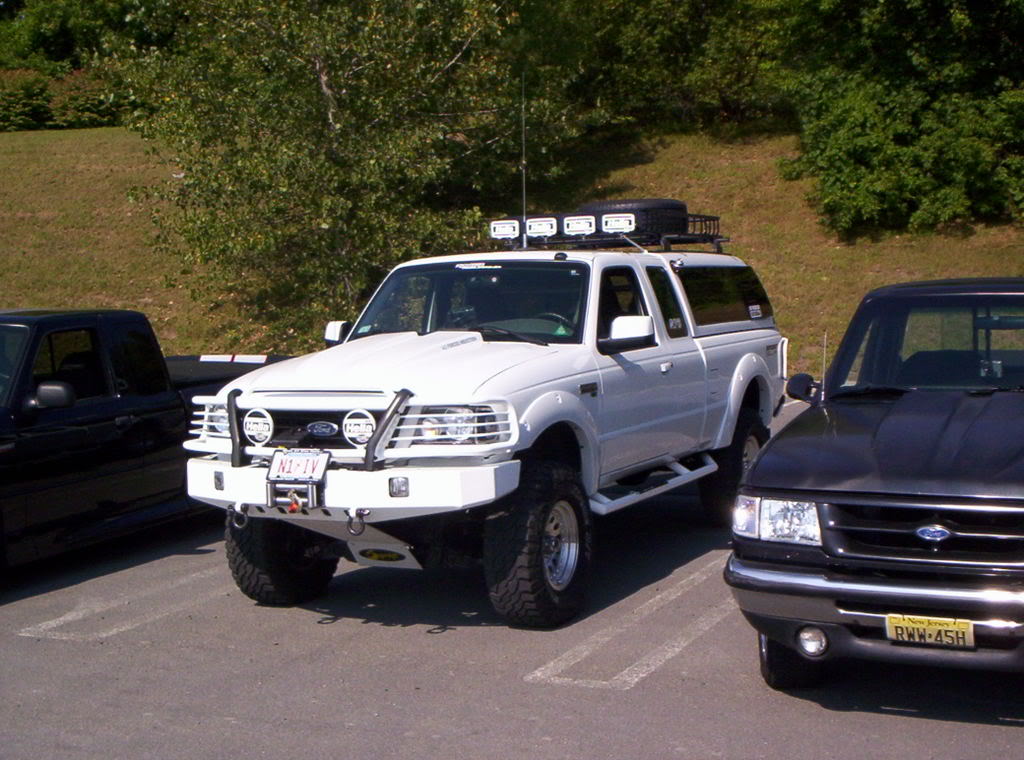

Name:  100_1620-1.jpg
Views: 10
Size:  134.7 KB

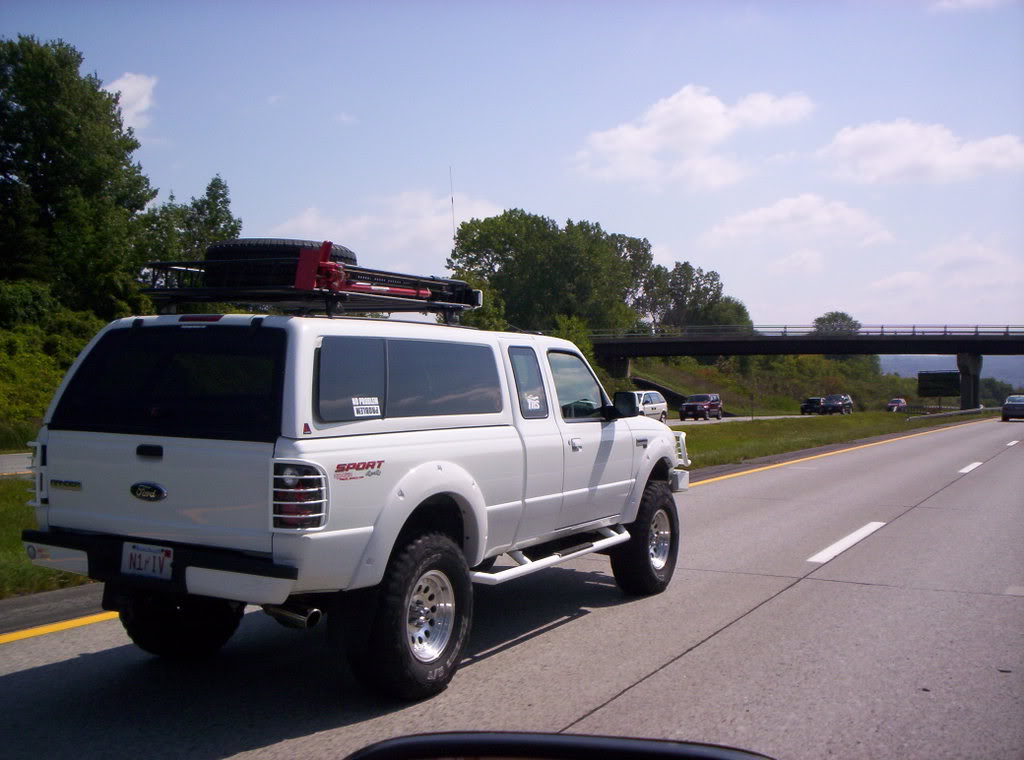

Name:  100_1632-1.jpg
Views: 13
Size:  97.0 KB
Reply With Quote
  #21
Old 02-28-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
i love that truck
Reply With Quote
  #22
Old 02-28-2009
jdcrush's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Winnipeg, Manitoba
Posts: 378
that is one sweet looking truck. I like the look of the bars on it.
Reply With Quote
  #23
Old 02-28-2009
Member

Join Date: Oct 2004
Location: ***
Posts: 2,099
Quote:
Originally Posted by Redneckstone View Post
i love that truck
x2
Reply With Quote
  #24
Old 02-28-2009
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
You guys can all go buy it. lol Cause its at a dealership with a price tag of about $22,000 or so.
Reply With Quote
  #25
Old 03-01-2009
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319

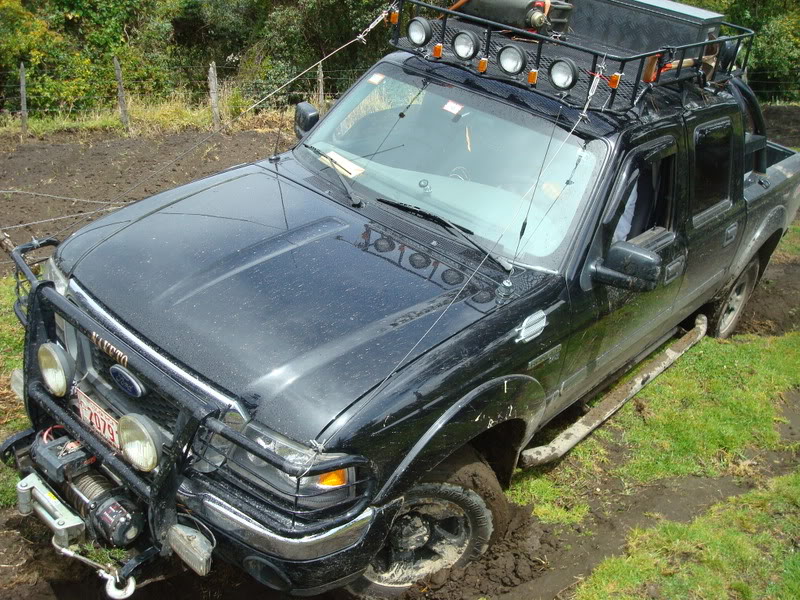

Name:  DSC00840.jpg
Views: 11
Size:  170.9 KB
Name:  dsc00505.jpg
Views: 11
Size:  121.5 KB

this work for me as stp bars and sway bars. i can get a better pic of how theyr mounted 2marrow
