Going to start the bumper fabrication soon

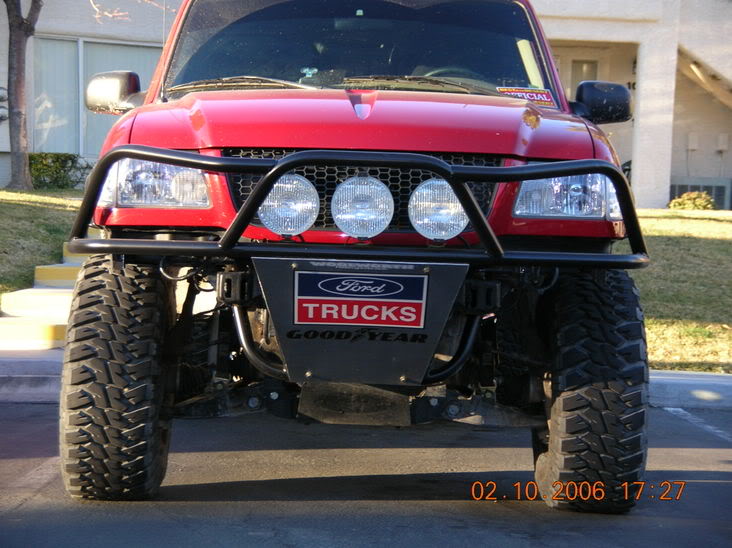

Im going to go with something like this one, with some minor modifications

Name:  DSCN0002.jpg
Views: 4
Size:  80.1 KB

A few questions to thoes of you who have made your own bumper.

did you just use mild steel? what size tubing did you use? and how did you bend the tubing? If you have your own bender, can you post pics/specs/model numbers?

Thanks!
Reply With Quote
  #2
Old 06-16-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
have you bent pipe before?
Reply With Quote
  #3
Old 06-16-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
that's the one Andy (int3rc3ptor) was gonna get... It looks badass, but if you don't have some tube bending experience, you're going to waste alot of time and money...

Zach, pipe is for plumbing... not trying to be smartass.
Reply With Quote
  #4
Old 06-16-2006
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yea i was gonna get that one with a mix of how Jason made his lower crossmeber skid, and the removable light bar
Reply With Quote
  #5
Old 06-16-2006
RanJerEDGE's Avatar
Member

Join Date: Jun 2004
Location: Austin/Houston, Tx
Posts: 689
tube benders are hella expensive... 300 for a cheap one and about 250 each for the dies (1.5")..

http://www.vansantent.com/model_3_bender.htm

http://www.pro-tools.com/105_3.htm

pipe benders are cheap (~80) but they arn't made for tube and will kink it
Reply With Quote
  #6
Old 06-16-2006
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
mild steel will be fine. i built mine from chromoly cause thats what i have the most access to. i used 1.625x.095 for my main tube and 1.375x.095 for my skid plate runners and light hoop. if i was using mild steel, i would probly stick with .120 wall. hydraulic bender, only way to go if you have access to one.

Quote:
Originally Posted by rolla_guy72
Zach, pipe is for plumbing... not trying to be smartass.
my instructor used to say, "pipe is only used for two things; smoking and ****"
Reply With Quote
  #7
Old 06-16-2006
telemaster1952's Avatar
Member

Join Date: Dec 2005
Location: Dover, Deleware
Posts: 3,481
hope you have metal fab experience
Reply With Quote
  #8
Old 06-16-2006
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
ya gotta learn somehow. The whiney "I'd rather pay someone 500 bucks to do it for me" **** i hear 80% of the time is why most of you guys can't afford the really good mods.
Aaron
Reply With Quote
  #9
Old 06-16-2006
telemaster1952's Avatar
Member

Join Date: Dec 2005
Location: Dover, Deleware
Posts: 3,481
calm down aaron. are you always so b$#@hy??? he needs to get some experience but will also want a guide. learning metal fab by yourself is a pain!
Reply With Quote
  #10
Old 06-16-2006
QWIKSNK's Avatar
Member
Thread Starter

Join Date: May 2006
Location: Grand Rapids, MI
Posts: 68
I have some fabbing experiance, but not much, my dad is pretty good at welding, so i know he will be giving me pointers along the way.

I honestly dont care if I waste alot of money the first time around, I dont know how im going to learn it if I dont, the 2nd time i custom fab a bumper (or anything else for that matter) it will get progressivly less expensive, and hopefully some day to the point where I can do it on the side and make a little money off it.

Thanks for the info guys, i appreciate it all
Reply With Quote
  #11
Old 06-17-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
Quote:
Originally Posted by QWIKSNK
I honestly dont care if I waste alot of money the first time around, I dont know how im going to learn it if I dont, the 2nd time i custom fab a bumper (or anything else for that matter) it will get progressivly less expensive, and hopefully some day to the point where I can do it on the side and make a little money off it.
Very good point... Good luck!
Reply With Quote
  #12
Old 06-18-2006
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
as for the pipe, that is very untrue. many wheelers use schedule 40 pipe for stuff like that. the only difference is the way its measured. pipe is measured using inside diameter and tube is outside diameter. schedule 40 is pretty cheap for the strength it gives, its just trouble sometimes getting the right die to bend it with...
Reply With Quote
  #13
Old 06-20-2006
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
pipe is for plumbing...
Reply With Quote
  #14
Old 06-20-2006
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
Quote:
Originally Posted by INT3RC3PTOR
pipe is for plumbing...
Definition of a pipe: A section or piece of such a tube.

definition of a tube: A hollow cylinder, especially one that conveys a fluid or functions as a passage.


Same diff foo.

Aaron
Reply With Quote
  #15
Old 06-20-2006
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
Quote:
Originally Posted by INT3RC3PTOR
pipe is for plumbing...
uh no. go to pirate and do some research...
Reply With Quote
  #16
Old 06-20-2006
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
i was kidding mang


..buuut, you dont use tube for pluming lol
Reply With Quote
  #17
Old 06-20-2006
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
we do in mehico...
Reply With Quote
  #18
Old 06-20-2006
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Mehico, CO is a nice place
Reply With Quote
