Mazda B4000 rear disc brake conversion
#1
Mazda B4000 rear disc brake conversion
Hello,
Just wanted to share some pictures here. I am not an expert by any means.
I am beefing up my ranger (Mazda b4000) to be able to haul trailers and take proper loads in the bed like a camper.
Because of the weight I plan on putting into it, one of the upgrades is disc brakes. Online most suggest using cobra brakes, which are good, however a big issue for me is the parking brake is not separated from the caliper, as well as the fact that the bracket is mounted strangely so the offset is wrong.
I did a small amount of research and found a slightly newer explorer sport has the same rear end, just wider, more spline, and disc brake. That's great! Or so I thought. Once I started taking them off I noticed the bolts were longer for one, and it appeared as if the bolt pattern was slightly larger.
Once I got the stuff back it was discovered that it was the case.
So I decided to cut off the end bearing flanges and make my own.

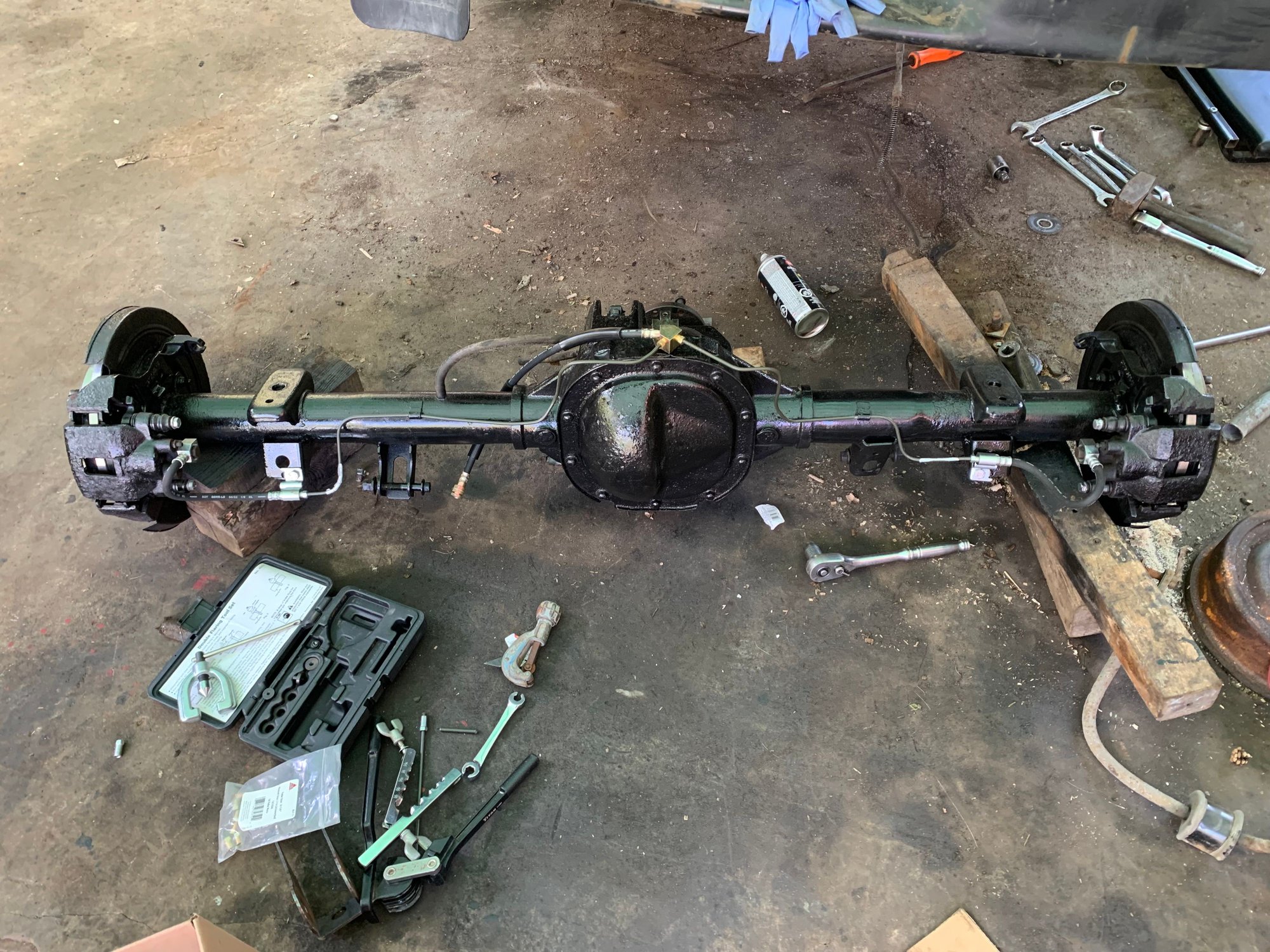

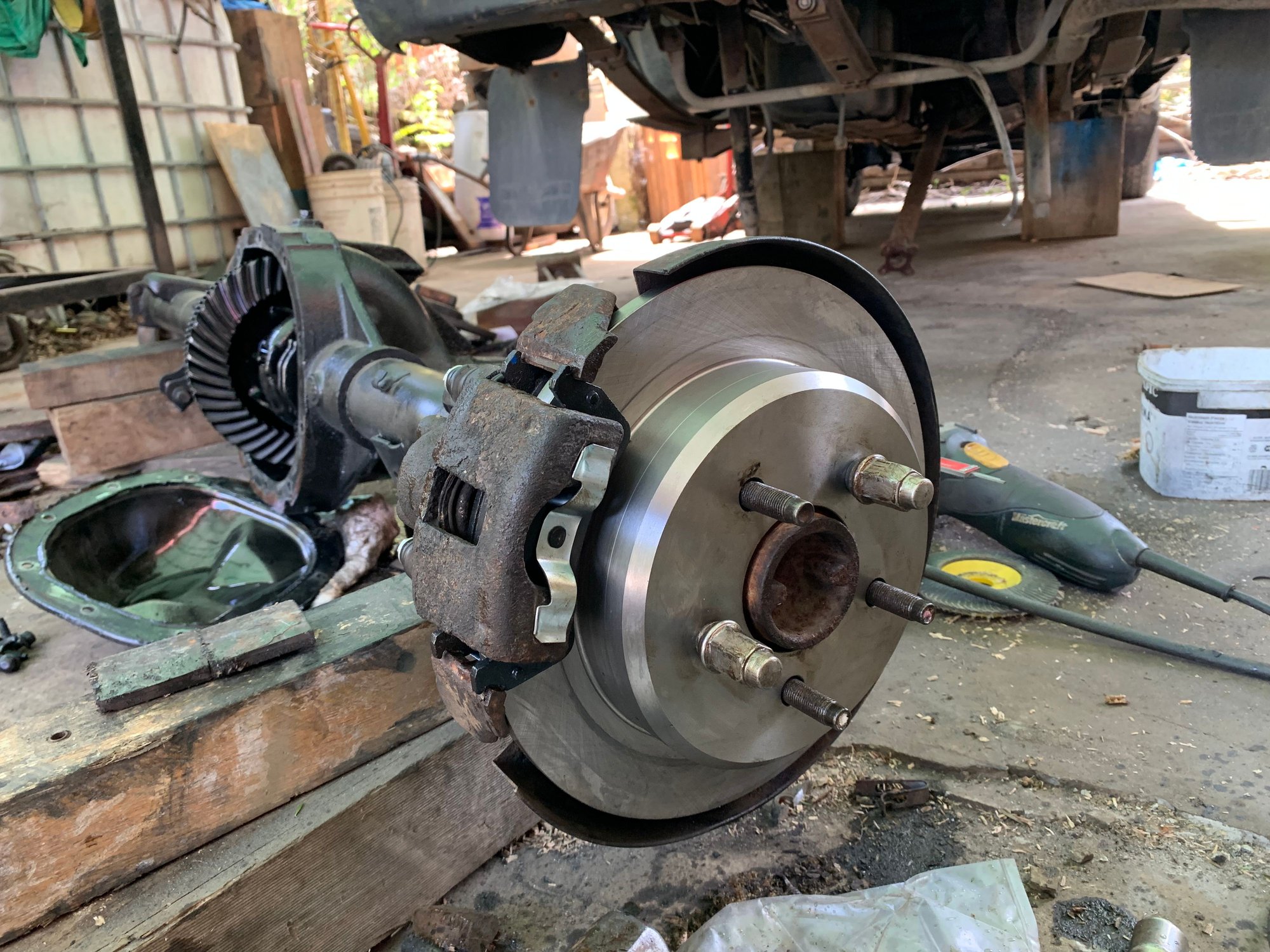

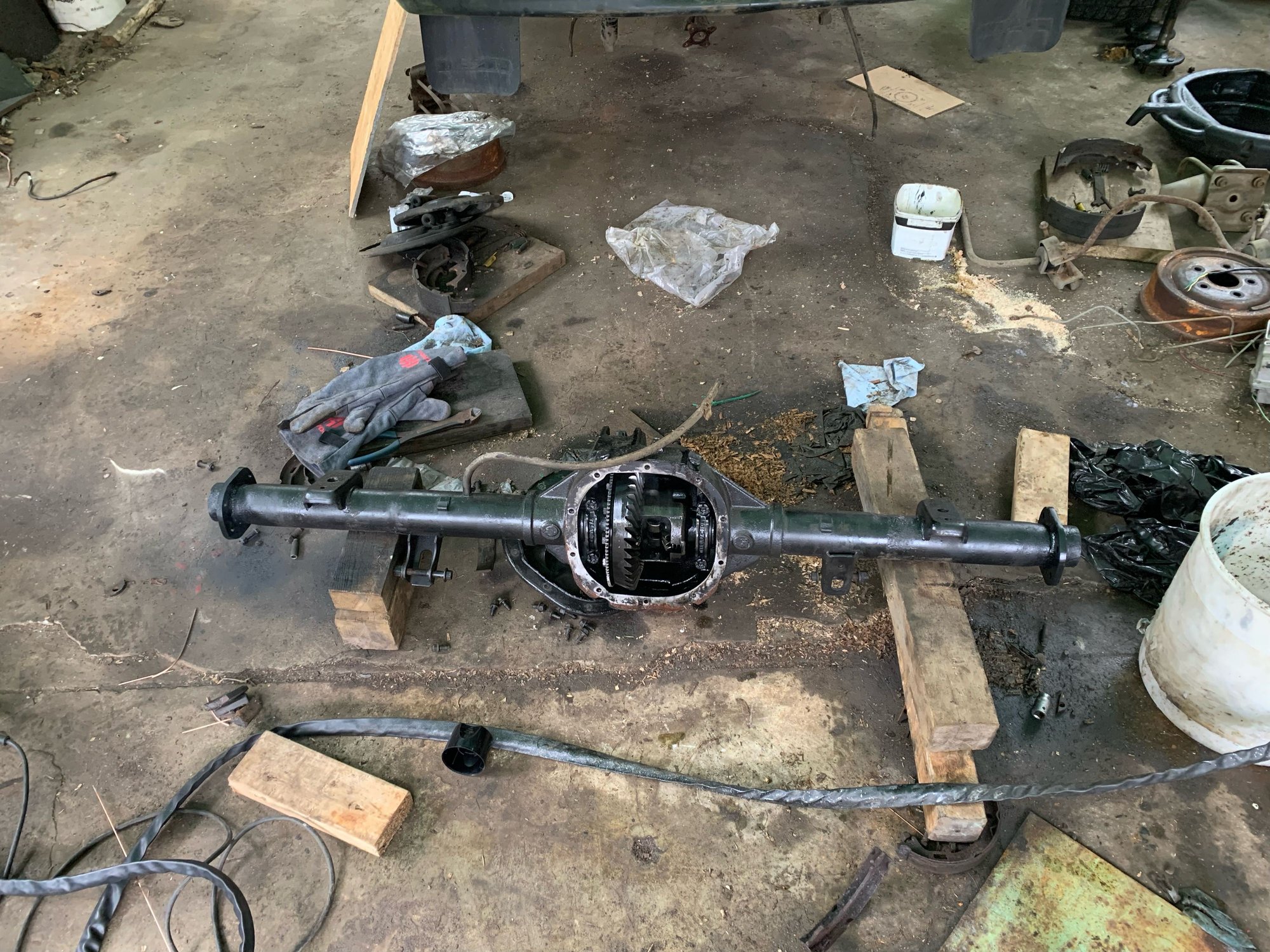

What it looks like when done (I still have to assemble I just finished welding it last night)
This is welding process
Completed welding

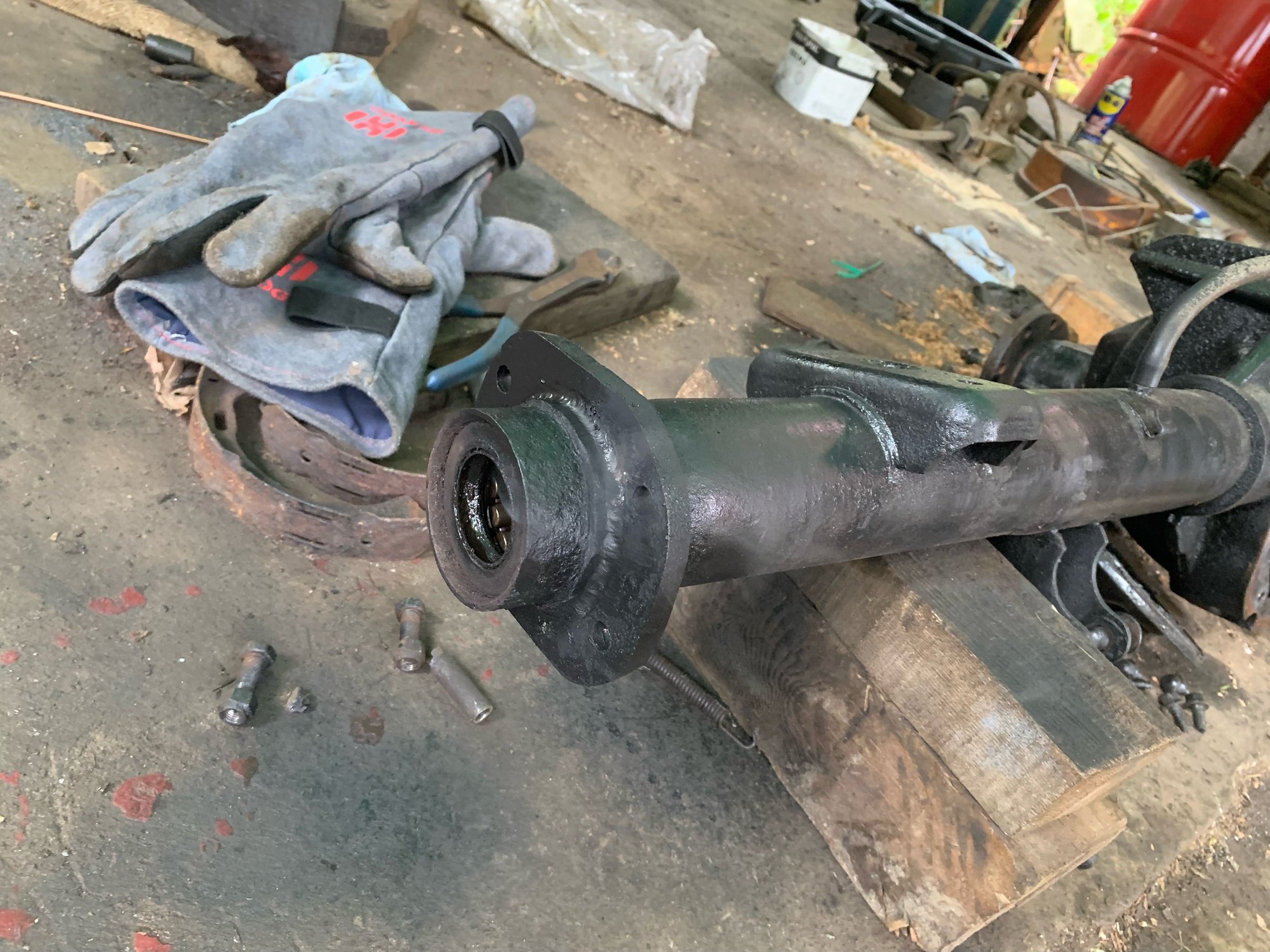

painting

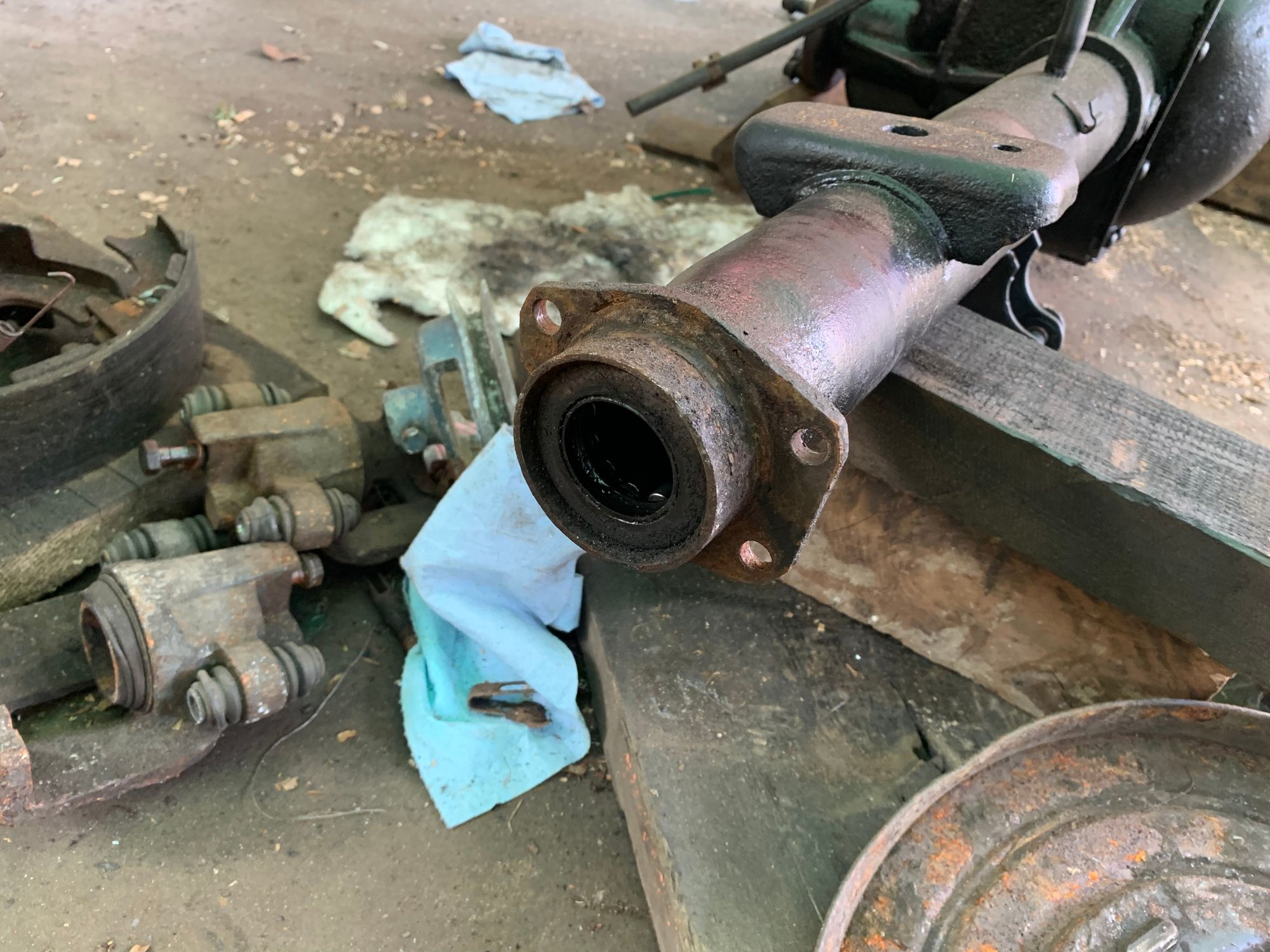

Original flange

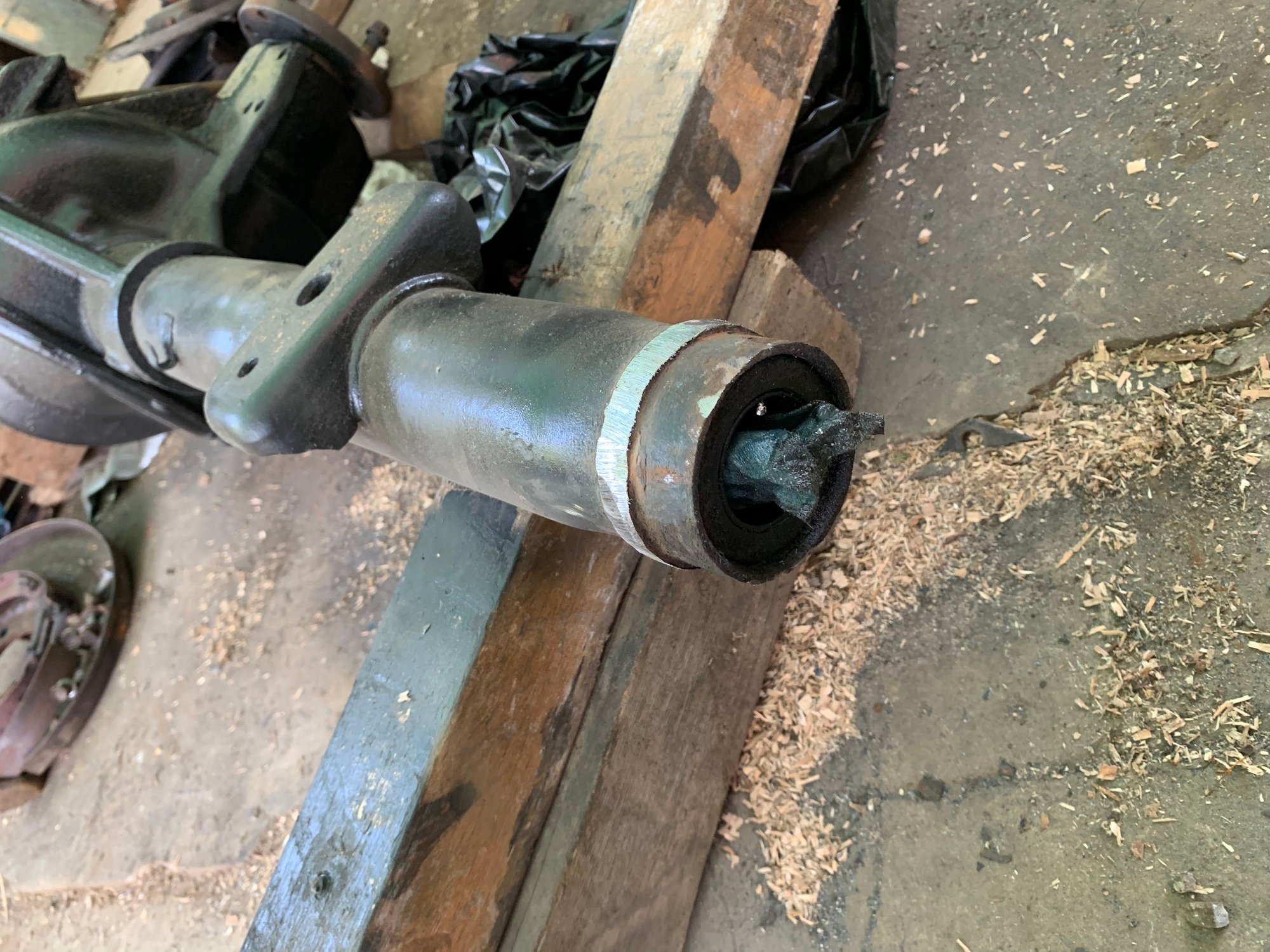

cut flange ears off and rounded
new flange cut with carbide holesaw
Hope this inspires someone to upgrade their brake system. I may update with more photos as it gets reassembled and reinstalled fully into truck. There are some other things to consider. The master brake should not have to be changed but a proper check valve installed for disc brakes on the rearward line.
Thanks,
Hope you like the mods :)
Just wanted to share some pictures here. I am not an expert by any means.
I am beefing up my ranger (Mazda b4000) to be able to haul trailers and take proper loads in the bed like a camper.
Because of the weight I plan on putting into it, one of the upgrades is disc brakes. Online most suggest using cobra brakes, which are good, however a big issue for me is the parking brake is not separated from the caliper, as well as the fact that the bracket is mounted strangely so the offset is wrong.
I did a small amount of research and found a slightly newer explorer sport has the same rear end, just wider, more spline, and disc brake. That's great! Or so I thought. Once I started taking them off I noticed the bolts were longer for one, and it appeared as if the bolt pattern was slightly larger.
Once I got the stuff back it was discovered that it was the case.
So I decided to cut off the end bearing flanges and make my own.
What it looks like when done (I still have to assemble I just finished welding it last night)
This is welding process
Completed welding
painting
Original flange
cut flange ears off and rounded
new flange cut with carbide holesaw
Hope this inspires someone to upgrade their brake system. I may update with more photos as it gets reassembled and reinstalled fully into truck. There are some other things to consider. The master brake should not have to be changed but a proper check valve installed for disc brakes on the rearward line.
Thanks,
Hope you like the mods :)
The following users liked this post:
RonD (05-07-2023)
#2
RF Veteran
iTrader: (1)
Nice work
Just FYI
The legal weight limits, in bed load or towing, for your 1997 B4000 4x4 can not be changed by anything you do to the vehicle, its basically "written in stone" by the vehicle maker that year for the model you have
Manual trans drops trailer weight by quite a bit
4.0l with manual has 3,000lbs towing limit, with automatic 5,800lbs, almost doubled
Just FYI
The legal weight limits, in bed load or towing, for your 1997 B4000 4x4 can not be changed by anything you do to the vehicle, its basically "written in stone" by the vehicle maker that year for the model you have
Manual trans drops trailer weight by quite a bit
4.0l with manual has 3,000lbs towing limit, with automatic 5,800lbs, almost doubled
#3
Hello Ron!
Yes sir, I am just trying to make it much more accepting of driving consistently at its maximum capacity. And appear less loaded to the authorities, when it is near or at maximum.
Just finishing up lunch, and back to it! should be hanging in the truck hopefully by end of day today :)
Still have to do the brake lines and make the little brackets for the hoses. I am using two right hand side hoses and new brake hard lines and original hose from the truck (but new).
I do have the automatic and seem to have all the heaviest options in the truck, it is an SE model so I think it should have the best.
Thanks for the interest :))
Yes sir, I am just trying to make it much more accepting of driving consistently at its maximum capacity. And appear less loaded to the authorities, when it is near or at maximum.
Just finishing up lunch, and back to it! should be hanging in the truck hopefully by end of day today :)
Still have to do the brake lines and make the little brackets for the hoses. I am using two right hand side hoses and new brake hard lines and original hose from the truck (but new).
I do have the automatic and seem to have all the heaviest options in the truck, it is an SE model so I think it should have the best.
Thanks for the interest :))
The following users liked this post:
RonD (05-07-2023)
#4
Update:
Axle nearly completed; Old leaf spring bolts are VERY stuck in there, going to take some work to get them out. Then go in the upgraded 5 leafs!
Almost done! Just have to make a few hose brackets and hardlines, still unsure about how the brake cable is going to work. I think I need different ends on it so, I may have some custom made or something. maybe make an adapter
Idea for where to place brake hoses, I am using two right side hoses from the explorer the brake components came from (1999 Sport 4.0 SOHC)
Parking brakes confirmed working and adjusted, everything ready to go! :)
Axle nearly completed; Old leaf spring bolts are VERY stuck in there, going to take some work to get them out. Then go in the upgraded 5 leafs!
Almost done! Just have to make a few hose brackets and hardlines, still unsure about how the brake cable is going to work. I think I need different ends on it so, I may have some custom made or something. maybe make an adapter
Idea for where to place brake hoses, I am using two right side hoses from the explorer the brake components came from (1999 Sport 4.0 SOHC)
Parking brakes confirmed working and adjusted, everything ready to go! :)
The following users liked this post:
RonD (05-07-2023)
#5
The following 2 users liked this post by kylemaes:
DILLARD000 (05-10-2023),
RonD (05-08-2023)
#6
Update: COMPLETE! TEST DRIVEN!
Hardlines Completed
Right hard line is not my proudest or best work :(
fitting axle under the truck

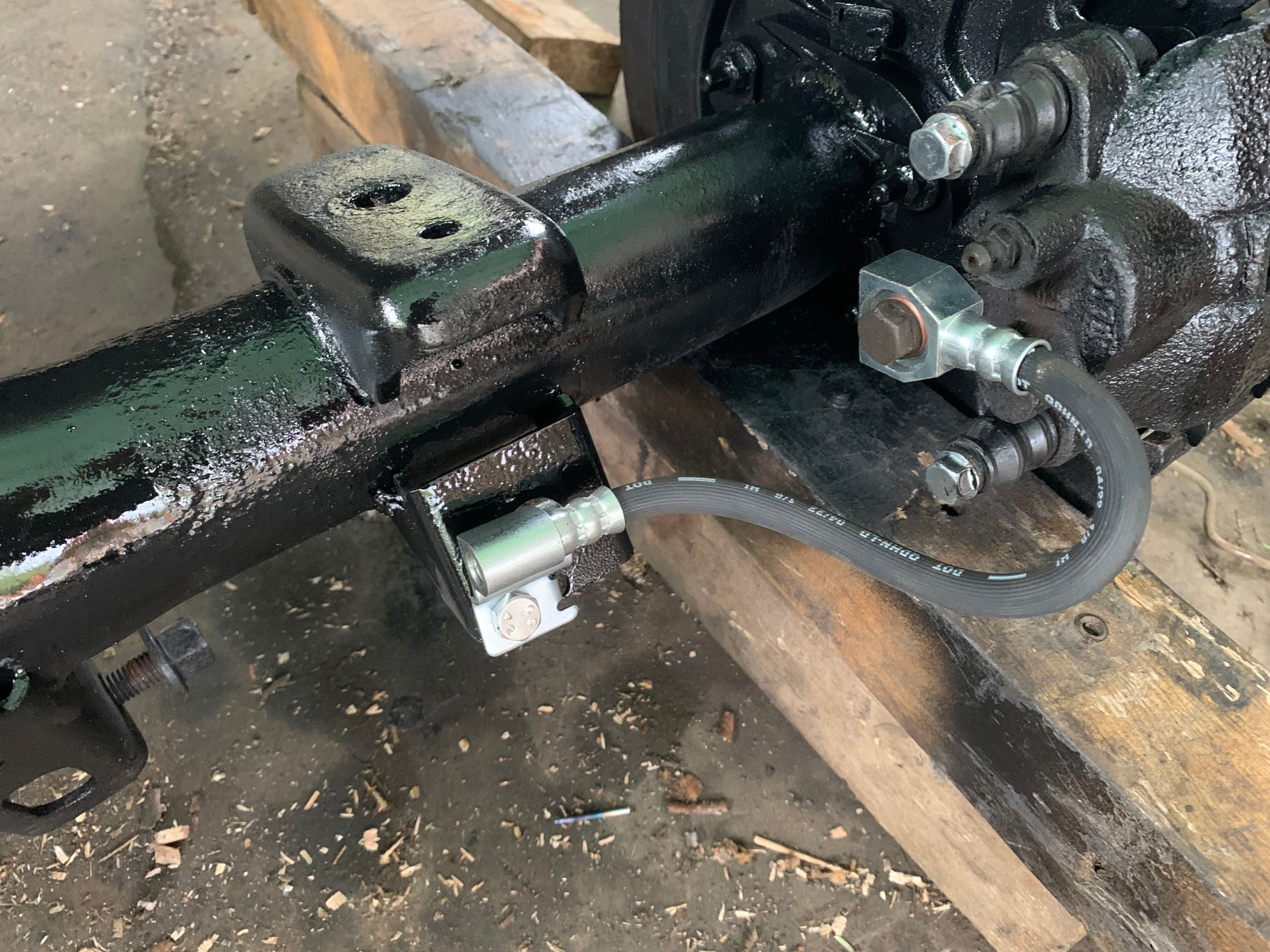

Another angle

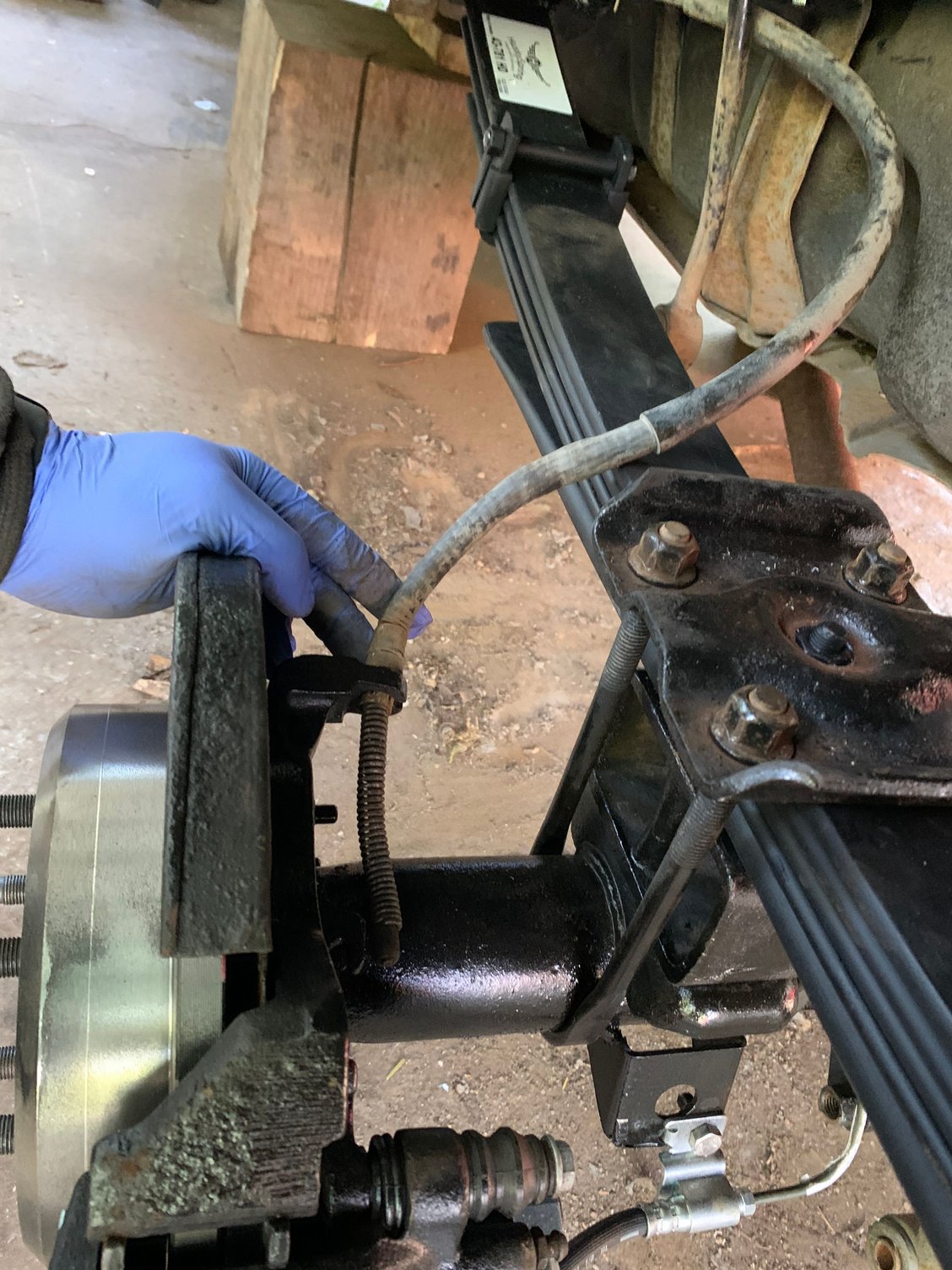

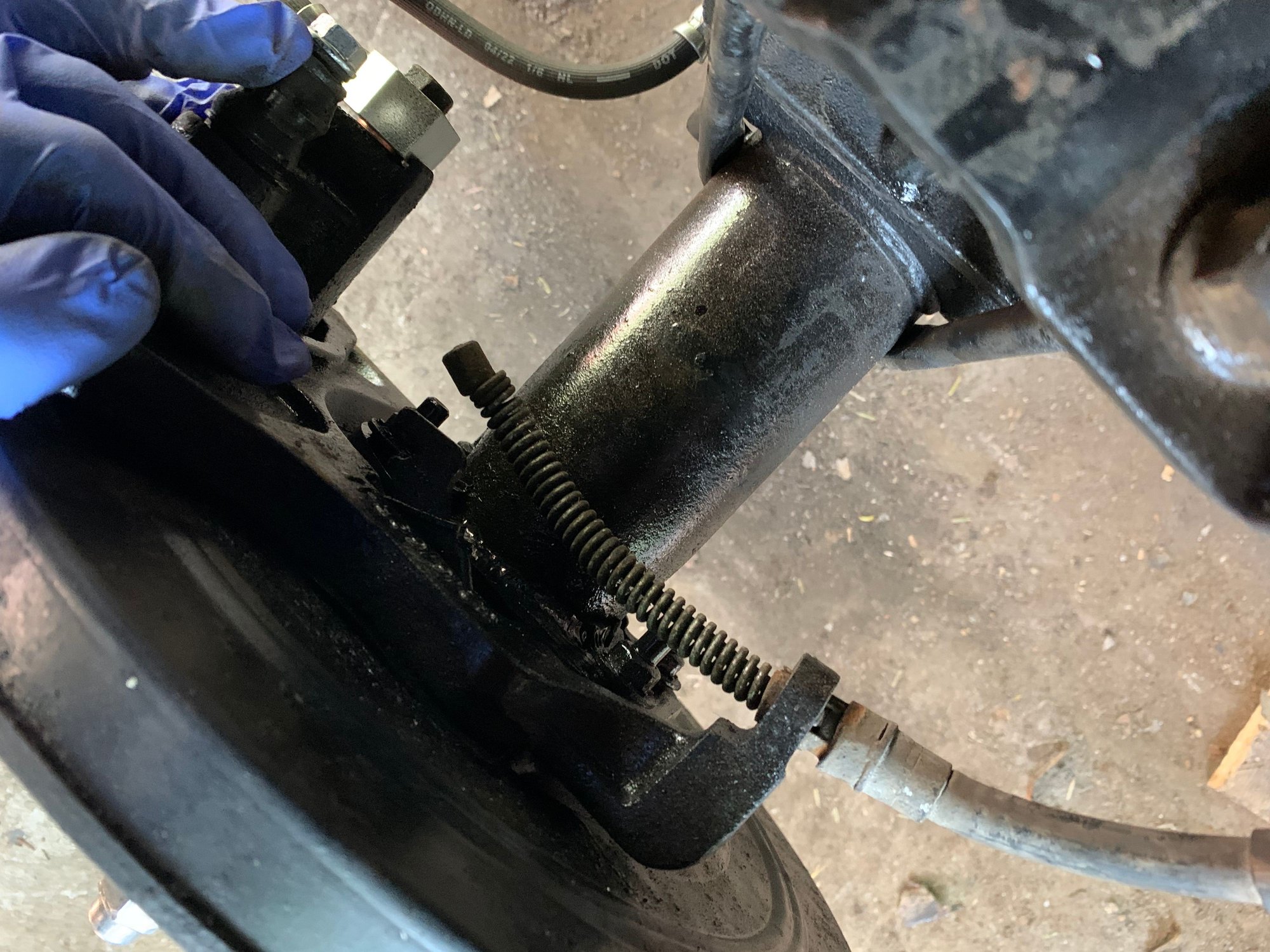

As was intended, the OEM brake cables insert and latch correctly. The ends need to be modified to the explorer style or an adapter made
Another photo (The cable is not fully latched in these photos as I was unsure if I would need to remove them again during the installation process)
Everything is installed, minus the sway bar. That will be a continuation. I was excited to try out my new braking system

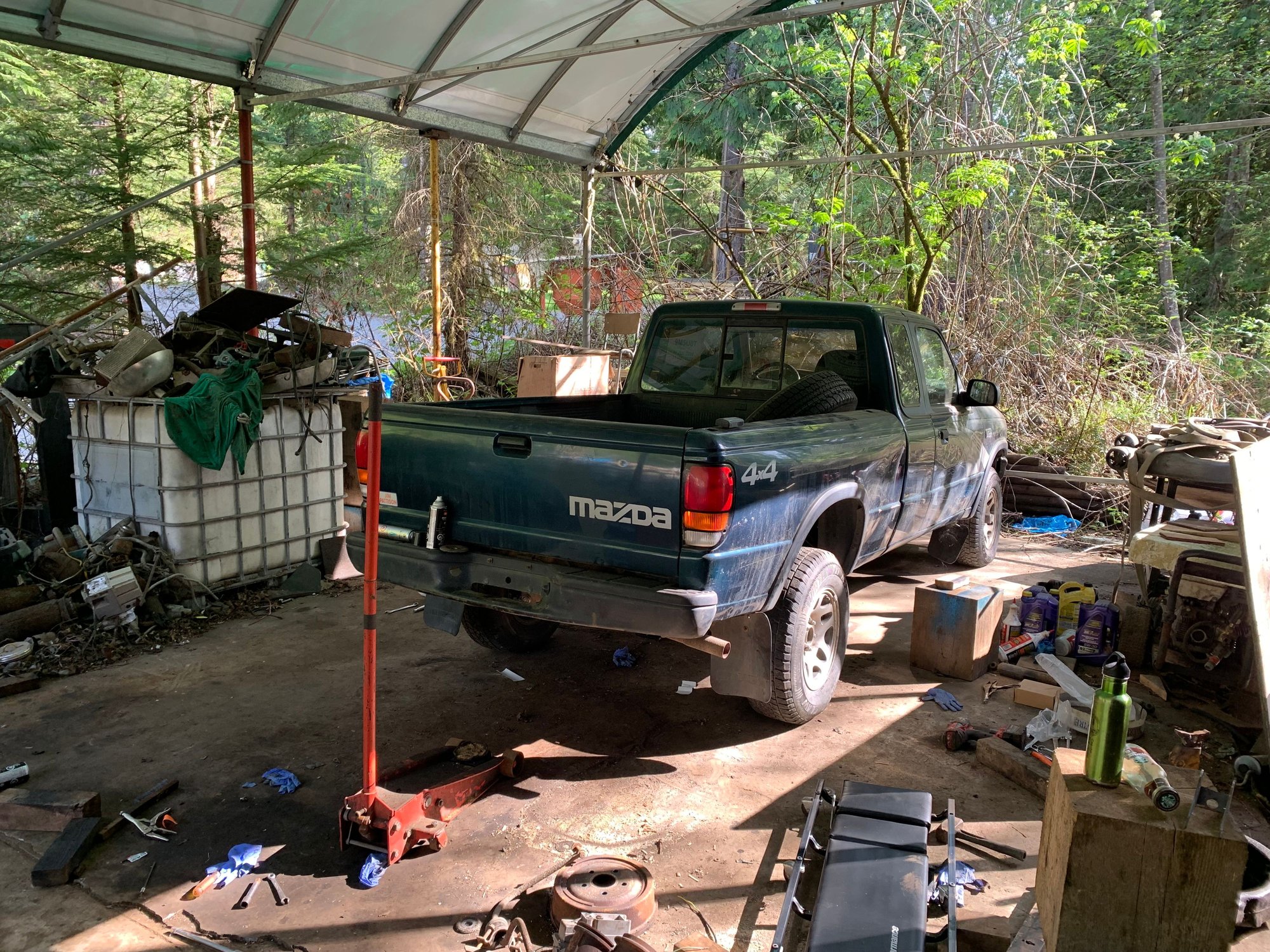

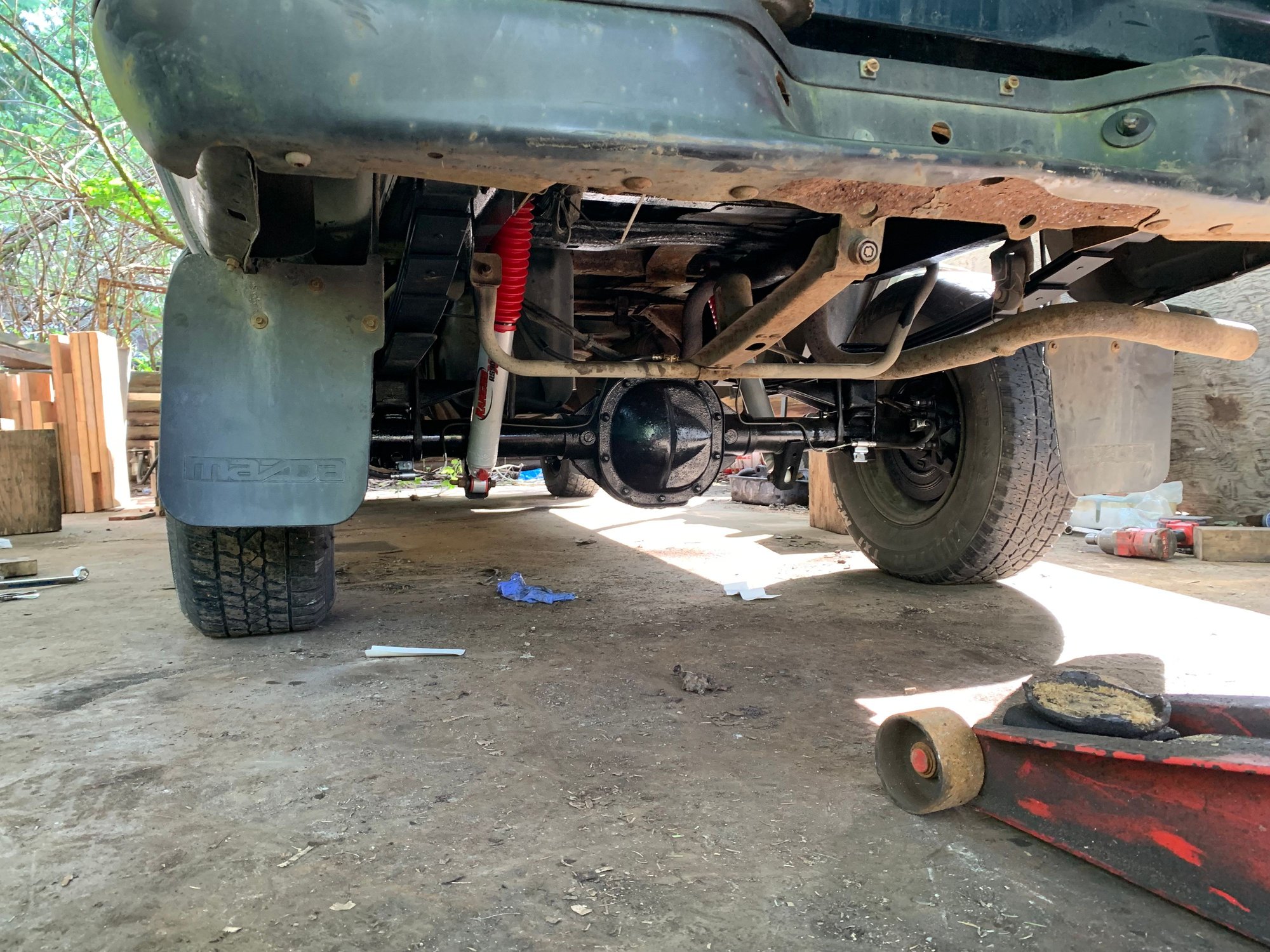

Booty is in the air, Just like I wanted.
Working great!
Hardlines Completed
Right hard line is not my proudest or best work :(
fitting axle under the truck
Another angle
As was intended, the OEM brake cables insert and latch correctly. The ends need to be modified to the explorer style or an adapter made
Another photo (The cable is not fully latched in these photos as I was unsure if I would need to remove them again during the installation process)
Everything is installed, minus the sway bar. That will be a continuation. I was excited to try out my new braking system
Booty is in the air, Just like I wanted.
Working great!
The following users liked this post:
RonD (05-12-2023)
