My front hitch with Level II tow hooks

So I'm going on Thanksgiving break, so I'll have a access to a welder. I have an idea for my front hitch and want to see what you guys think

I think the way my pic shows will let them sit far enough forward and high enough that I won't have to cut the bumper

Let me know what you guys think, or what other ideas you have

*I am adamant about not cutting my bumper, so I'm going to try everything to avoid it

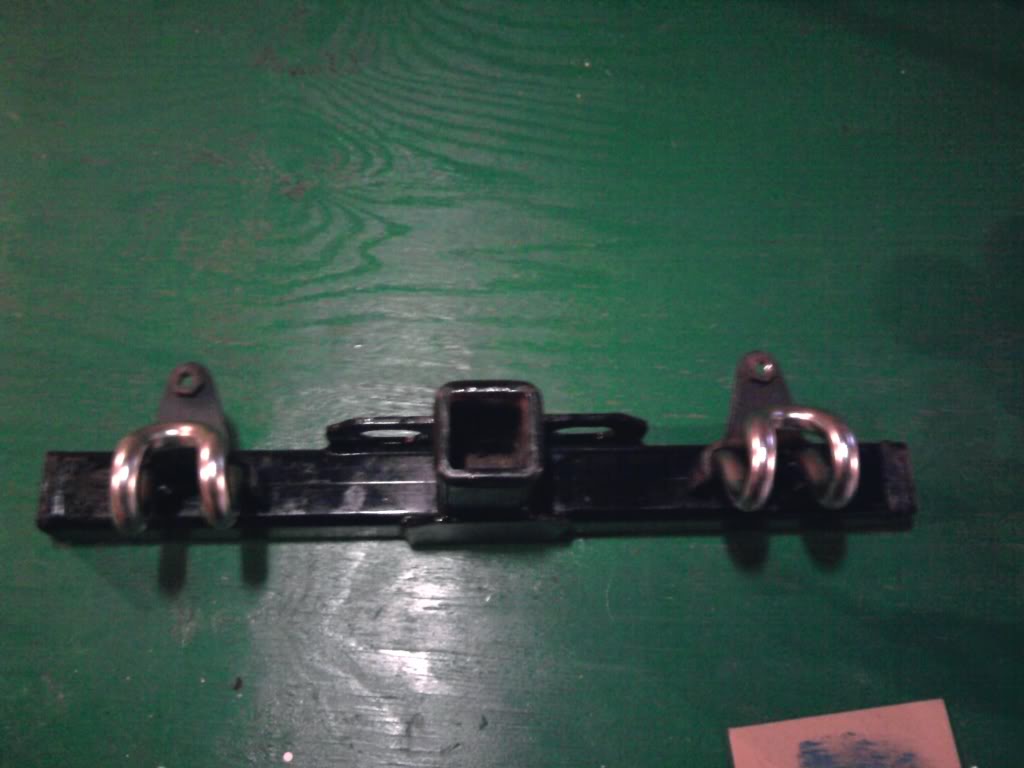

Here's a mock up in my basement

Name:  Photo-0195.jpg
Views: 49
Size:  62.0 KB
Reply With Quote
  #2
Old 11-20-2010
04_xlt_4.0_4x4's Avatar
Member

Join Date: Feb 2009
Location: merced, ca
Posts: 1,154
looks good but i dont know strong they will be with them only attached on the backs like that, can you make some sort of bracket for the top bolt hole?
Reply With Quote
  #3
Old 11-20-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
The entire thing will be fully welded, including bracing from the top triangle on the hooks to the top of the hitch.

In all honesty, the hitch will be doing most of the recovery work
Reply With Quote
  #4
Old 11-20-2010
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
I don't see why you wouldn't just make things easier on yourself and trim your valance. It's much easier than doing this.
Reply With Quote
  #5
Old 11-20-2010
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Looks great, keep us posted
Reply With Quote
  #6
Old 11-20-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Depending on how the hitch is mounted, I may not even have access to the rear bolt hole to attach the hooks in the stock location.

Having access to a welder and cutting torch, I figure something more custom would work better in the end
Reply With Quote
  #7
Old 11-20-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
last thing id do is cut up an edge valence thats painted. that just starts the chipping of paint on it over time. i think it looks good and will be very well done with by a good welder. shoudln't be an issue.
measure twice weld once!
Reply With Quote
  #8
Old 11-21-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I like my valence too much to cut it.

My sister's fiance is a certified welder and builds derby cars, I trust everything will hold up fine.
Reply With Quote
  #9
Old 11-21-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
yeah i wouldn't cut an edge valence but a regular textured i wouldn't care...thats why mines cut lol
Reply With Quote
  #10
Old 11-23-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
can this mod be done w/o cutting the valance? preferably w/o BL
Reply With Quote
  #11
Old 11-23-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Wirelessly posted

You can't mount level II hooks on without cutting the valence. You could heat up and bend the valence but I haven't seen pics of that

Last edited by 01RangerEdge; 11-23-2010 at 03:39 PM.
Reply With Quote
  #12
Old 11-23-2010
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
Quote:
Originally Posted by rangerboy101 View Post
I don't see why you wouldn't just make things easier on yourself and trim your valance. It's much easier than doing this.
cos that is uuuuugly!

i think thats a great idea to do this, never seen it done before, and as long as its welded all the way around, or has the tab folded over and welded on top i dont see why it wouldn't be even stronger. speaking from experience, once you put the hitch on the front, good luck getting at any bolts in there haha, even putting the bumper back on will be a PITA.
Reply With Quote
  #13
Old 11-23-2010
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Can’t say anything about the Valance but I like the idea of the hooks and receiver… nice !
Reply With Quote
  #14
Old 11-23-2010
03edge's Avatar
Member
iTrader: (1)

Join Date: Feb 2009
Location: Akron, OH
Posts: 1,031
looks like a good idea actually, let us know how it works
Reply With Quote
  #15
Old 11-23-2010
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958


i trimmed my valance about 1" down for the hitch, it can be a little higher and not have to be trimmed
Reply With Quote
  #16
Old 11-23-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Ballin idea! Can't wait to see it.
Reply With Quote
  #17
Old 11-24-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
thanks justin.
Reply With Quote
  #18
Old 11-27-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598

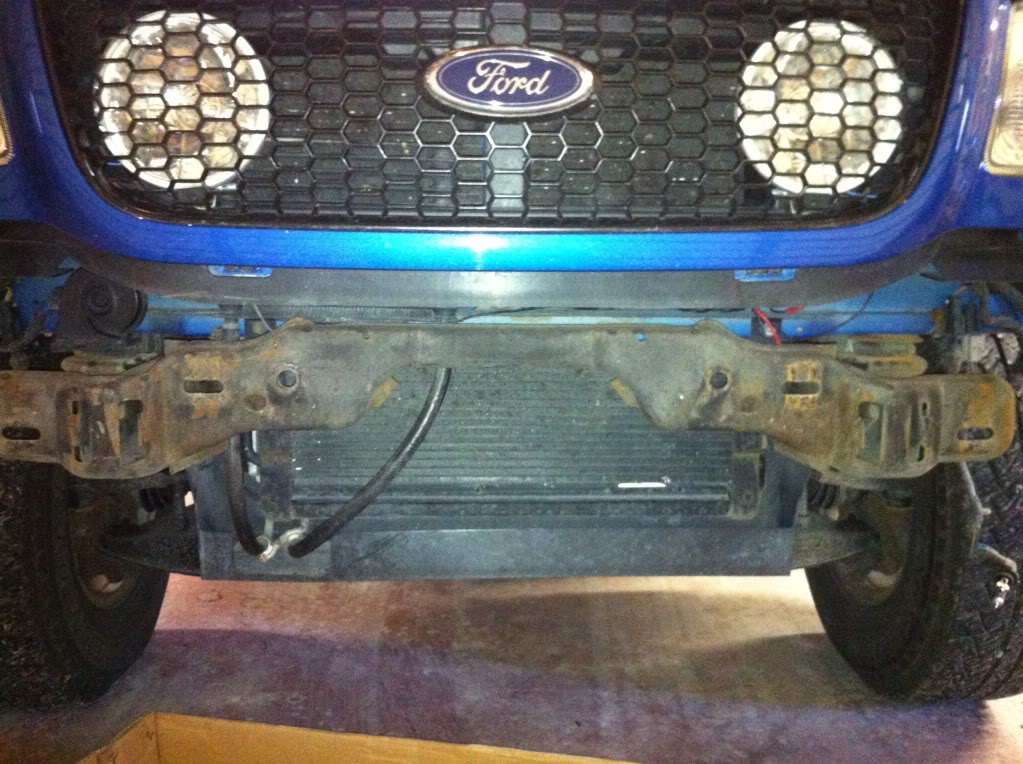

After getting the bumper off and taking measurements and test fitting, I have to say this is the first time I've regretted having an automatic.

Trans cooler lines were the ultimate hangup. But I did get the hitch in and I like where it sits.

Effing trans cooler

Name:  photo11.jpg
Views: 49
Size:  172.1 KB

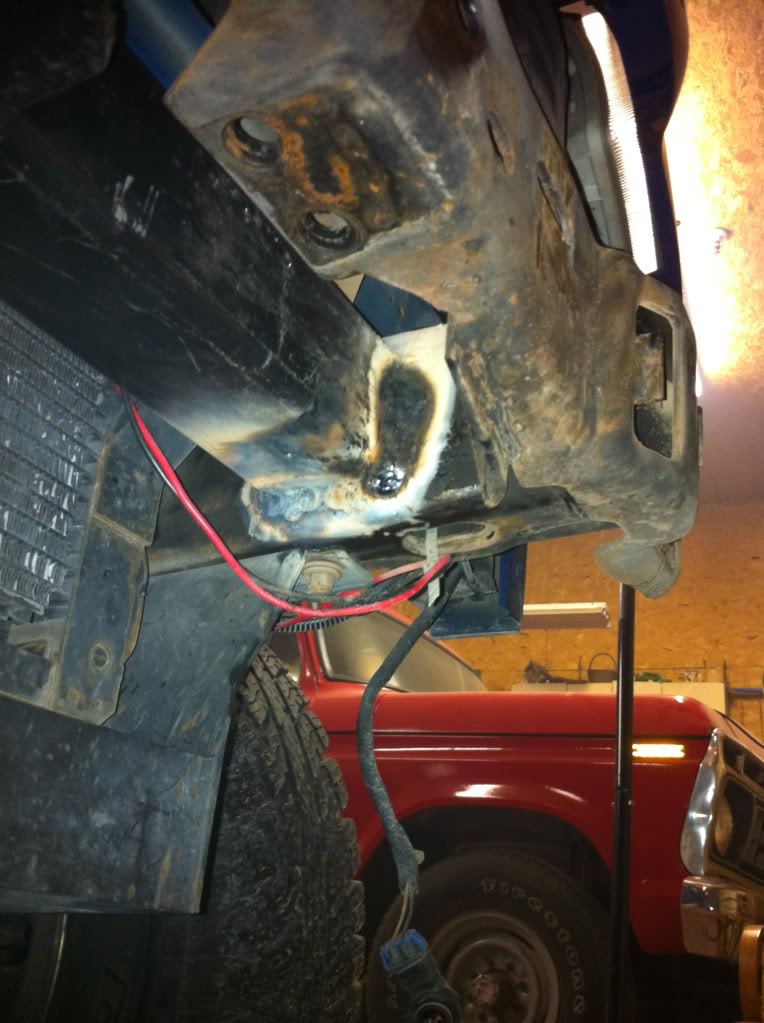

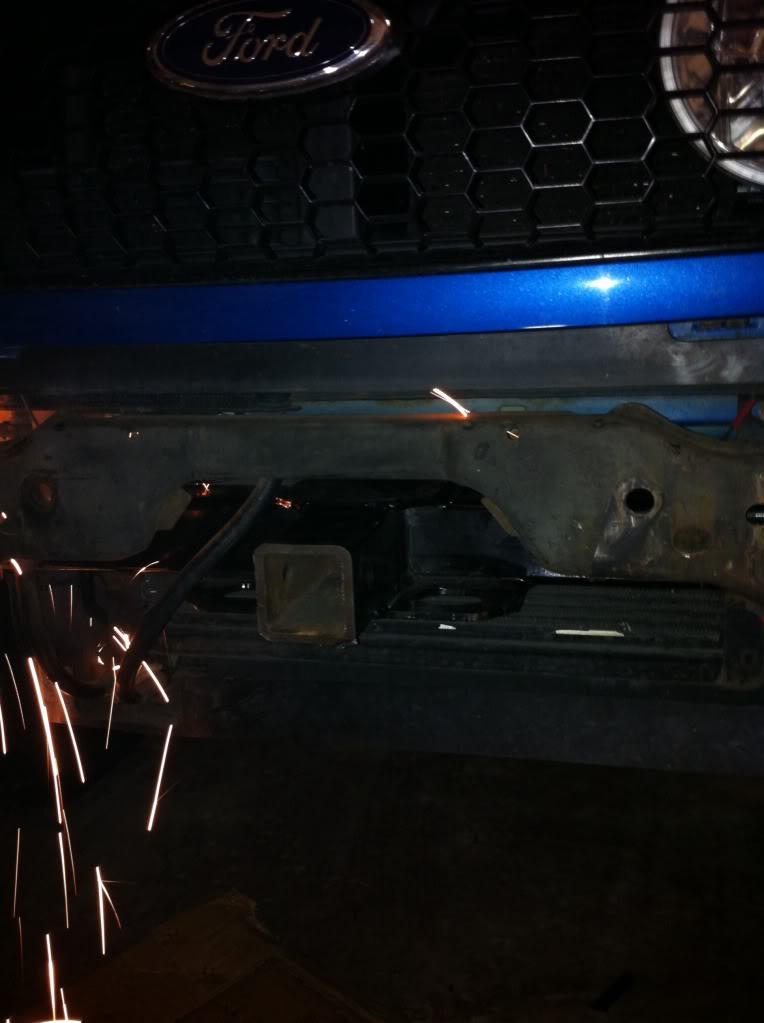

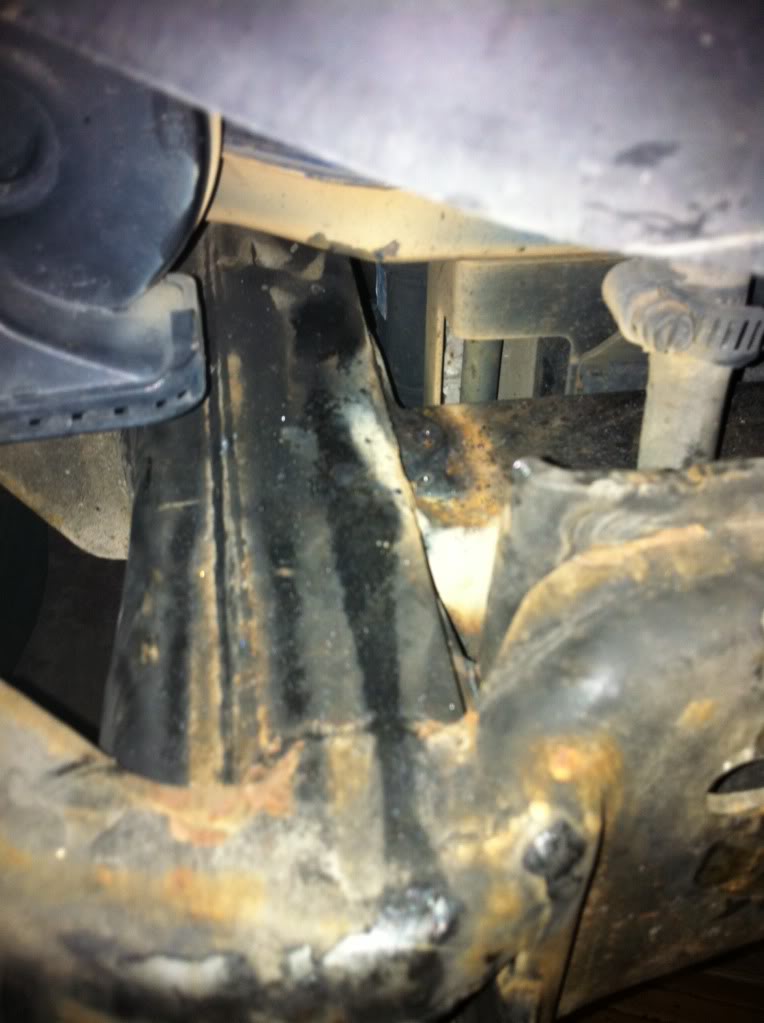

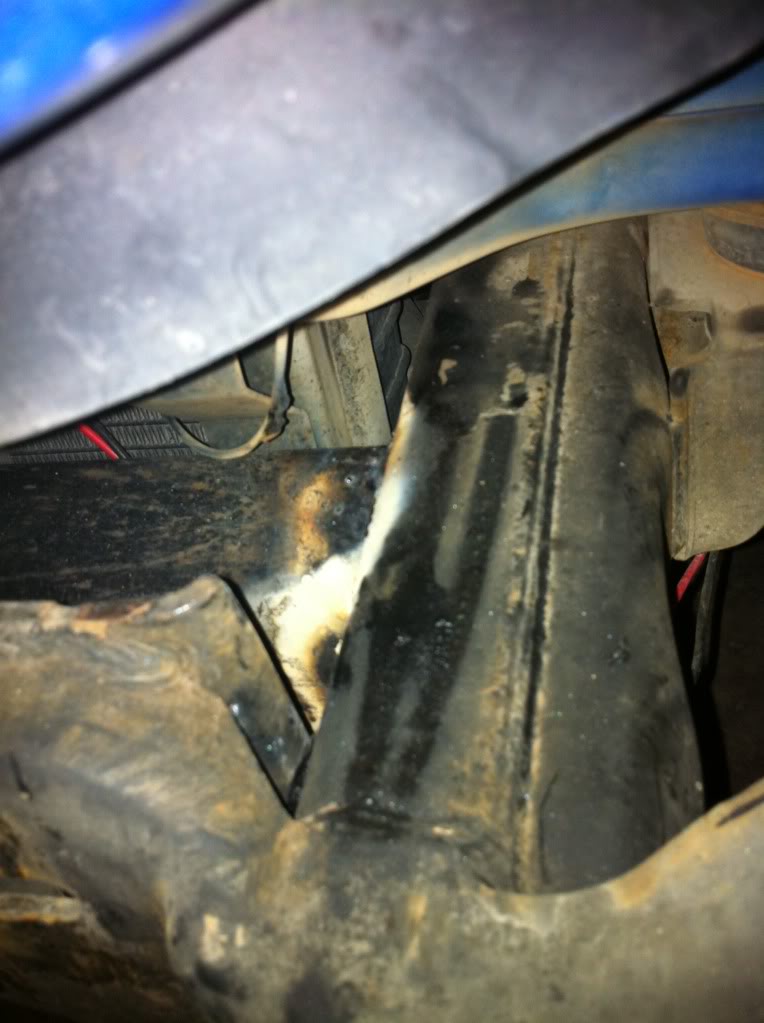

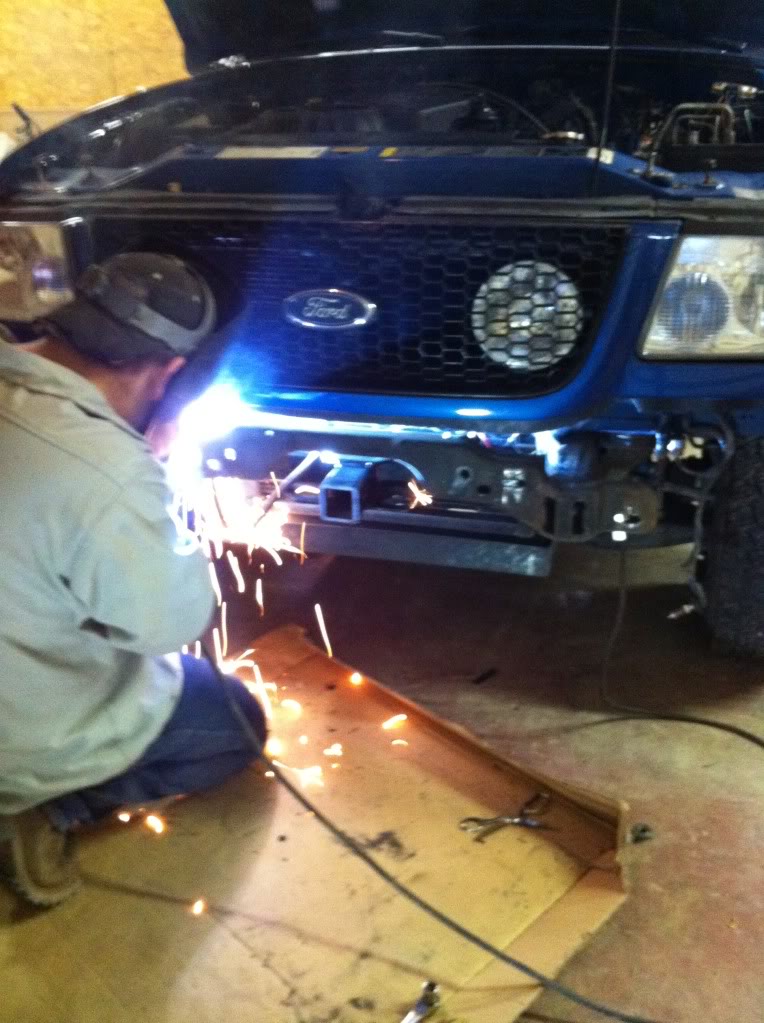

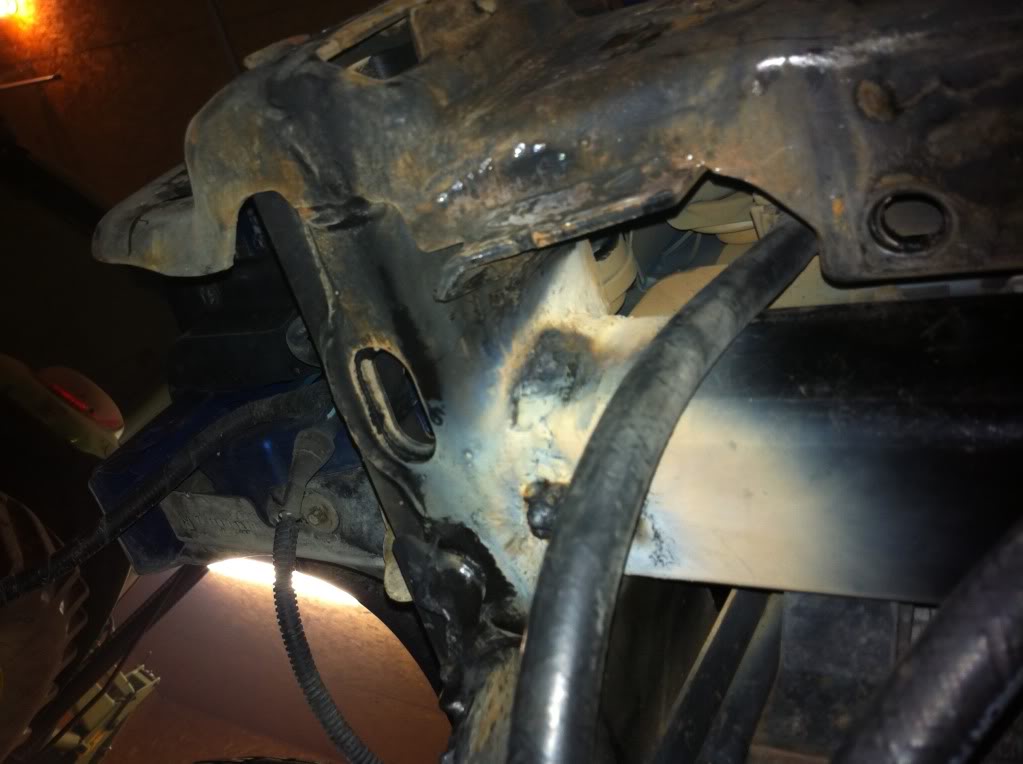

In place (stick welded)

Name:  photo3.jpg
Views: 43
Size:  55.6 KB
Name:  photo9.jpg
Views: 40
Size:  121.9 KB
Name:  photo6.jpg
Views: 41
Size:  74.1 KB
Name:  photo5.jpg
Views: 42
Size:  70.4 KB
Name:  photo8.jpg
Views: 42
Size:  72.2 KB
Name:  photo10.jpg
Views: 40
Size:  102.5 KB
Name:  photo13.jpg
Views: 42
Size:  78.6 KB
Name:  photo12.jpg
Views: 177
Size:  149.5 KB

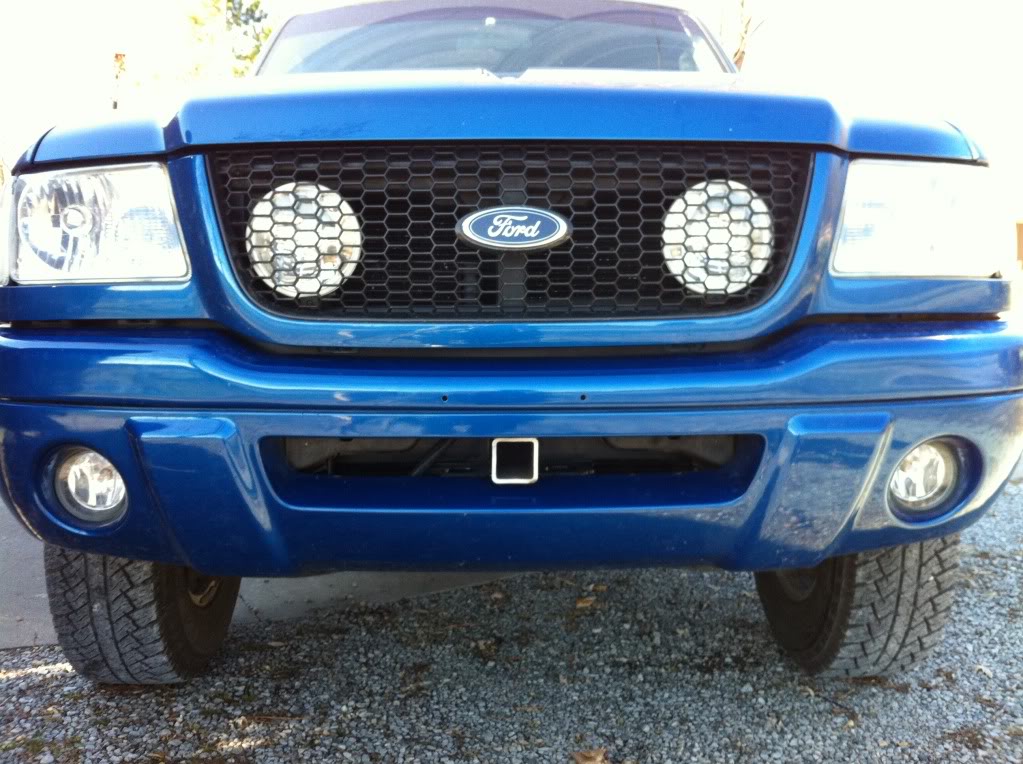

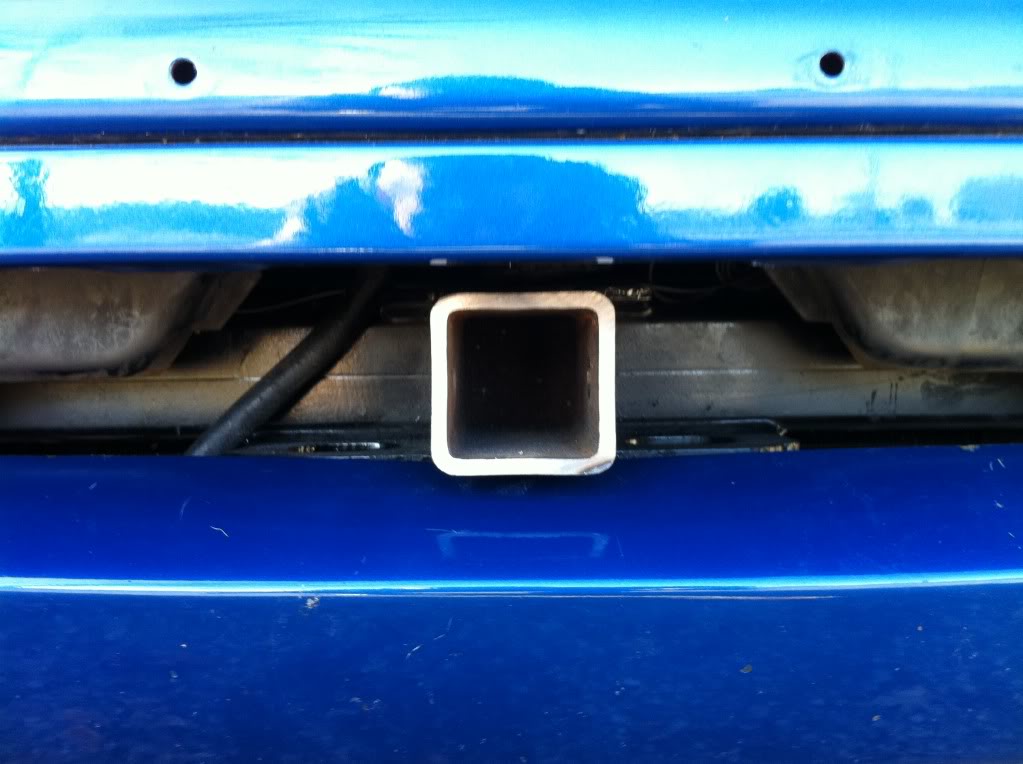

The hitch is slightly recessed, but the D ring receiver I'm making will come out far enough to clear the bumper

Now you're probably wondering where the Level II hooks are that I was so proud of. Well having to relocate the hitch means a new location for the hooks.

Turns out one of the hooks was slightly tweaked so I'm going to fix them later.

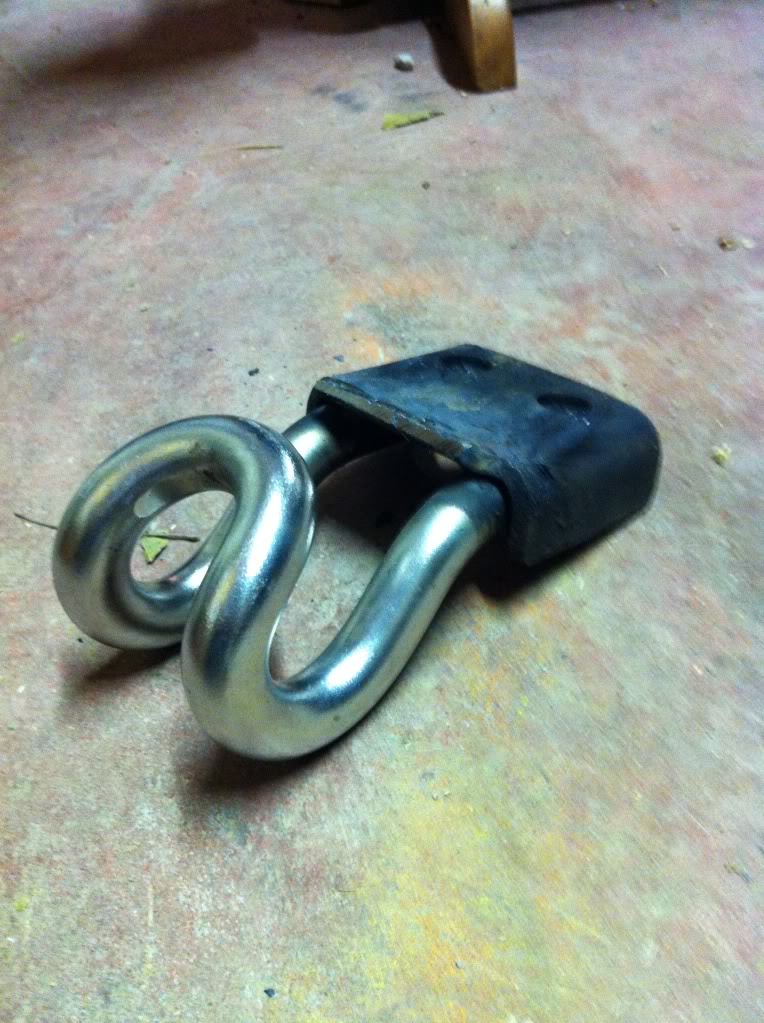

Here's a teaser of what I'm doing

Name:  photo4.jpg
Views: 41
Size:  154.5 KB
Reply With Quote
  #19
Old 11-27-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Looks good so far! I plan on doing something similar... hopefully in the spring.
Reply With Quote
  #20
Old 11-27-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
i need to do a front hitch NOW!!! i got no front tow points
Reply With Quote
  #21
Old 12-04-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
looks good so far. glad to see there is no need to cut it.
Reply With Quote
  #22
Old 12-04-2010
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Interesting... Good work though! I hate stick welding, though I'm certified in a ton of processes of it, I HATE it lol....
Reply With Quote
  #23
Old 12-04-2010
evilclown312's Avatar
Member
iTrader: (3)

Join Date: Dec 2008
Location: Logan ohio
Posts: 2,772
Quote:
Originally Posted by 99offroadrngr View Post
yeah i wouldn't cut an edge valence but a regular textured i wouldn't care...thats why mines cut lol
Not to mention, from what ive seen from edge valances they become flimsy when cut and flop around.
Reply With Quote
  #24
Old 12-04-2010
vansnxtweek's Avatar
Member

Join Date: Feb 2005
Location: USA
Posts: 2,666
It looks super clean recessed like that! Can't wait to see what ya do with the hooks.
Reply With Quote
  #25
Old 12-04-2010
Masteratarms93's Avatar
Member
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
looks good.

you need some all terrains by the way. but i guess since your have front tow hooks and a front hit receiver you will have plenty of tow points when you get stuck.
