I think it looks great.

One thing…

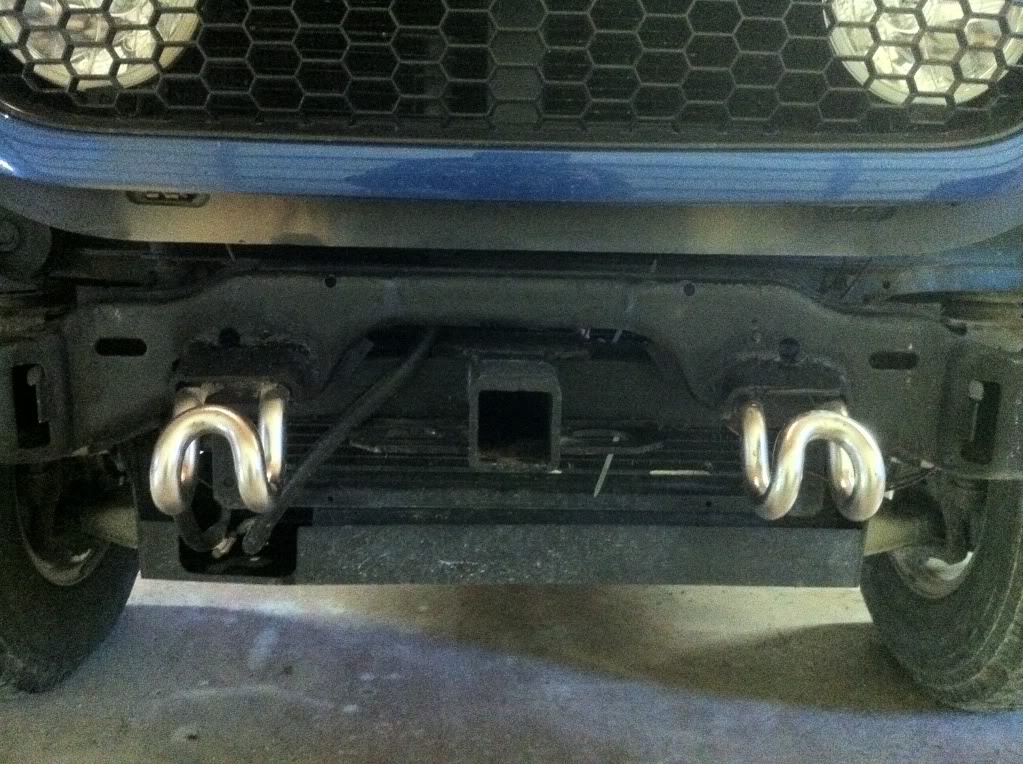

Name:  IMG_0221.jpg
Views: 111
Size:  193.4 KB

Reinforcement on the outer edge of the receiver !
I know it won’t be used as much as a rear receiver but a ring of steel tubing around the outer edge will make the receiver last a lot longer.
Reply With Quote
  #52
Old 04-23-2011
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by Scrambler82 View Post
Reinforcement on the outer edge of the receiver !
I know it won’t be used as much as a rear receiver but a ring of steel tubing around the outer edge will make the receiver last a lot longer.
I'm not sure what you mean. It's fully welded to the frame on each end of the receiver.

Do you mean the center tube? Because it's welded all around the tube and is braced on the bottom side
Reply With Quote
  #53
Old 04-23-2011
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Quote:
Originally Posted by Scrambler82 View Post
I think it looks great.
One thing…

Reinforcement on the outer edge of the receiver !
I know it won’t be used as much as a rear receiver but a ring of steel tubing around the outer edge will make the receiver last a lot longer.
Quote:
Originally Posted by 01RangerEdge View Post
I'm not sure what you mean. It's fully welded to the frame on each end of the receiver.
Do you mean the center tube? Because it's welded all around the tube and is braced on the bottom side
What I mean is the end of the received that is closest to the Valance, the opening that accepts the ball hitch or the outer edge.
The outer edge of the receiver takes a lot of punishment from the ball and hook moving sideways and up and down and can open up over time.
A single tube will open up before a reinforced tube.
Get a piece of tubing the has an ID the same as the receiver hitches OD, cut a piece approx ½ to ¾” long, slide it on the end and match to the front edge, weld it in place.

Having a problem explaining, not my best aptitude, look on the end of a Purchased Received Hitch and see what I mean.

Reply With Quote
  #54
Old 04-23-2011
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I see what you mean now. I had to cut that off because my valence wouldn't fit around it without using your hand to pull the valence opening.

Since it won't be used to pull trailers I don't think it will be a big deal. I'm only going to pulling myself or others out of places, so it's only being used for short amount of times.

I think newer valences have larger opening so some people may not have to cut the end off like I did
Reply With Quote
  #55
Old 04-23-2011
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Watch it and you will see the sides starting to bulge.
When pulling your buddies out and when you get hauled out if there is a lot of tugging it WILL stretch.

It is just me, you have your way and your reason and that it that but I do like to play on the safe side.

Luck,
Reply With Quote
  #56
Old 02-04-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598

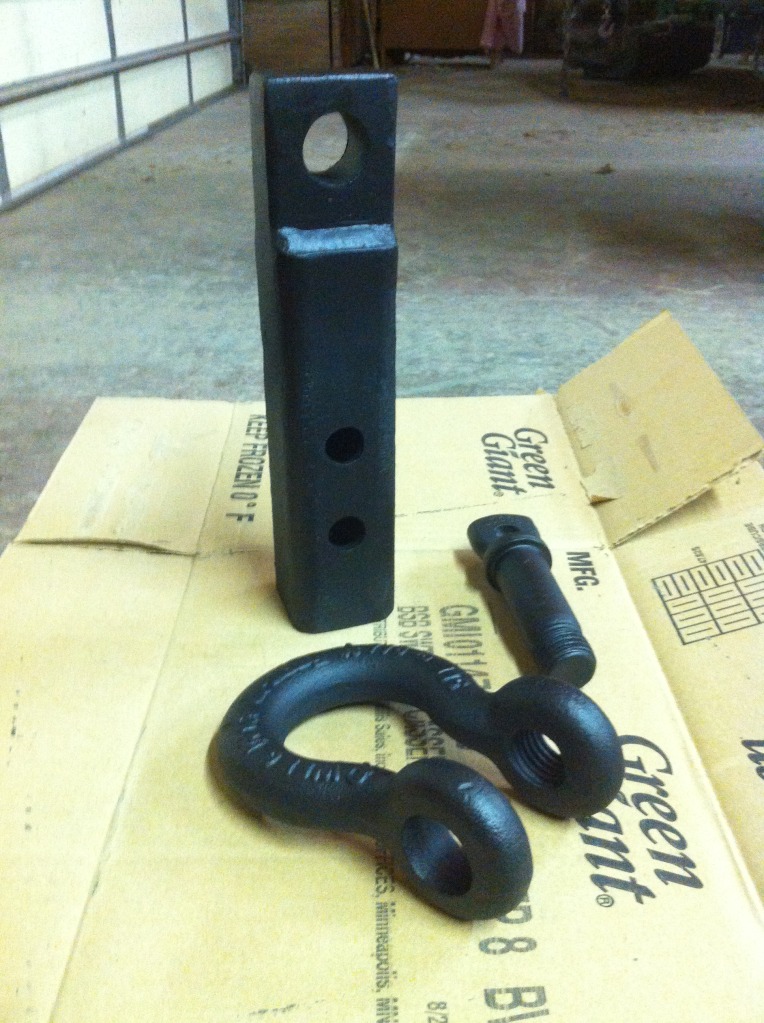

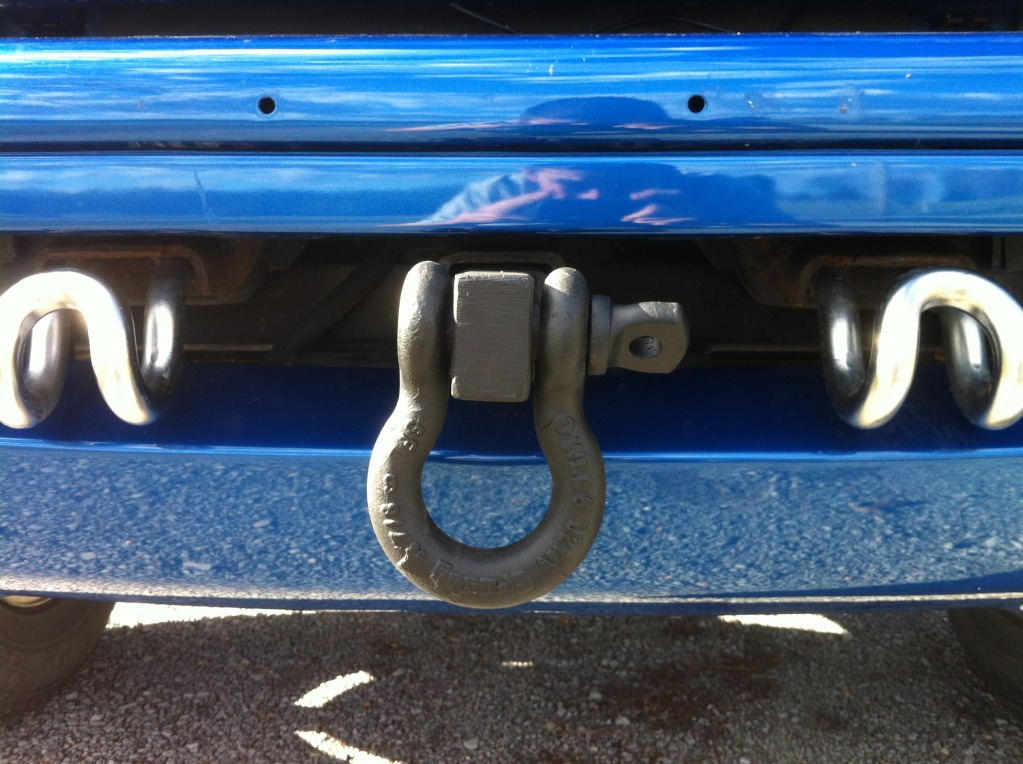

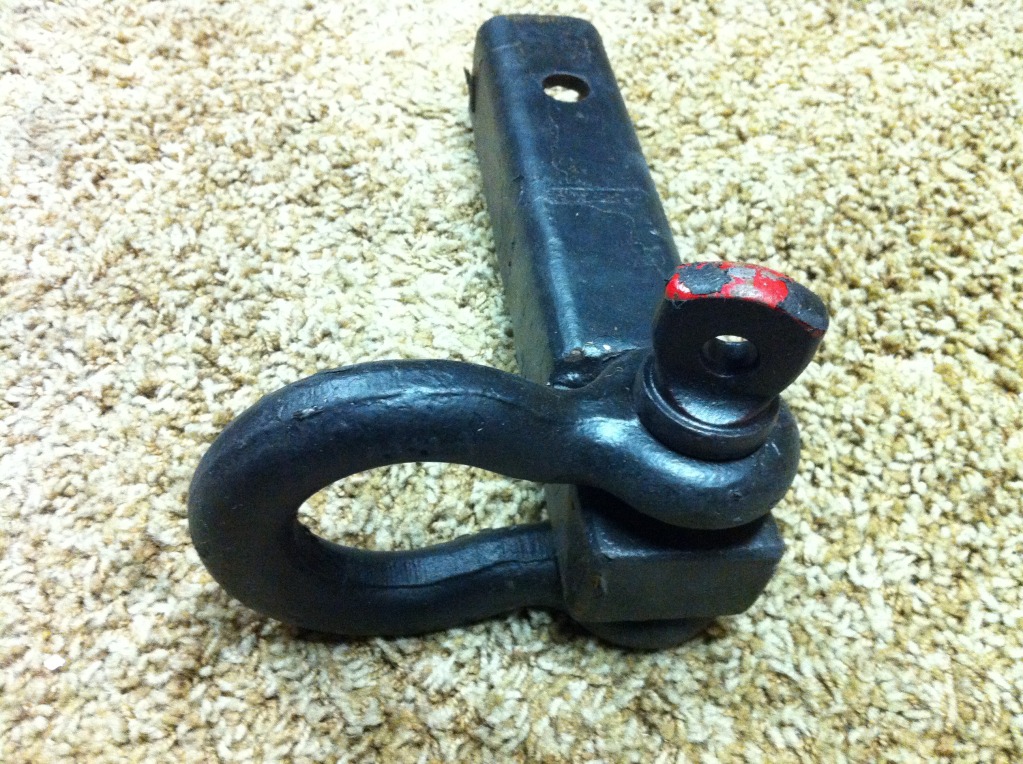

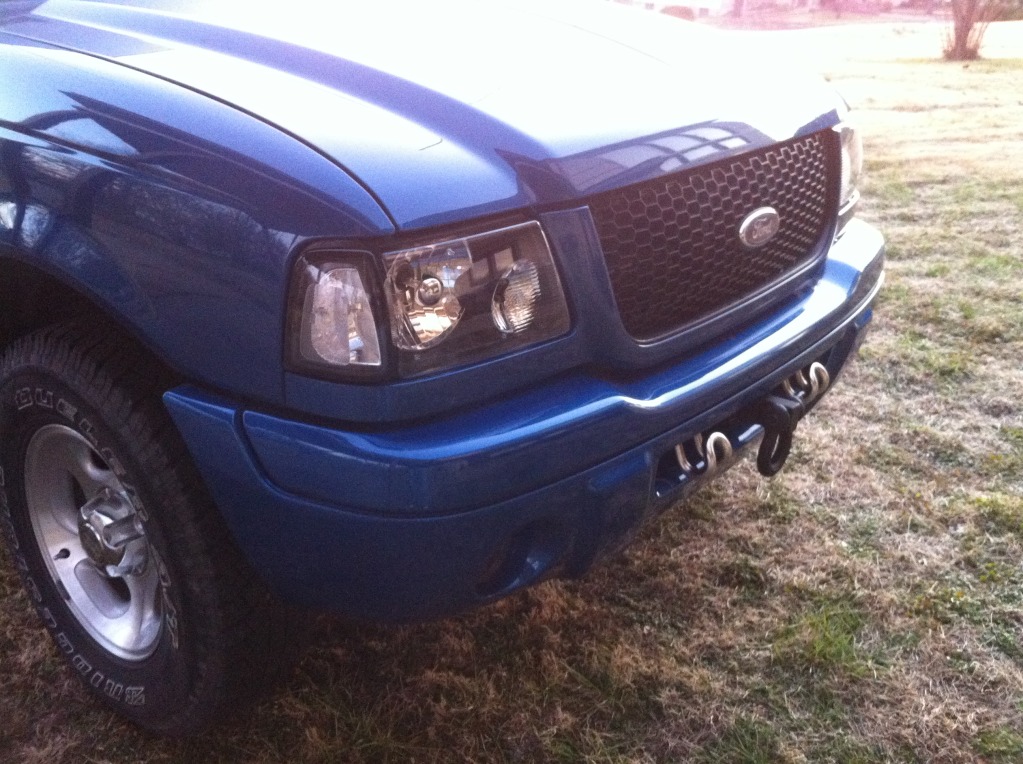

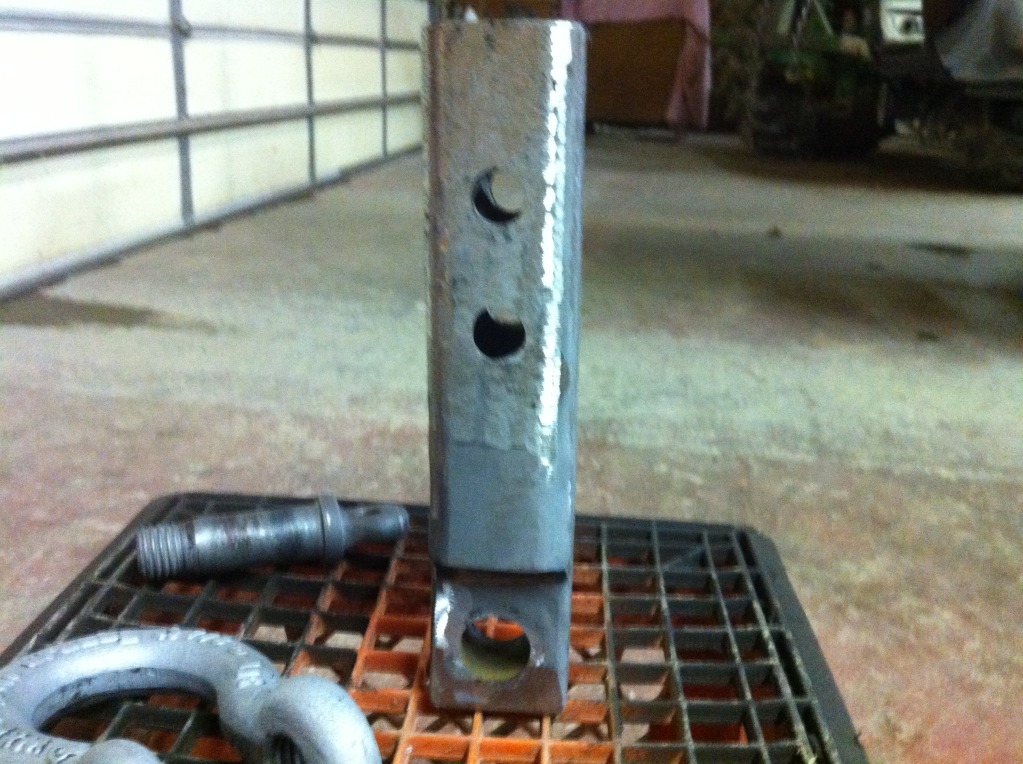

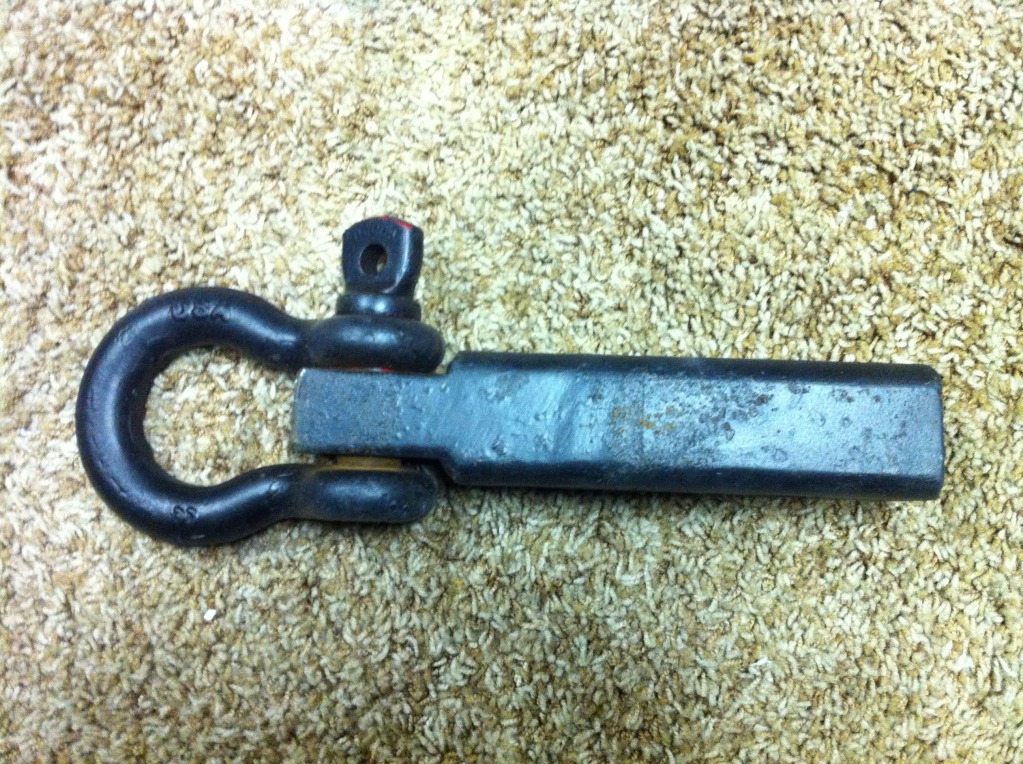

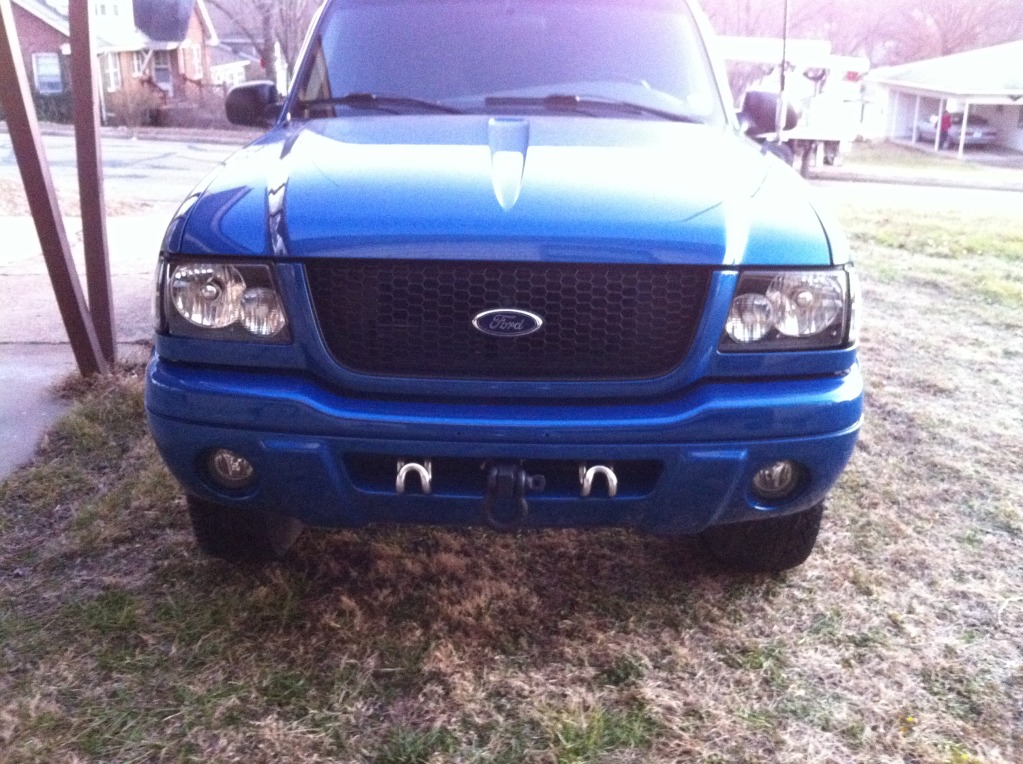

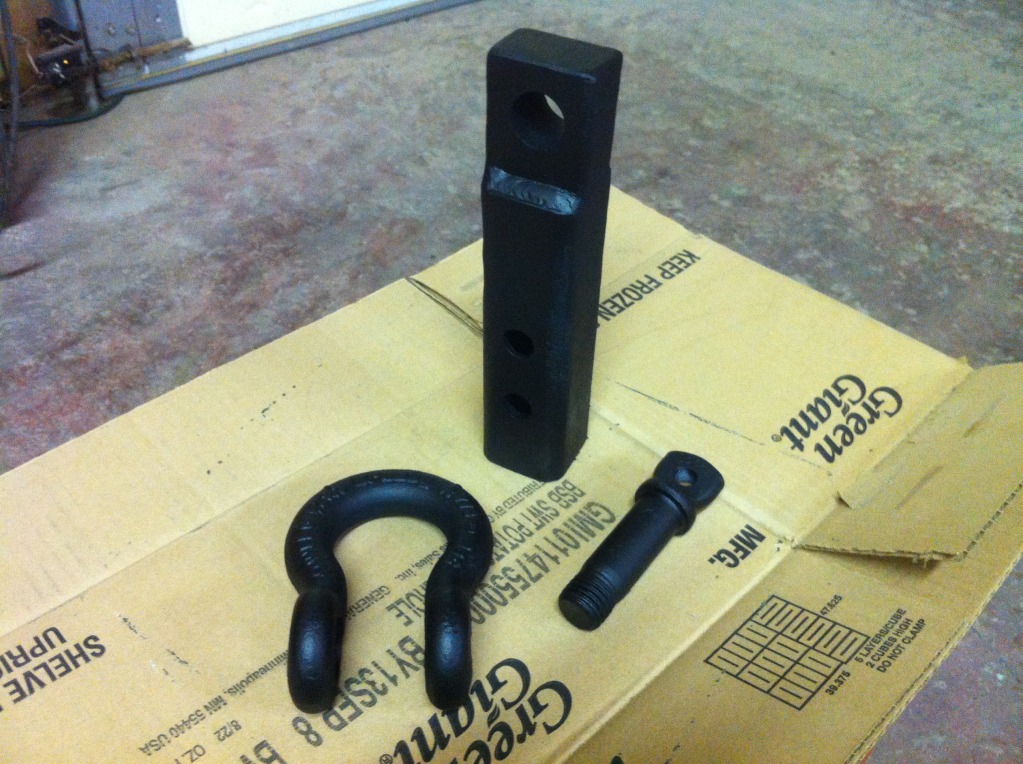

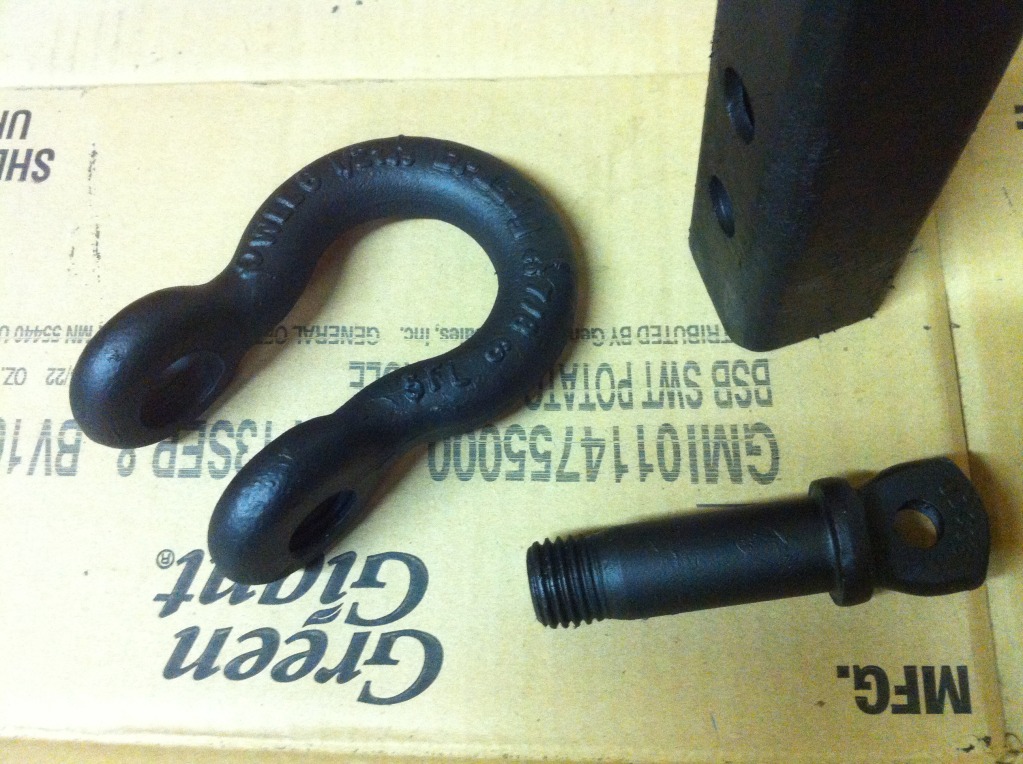

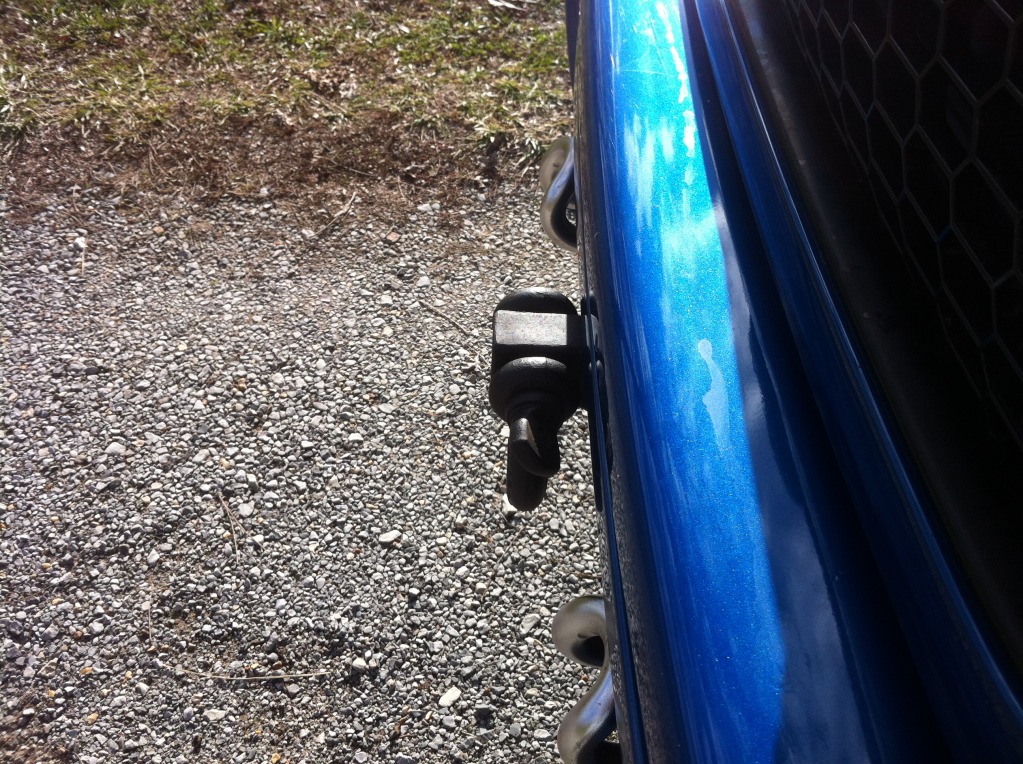

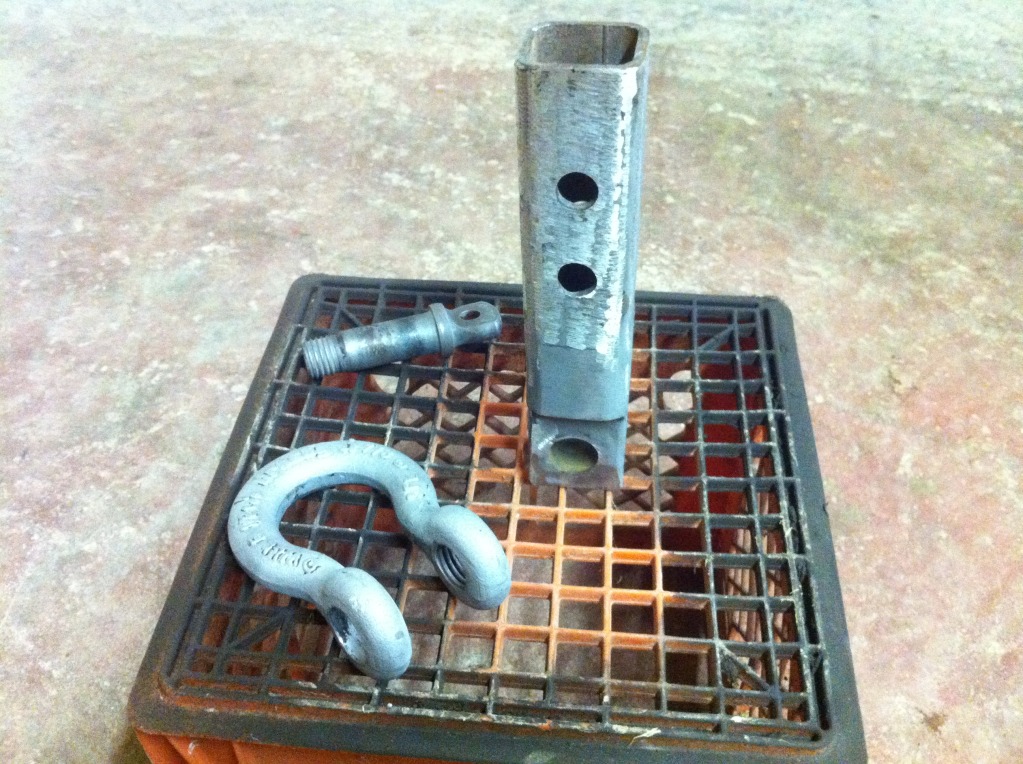

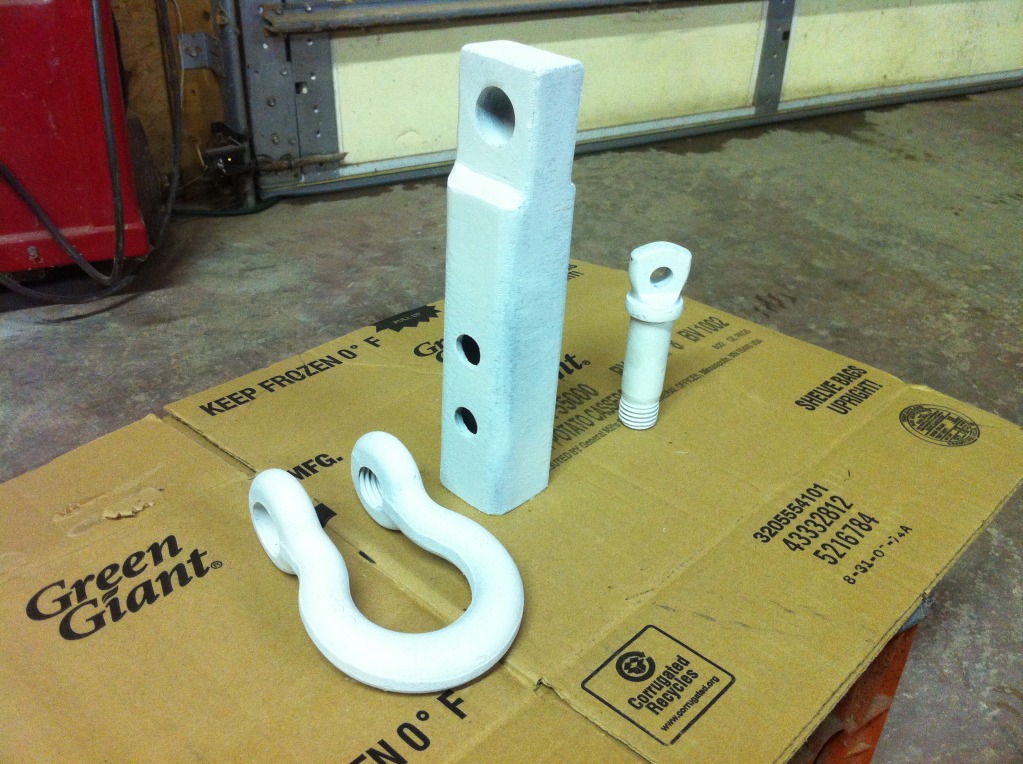

Pedro hooked me up with a receiver mount D ring. I had to add another hole for it to mount without hitting my bumper












Attached Thumbnails
My front hitch with Level II tow hooks-img_2589.jpg   My front hitch with Level II tow hooks-img_2590.jpg   My front hitch with Level II tow hooks-img_2666.jpg   My front hitch with Level II tow hooks-img_2667.jpg   My front hitch with Level II tow hooks-img_2668.jpg

My front hitch with Level II tow hooks-img_2669.jpg   My front hitch with Level II tow hooks-img_2670.jpg   My front hitch with Level II tow hooks-img_2671.jpg   My front hitch with Level II tow hooks-img_2728.jpg   My front hitch with Level II tow hooks-img_2729.jpg

My front hitch with Level II tow hooks-img_2887.jpg   My front hitch with Level II tow hooks-img_2886.jpg
Reply With Quote
  #57
Old 02-04-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Give it back
Reply With Quote
  #58
Old 02-04-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by 99offroadrngr View Post
Give it back
Reply With Quote
  #59
Old 02-04-2012
Kris03's Avatar
Member

Join Date: Jun 2011
Location: glastonbury, ct
Posts: 1,236
that looks good!
