The new rear bumper...

Happy B-Day to me! I wanted to have this done by my b-day and I succeeded!

Took all of about six hours but here are the pics finally...I'll have better ones in the morning probably.

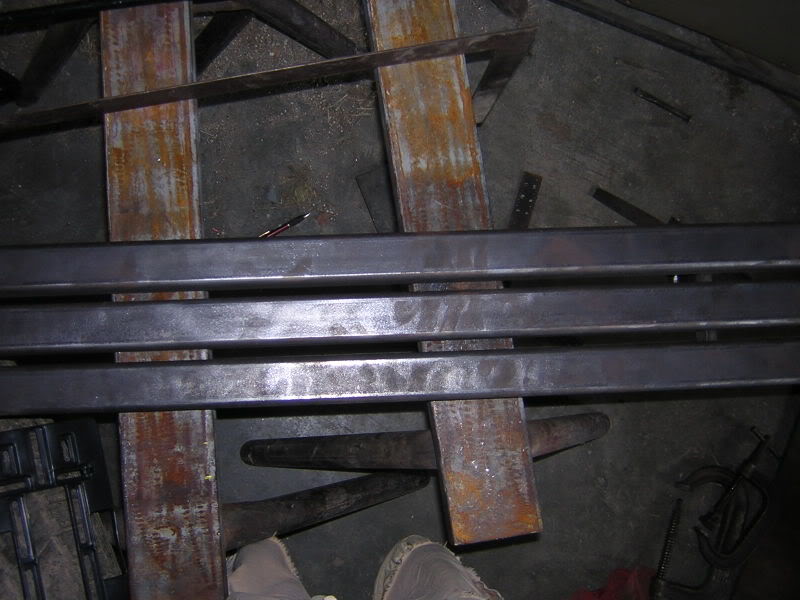

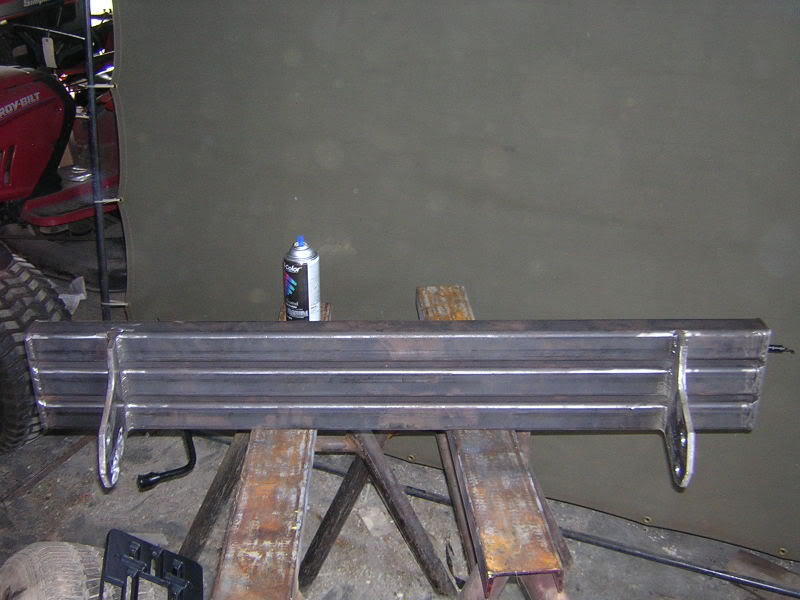

Name:  DSCN1634.jpg
Views: 3
Size:  61.5 KB

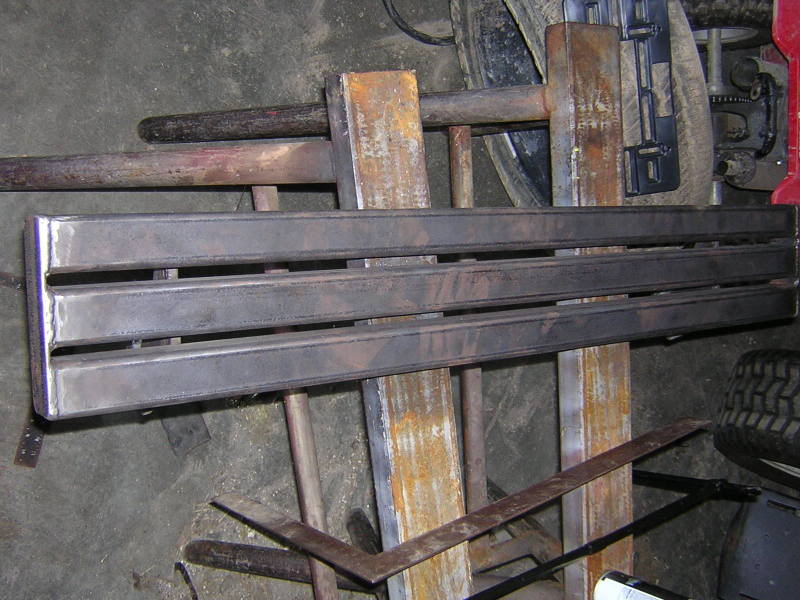

Name:  DSCN1635.jpg
Views: 4
Size:  67.5 KB

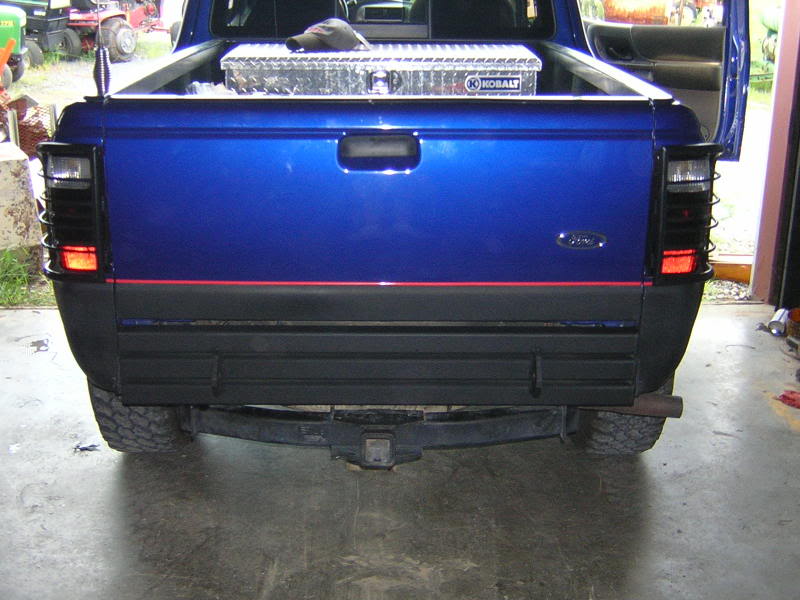

Name:  DSCN1636.jpg
Views: 2
Size:  80.7 KB

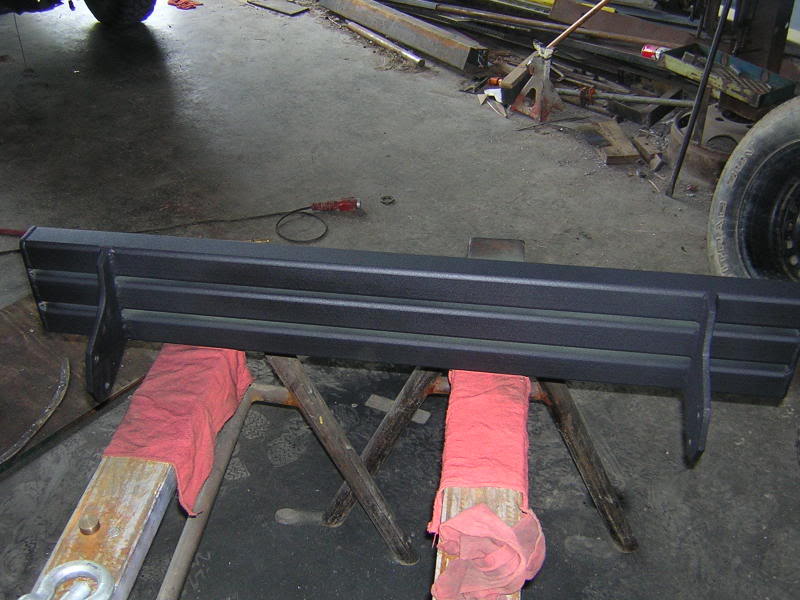

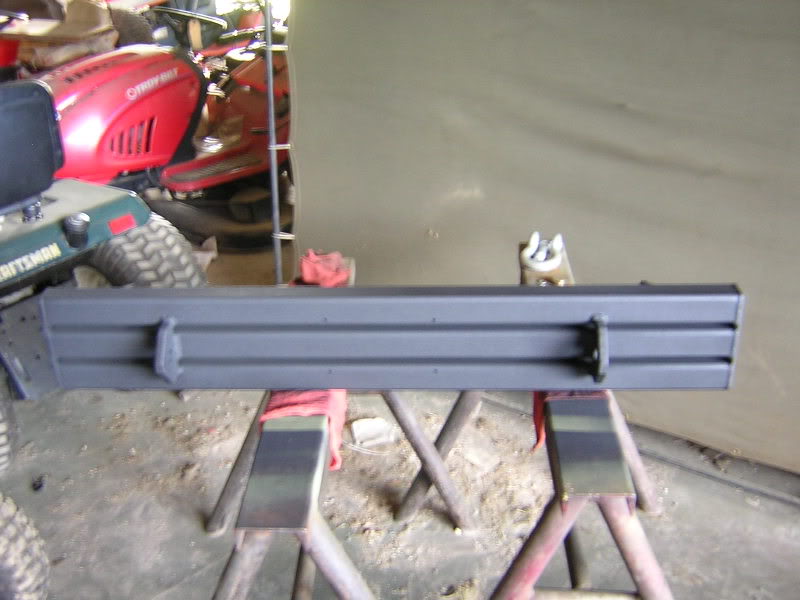

Name:  DSCN1639.jpg
Views: 1
Size:  58.1 KB
Name:  DSCN1641.jpg
Views: 1
Size:  72.6 KB
Name:  DSCN1642.jpg
Views: 2
Size:  72.1 KB

The finished product...

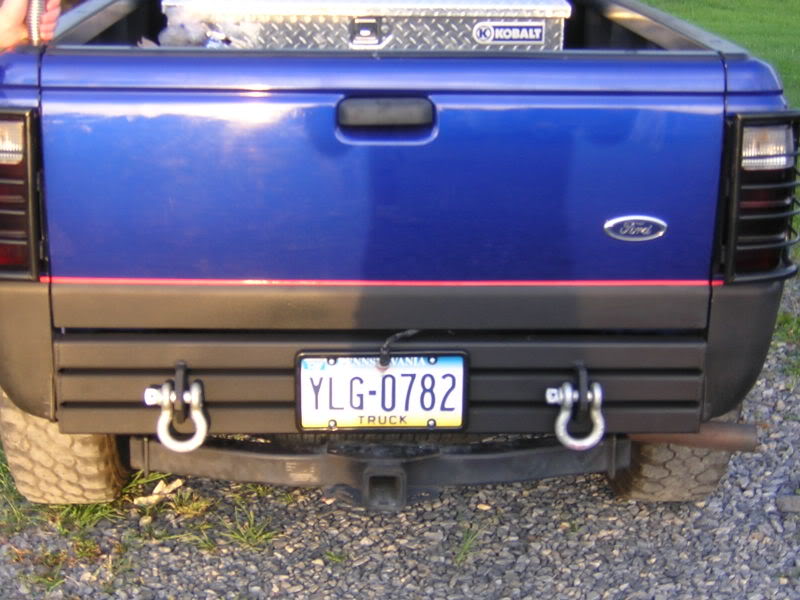

Name:  DSCN1644.jpg
Views: 2
Size:  76.3 KB

I just have to make a nicer coutesy light. Just threw that together with a twisty to make the cops happy for awhile =]
Reply With Quote
  #2
Old 08-04-2006
Member

Join Date: Dec 2005
Location: Ft Hood, TX
Posts: 1,779
that looks good. really sets off the look.
Reply With Quote
  #3
Old 08-04-2006
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
i wouldn't tailgate you. That's for sure. That's killer. Great work.
Reply With Quote
  #4
Old 08-04-2006
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Very Nice man, That looks rock solid. Welcome to the 'Do not tailgate me or it's gonna hurt Steel Bumper' club!
Reply With Quote
  #5
Old 08-04-2006
KARPE's Avatar
Member

Join Date: Apr 2005
Location: Valrico, Fl 33594
Posts: 4,748
I think the bottom bar should be recessed about 3-4" from the second as to follow the body a bit more.
Reply With Quote
  #6
Old 08-04-2006
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Do you have any pics. of how it's mounted? What did you mount it to?
Reply With Quote
  #7
Old 08-04-2006
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Got two pair of 3/4" bolts on the outside of each mounting bracket on the hitch. I was going to integrate the hitch into the bumper but I would have lost the spare tire carrier. I wish I would have gotten some shots of the material. That pipe has 5/16" side walls. It actually wieghs about twice as much as the stock bumper. The brackets were made of 3/8" plate steel, it's over twice as thick as the frame material lol. I overkilled it a bit, but I should never have a problem with it.
Reply With Quote
  #8
Old 08-04-2006
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Quote:
Originally Posted by KARPE
I think the bottom bar should be recessed about 3-4" from the second as to follow the body a bit more.
There are no body lines near the bumper. It starts at the exact same height as the stock bumper came in under the tailgate and it sits perfectly flush with the bottom of the flareside panels. I also made the gaps the same as the tailgate side gaps. If it wasn't so meaty it'd look like it came from the factory. I didn't get a good pic of that though. Like I said, I'll get more pics in the morning. I was lucky to get the final shot before the sun went down.
Reply With Quote
  #9
Old 08-04-2006
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
damn.. i feel out did...

one uper..lol
Reply With Quote
  #10
Old 08-04-2006
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
That's what I was waiting to hear! lol. Glad I reconfigured your design well. I got the Andy stamp of approval. *Woo Hoo*

Thanks for the idea btw! I'm still kinda down that I couldn't integrate the hitch but it actually worked out making the brackets attach to the hitch. And I can still limp home on the 245 stocker spare if I have to. It would have sucked putting that thing in the bed(along with my toolchest), I would've had no room in the bed.

Thanks for all the compliments guys! I worked hard on this sucker.

ps. I used one nice coat of self-etching primer and about four/five nice coats of Duplicote BedLiner Spray to match the rest of the truck. I freakin already chipped it putting it on before it was fully cured...oh well. It's not a show truck.
