PAshooters Bumper Build

So I finally got around to building my bumper because my original was bent from a deer hit and was rusting through.

I modeled it off of wolfman00's old bumper that is now mothman999's.

Its made from a skeleton of 1 inch square tubing thats 1/8" thick.

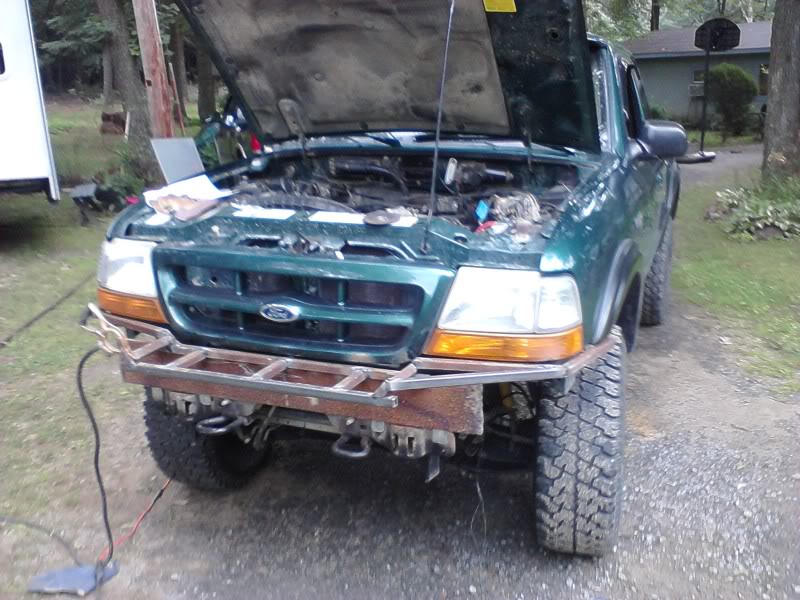

Here's pictures while we were still getting the skeleton built.
Name:  678A0056.jpg
Views: 98
Size:  103.7 KB
Name:  678A0057.jpg
Views: 28
Size:  126.5 KB

It was all done with a Lincoln Electric Eagle 10,000. I am lucky enough to have a pap whos a gas line welder, so his beads are very nice.

We have it mostly covered now with 10 gauge steel and after that I plan on bondoing it to make all the imperfections go out of it and then hurculining it.
Reply With Quote
  #2
Old 06-26-2011
littlered's Avatar
Member
iTrader: (2)

Join Date: Sep 2008
Location: Lewistown, Mo
Posts: 1,542
cant wait to see it!
Reply With Quote
  #3
Old 06-27-2011
PAShooter's Avatar
Member
Thread Starter

Join Date: Jul 2010
Location: Altoona, PA
Posts: 908
WellWe got all the welding and grinding done. Tomorrow I plan on bondoing it and painting it.
Reply With Quote
  #4
Old 06-27-2011
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Looking forward to the finished pics! Good idea using the 1x1's for the frame of it... I never thought of that. I guess it would make it possible to use a thinner plate on top if it's reinforced well in behind like that.
Reply With Quote
  #5
Old 06-28-2011
PAShooter's Avatar
Member
Thread Starter

Join Date: Jul 2010
Location: Altoona, PA
Posts: 908

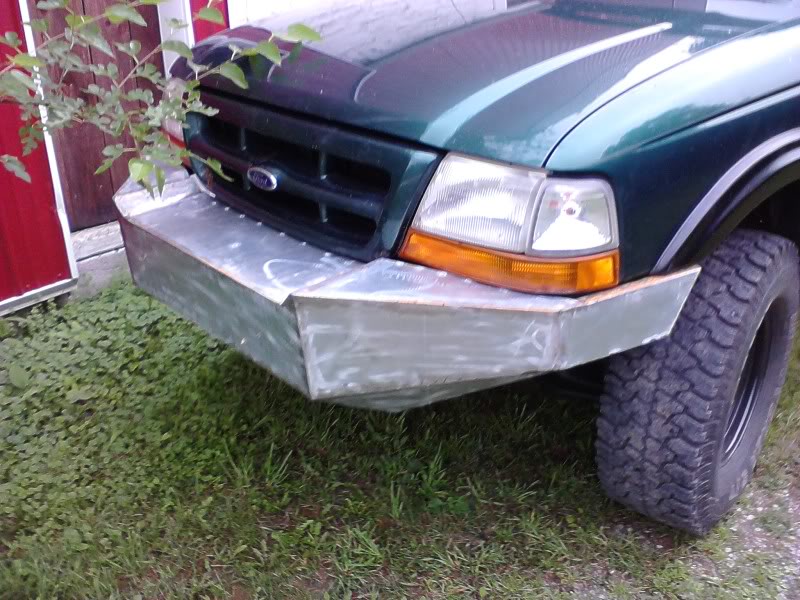

Its currently drying and then being mounted up again, but here are some pics.
Name:  678A0064.jpg
Views: 23
Size:  107.3 KB
Name:  678A0065.jpg
Views: 17
Size:  67.0 KB
Name:  678A0068.jpg
Views: 20
Size:  78.3 KB
Name:  678A0067.jpg
Views: 24
Size:  82.8 KB
Name:  678A0066.jpg
Views: 14
Size:  56.1 KB
Reply With Quote
  #6
Old 06-28-2011
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Looks good, but very big.
Reply With Quote
  #7
Old 06-28-2011
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Do you plan on putting a winch up there?
Reply With Quote
  #8
Old 06-28-2011
littlered's Avatar
Member
iTrader: (2)

Join Date: Sep 2008
Location: Lewistown, Mo
Posts: 1,542
holy big bumper! looks good man
Reply With Quote
  #9
Old 06-28-2011
PAShooter's Avatar
Member
Thread Starter

Join Date: Jul 2010
Location: Altoona, PA
Posts: 908
It is a little big, but i may put a winch in it. I think once I put my 3 hellas back on and add the light hoop itll look slightly smaller
Reply With Quote
  #10
Old 06-28-2011
PAShooter's Avatar
Member
Thread Starter

Join Date: Jul 2010
Location: Altoona, PA
Posts: 908
Its all painted. My first try with bondo wasnt a very good one haha
Reply With Quote
  #11
Old 07-05-2011
PAShooter's Avatar
Member
Thread Starter

Join Date: Jul 2010
Location: Altoona, PA
Posts: 908

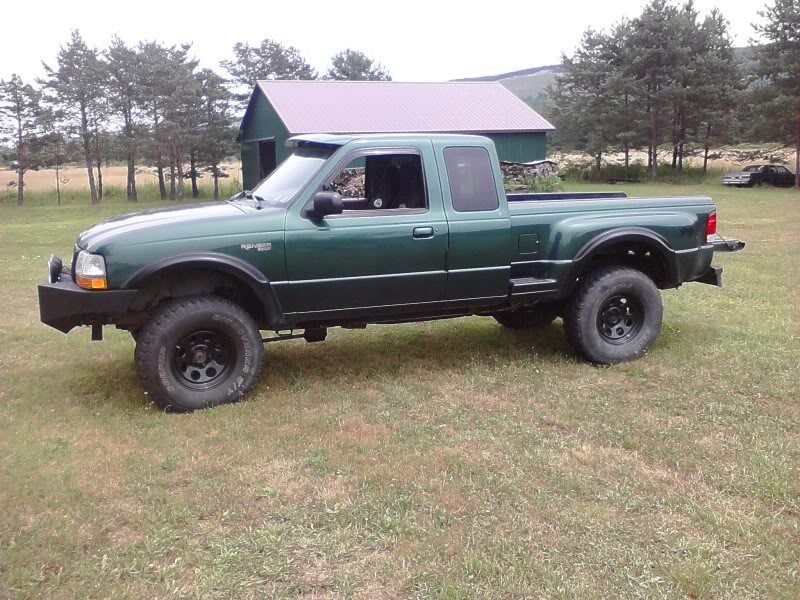

And a side view of the finished product.
Name:  678A0071.jpg
Views: 17
Size:  138.9 KB

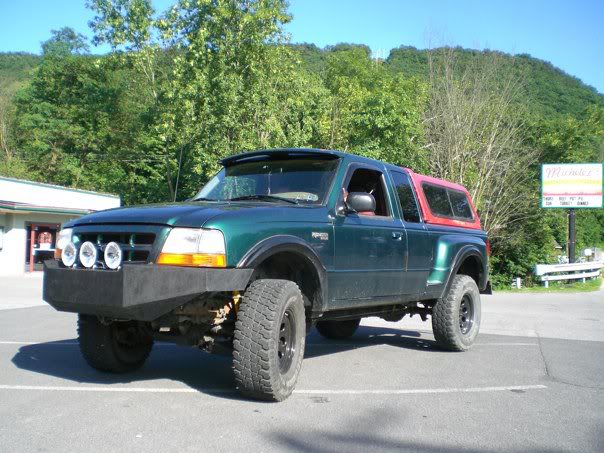

And one from the front.
Name:  261317_10150237099283612_752868611_7500713_2450524_n.jpg
Views: 14
Size:  71.7 KB
Reply With Quote
  #12
Old 07-05-2011
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
I think if you trimmed about 3 inches off it, it would look perfect. Just sticks out a little too far for my liking.
Reply With Quote
  #13
Old 07-05-2011
PAShooter's Avatar
Member
Thread Starter

Join Date: Jul 2010
Location: Altoona, PA
Posts: 908
It is a little farther than I planned on, but it was a design as you build type of deal. Ill probably rebuild it eventually and fix the dimensions a little.
Reply With Quote
  #14
Old 07-06-2011
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
not bad for a first time man
Reply With Quote
