Pic Request of grill guard brackets for BL

I just got my BL and SL done but now i cant put on my grill guard. So i was wondering if anyone who has a BL and a grill guard has any measurements or would like to make me some (I would pay of course) new brackets for my grill guard.
Reply With Quote
  #2
Old 07-31-2007
red_fx444's Avatar
Member

Join Date: Jul 2007
Location: hammond wi
Posts: 85
hey man...i'll make ya some brackets outta stainless....whats your grille gaurd look like...what year truck......hit me up (machinist here) do u have existing brackets? or need complete new ones?
Reply With Quote
  #3
Old 08-30-2007
team_insanity's Avatar
Member

Join Date: Aug 2007
Location: Bristol, TN
Posts: 63

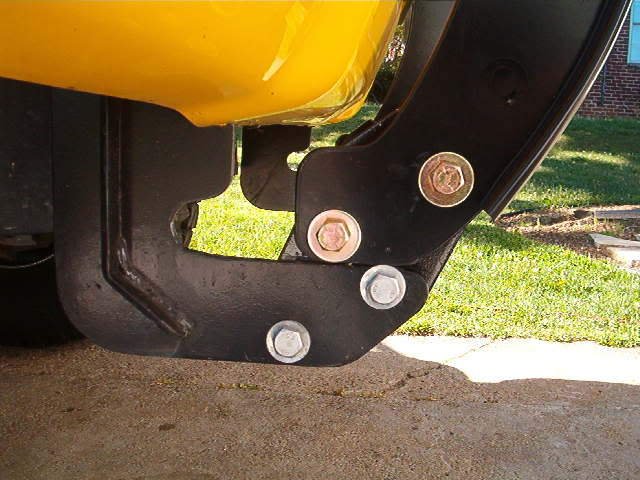

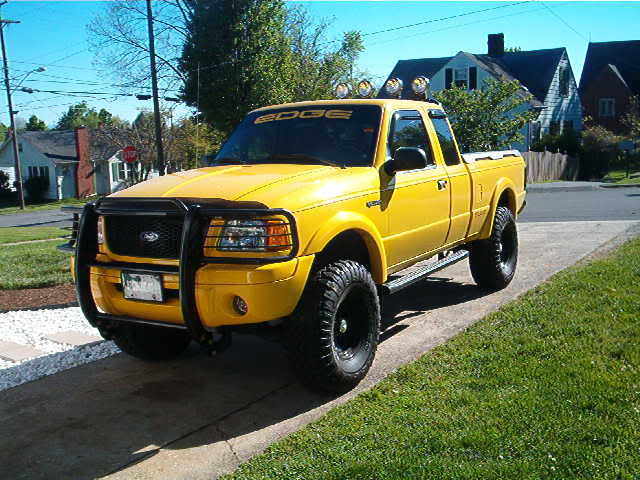

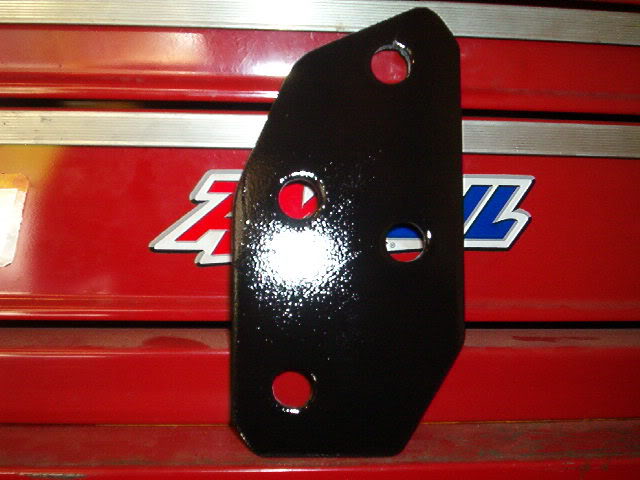

I don't know if you already have your brackets or not, and I don't know how your grille guard is made, but here is my setup:

Name:  IM000830.jpg
Views: 164
Size:  57.1 KB
Name:  IM000825.jpg
Views: 14
Size:  44.4 KB
Name:  IM000828.jpg
Views: 17
Size:  49.1 KB
Name:  MountingBracket.jpg
Views: 9
Size:  27.5 KB
Reply With Quote
  #4
Old 08-31-2007
burnsdez's Avatar
Member

Join Date: Jan 2007
Location: Wabash, IN
Posts: 54
Quote:
Originally Posted by team_insanity

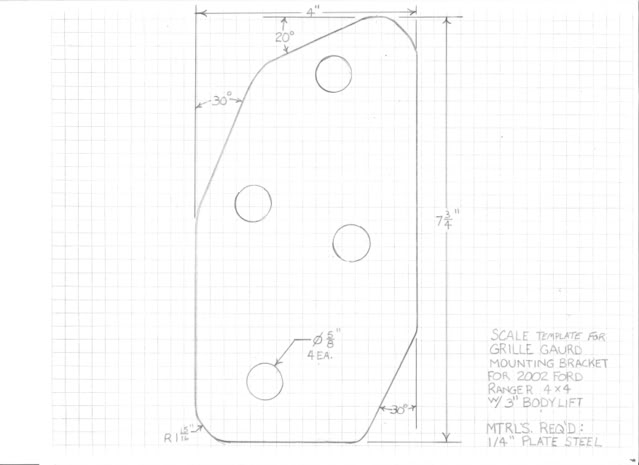

Not to be technical or anything, but wouldn't the location of the holes be important on the drawing?
Reply With Quote
  #5
Old 08-31-2007
team_insanity's Avatar
Member

Join Date: Aug 2007
Location: Bristol, TN
Posts: 63
It would be much more important if the drawing weren't to exact scale. You can lay this piece of paper over the the part and draw the exact location of the holes. I never claimed to be an engineer or draftsman...geez.
Reply With Quote
  #6
Old 09-02-2007
burnsdez's Avatar
Member

Join Date: Jan 2007
Location: Wabash, IN
Posts: 54
Quote:
Originally Posted by team_insanity
It would be much more important if the drawing weren't to exact scale. You can lay this piece of paper over the the part and draw the exact location of the holes. I never claimed to be an engineer or draftsman...geez.
I didn't mean to be a d*ck. I took 5 years of drafting and CAD throughout high school and college so I spot things like that easily. I guess if you use it as a template then you wouldn't need the locations but if you were posting it for other members to use, it would be very difficult to make a template without the dimensions for the holes. Not trying to be a smartass, just trying to be help.
Reply With Quote
  #7
Old 09-02-2007
team_insanity's Avatar
Member

Join Date: Aug 2007
Location: Bristol, TN
Posts: 63
Quote:
Originally Posted by burnsdez
I guess if you use it as a template then you wouldn't need the locations but if you were posting it for other members to use, it would be very difficult to make a template without the dimensions for the holes.
Good point. I actually drew it as a template for the company that produces the grill guard that I have. They had no provisions for someone with a body lift. It's not exactly my best work, but I haven't done any "real" drafting for several years. But I do have to read blueprints and schematics all the time. Thanks for the tip.
