"ranch hand" style bumper

hopefully today, maybe tomorrow ill be aquiring some 6" steel pipe from Graniteguy, and when i do.. im gonna use the body lift rear bumper lift brackets, cut a notch in them, and weld the 6" pipe to it... and wah-bam i have a mean a$$ bumper


im kinda contimplating filling it w/ cement.. but that would b a bit excessive, on the other hand it would help w/ traction


then when its on ill be getting 2 of those weld-on d-rings and putting them on the pipe directly behind where its mounted to the frame...


any insight on this before hand?
-Matt

one catch... idk if anyone has heated up cement before w/ a torch.. it pops/explodes so that could pose as a problem if i fill the pipe w/ cement then weld on it?
Reply With Quote
  #2
Old 11-30-2006
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
fill it with air.
Reply With Quote
  #3
Old 11-30-2006
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by graniteguy
fill it with air.
Reply With Quote
  #4
Old 11-30-2006
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
Quote:
Originally Posted by lifted97ranger
lol. Let me elaborate. use it as a storage tank for air. 6" diameter x 4-1/2 ft pipe is not shabby.
Reply With Quote
  #5
Old 11-30-2006
Trevelyn1015's Avatar
Still El Presidente...

Join Date: May 2004
Location: Texas
Posts: 4,900
are we talking like, schedule 40 steel?
Reply With Quote
  #6
Old 11-30-2006
HAZZARDJOHN's Avatar
Member

Join Date: Dec 2005
Location: Wyoming MN
Posts: 2,400
Quote:
Originally Posted by graniteguy
fill it with air.
Fill it with Cream cheese! Then you never have to look for it at Bagel time!
Reply With Quote
  #7
Old 11-30-2006
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by graniteguy
lol. Let me elaborate. use it as a storage tank for air. 6" diameter x 4-1/2 ft pipe is not shabby.
i knew what you ment.............

prolly would be what almost 5 gallons of air....
Reply With Quote
  #8
Old 11-30-2006
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Make a long skinny keg then its beer time any time!
Reply With Quote
  #9
Old 11-30-2006
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
Quote:
Originally Posted by Trevelyn1015
are we talking like, schedule 40 steel?
a big rusty pipe at my father in laws ranch
Reply With Quote
  #10
Old 11-30-2006
RanJerEDGE's Avatar
Member

Join Date: Jun 2004
Location: Austin/Houston, Tx
Posts: 689
I would make some stronger brackets, I haven't seen body lift brackets, but they can't be but like 3/16" thick... and the pipe is going to weigh alot as is. I dont think they will stand much of a chance in an accident, and isn't that a point of ranch hand bumpers?
Reply With Quote
  #11
Old 11-30-2006
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
prolly should take the stock brackets and use them since they bolt to the bottom of the frame instead of to the side like the body lift brackets...
Reply With Quote
  #12
Old 11-30-2006
RanJerEDGE's Avatar
Member

Join Date: Jun 2004
Location: Austin/Houston, Tx
Posts: 689
I dunno, if he's using something as beefy as 6 inch pipe, he might as well make some heavy dudy brackets. It will only be a strong as the weakest link, which in this case are the brakets, even the stockers are wimpy compaired to what hes mounting to it.
Reply With Quote
  #13
Old 11-30-2006
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
maybe make a bracket that wrapped around the frame and bolted on all sides......with plenty of gussets in it....
Reply With Quote
  #14
Old 11-30-2006
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i was gonna bolt the brackets to the frame. then weld them to it too.. and some cross braces..

i just dont have access to like place 1/4" steel.. the brackets have to be between 1/8 and 1/4.. they rnt thin.. hell they are thicker then the stock ones..
im also thinking about putting a cap on one end, or both and using it to store like chain, a crow bar, etc...

as for the air storage.. i kinda want it up in my frame not exposed.. its a cheap easy way.. but its also gonna be more likely to have the hose torn off or something?

keg is one idea, i wanted to make the bottom half of my tool box a keg at one time..

but cement would be ultimate! fkn thing would weigh like 200 lbs!
then if it does break bc i get hit.. it will f more up






hell one more idea..
everyone was giving wayne crazy ideas for his rear pipes.. what if i made mine like a quick detachment so i could like drop it goin 70 down the highway if im being chased by bad guys?
Reply With Quote
  #15
Old 12-03-2006
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i got it on.. but my tac welds were too big? i gotta take a grinder w/ a cut off wheel to something so i can get the pipe back off... need to cut it a little ,finish welding it up, make sure it wont come off at 65 mph(could be hella bad), grind it, paint it, any touch up work


the thing must weigh 150+lbs as is.. forget the cement idea
Reply With Quote
  #16
Old 12-03-2006
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
get some pics up
Reply With Quote
  #17
Old 12-03-2006
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
Matt, is that the diameter you were envisioning? That thing was humongus.
Reply With Quote
  #18
Old 12-03-2006
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
hahahahha ITS HUGE, i just got it done.. well i need to go to a welding shop to get it DONE DONE.. but its on.. here r some pics

note:
* IT WEIGHS AS MUCH AS ME...
*lisence plate, temp position
*need to find a home for the tow hooks
*step?
*needs to get painted, mb bed liner?

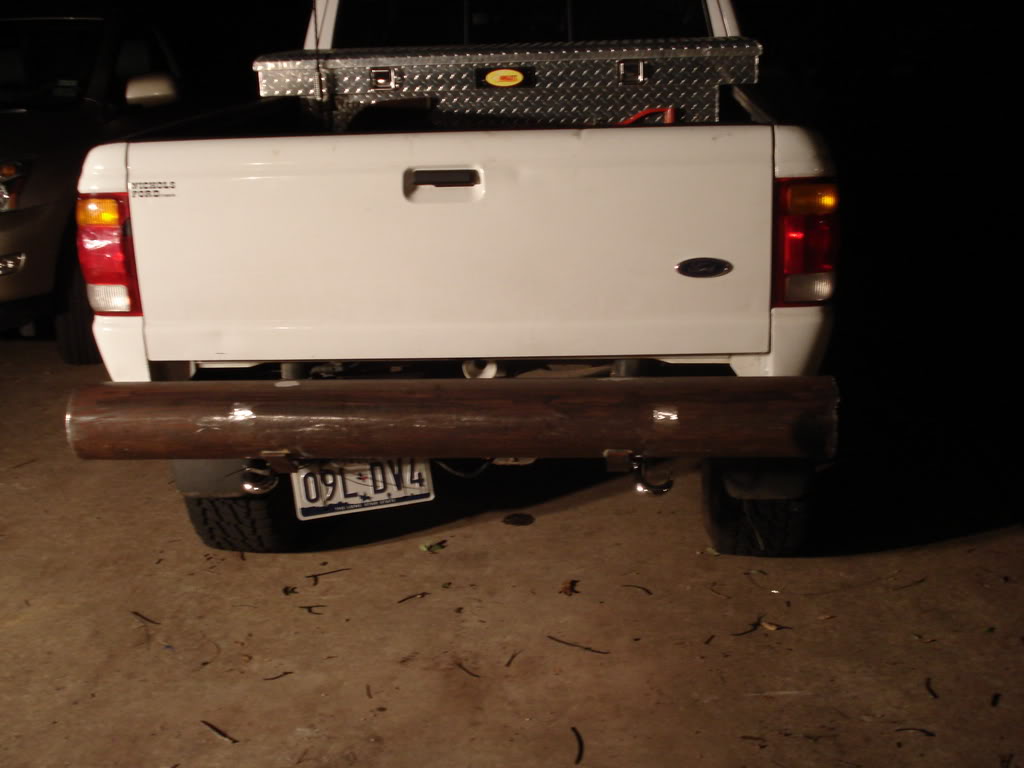

Name:  bumper015.jpg
Views: 15
Size:  68.4 KB

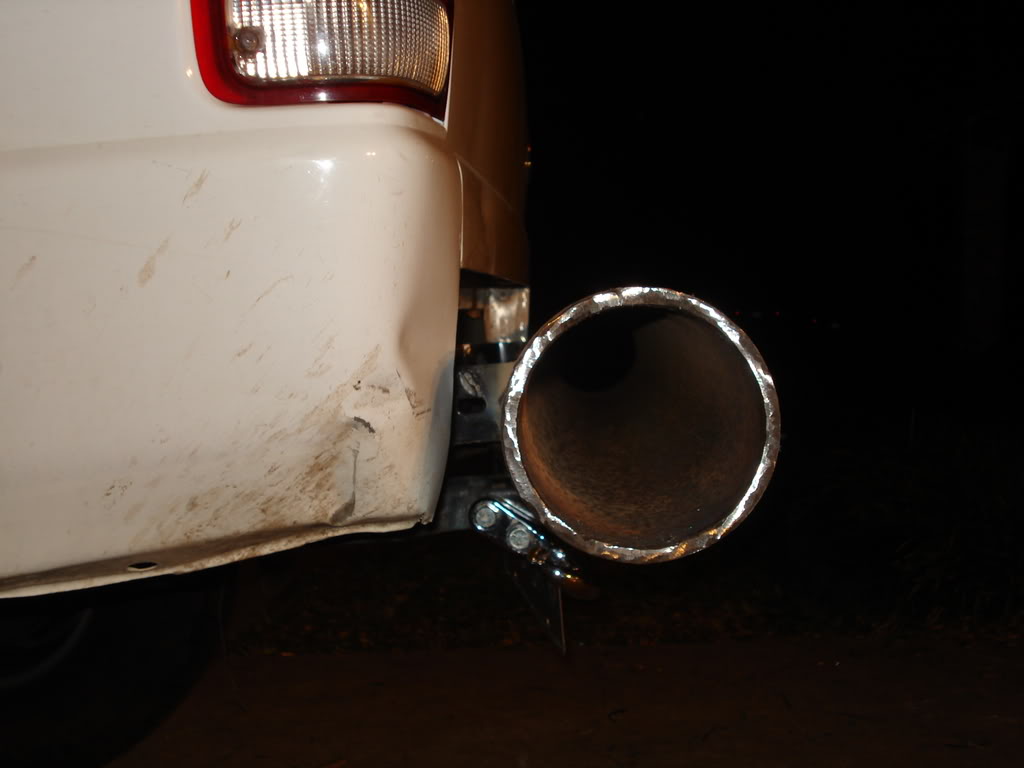

Name:  bumper012.jpg
Views: 13
Size:  54.6 KB

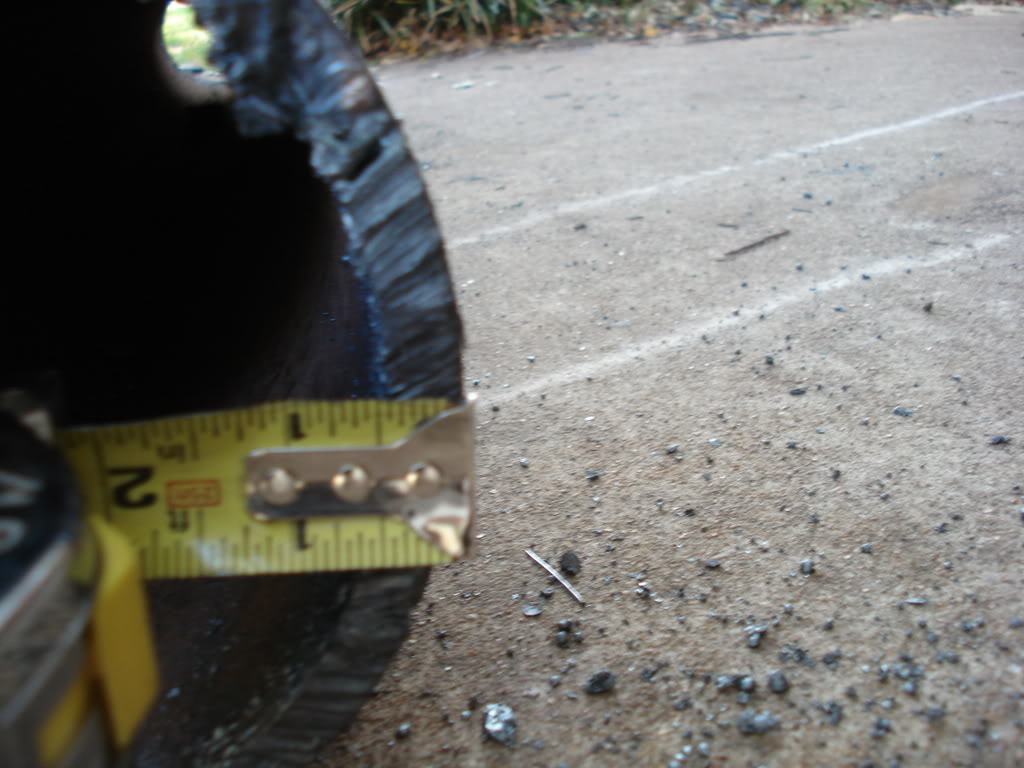

Name:  bumper003.jpg
Views: 14
Size:  102.3 KB

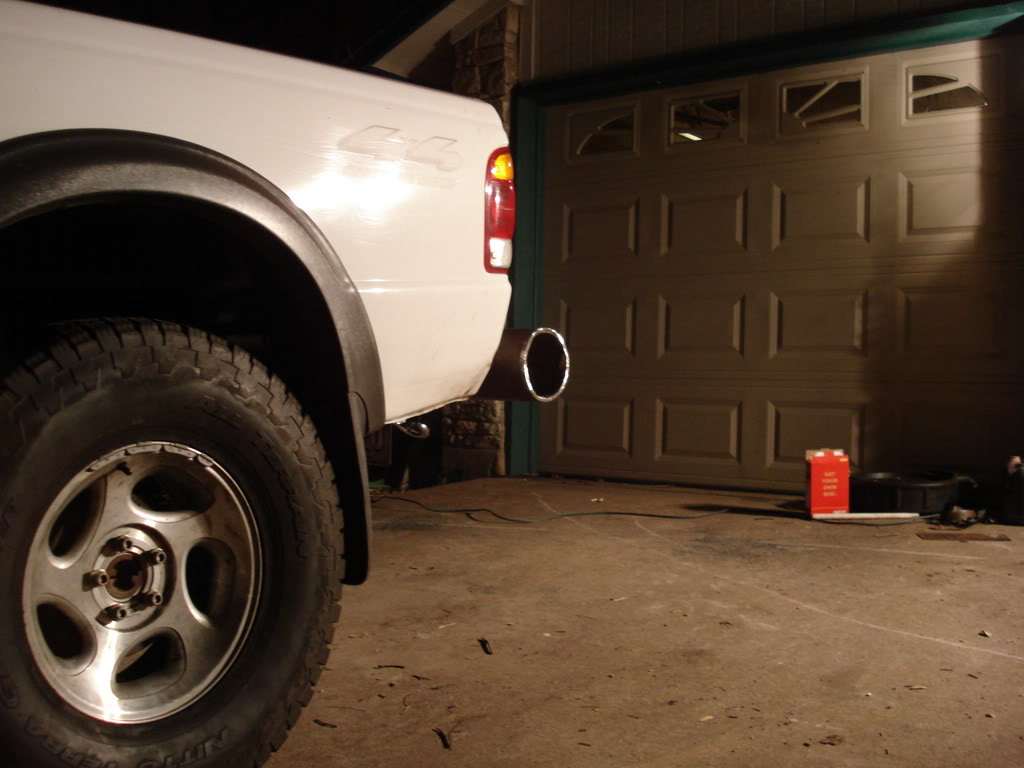

Name:  bumper020.jpg
Views: 18
Size:  78.5 KB

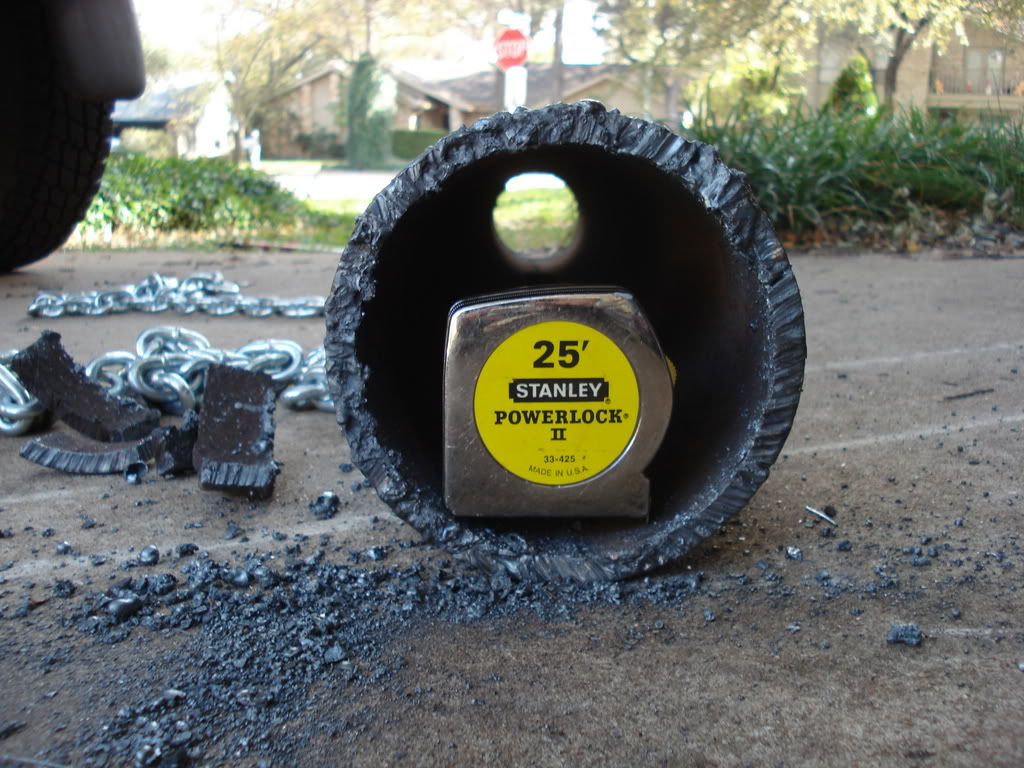

Name:  bumper002.jpg
Views: 102
Size:  161.4 KB

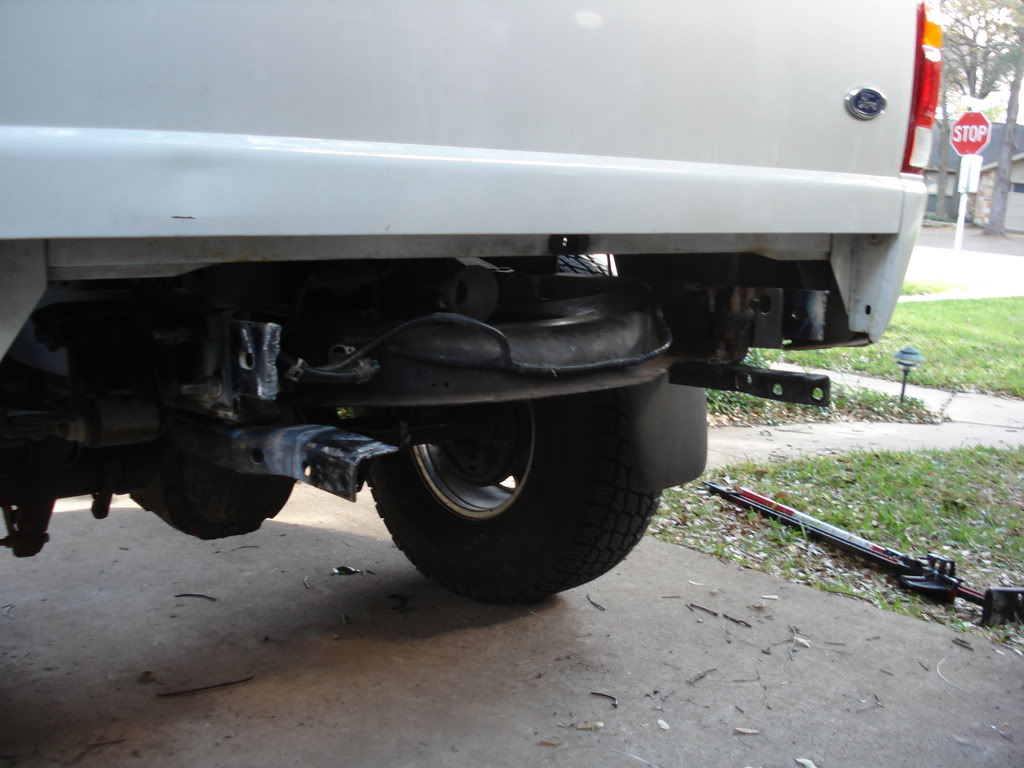

Name:  bumper008.jpg
Views: 13
Size:  95.2 KB

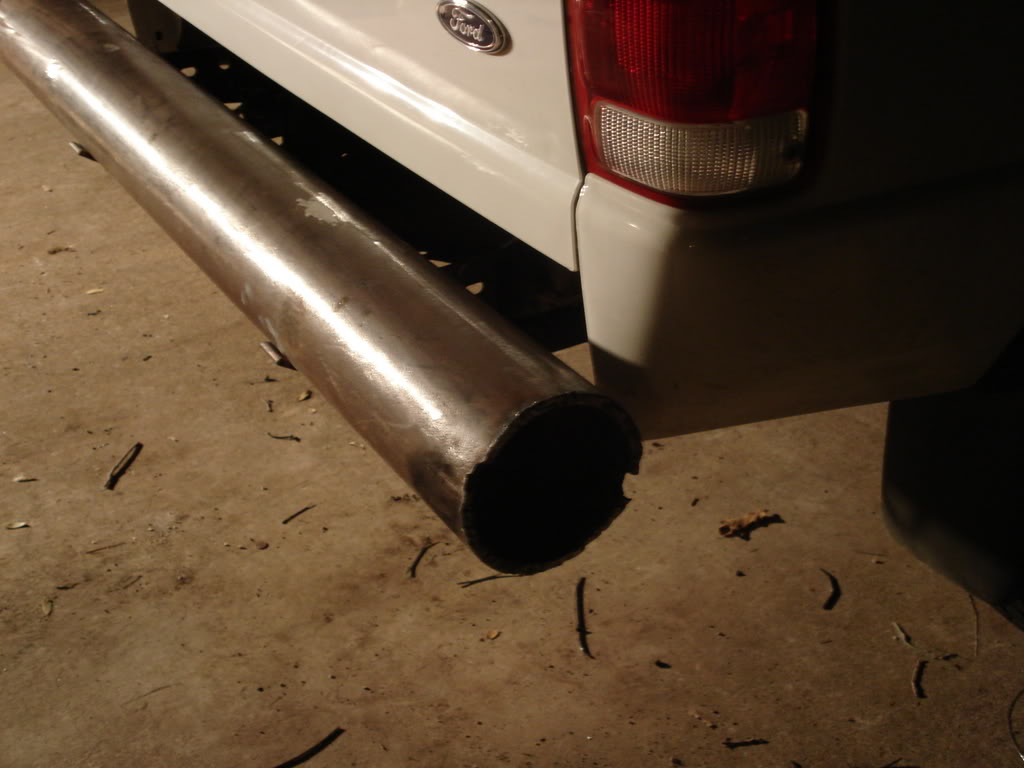

Name:  bumper016.jpg
Views: 15
Size:  76.9 KB

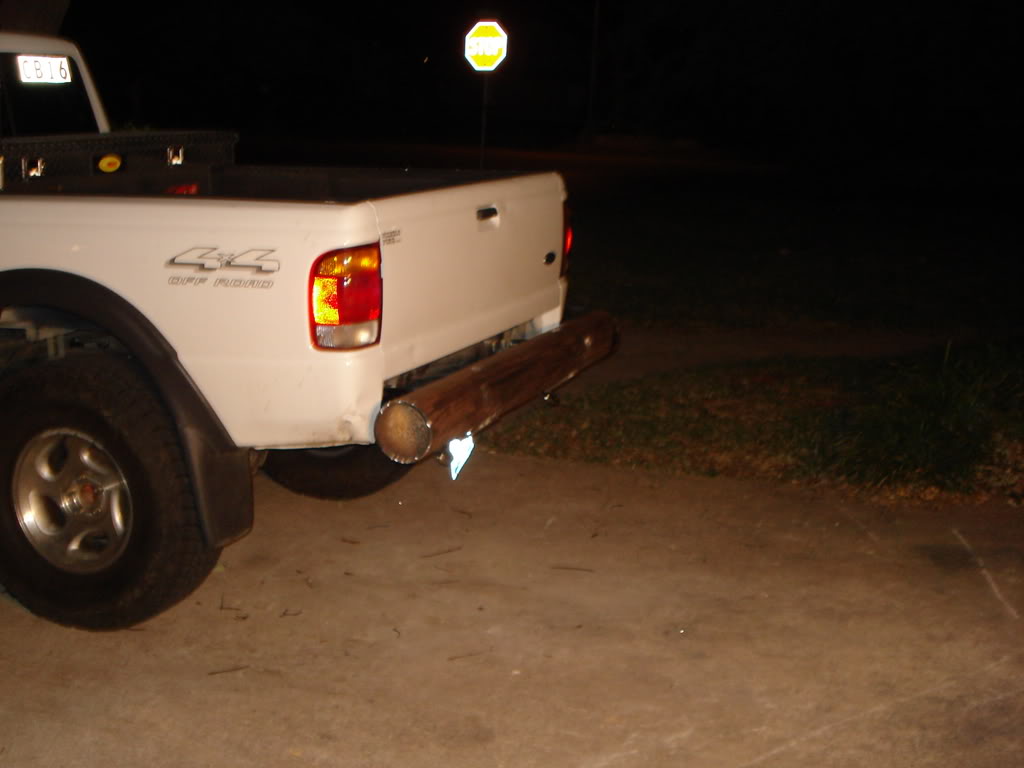

Name:  bumper009.jpg
Views: 33
Size:  55.6 KB

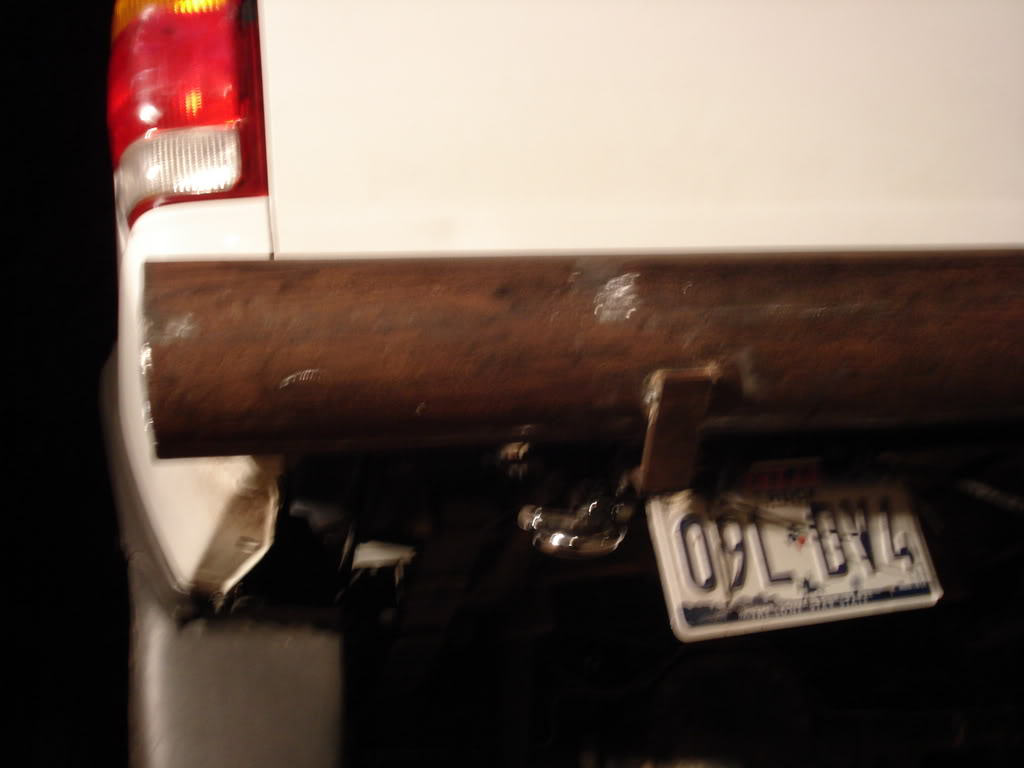

Name:  bumper018-1.jpg
Views: 13
Size:  50.0 KB
Reply With Quote
  #19
Old 12-03-2006
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
ill get some pics up tomorrow of it in the sun.. bad night shots..
Reply With Quote
  #20
Old 12-04-2006
texasbullseye89's Avatar
Member

Join Date: Jan 2006
Location: Huntsville, Tx
Posts: 827
thant things huge... not what i was expecting to see...
Reply With Quote
  #21
Old 12-04-2006
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
hahaha, i paid someone to weld it up today... he said that stuffs not cheap, and i believe him...and yea its a lil big.. but u cant argue w/ free..
Reply With Quote
  #22
Old 12-04-2006
Member

Join Date: Dec 2005
Location: Bay Area, CA
Posts: 730
I pitty the person who rear-ends you..lol
Reply With Quote
  #23
Old 12-04-2006
Lefty04LevelII's Avatar
Member

Join Date: Aug 2005
Location: DFW
Posts: 1,447
My best friend's brother did this to his F-250 a while back. I'm trying to get pics for you. FWIW, may I suggest only bolting the tube/bumper to the frame and not welding it on? I'll have to find a thread about this that Griggs posted. I replied with links from a full size bronco forum regarding custom bumpers and welding or just bolting them.

Frame Flex = bolt flex
Frame flex + welds + bolts = cracked welds + sheared bolts + no bumper.

Friend's bumper

http://www.supermotors.net/vehicles/...y/media/463026

Last edited by Lefty04LevelII; 12-04-2006 at 07:04 PM.
Reply With Quote
  #24
Old 12-04-2006
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
I personally don't that style bumper, but it is because of an accident I was in in '93 when a drunk pulled out in front of my familys brand new full size conversion van and we hit him. He had a bumper like that and it tore up the van(his rear tire bouncing up on the hood didn't help either), but it smashed up my moms ankle, 2 surgeries and 13 years later it still hurts her.

It will look aiight when it's finished, I would hate to see the car that rear ends you! I think my rear bumper would have a similar effect.
Reply With Quote
  #25
Old 12-04-2006
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by Msl747
I pitty the person who rear-ends you..lol
yea, it was funny as hell driving to the welding shop, bc i had tie down straps holding it on incase the welds broke.. u shoulda seen how far back people stayed! haha


but then on my way home, i had a few people almost hit me.. that woulda been game over for their car..
Reply With Quote
