Tiregate Designs

I want to get a tiregate made soon, so i just started working on some designs for it, i decided to go with the VT series style instead of the PreRunner. just messing around on AutoCAD this is what i came up with



the frame of it and hinges are probably going to change when i get proper mesaurements and can find a decent style hinge to use, probably the same as tiregate uses. I also wanted to change the way the tire mounts, instead of the 3 lugs i wanted to do just a thick threaded rod in the middle with one of those "Y" handles or whatever they are called, just to make it easier for removal and putting it on.
i took some measurements off stock tailgate and figured 18.5" tall, and 53.25" wide. I might make it out of 2" square tubing either 1/8" thick or 3/16" thick, just depends how strong it has to be to hold a tire, and what material i can get easier. plus my rear bumper is made out of 2" square.

if anyone has some measurements they can give me, hinges i can use, or things that should be changed/added to the design im open to all suggestions.

i'm also going to be putting a Hi-Lift mount on top
Reply With Quote
  #2
Old 08-27-2009
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Hey buddy - Ill brb, Ill get you measurements for that PM you sent - one moment!

+ I'll also take some more exact photo's of how things are mounted up on it, all the angles.
Reply With Quote
  #3
Old 08-27-2009
ShadowRanger08's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
that would be awesome, there is no rush for it, im about to leave for work anyways :( i just want to have things planned out and figure what materials i need so i can shop around for someone to make it
Reply With Quote
  #4
Old 08-27-2009
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583

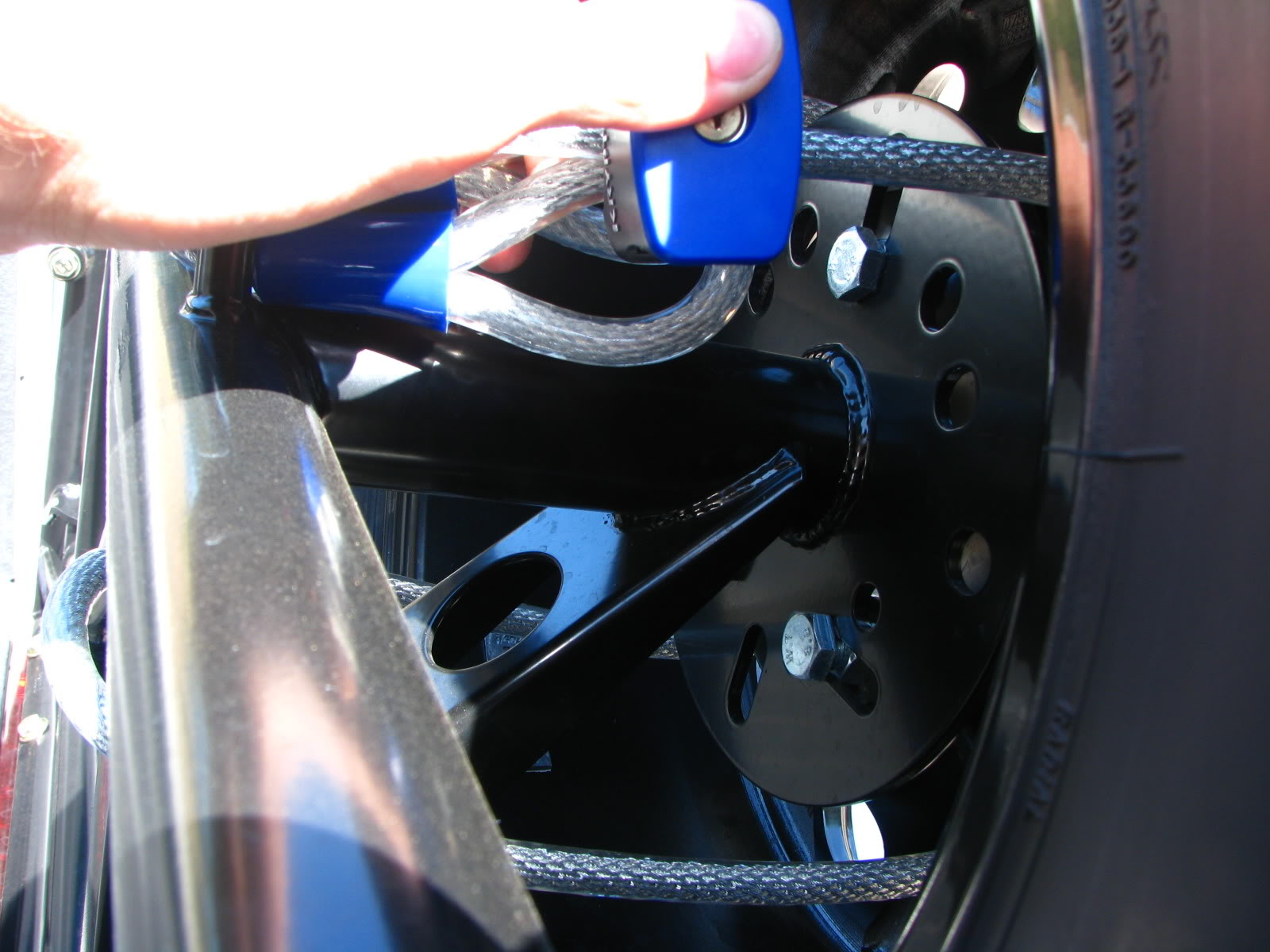

Yeah, I grabbed some photo's for you - shoudl tide the design look over until I can get measurements - have work in ~20 minutes so I have to hop off an get ready.. on emoment whiel they finish uploading.. Ill edit this post when they do =)



Name:  TiregateMeasurement001.jpg
Views: 32
Size:  216.9 KB

Name:  TiregateMeasurement002.jpg
Views: 31
Size:  190.0 KB

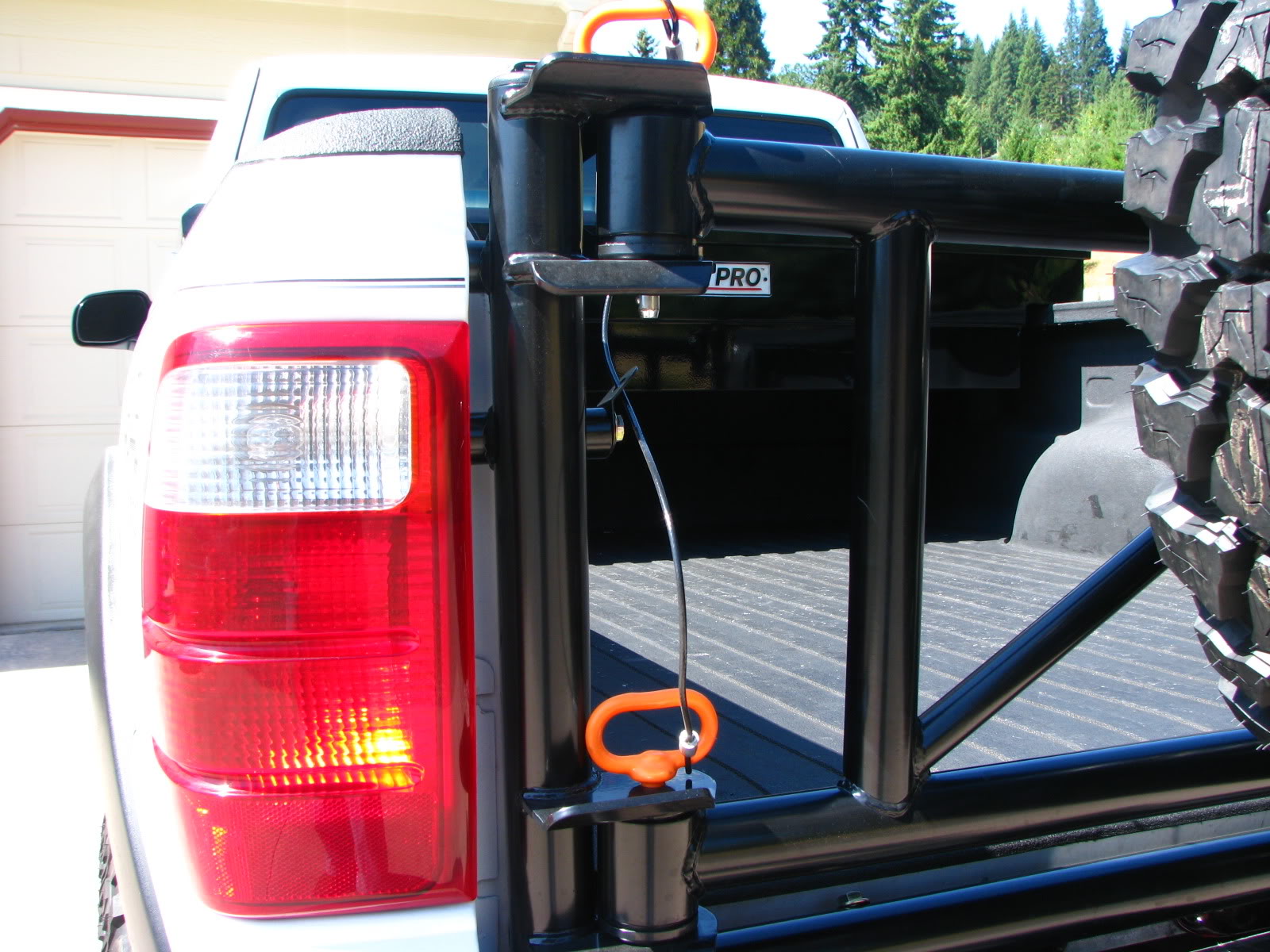

Name:  TiregateMeasurement003.jpg
Views: 94
Size:  302.4 KB

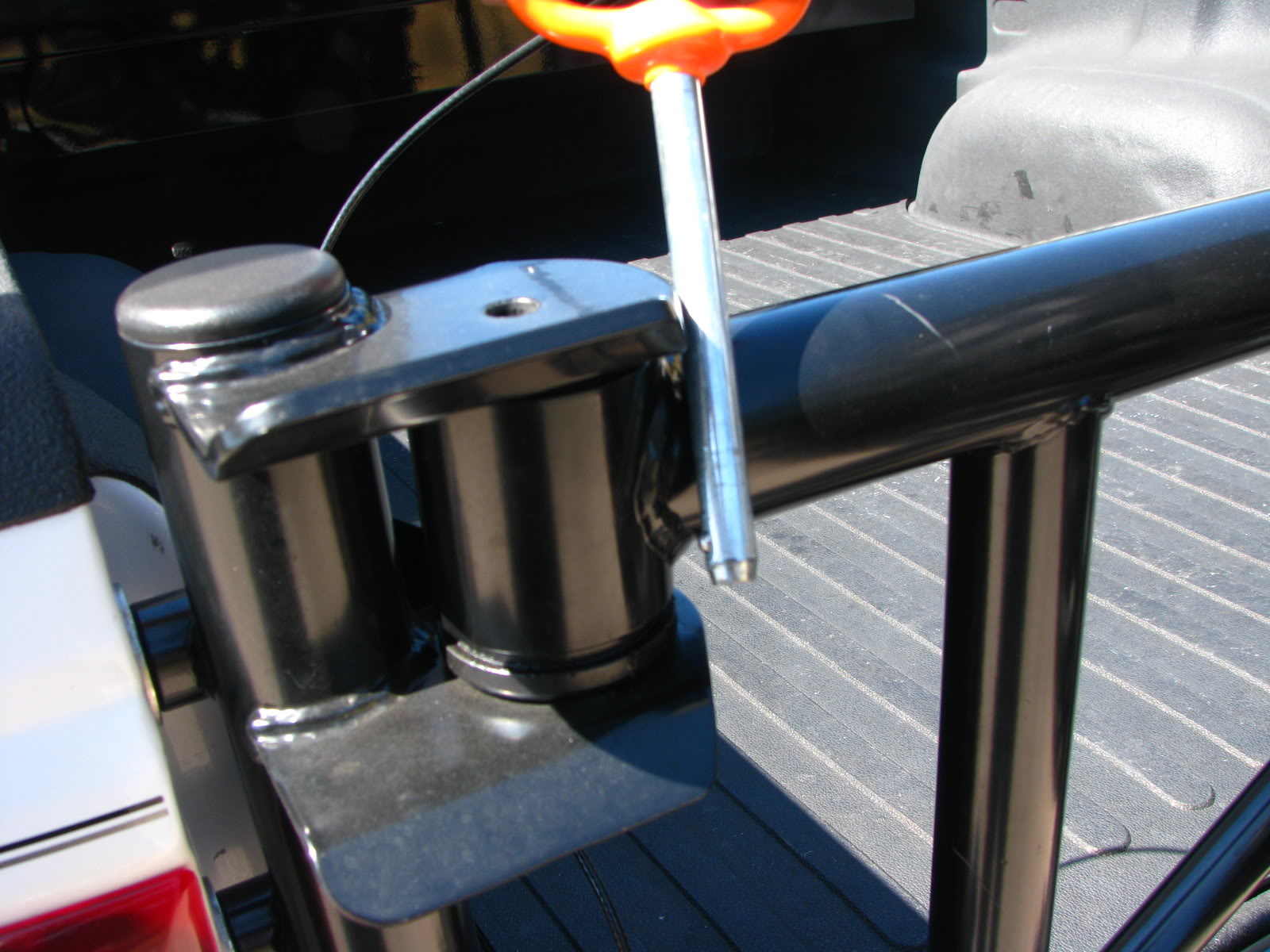

Name:  TiregateMeasurement004.jpg
Views: 68
Size:  242.6 KB

Name:  TiregateMeasurement005.jpg
Views: 31
Size:  224.3 KB

Name:  TiregateMeasurement006.jpg
Views: 33
Size:  199.6 KB

Name:  TiregateMeasurement007.jpg
Views: 32
Size:  312.2 KB

Name:  TiregateMeasurement008.jpg
Views: 30
Size:  152.3 KB

Name:  TiregateMeasurement009.jpg
Views: 38
Size:  348.1 KB

Name:  TiregateMeasurement010.jpg
Views: 31
Size:  194.6 KB

Name:  TiregateMeasurement011.jpg
Views: 42
Size:  220.5 KB

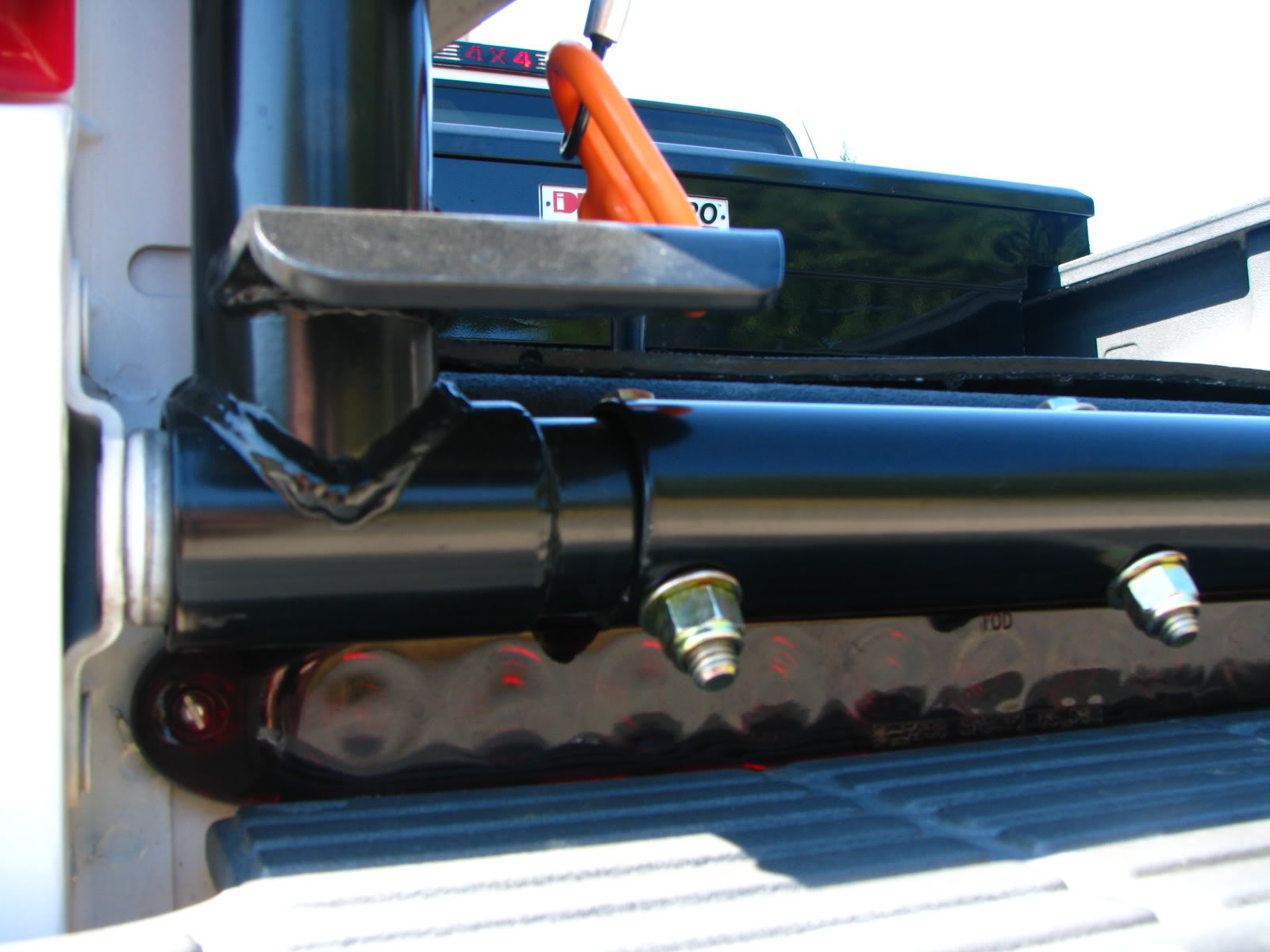

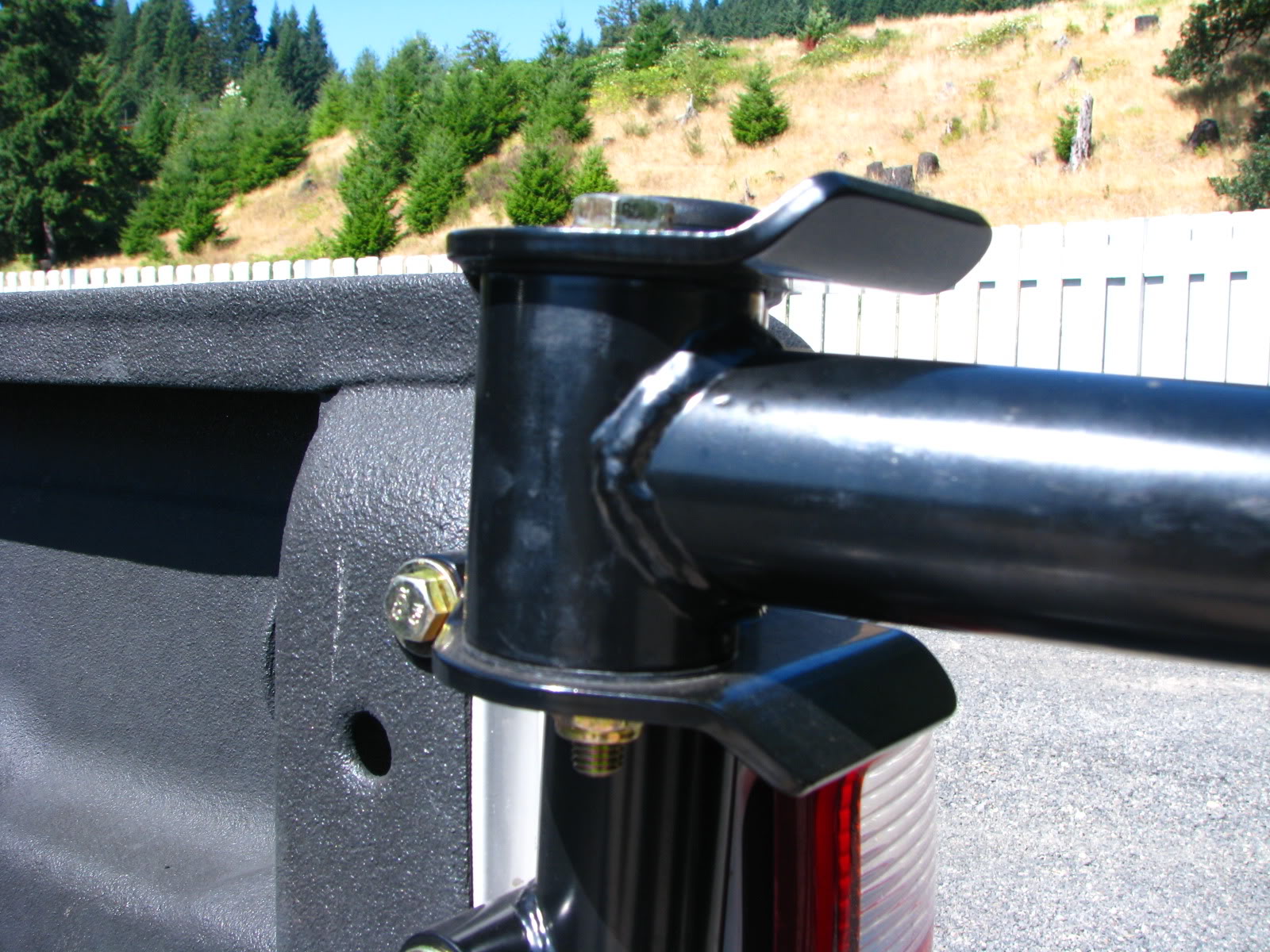

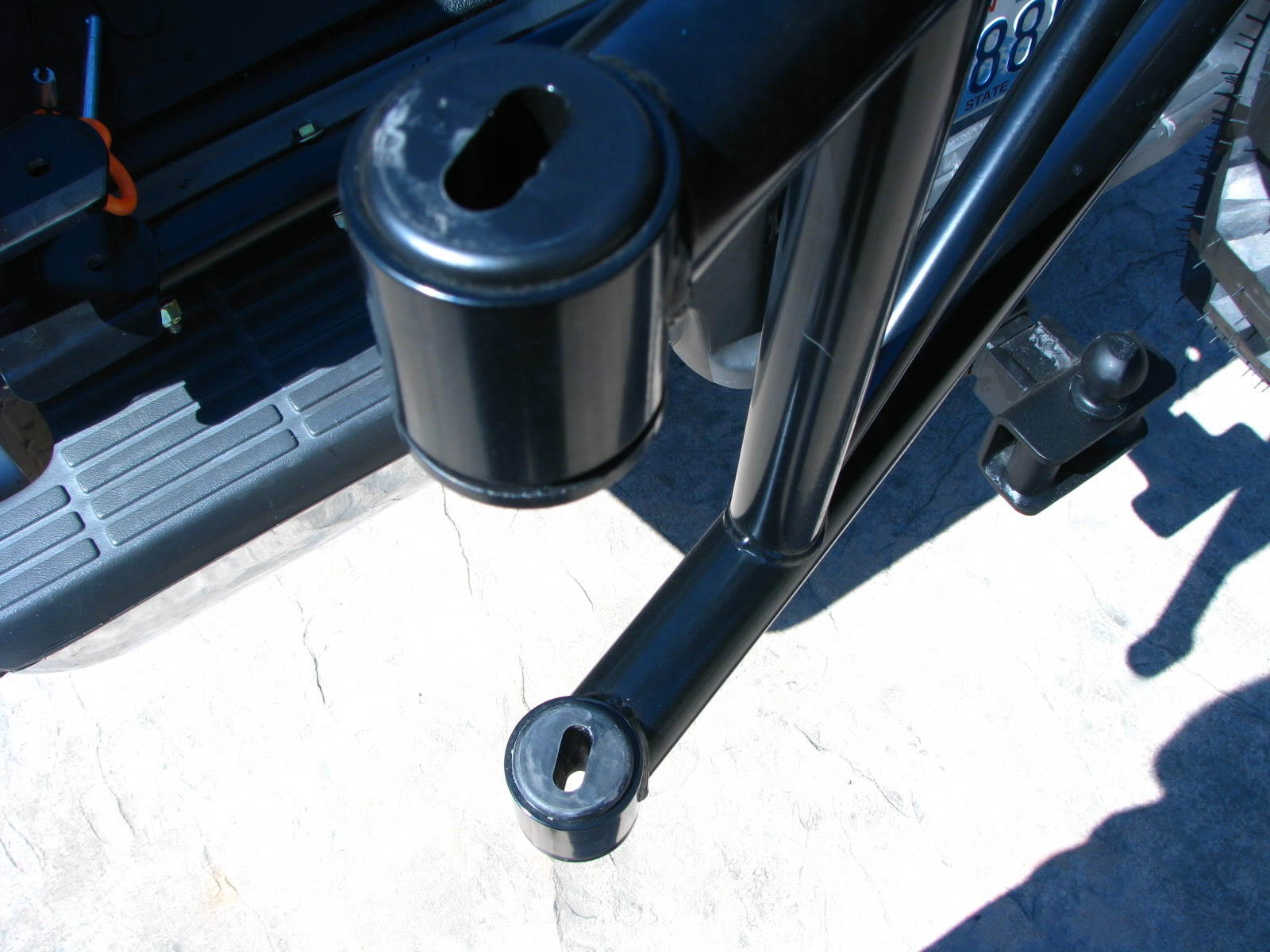

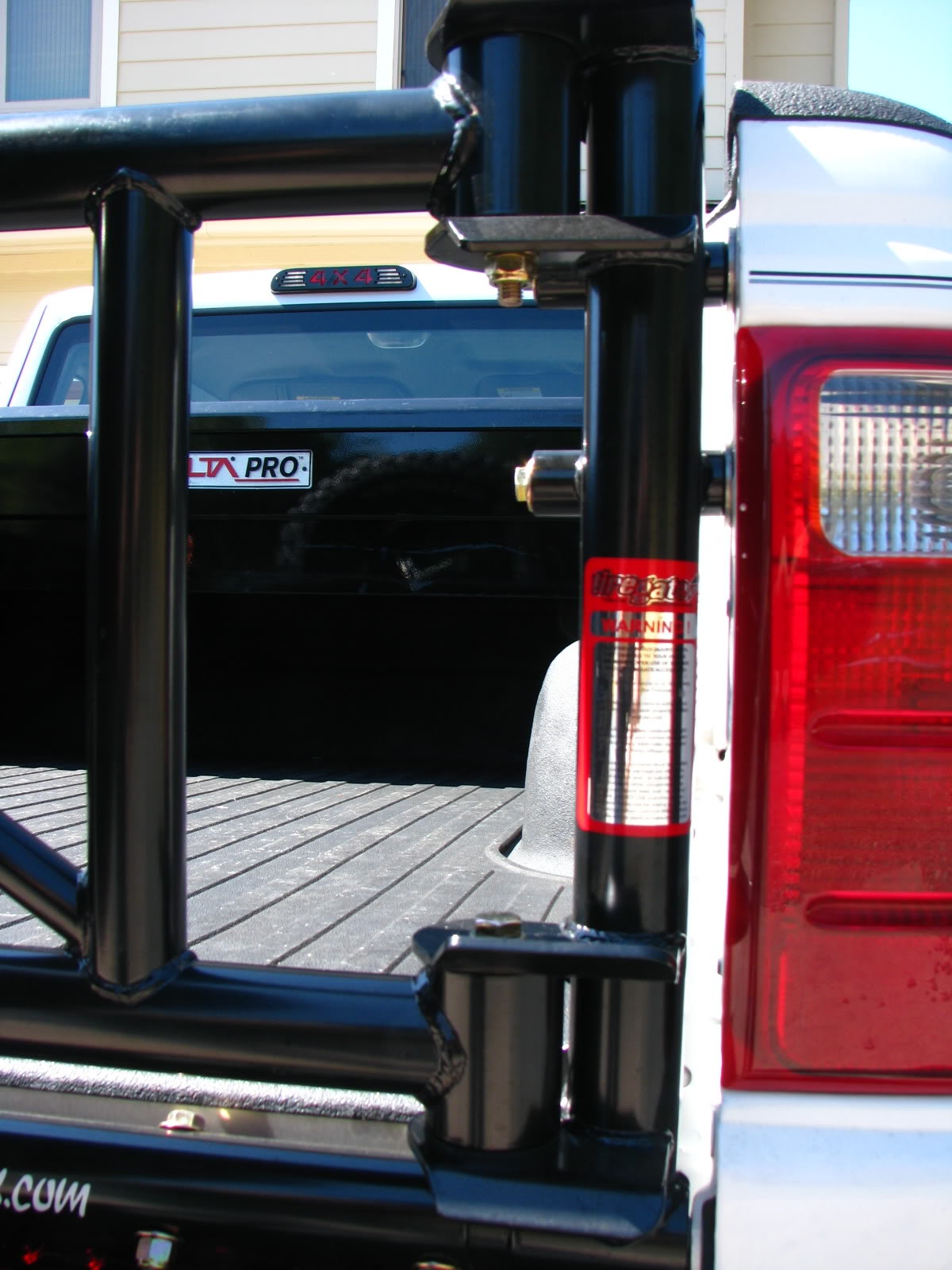

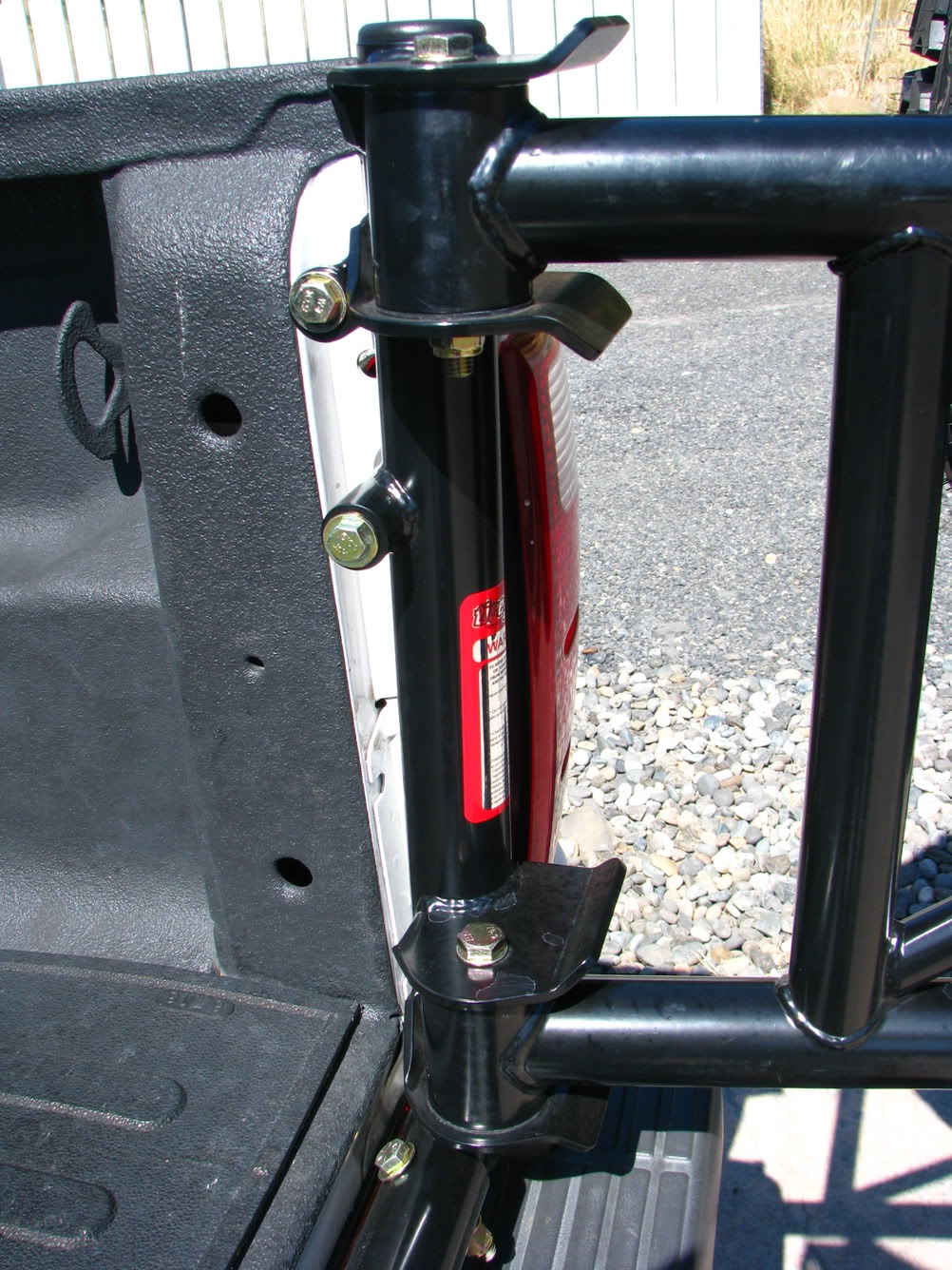

The hinge uses some hard silicone gasket style washers in between the frame, and the gate - then you put a small amount of lube in between to make sure it wont bind (Ive opened this many times and its still as good as the day I got it)

The bar in the middle is a crimp-style bar - you have the two bolts on either end that you use to clamp the middle bar down after its installed, helps keep everything in place. Might be able to get away with a solid mounted bar - this jsut makes installation easier.

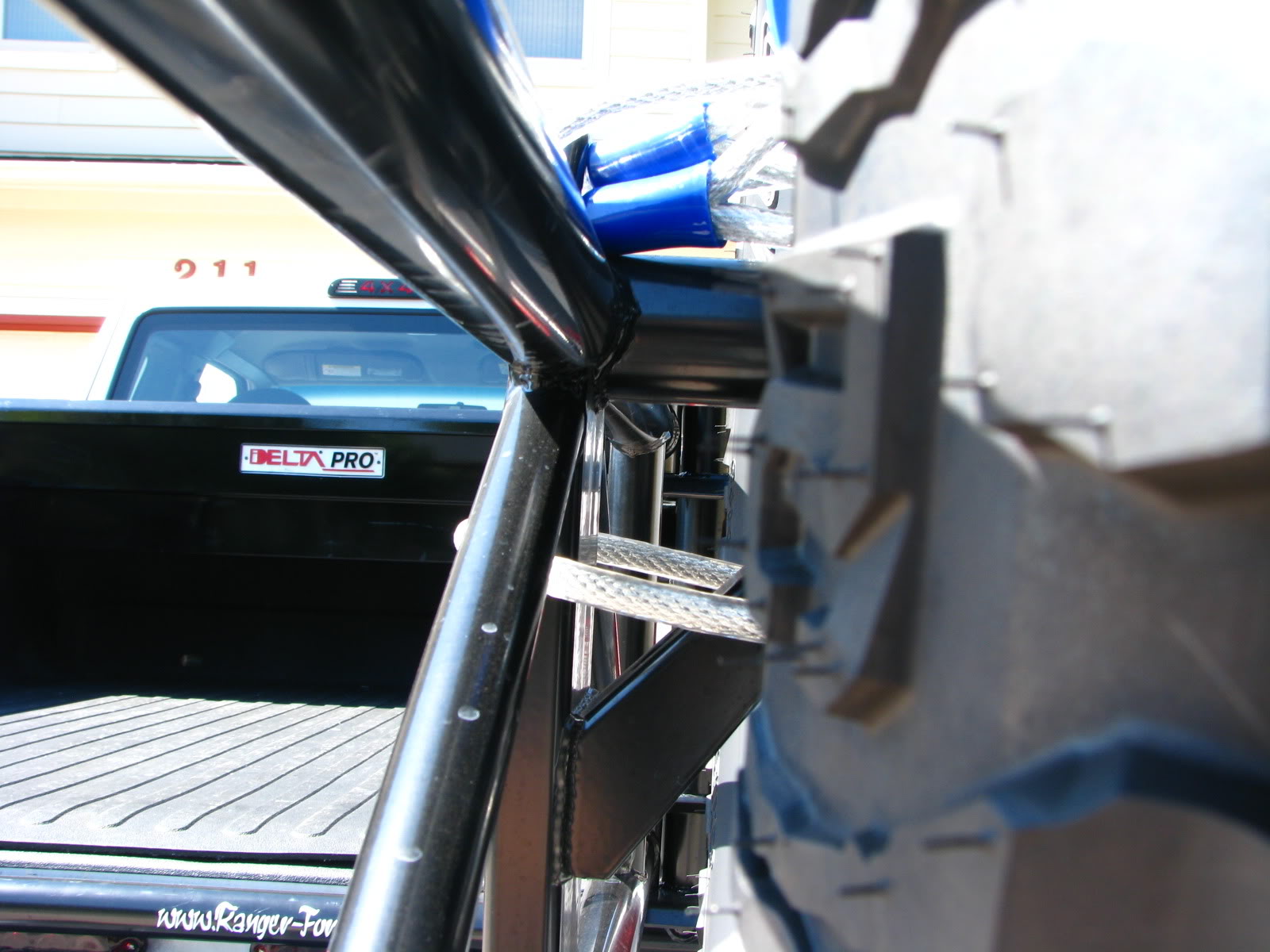

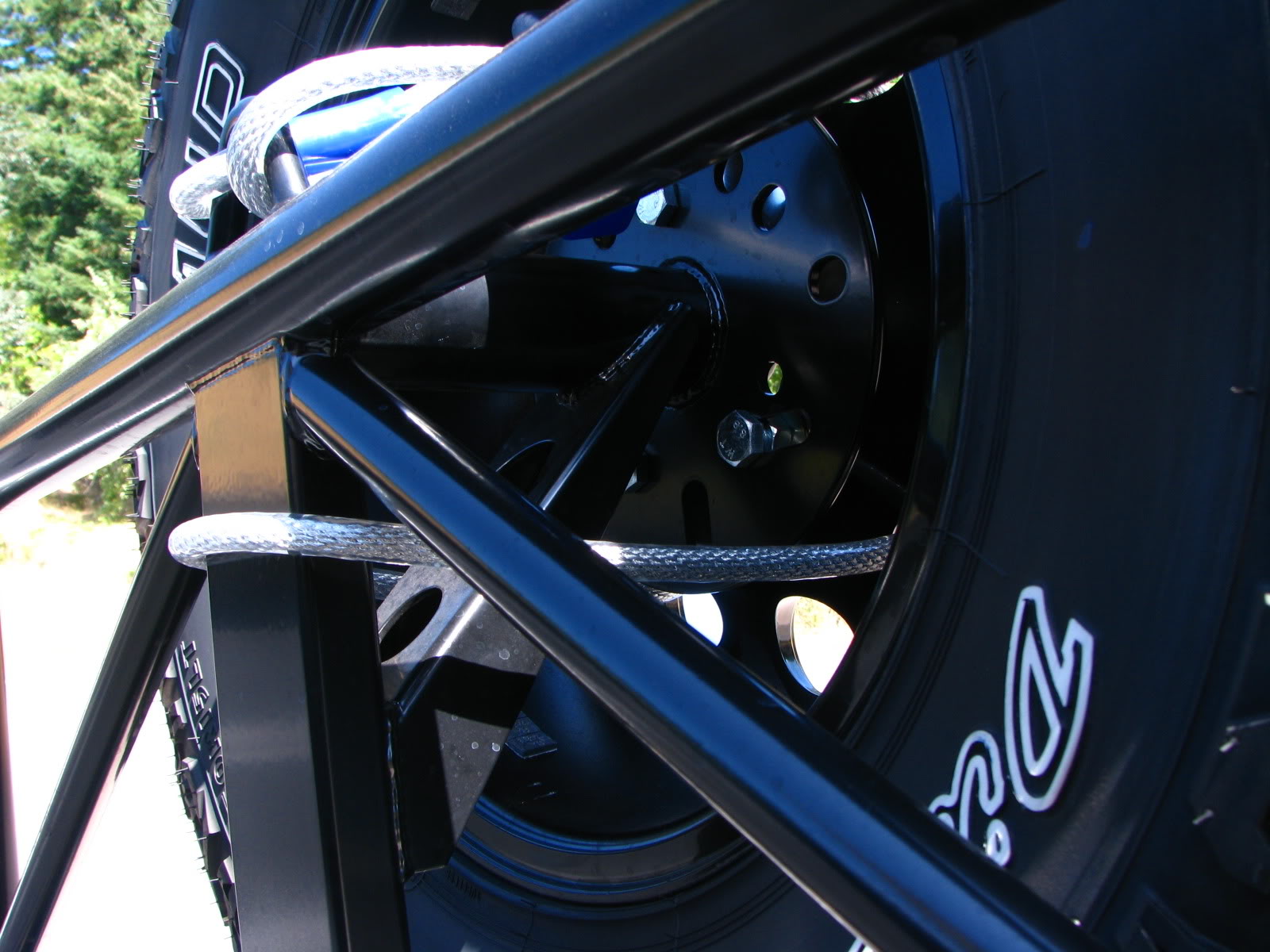

As you can tell from the tiremount - its pushed back from the gate several inches by a support bar and bracket setup - then the plate is welded to that.. woudl be very easy to install one of those Y shaped giant threaded clamp things for installing tires. Would need a hoop welded to the back liek in the pictures, to run a security wire through - I picked up the one I have at walmart for 20 bucks, real thick cable as thick as my thumb, and a heavy duty weatherproof lock to go with it.

Last edited by WowMike2001; 08-27-2009 at 04:31 PM.
Reply With Quote
  #5
Old 08-27-2009
ShadowRanger08's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
thanks a lot
Reply With Quote
  #6
Old 08-27-2009
ShadowRanger08's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
nice, those hinges are actually pretty easy to make, id just have to find some sort of bushing. the security lock, i may just drill a hole through the threaded rod and put a lock through it so the only way to get it off is to cut.

the pictures help loads, thank you muchly
Reply With Quote
  #7
Old 09-04-2009
silverbullet32's Avatar
Member

Join Date: Jan 2009
Location: Skagit Valley, Washington
Posts: 1,175
thats gonna be sick
Reply With Quote
  #8
Old 09-08-2009
Off-roadranger04's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: Newark, Delaware
Posts: 1,751
i want a tire gate... E-mailed VT and they said the gates dont fit flairsides!!! SOBs!!!
Reply With Quote
  #9
Old 10-26-2009
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
buy one and cut it down then re weld..... i like that style that looks like a bronco 2.
Reply With Quote
  #10
Old 10-29-2009
hntnnut's Avatar
Member

Join Date: May 2008
Location: Lone Pine, CA
Posts: 21

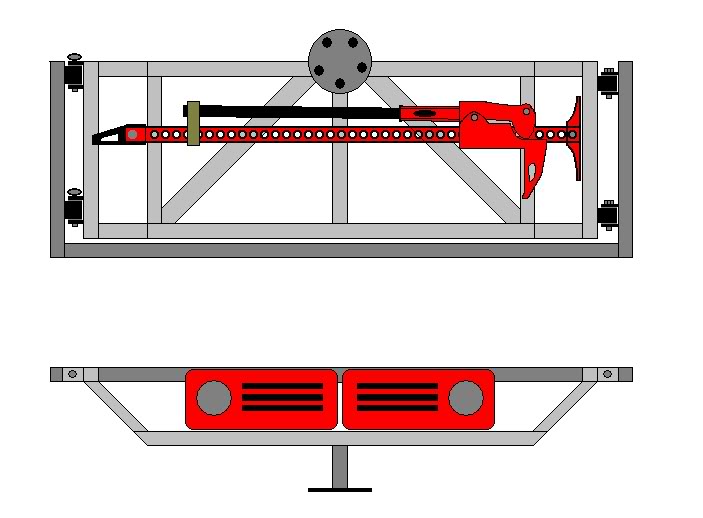

Played around with what you did and came up with this on paint.


Richard
Name:  tailgate.jpg
Views: 32
Size:  38.7 KB
Reply With Quote
  #11
Old 10-29-2009
ShadowRanger08's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
thats pretty sweet for paint haha. im not sure what i want to do anymore, go all out tiregate, or just do a swing out jimmy style and keep my stock tailgate...but im still thinking tiregate.
seriously, how the hell did you do that on paint!? lol
Reply With Quote
  #12
Old 10-29-2009
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
i remember when i was younger and was always having pipe dreams of what i wanted my bronk to be. i always drew out a rear bumper/tailgate storage thing.

ahh some memories i don't want to think about there......
Reply With Quote
  #13
Old 11-07-2009
PlumCrazy's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: Canal Winchester, OH
Posts: 65

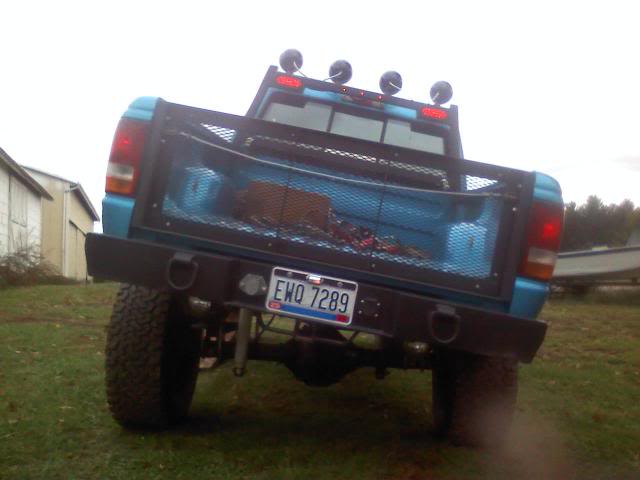

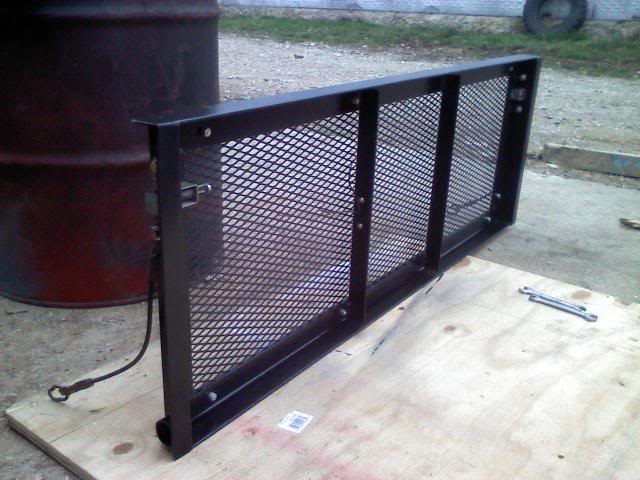

I made a tailgate for my truck a long time ago, and I filled the opening with expanded metal. My used the stock pivots pits and latches. I made mine so I had better viability when backing up to trailers or over cars lol

Name:  1016091539.jpg
Views: 44
Size:  28.8 KB

Name:  0331091650.jpg
Views: 37
Size:  52.5 KB

Name:  0331091651.jpg
Views: 33
Size:  37.6 KB

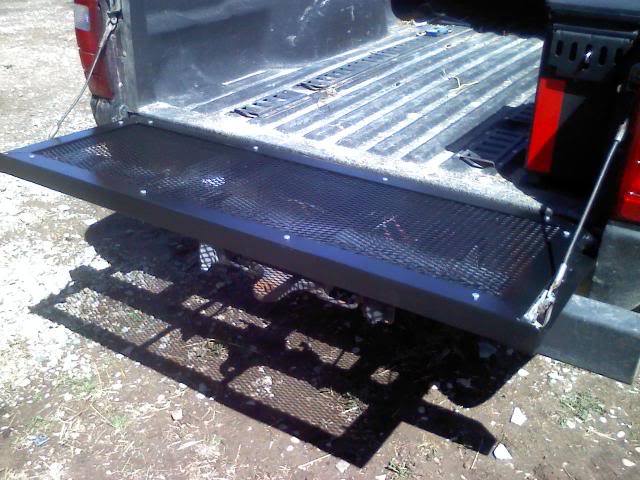

It was on my 2wd for a while, but I put it on my 4x4 so I could see things that were in the 10 foot blind spot behind me lol
Name:  0401091303.jpg
Views: 30
Size:  60.5 KB

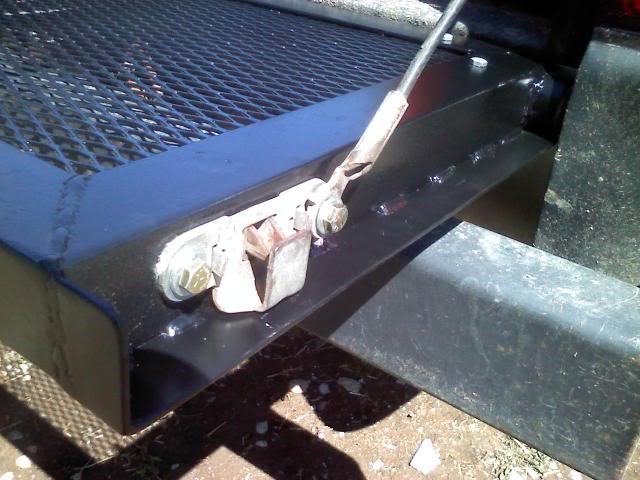

Name:  0401091303a.jpg
Views: 33
Size:  50.4 KB
Reply With Quote
  #14
Old 11-07-2009
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
looks nice.. and functional... thats a nice idea.. specially if u need to haul stuff that require to have ur bed open for the trip
Reply With Quote
  #15
Old 11-09-2009
FMD's Avatar
FMD FMD is offline
Member
iTrader: (1)

Join Date: Aug 2005
Location: Amherst NY
Posts: 3,811
Ford spent millions and solved the whole 'where to put the spare' problem.
Reply With Quote
  #16
Old 11-09-2009
Toms994x4's Avatar
Member
iTrader: (4)

Join Date: Jul 2009
Location: Sanford, NC
Posts: 1,300
Quote:
Originally Posted by FMD View Post
Ford spent millions and solved the whole 'where to put the spare' problem.
Do you have ANY knowledge about Rangers? When you fit a bigger tire than the stock spare size in that location, let us all know please.
Reply With Quote
  #17
Old 11-09-2009
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
Quote:
Originally Posted by FMD View Post
Ford spent millions and solved the whole 'where to put the spare' problem.
along with every other company that sells trucks BUT just wait until YOU wanna fit a 32inch+ tire in there, good luck! youll see this thread again...
Reply With Quote
  #18
Old 11-09-2009
Ace's Avatar
Ace Ace is offline
Member
iTrader: (4)

Join Date: Aug 2007
Location: Central, Illinois
Posts: 3,448
Quote:
Originally Posted by FMD View Post
Ford spent millions and solved the whole 'where to put the spare' problem.
and?
Reply With Quote
  #19
Old 12-01-2009
93rangerXLT4x4's Avatar
Member

Join Date: Aug 2009
Location: Salmon Arm BC
Posts: 959
Quote:
Originally Posted by PlumCrazy View Post
I made a tailgate for my truck a long time ago, and I filled the opening with expanded metal. My used the stock pivots pits and latches. I made mine so I had better viability when backing up to trailers or over cars lol






It was on my 2wd for a while, but I put it on my 4x4 so I could see things that were in the 10 foot blind spot behind me lol


i really like this gate.. the past few days i have been thinking about what i could build for my truck to finally get away from the "stock" look.. because we all know stock sucks.. so i am seriously thinking about building one of these.. i do have a question though.. when the gate is close how does it latch?? i would use the original mounting hardware also like you did.
Reply With Quote
  #20
Old 12-01-2009
PlumCrazy's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: Canal Winchester, OH
Posts: 65

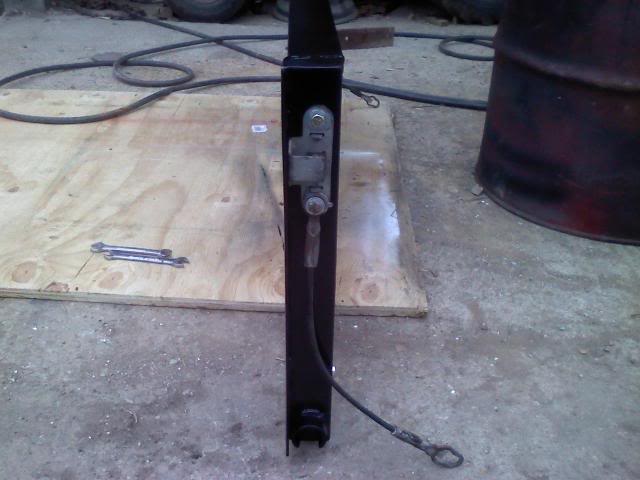

It latches just like stock, they are the stock latches in the stock location. Just measure how far from the center of the hinge they are on the stock one, then use the same spacing on your new gate. you have to cut a 1x1.25 hole to slip them trough the metal, then drill the two 5/16 holes for the bolts.

-plumcrazy
Reply With Quote
  #21
Old 12-01-2009
ShadowRanger08's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
Quote:
Originally Posted by FMD View Post
Ford spent millions and solved the whole 'where to put the spare' problem.
a 35" tire doesn't exactly fit there, with a hitch, the 235/75/15 barely fits there.

i cant decide now if i want to go full gate or jimmy style (keep tailgate and have a gate over it)
Reply With Quote
  #22
Old 12-01-2009
93rangerXLT4x4's Avatar
Member

Join Date: Aug 2009
Location: Salmon Arm BC
Posts: 959
Quote:
Originally Posted by PlumCrazy View Post
It latches just like stock, they are the stock latches in the stock location. Just measure how far from the center of the hinge they are on the stock one, then use the same spacing on your new gate. you have to cut a 1x1.25 hole to slip them trough the metal, then drill the two 5/16 holes for the bolts.

-plumcrazy
sweet thanks.. im going to play around with it today and see what i can come up with.
Reply With Quote
  #23
Old 12-01-2009
lepp1892's Avatar
Member

Join Date: Oct 2007
Location: Almont, MI
Posts: 103

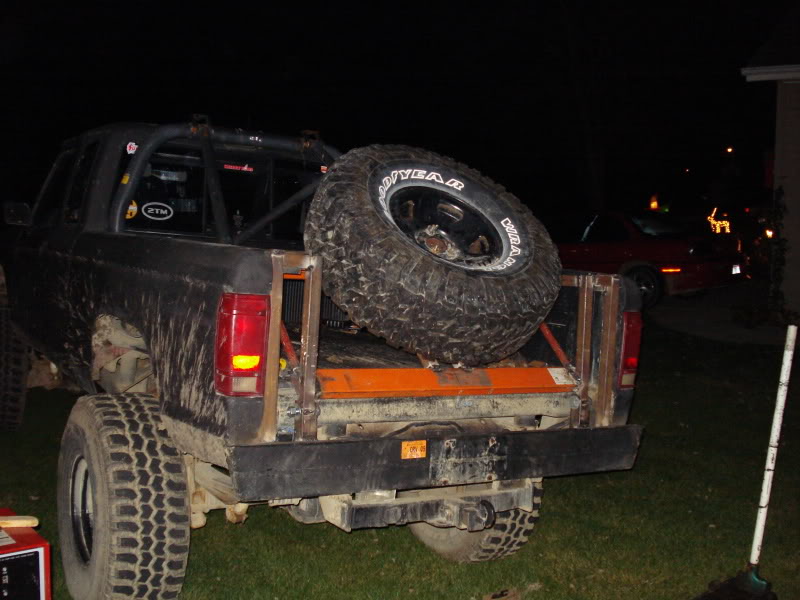

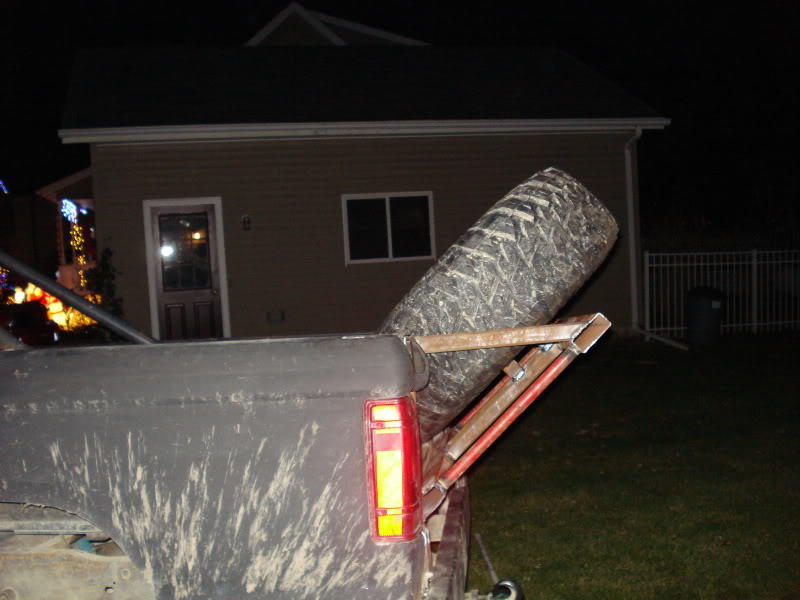

Here is my interpretation of a tiregate

Name:  DSC00202.jpg
Views: 31
Size:  90.3 KB

Name:  DSC00206-1.jpg
Views: 33
Size:  76.3 KB
Reply With Quote
  #24
Old 12-02-2009
Member

Join Date: Jul 2009
Location: Madisonville, KY
Posts: 159
looks good....just need to cap the ends of the tubes...

l8r, John
Reply With Quote
  #25
Old 12-02-2009
ShadowRanger08's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
looks good, do you have any more pictures?
